1Pcs Spi Repeater Super Mini Ttl Signal Led Amplifier For Ws2811 Ws2812B Ws2815 Sk6812 3Pin/4Pin Ic Led Strip String Module

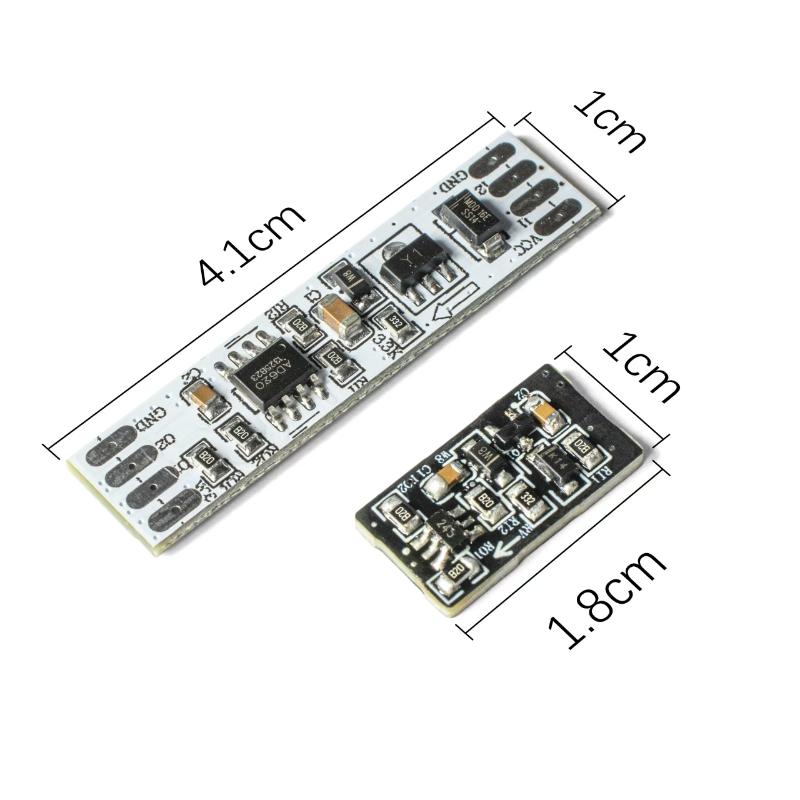

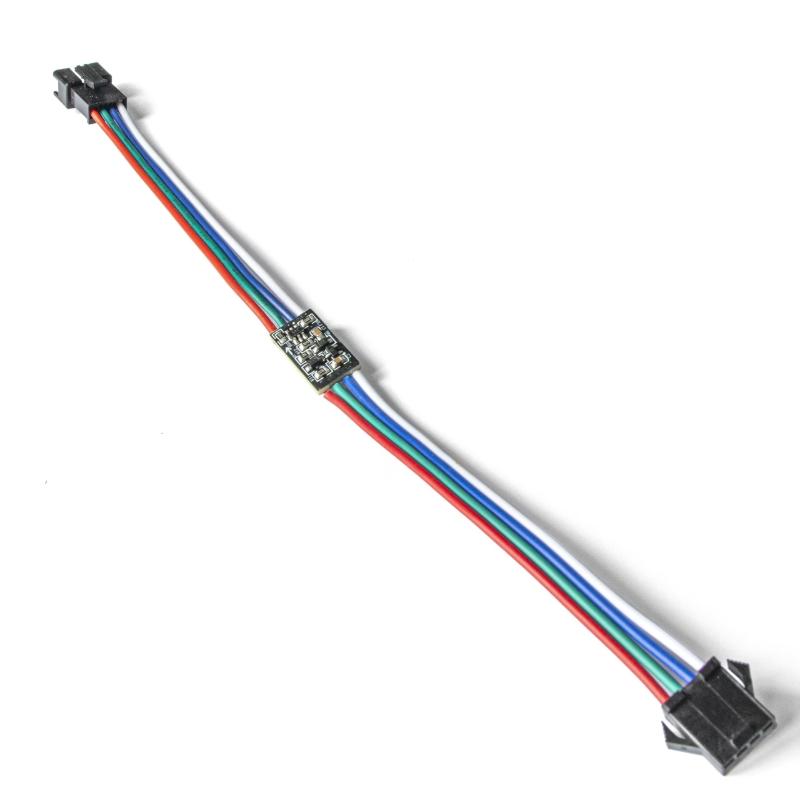

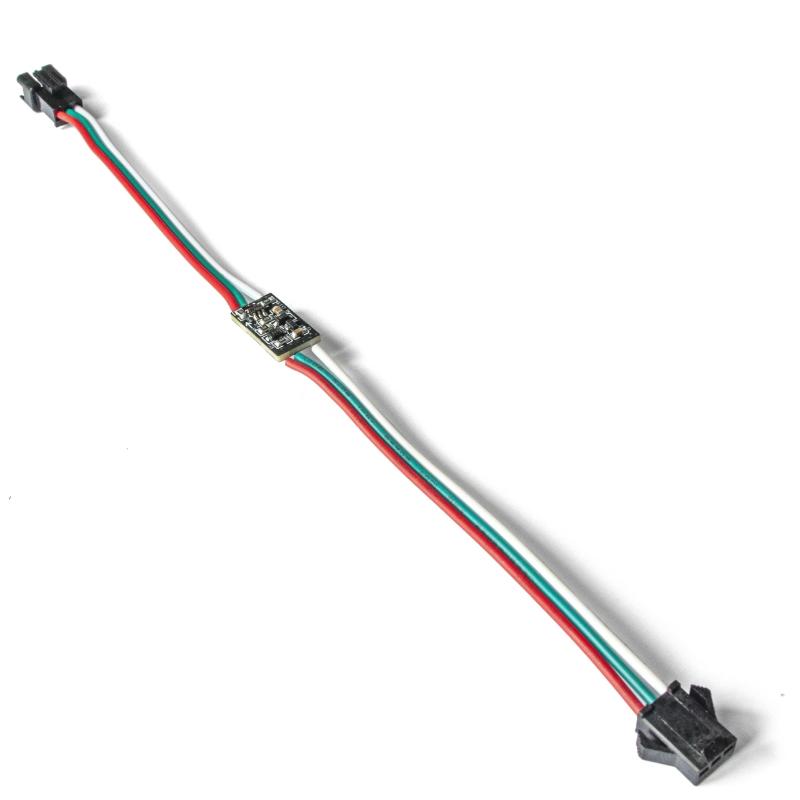

Description Amplifier is used for LED light strips with IC, function is amplify SPI signals! Instead of increasing circuit power or changing the maximum number of LEDs that the controller can control. Does not support DMX512 signal This is very important, please do not misunderstand the function of the amplifier, such as thinking that the amplifier can increase the number of control points or power!! Specifications: Material: Metal Size: As picture Packing: 1pcs Regarding the explanation of options: mini bare board : No soldering, only circuit board! mini 3pin to 3pin : Welding JST SM 3 Pins Plug Male and Female Wire Connector at both ends mini 4pin to 4pin : Welding JST SM 4 Pins Plug Male and Female Wire Connector at both ends Application scenario usage: Problem solved with SPI-TTL MIN signal amplifier: Resolve issues such as poor signal transmission or abnormal jitter between two lighting fixtures due to long connection distances; Or if one signal is connected in parallel to form multiple sets of lamps, resulting in insufficient signal. characteristic: Supports 5-24V access; Can prevent reverse connection; Easy to hide in size: 10 * 18mm usage method: Connection sequence: "LED STRIP 1-amplifier-long wire--led strip 2";

usage suggestions: Connect two amplifiers in parallel and then connect them to the next light fixture for better amplification effect; Note: 1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received. 2. Please allow slight manual measurement deviation for the data. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
