Feature:
1. PID: PID heater controller adopts industrial grade professional self tuning PID technology, which has the characteristics of fast temperature control and small overshoot compared with traditional ones.
2. INTELLIGENT TEMPERATURE CONTROL: Digital PID thermostat set is a practical thermostat, intelligent temperature control, simple operation can help the operator to get good results.
3. MULTI FUNCTION: Digital PID temperature controller set is a multi unction controller with quick response and high accuracy, with a dedicated microprocessor switching power supply and SMT.
4. DURABLE STAINLESS STEEL HOUSING: Digital PID thermostat probe is made of stainless steel housing and resin sealing treatment, waterproof and rust free, long service life.
5. WIDE USE: PID temperature controller can be widely used in farm breeding, chicken coop, electric power, chemical, injection molding, food, incubator, oven and other equipment.
Specification:

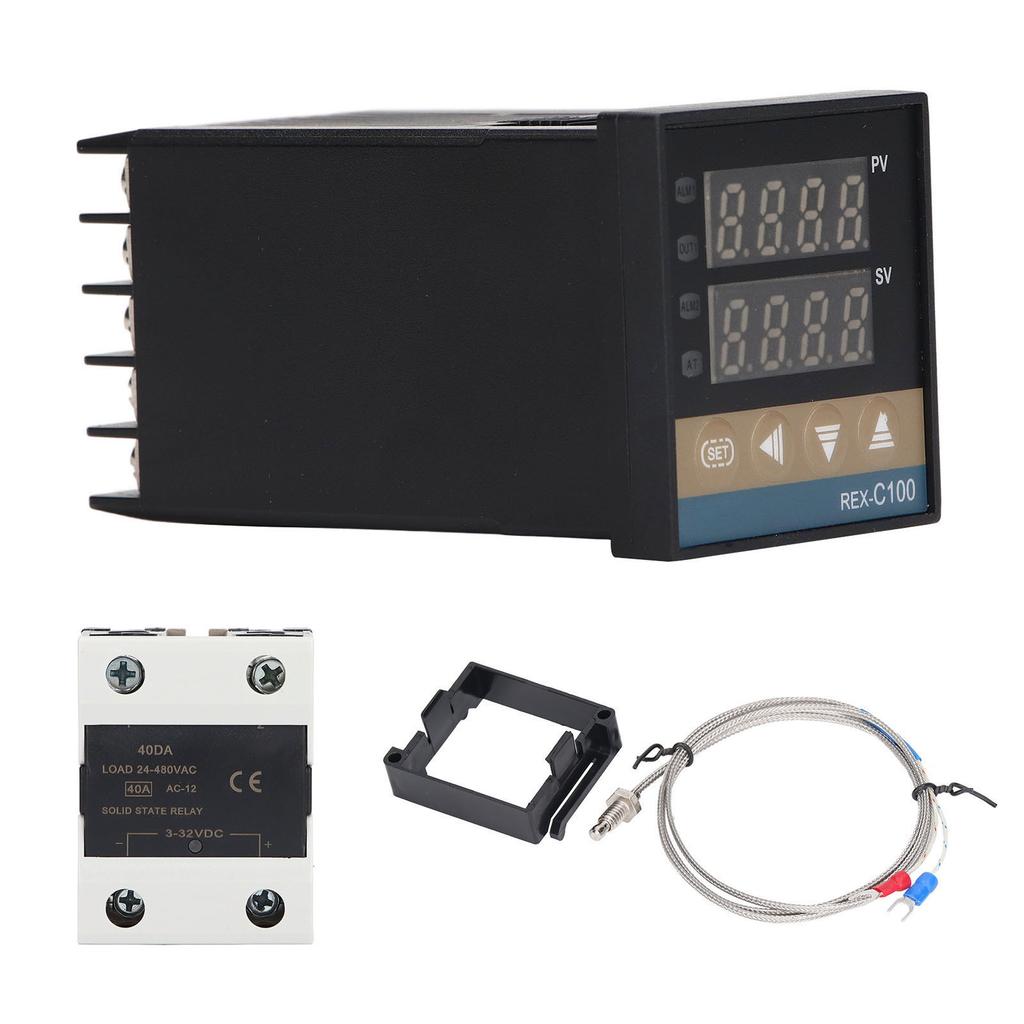

Item Type: Digital PID Thermostat Set
Material: Plastic

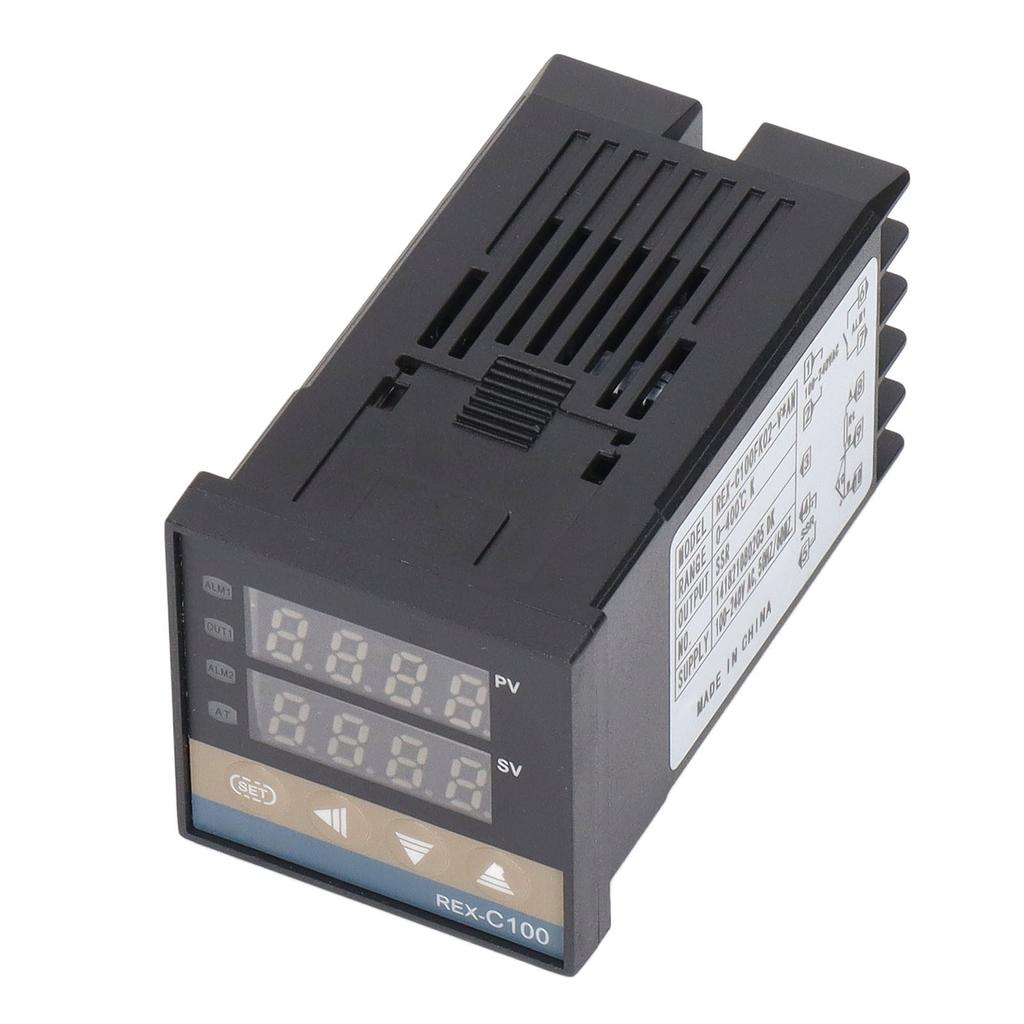

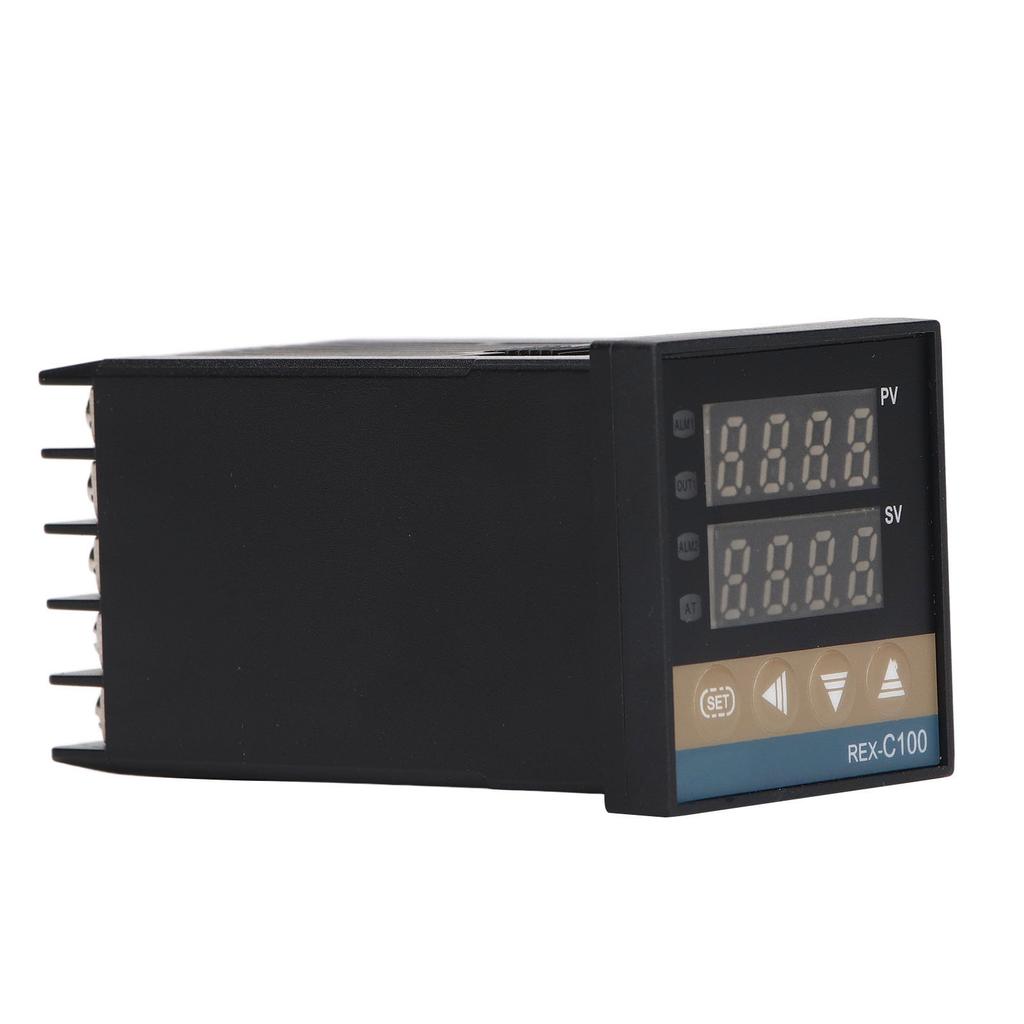

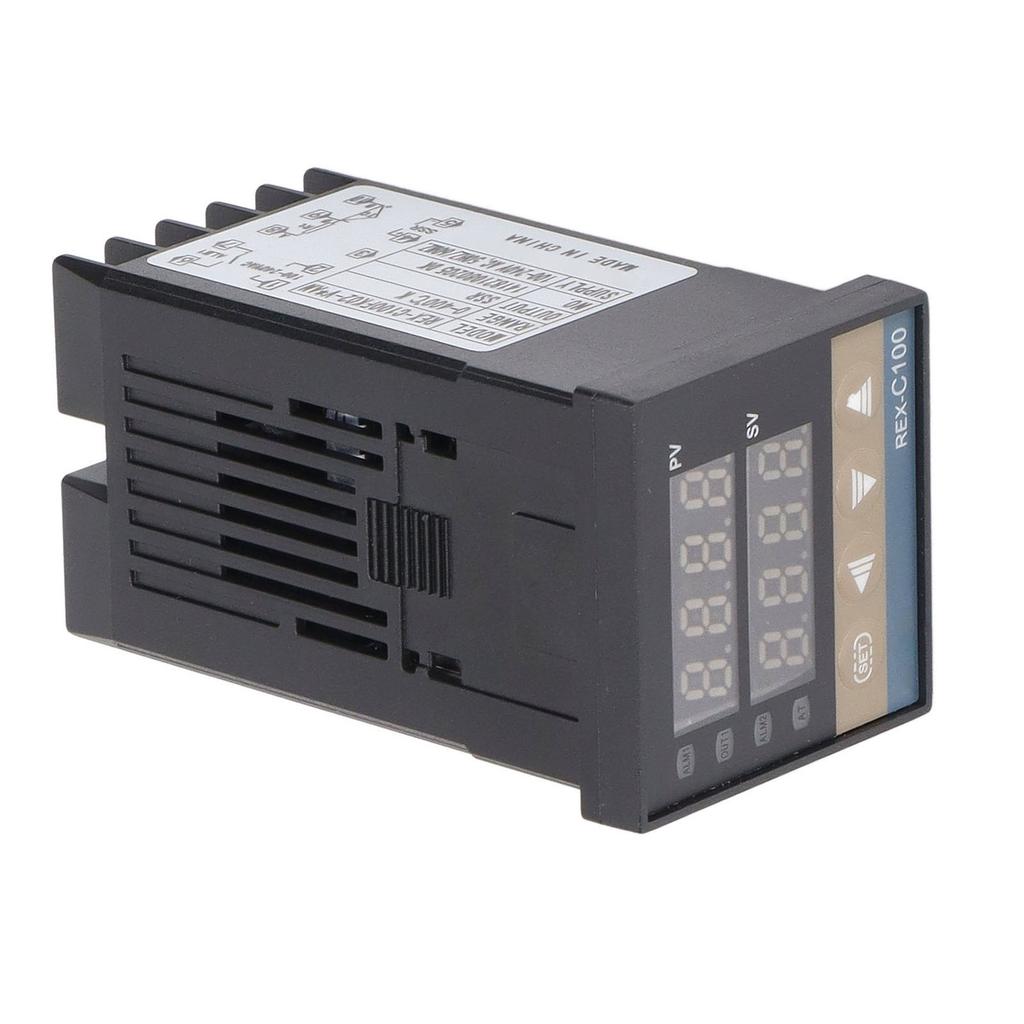

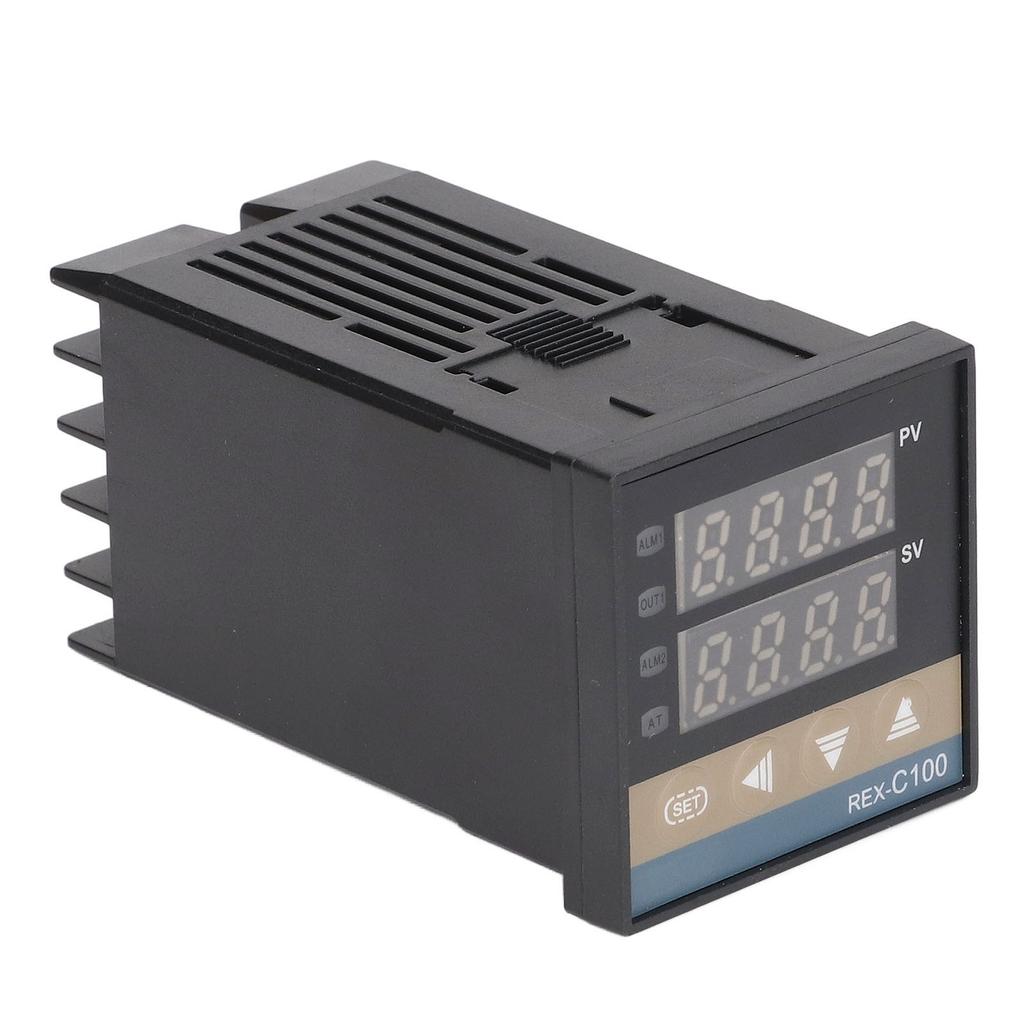

Thermostat

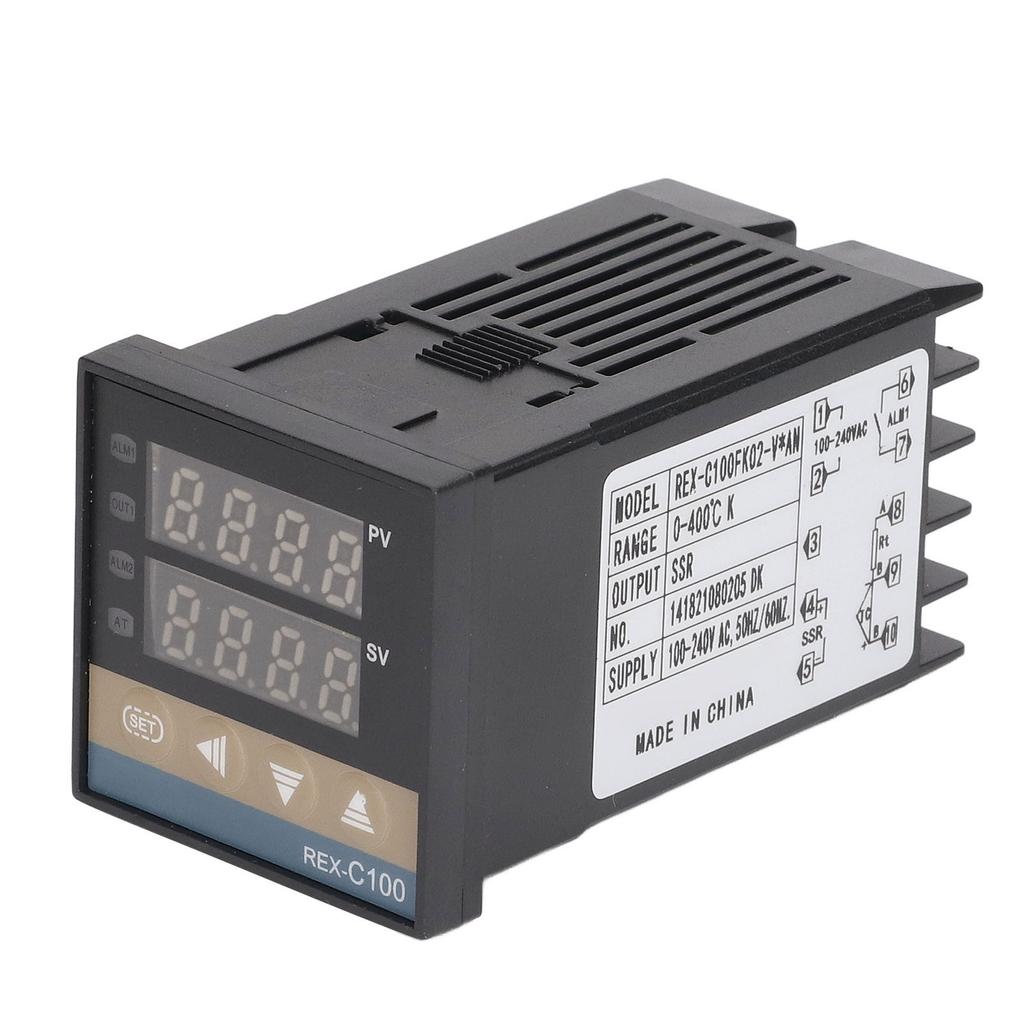

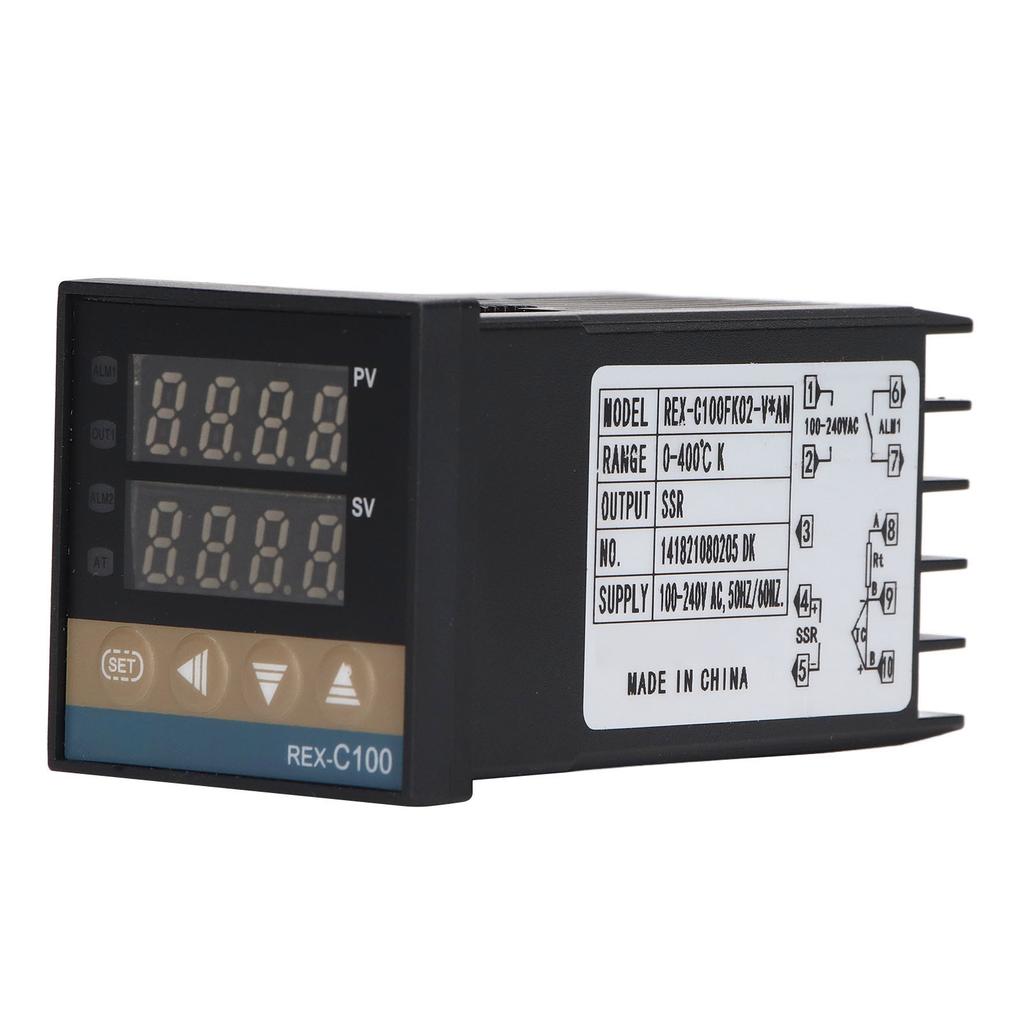

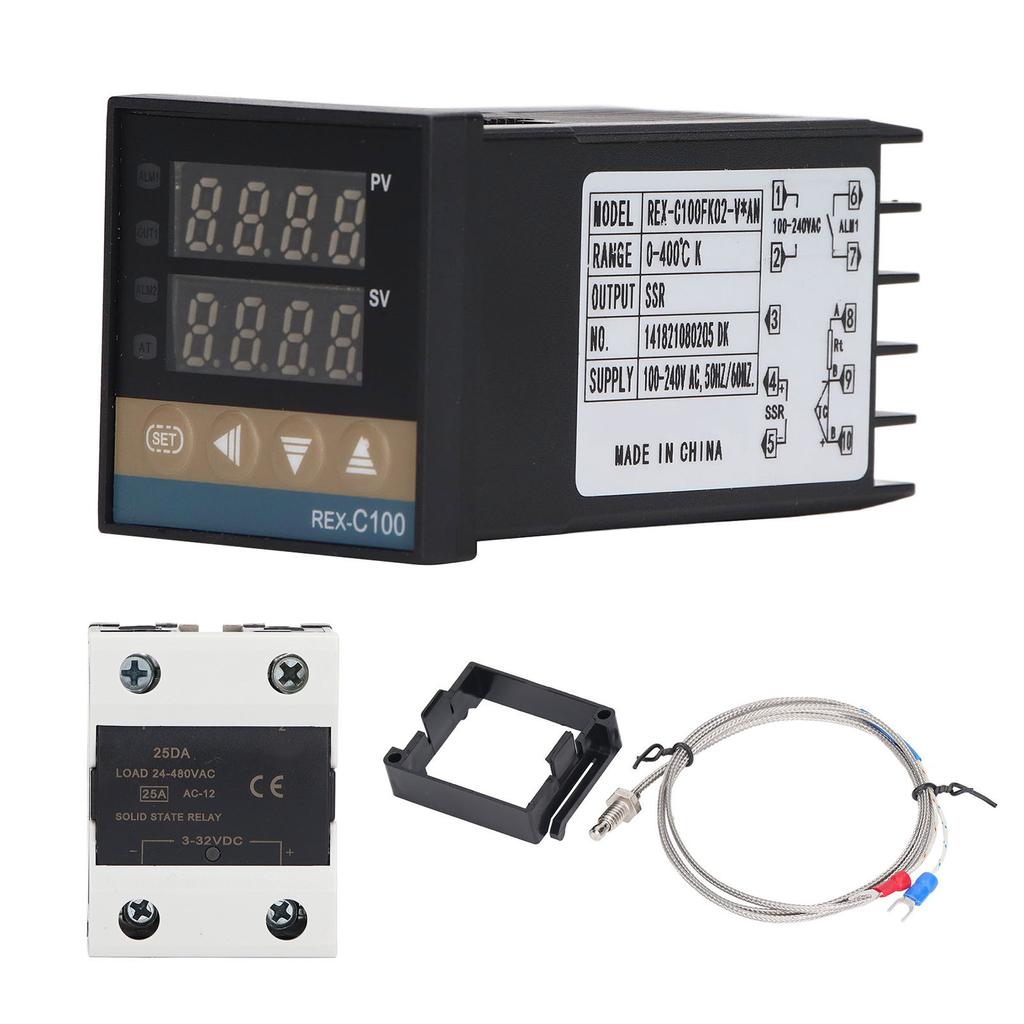

1.Model: REX C100FK02 V DA
2.Measurement Accuracy: + 0.5percent FS
3. Cold End Compensation Tolerance: 0‑50 celsius , Can Be Modified By Software + 2 celsius
4. Resolution: 14 Bits
5. Sampling Period: 0.5 Seconds
6. Power Supply: AC 100‑240V 50 60HZ

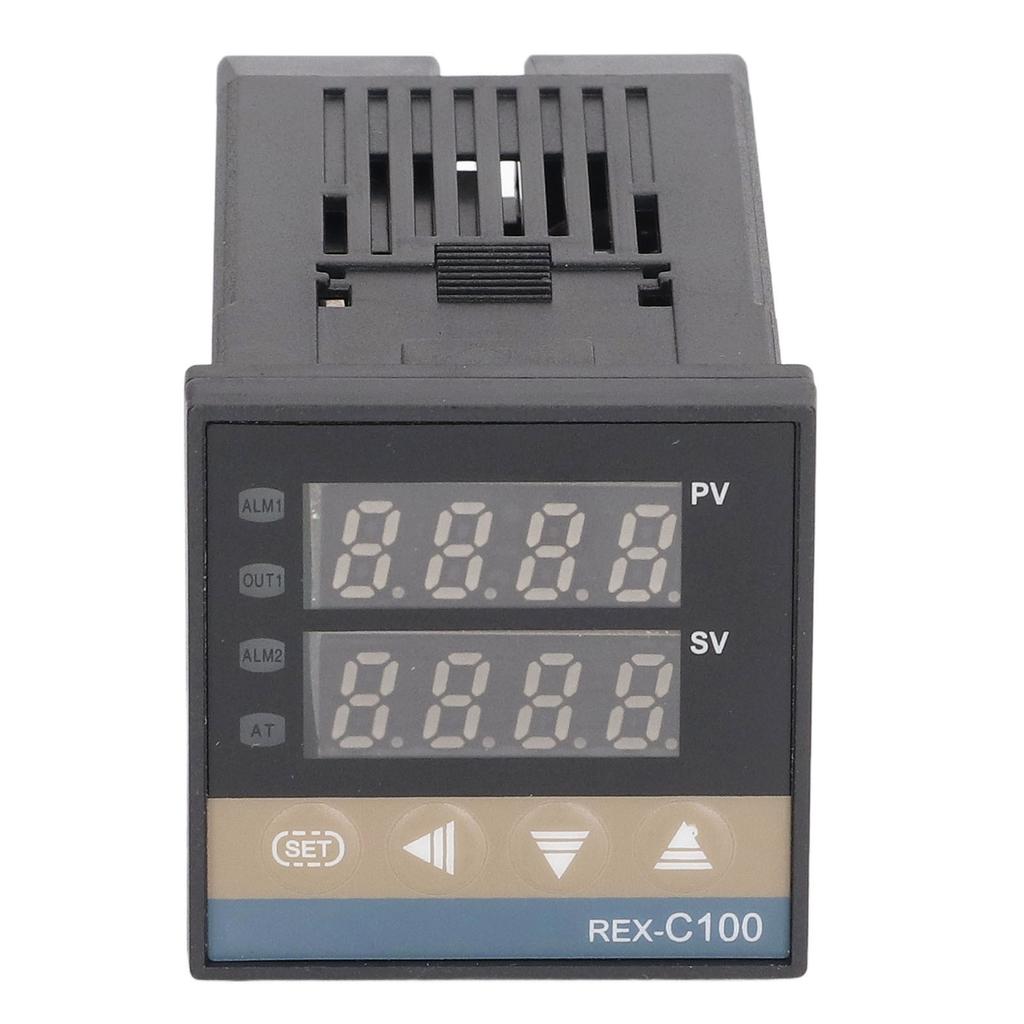

7. Process Value (PV), Set Value (SV)
8. Output, Alarm and Self Tuning Can be Indicated by: LED
9. PIN Control (Including ON or OFF, Step PID and Continuous PID)
10. Self Adjusting Control
11. Time Delay Output: Contact Capacity 250V AC 3A (Resistive Load)
12. Alarm Function Output: None
13. Proportional Band (P): 0 to Full Range (When ON or OFF Control is Set to 0)
14. Detection Temperature Range: 0‑400 celsius
15. Insulation Resistance: > 500M Ohm (500V DC)
16. Insulation Resistance: 1500V AC Min
17. Insulation Resistance: Power Consumption <10VA
18. Service Environment: 0‑50 celsius
19. Non Corrosive Gas Environment 30‑85percent RH
20. Appearance Size: Approx. 48x48x110mm 1.9x1.9x4.3in
21. Scope of Application: Electric Power, Chemical Industry, Injection Molding, Packaging, Food, Incubator, Oven, Heater Control, etc.
K Type Thermocouple Probe Cable
1. Length: Approx. 1m 1.1yd
2. Sensor Diameter: Approx. 4.5mm 0.18in
3. Temperature Range: 0 400 celsius
4. Inner Insulation: Glass Fiber
5. External Shielding: Insulation Shield
Relay Module
1. Output Voltage Range: Standard Type
2. Input Voltage: DC 3‑32V
3. Output Voltage: 24‑380V AC.
Package List:

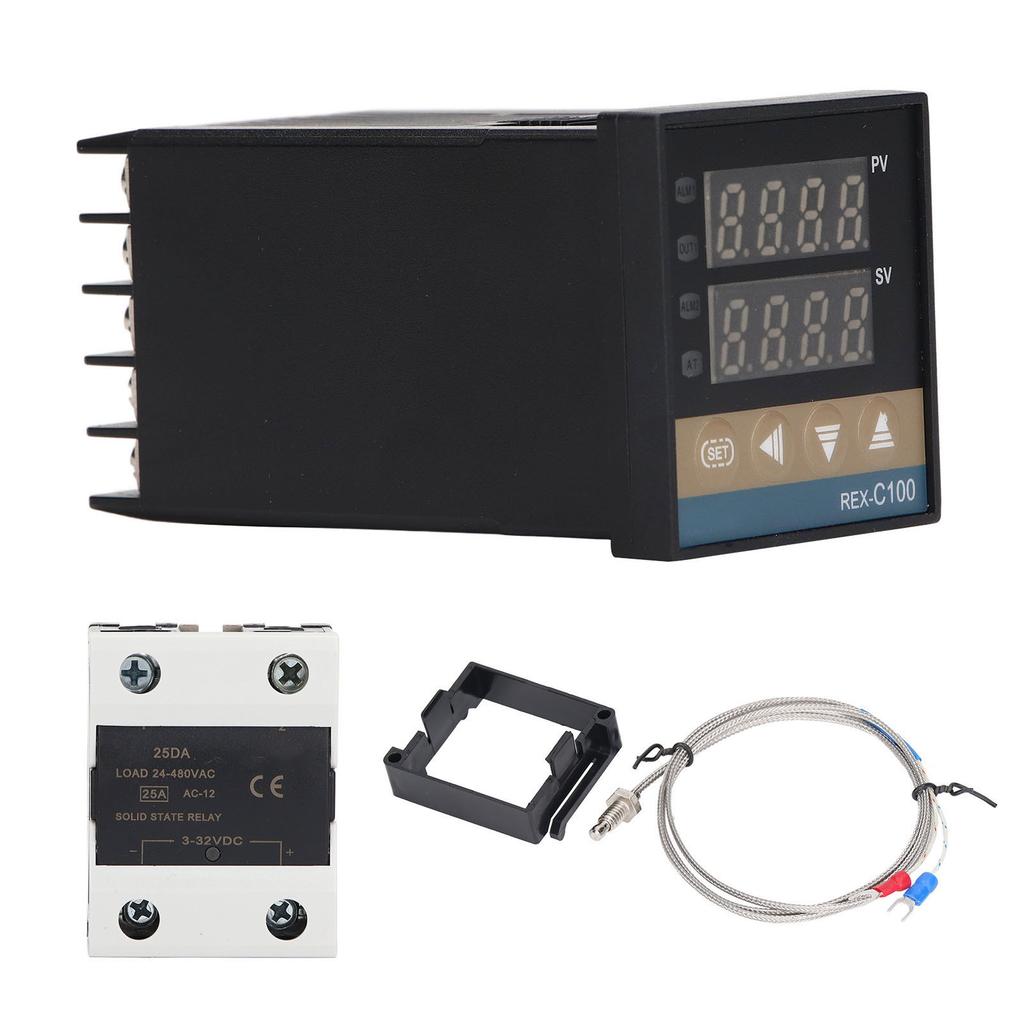

1 x Thermostat1 x Thermocouple1 x Relay Module1 x Chinese And English Manuals1 x Thermostat Bracket
Note:
All data are measured manually, and there are certain errors in the measurement results.
