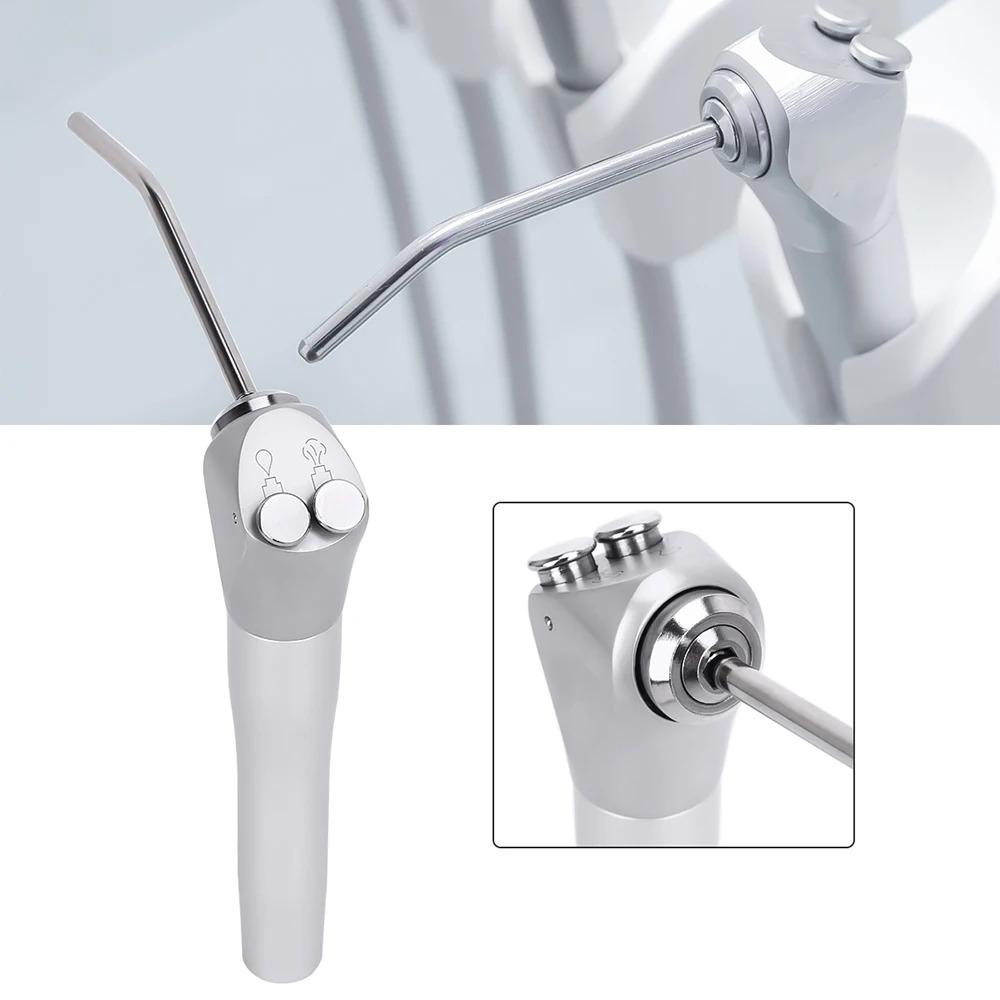

Features:
It has multifunctionality, integrating water spray, air spray, and spray functions, which can meet the various needs of oral treatment. It is simple to operate, can quickly complete oral cleaning, blow-drying and other operations, improve work efficiency, and is made of medical-grade materials, safe and reliable.
Available nozzles is full autoclavable up to 134 °C / 273 °F.
Necessary dental equipment for oral and teeth treatment.
Specifications:

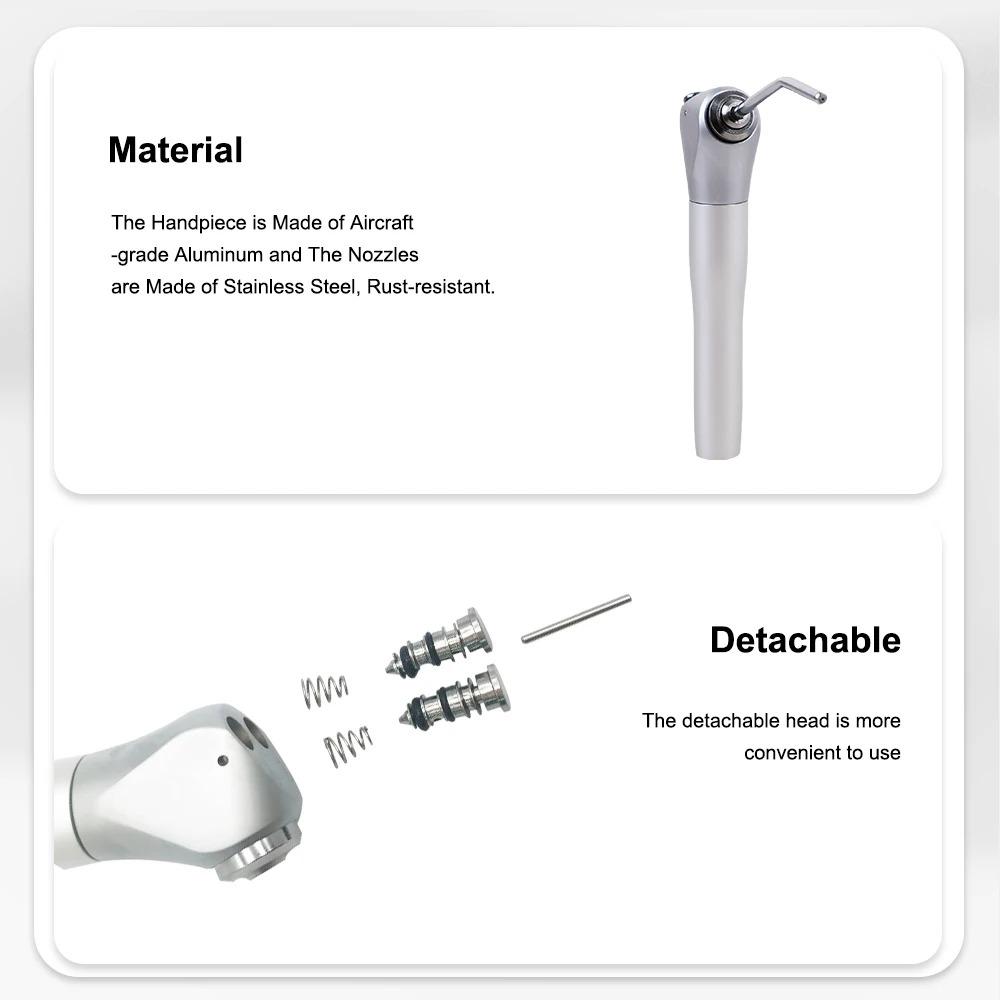

Material: Aircraft-Grade Aluminum; Stainless Steel
Color: Silver

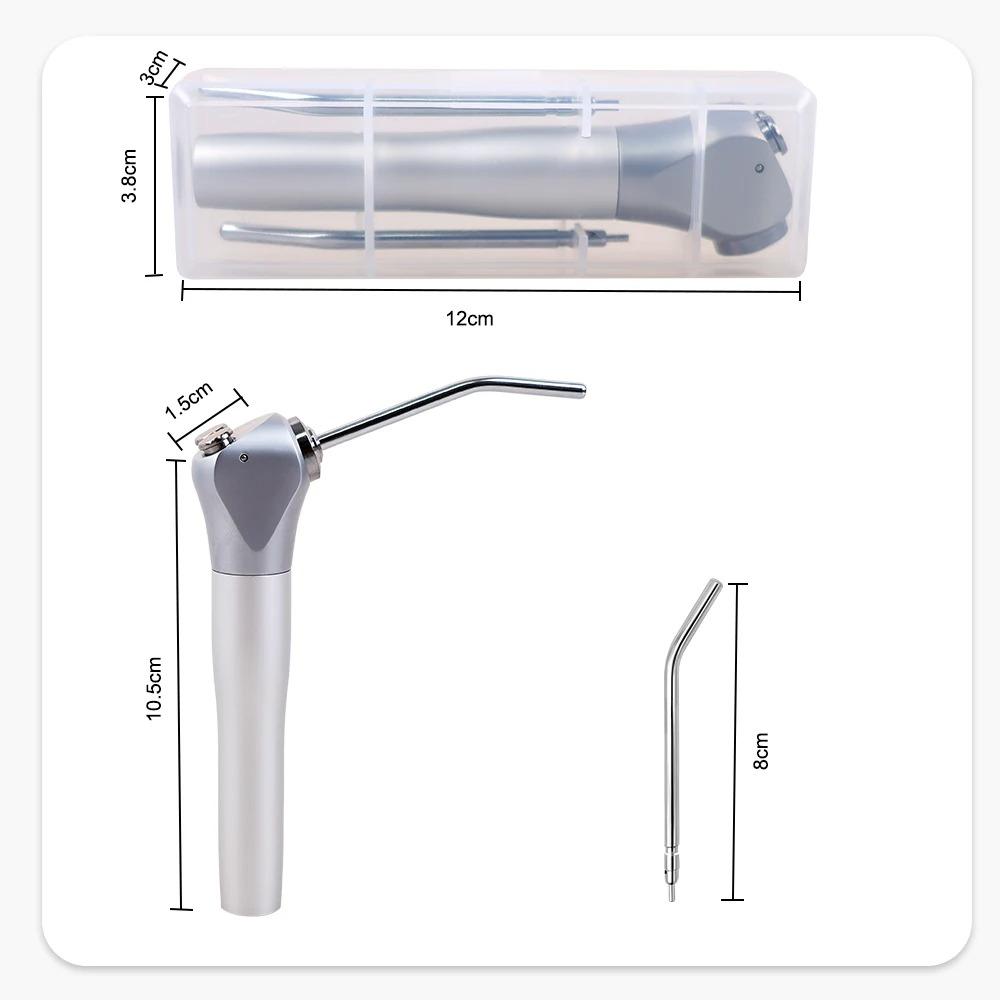

Handpiece Size: Approx. 11.5 * 3 * 2cm / 4.5 * 1.2 * 0.8in (L * W * H)

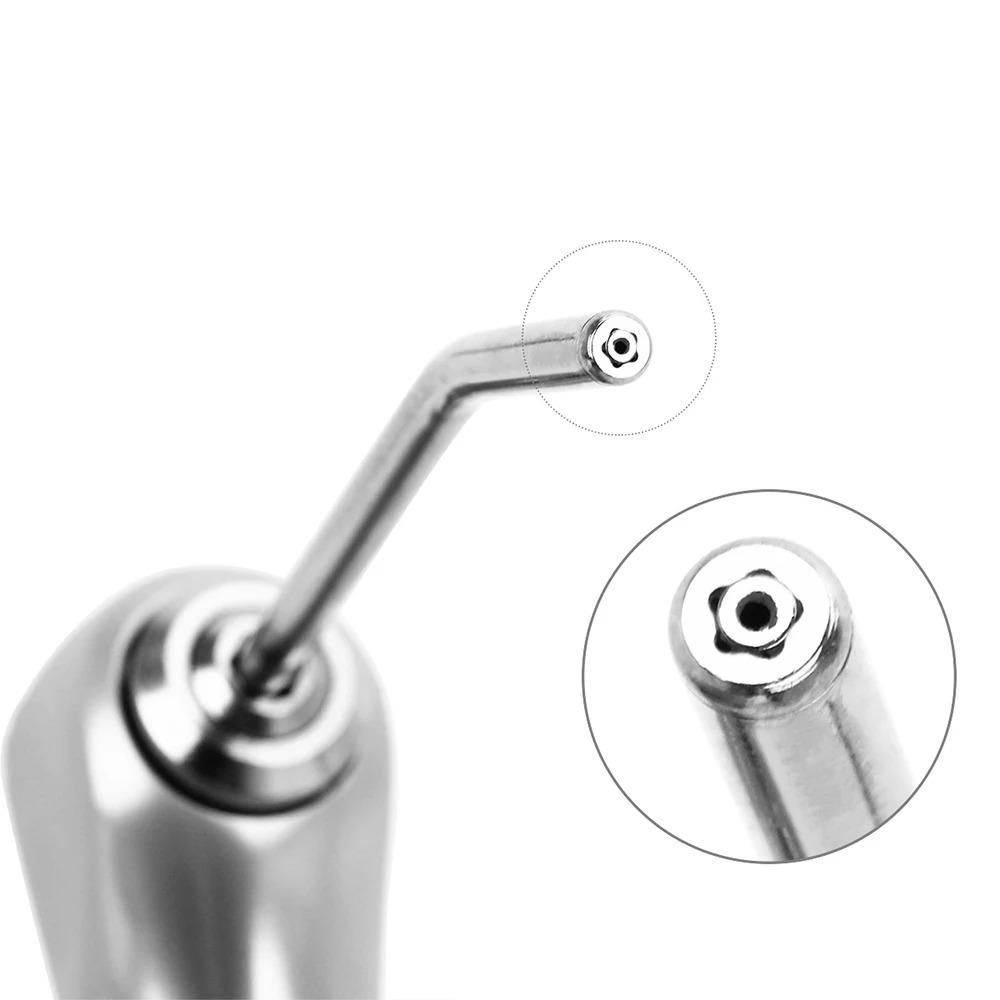

Nozzle Size: Approx. 8.2cm / 3.2in (L)
Handpiece Weight: Approx. 99.9g / 3.5oz
Nozzle Weight: Approx. 3.9g / 0.1oz
Package Size: Approx. 12 * 3.8 * 3cm / 4.5 * 1.5 * 1.2in(L * W * H)
Package Weight: Approx. 136.3g / 4.8oz

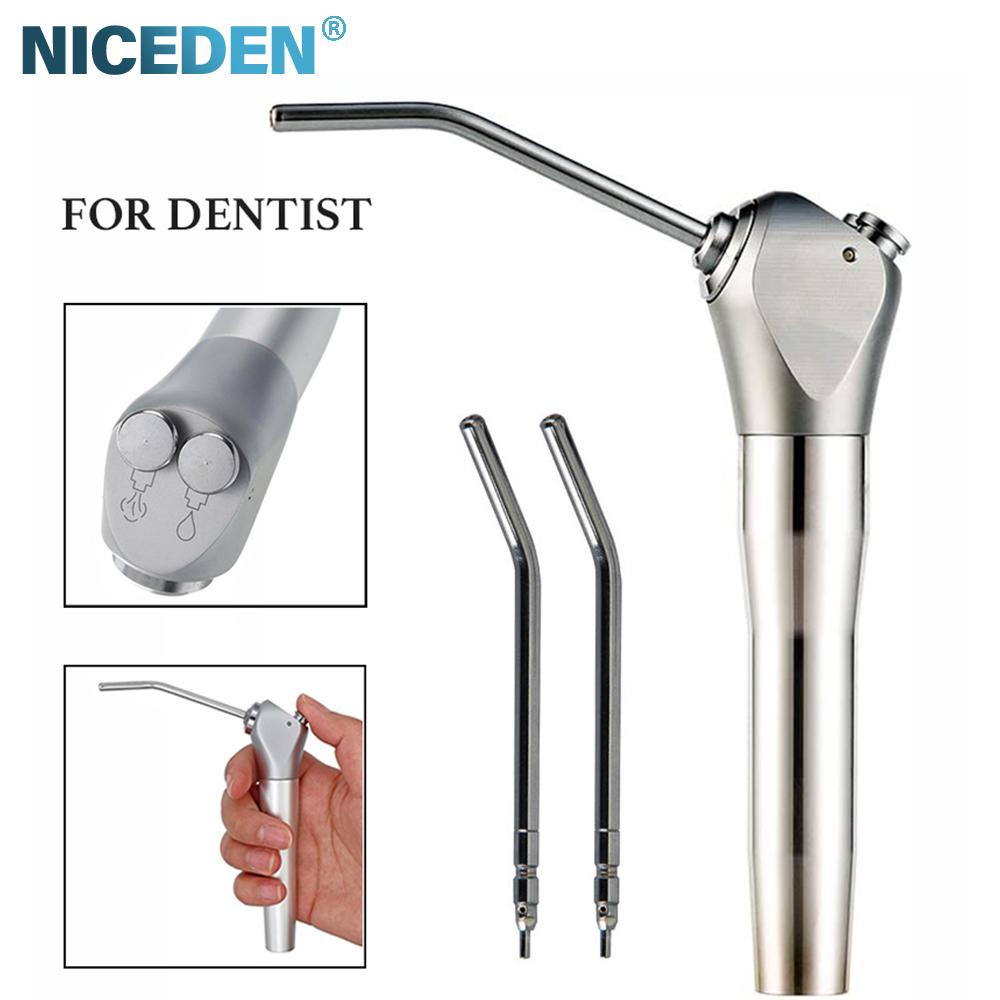

Package List:

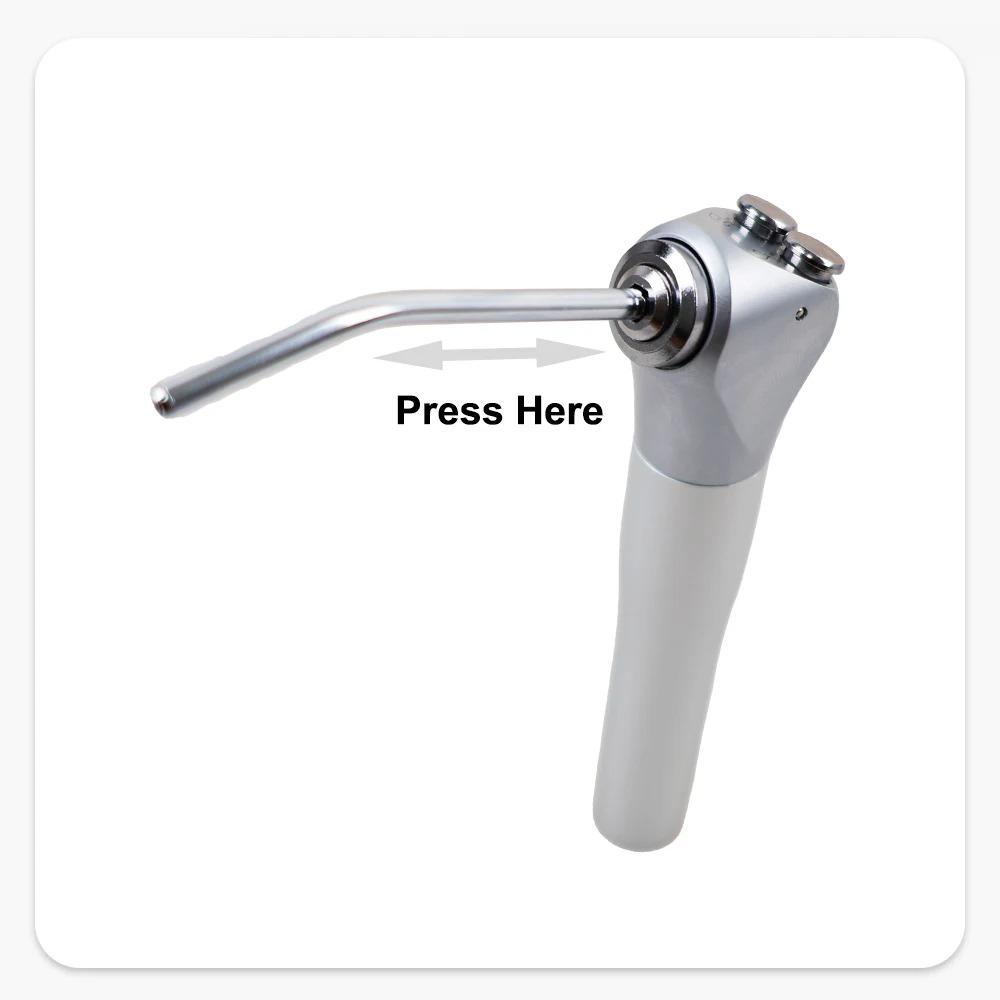

1 * 3 Ways Syringe Handpiece
2 * Nozzle

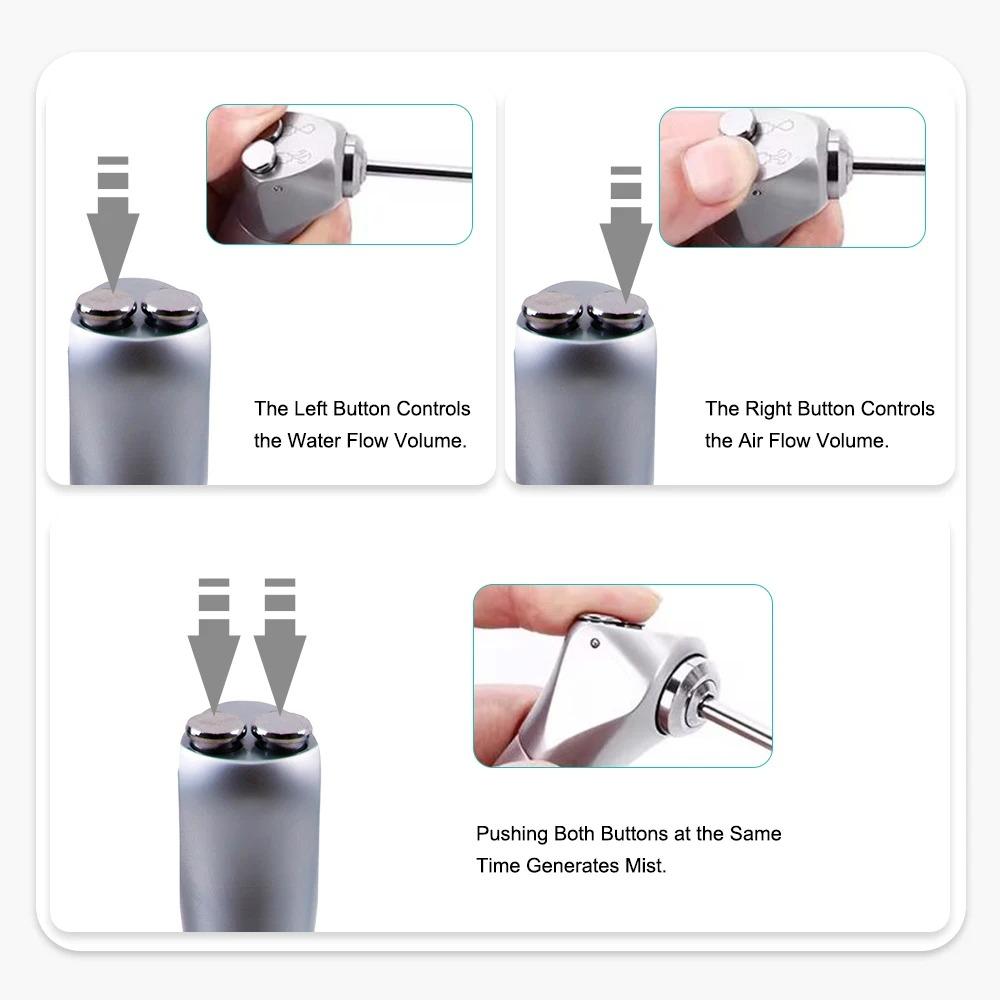

Water spray: used to rinse tooth surfaces, cavities, etc., can remove debris and contaminants, can clean teeth and periodontal tissues in the process of dental cleaning, periodontal treatment, etc., and can also rinse the pulp cavity in dental endodontic treatment to remove residues.
Water spray : It can be used to blow dry the tooth surface to facilitate the doctor to observe the tooth condition or make the filling material adhere better, and can also be used to blow away debris and moisture in the mouth to keep the treatment area dry.
Spray: Creates an air-water mixture that helps cool the heat generated by the high-speed turbine handpiece during teeth grinding while reducing the spread of aerosol and droplets.
How to use:

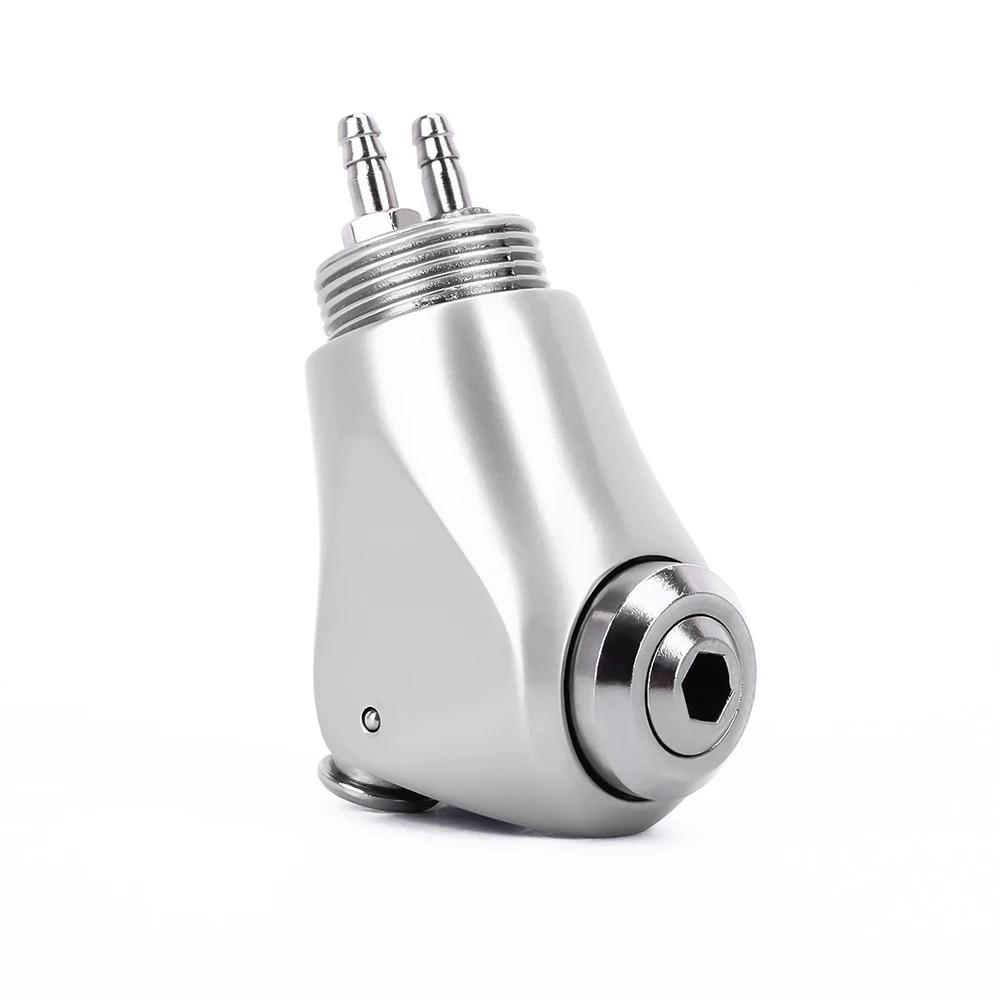

Connecting the air and water sources: Connect the connecting tube of the multi-purpose gun with the air and water source interfaces of the dental treatment chair to ensure a tight connection without leakage.
Adjust air pressure and water volume: Through the relevant adjustment device on the treatment chair, the air pressure and water volume can be adjusted to the appropriate range, which can be adjusted according to the specific operation and patient feelings.
Hold the 3 Ways Syringe Handpiece: Hold the handle of the 3 Ways Syringe Handpiece with your hand to maintain a stable and comfortable posture.
Clean the tooth surface: Aim the tip of the 3 Ways Syringe Handpiece at the tooth surface, press the control button, and spray water for cleaning, which can remove dirt and debris on the tooth surface.
Drying the tooth surface: Before acid etching, bonding and other steps, press the jet button and use the airflow to dry the tooth surface to ensure the bonding effect.
Spray cooling: When needed, the spray function can be used to provide cooling effect, such as when operating with a high-speed turbo handpiece.
How to maintain
Cleaning: Rinse immediately after each use under running water to remove blood, saliva, and debris from the surface. If the 3 Ways Syringe Handpiece has removable parts, it needs to be disassembled and cleaned separately, using special cleaners and brushes to carefully brush the tip, handle and internal pipes and other parts to ensure that there is no dirt residue.
Disinfection: The cleaned 3 Ways Syringe Handpiece needs to be disinfected to kill pathogenic microorganisms. A common disinfection method is autoclaving, which can be placed in an autoclave and sterilized according to the specified temperature, pressure, and time, generally with a minimum sterilization time of at least 30 minutes. You can also use chemical disinfectants such as chlorine-containing disinfectants for soaking and disinfection according to the situation, but you need to rinse them with clean water after soaking to avoid irritating oral tissues with residual disinfectants.
Regular inspection: Regularly check the performance of the multi-purpose gun to see if there are problems such as clogged nozzles, water leakage, and poor jets, and check whether the tip, handle and other components are damaged or worn. If problems are found, repairs or replacement of components should be carried out in time to ensure their normal use.
Water replacement and management: If you need to replace the water of the 3 Ways Syringe Handpiece, you should first turn off the water source, unscrew the water nozzle, clean up the water remaining in the 3 Ways Syringe Handpiece, and rinse the nozzle and internal pipes with clean water. You can choose saline, mouthwash, etc. as new water as needed, pour it into the water spout, then tighten the water spout, turn on the water source, and rinse for a period of time until the water flows out. Pay attention to hygiene when changing water, wash your hands and wear gloves before operation, and avoid contaminating the nozzle and new water during the replacement process.
Store properly: When not in use for the time being, the tri-purpose gun should be placed in a dry and clean place to avoid contact with contaminants. If it is not used for a long time, it can be packaged with sterile packaging materials and stored in a suitable environment to prevent dust and other pollution.
Notes:
Avoid spraying or spraying water directly into the patient's eyes, throat, or other sensitive areas to avoid discomfort or damage.
Maintain an appropriate distance and angle from the tooth surface to achieve the best results while avoiding damage to the oral tissue.
The movements should be gentle and precise during operation, and avoid excessive force or sudden movement causing injury to the patient.
