Micro 11KG 0.06S Digital Coreless HV Programmable Servo, 8.4V, 180/270/360 Degrees, Metal Gear, for RC Cars (270 Degrees)

Product Description

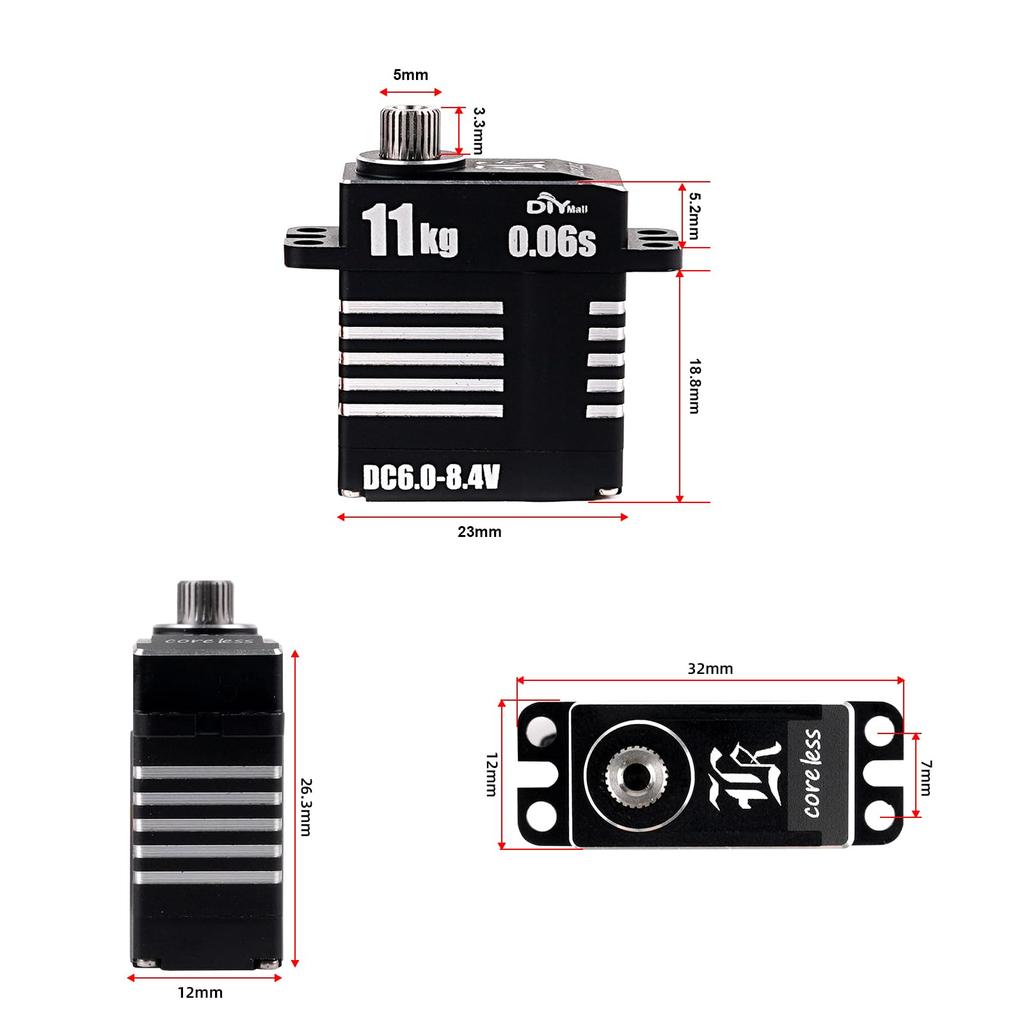

Micro 8.4V 0.06S 11KG Digital Servo Motor, Mini Full Metal Coreless Programmable Servo, 180/270 Degree High Torque for RC Cars Product Specifications Product Name: 11KG Digital Servo Motor Applicable Environmental Conditions Storage Temperature Range: -30°C~80°C Operating Temperature Range: -25°C~70°C Standard Test Environment Temperature Range: -25°C~70°C Humidity Range: 65%±10% Mechanical Specifications Dimensions: 23.0*26.3*12mm Weight: 22g±5% Gear Type: 5, Metal Limited Angle: 360° Bearing: 2BB Horn Gear Spline: 25T, Diameter: 5.0mm Horn Type: Plastic, POM Case: Aluminum Alloy Connector Wire: 250mm±5mm Motor: Coreless High-Speed ​​Motor Splash-Resistant: IP65 Electrical Specifications Operating Voltage: 4.8V, 6.0V, 7.4V 8.4V Idle Current <40mA No-Load Speed ​​0.11 sec/60° 0.09 sec/60° 0.07 sec/60° 0.06 sec/60° Operating Current 160mA 180mA 220mA 250mA Peak Stall Torque 6.5kg.cm 8.5kg.cm 11.5kg.cm 13.5kg.cm Stall Current 1600mA±10% 2000mA±10% 2200mA±10% 2500mA±10% Control Specifications Command Signal Pulse Width Correction Amplifier Type Digital Controller Pulse Width Range 500-2500 µs Neutral position: 1500 µs Travel angle: 180°±3° (500-2500 µs) Deadband width: 3 µs Rotation direction: Counterclockwise (1000-2000 µs) Caution: Product operating voltage: 4.8V-8.4V, signal voltage: 3.0-5.0V Signal period: 20 ms, pulse width: 500 µs-2500 µs.

Safety warning

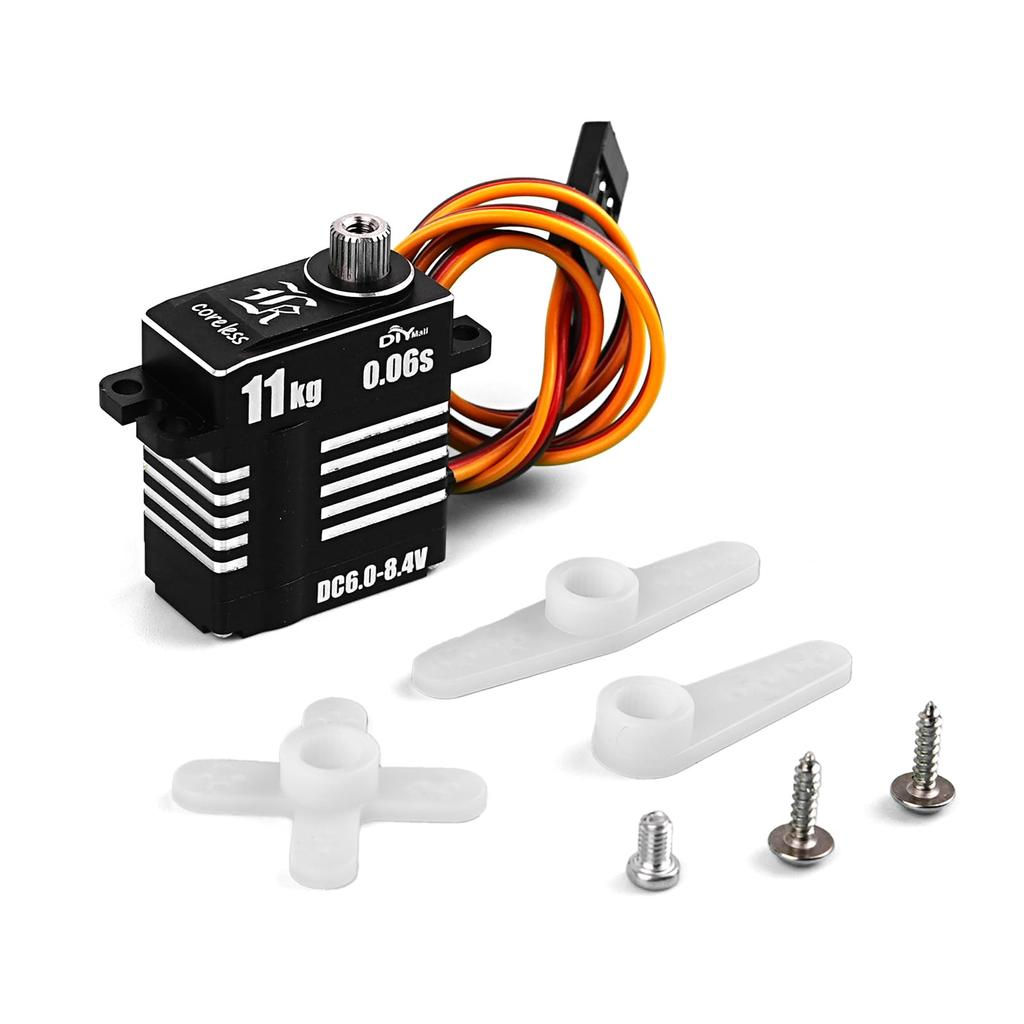

[Choking hazard] Contains small parts. [High-torque digital servo] The micro 8.4V 0.06S 11KG servo provides high torque and precise control for RC cars and robotics projects. [Durable metal gear construction] Features a full-metal gear train for enhanced durability and reliable performance. [Programmable rotation] Customize the rotation angle to 180° or 270° depending on your application. miciro Mini Server: Only 22g [Accessories] Mounting hardware and servo horns are included for easy installation and setup.
