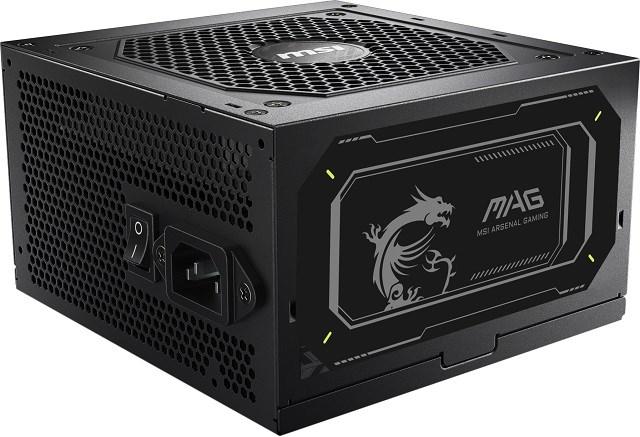

MSI MAG A850GL 850W PCIE5 II 80 Gold Power Supply MSI MAG A850GL 850W PCIE5 II 80+ Gold Power Supply (306-7ZP8D11-CE0)The MSI MAG A850GL PCIE5 is an 850W ATX 3.0-compliant power supply with a native PCIe 5.0 connector, supporting the latest graphics cards, such as the NVIDIA® GeForce RTX™ 40. The power supply boasts high energy efficiency confirmed by its 80 PLUS Gold certification. The device seamlessly supports PCIe 5.0 graphics cards (up to 600W) and utilizes hydrodynamic FDB (Fluid Dynamic Bearing) bearings for quiet and stable operation. The compact ATX form factor, measuring 140mm long and 150mm wide, allows for easy and convenient installation in most computers. This provides users with significantly more space for cable management, which can significantly improve system airflow.
ATX 3.0 CompatibilityThanks to its ATX 3.0 compatibility, the MAG A850GL PCIE5 power supply can handle sudden power spikes of up to twice the total draw and a temporary three-fold increase in graphics card power consumption.The fully modular design of the power supply reduces cable clutter, simplifies the overall system design, and significantly improves airflow.
PCIe 5.0 Graphics Card SupportMSI MAG A850GL PCIE5 series power supplies feature additional graphics card power connectors (4 x 8-pin VGA connectors) to support a wide range of NVIDIA and AMD products. Furthermore, the power supply can deliver up to 600W of power to a PCIe 5.0-compliant graphics card via its native 16-pin PCIe connector.Features80 PLUS Gold Certified: Guarantees high energy efficiency of up to 90%, resulting in lower power consumption and reduced heat generation.
Fully Modular Design: Allows you to connect only the cables you need, simplifying cable management and improving airflow within the case.
Compact Dimensions: The 140 x 150 x 86 mm chassis allows for easy installation in most computer cases, leaving more room for other components.Fluid-Dynamic Bearing Fan: The 120mm fan ensures quiet and efficient operation, balancing cooling performance with noise levels.
Advanced Protections: The power supply is equipped with protection mechanisms such as OVP (Over-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Over-Over-Over-Over-Temperature Protection), SCP (Short-Circuit Protection), and UVP (Under-Voltage Protection), ensuring stable and safe system operation.
SpecificationsPowerTotal Power:850 WAC Input Voltage:100 - 240 VAC Input Frequency:47 - 63 HzPFC (Power Factor Correction) Type:ActiveTotal Power (+12 V):850 WTotal Power (+5 V):110 WMaximum Output Current (+3.3V):22 AMaximum output current (+12V):20 AEfficiency:90%Power protection features:Overload protection, Undervoltage protection, Overvoltage protection, Short circuit protection, Overcurrent protectionPorts and interfacesMotherboard power Connector:24-pin ATXNumber of SATA power connectors:8EPS power connector (4+4 pin):YesATX power socket (24-pin):YesStation socket Floppy Drives:YesCable Type:Fully ModularPeripheral Power Connectors (Molex) (4-pin):4Performance80 PLUS Certified:80 PLUS GoldIntended Use:PCPower Supply Unit (PSU):ATXBuildProduct Color:BlackFan Diameter:12 cmNumber of fans:1 fanBuilt-in switch:YesWeight and dimensionsProduct width:150 mmProduct depth:140 mmProduct height:86 mm
