■AHD function for HD video compatibility, providing a wide field of view and high-quality imagery
This high-performance, high-quality AHD backup camera supports HD video. It features a mirror image design ideal for backup cameras and boasts IP67 waterproofing.
Equipped with various features such as auto white balance and digital noise reduction, it delivers clear images.
■AHD Backup Camera
Equipped with AHD function for HD video compatibility. Despite being analog, it boasts high-definition image quality.
It also features WDR, backlight compensation, and digital noise reduction, delivering crisp, clear images with minimal noise.
■High-quality output of 1280x720 pixels
The output resolution is 1280x720 pixels at 650 TV lines.
Its HD image quality makes it ideal for 7-inch IPS panel high-definition monitors.
■Waterproof and dustproof to IP67 standards
It meets the high standards of "IP67" waterproofing. Its dustproof and waterproof capabilities make it ideal for backup cameras used in harsh environments.
■ Continuous monitoring possible
The field of view and image quality are improved over our other truck backup cameras, making it suitable for continuous monitoring.
Detailed Specifications
Image Sensor: 1/2.7-inch color CMOS
Resolution: 650TV LINE (1280x720 pixels)
Pixel Count: 1 megapixel
Lens Field of View: 124° Horizontal, 65° Vertical, 150° Diagonal
F-stop: 1.8
Image Format: NTSC/PAL

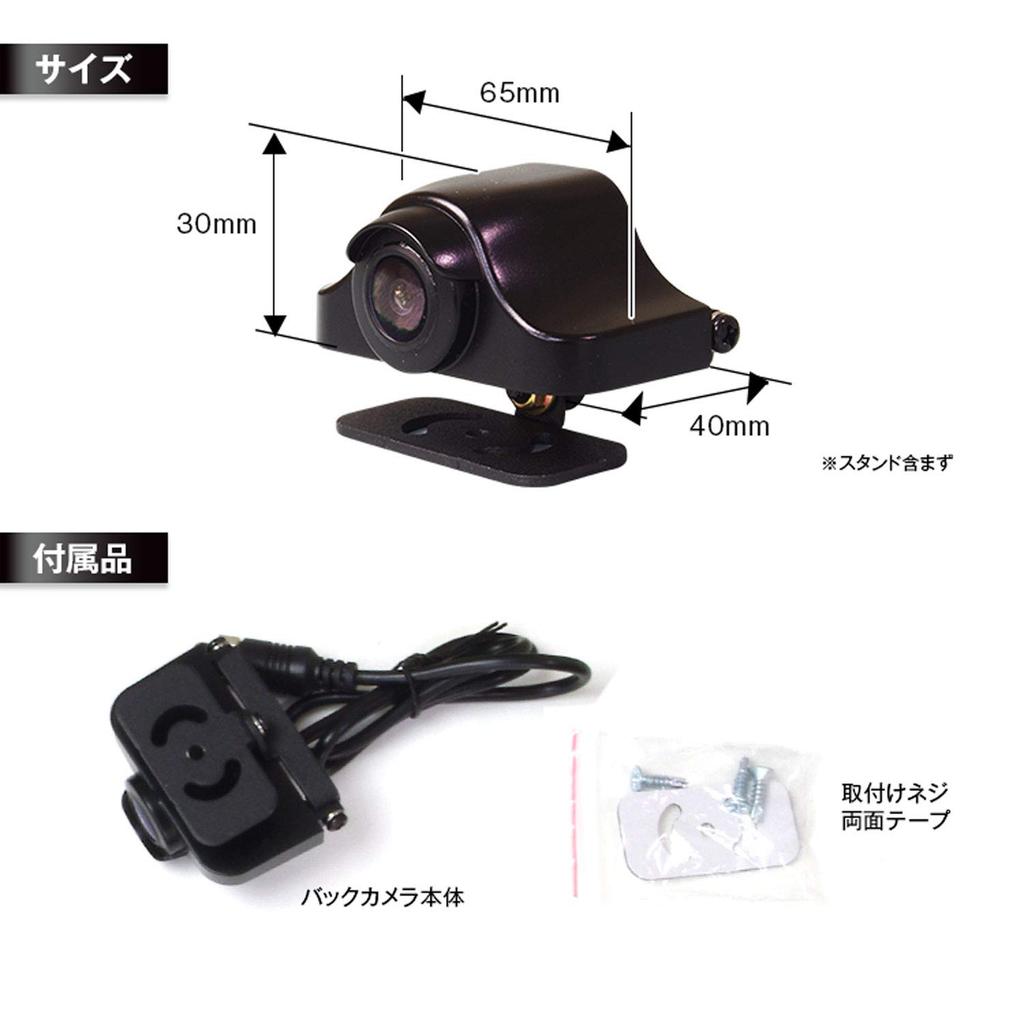

Dimensions: 65(W) x 30(H) x 40(D)mm (excluding stand)
Operating Temperature: -20°C to 65°C, 95% RH Max
Waterproof: IP67
Accessories: 1 x Camera, 1 x Mounting Screws, 1 x Double-Sided Tape
Product photos are for illustrative purposes only. Please note that the actual product may differ.
This is a high-performance, high-image-quality AHD backup camera with HD video support. It features a mirror image design ideal for backup cameras and boasts IP67 waterproofing. Equipped with various functions such as auto white balance and digital noise reduction, it outputs clear images.
The output resolution is 1280x720 pixels at 650 TV lines. Its HD image output makes it ideal for 7-inch IPS panel high-definition monitors.
It meets the high standard of waterproofing, meeting IP67 standards. Its dustproof and waterproof capabilities make it ideal for backup cameras used in harsh environments.
With a wide viewing angle and excellent image quality, it can also be used as a constant surveillance camera.
