Note:
The relay controller is RF Receivers ,the wall switch is RF only. Wall switch itself cannot control lights on off. It needs to work with rf receiver together.
Specification:

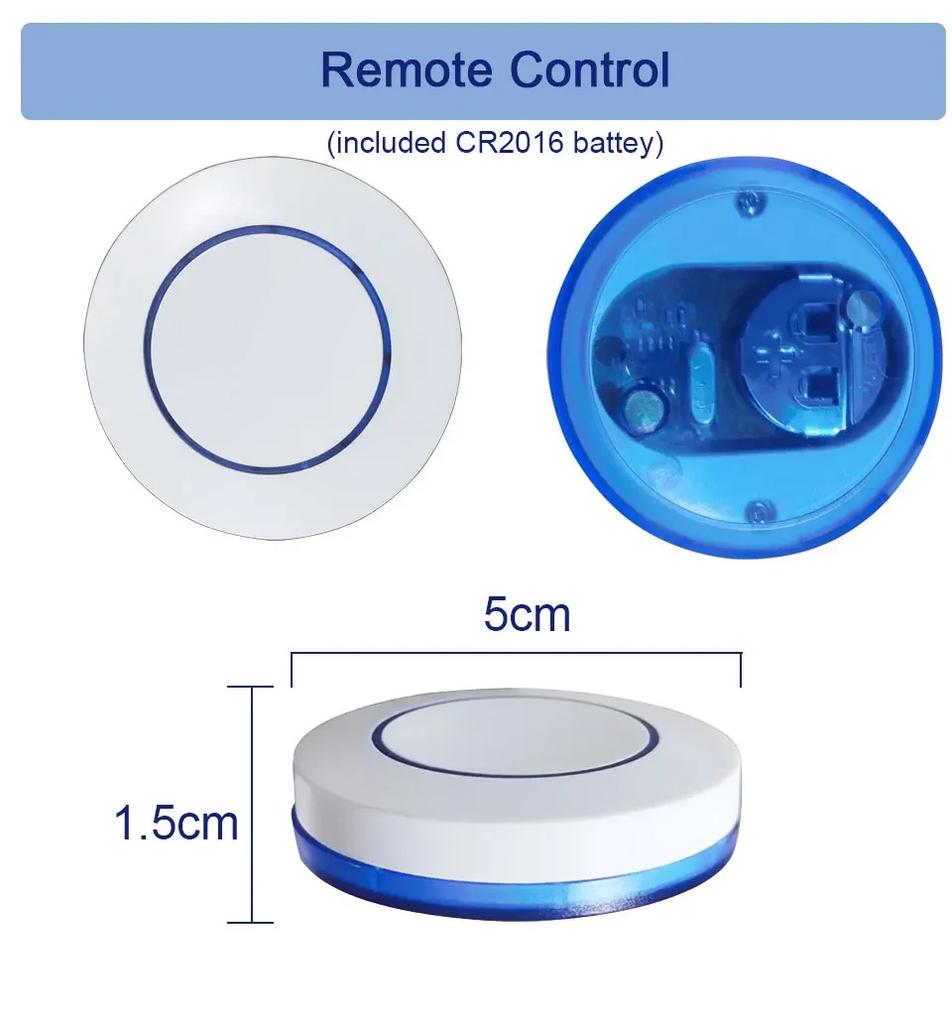

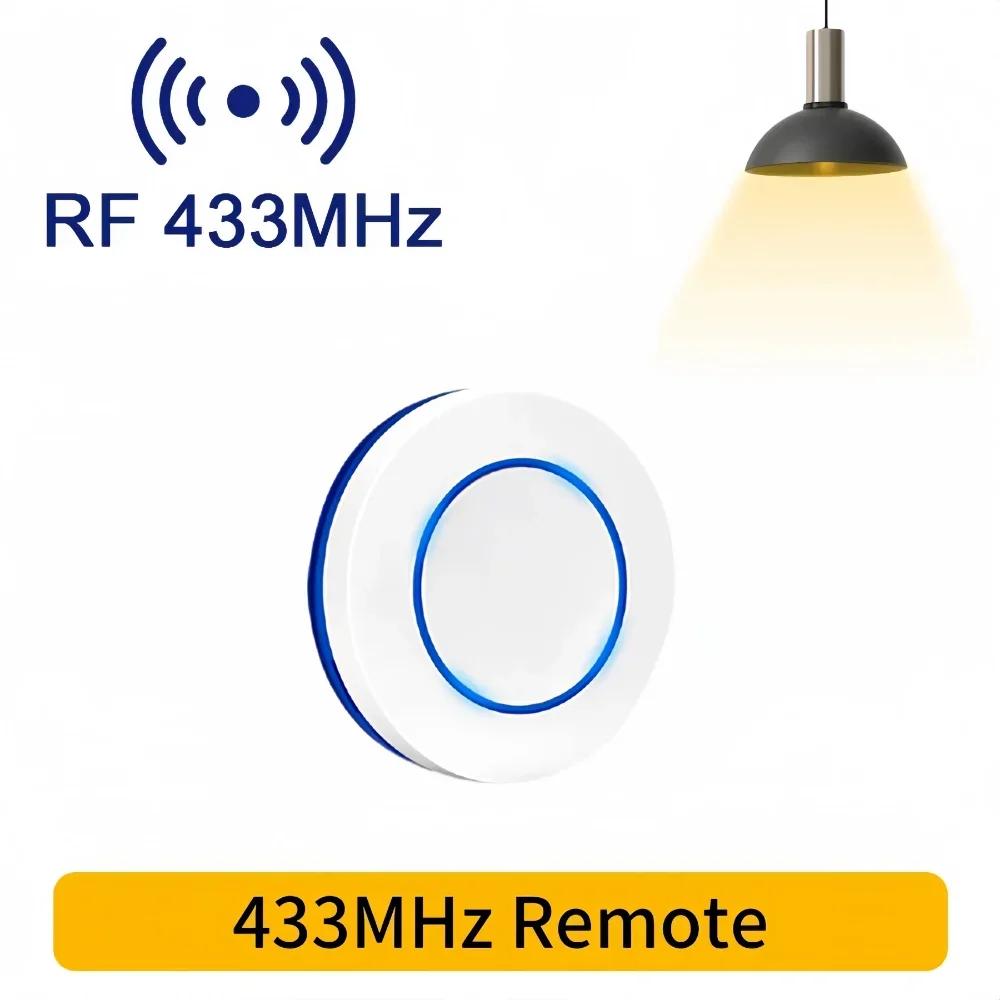

Transmitter (Remote) :
Operating frequency: 433MHz
Power by 2 Pcs 3V CR2016 Battery (Battery included )
Material: PVC;
Button: 2 buttons;
Size: 60mm x 30mm;
Operating voltage: 3V ;
Operating Current: 12mA;
Transmitting power: 10mw;
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 20 50m

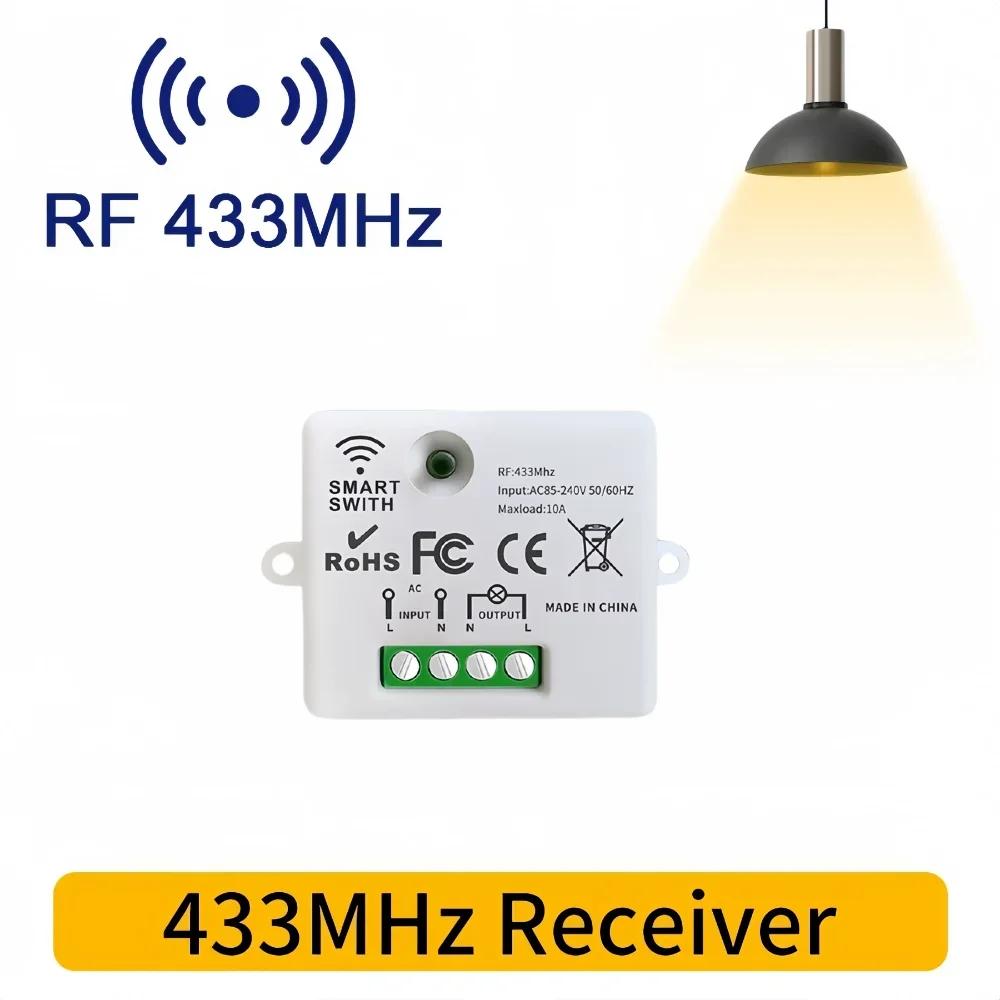

Controller (Receiver) :
Input Power: AC90-250V 60HZ/50HZ
Max current: 10 A
RF Frequency: 433Mhz
Working temperature:-30 +80
RF working mode: superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: more than 50 m ( open space)
Remote storage:20pcs
Support remote type: Learning code 1527code
Size: 47.4*42*22.8 (mm)
433MHZ wireless switch signals:

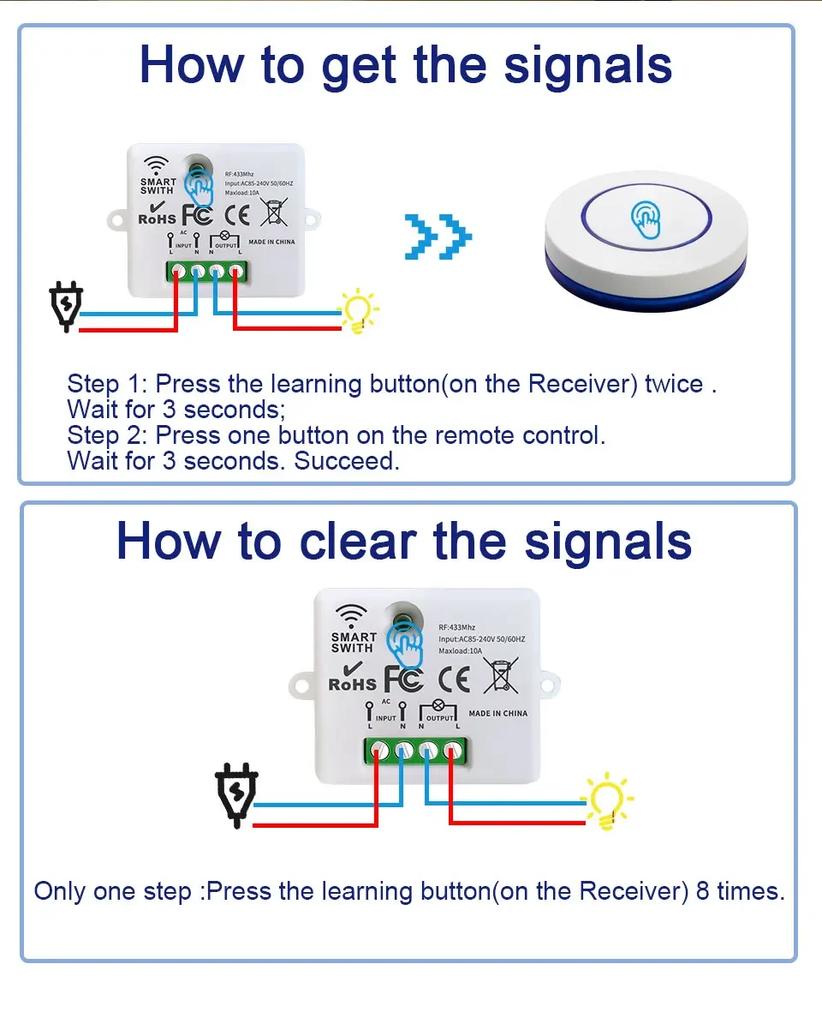

How to get the signals
Step 1: Press the learning button(on the Receiver) twice . Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signals:
Only one step :Press the learning button(on the Receiver) 8 times.

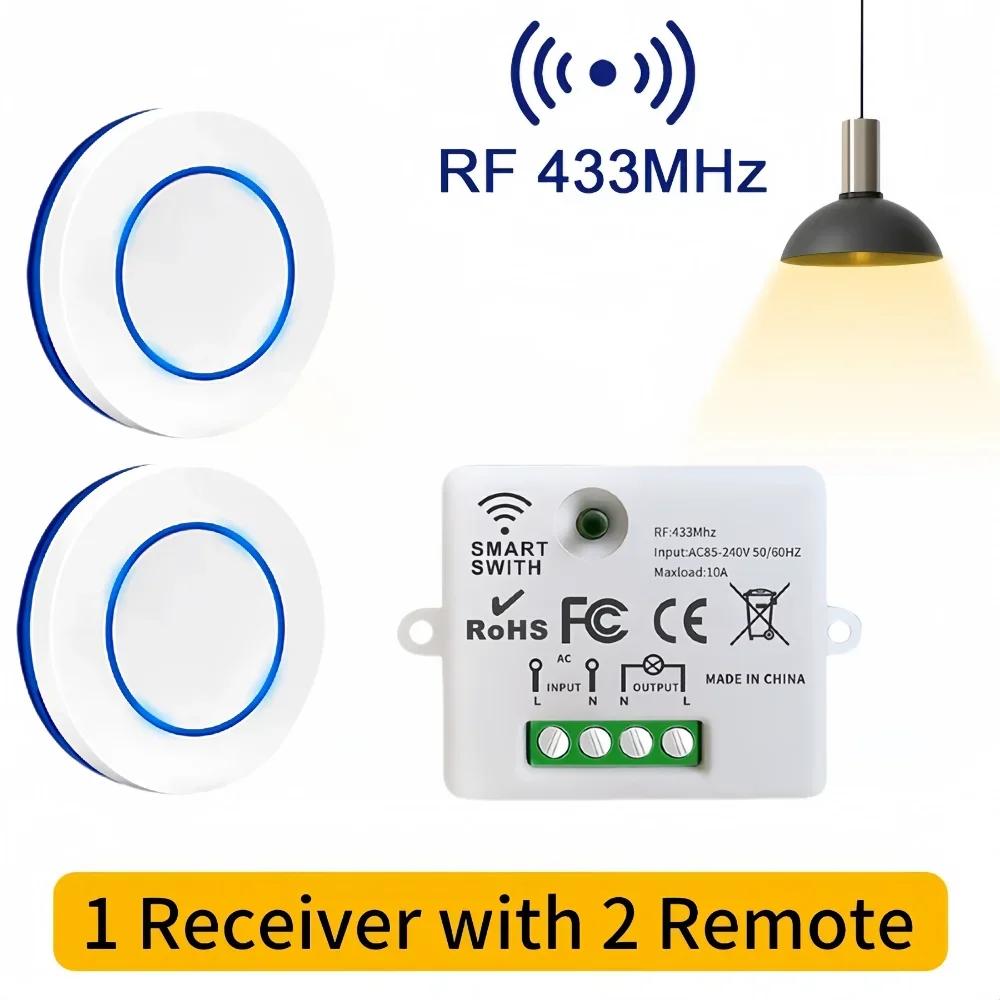

Easy connect and multi control one;
The receiver is easy to install, Multi switches can control different receivers or one receivers strong signal and Long distance control;

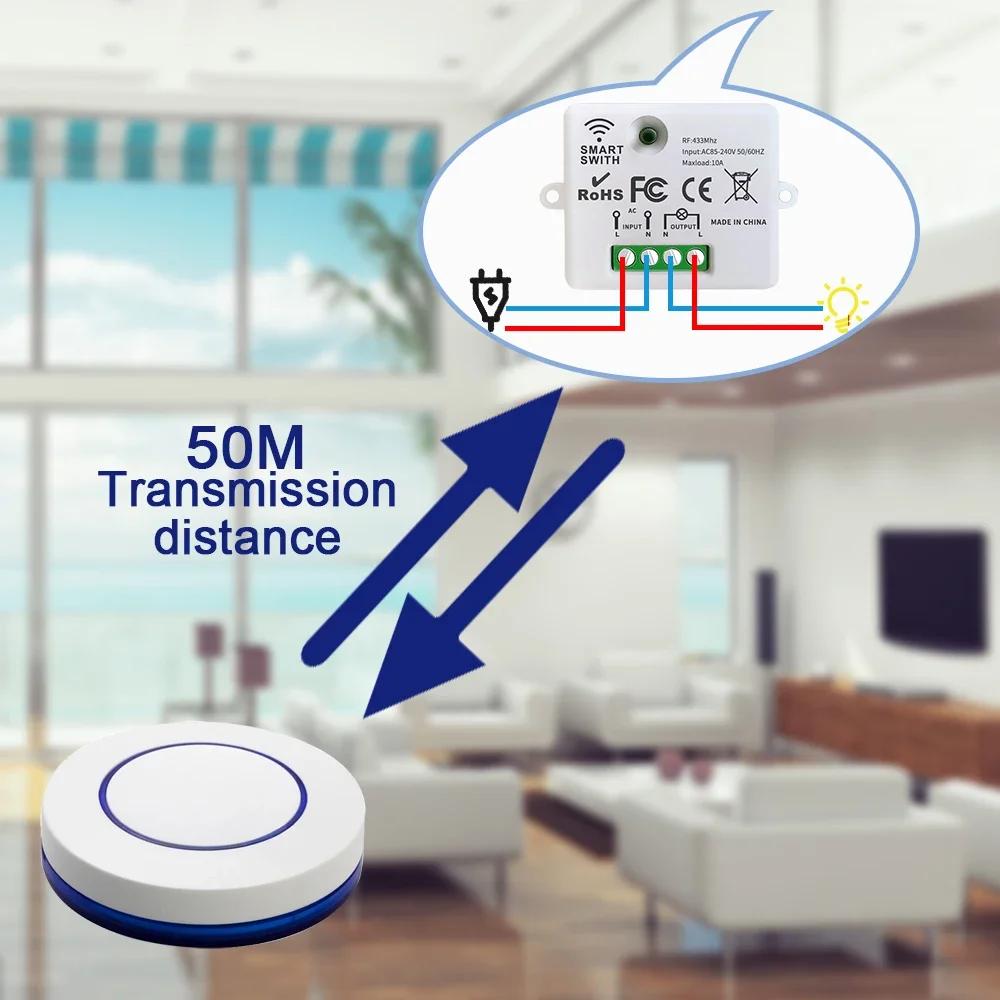

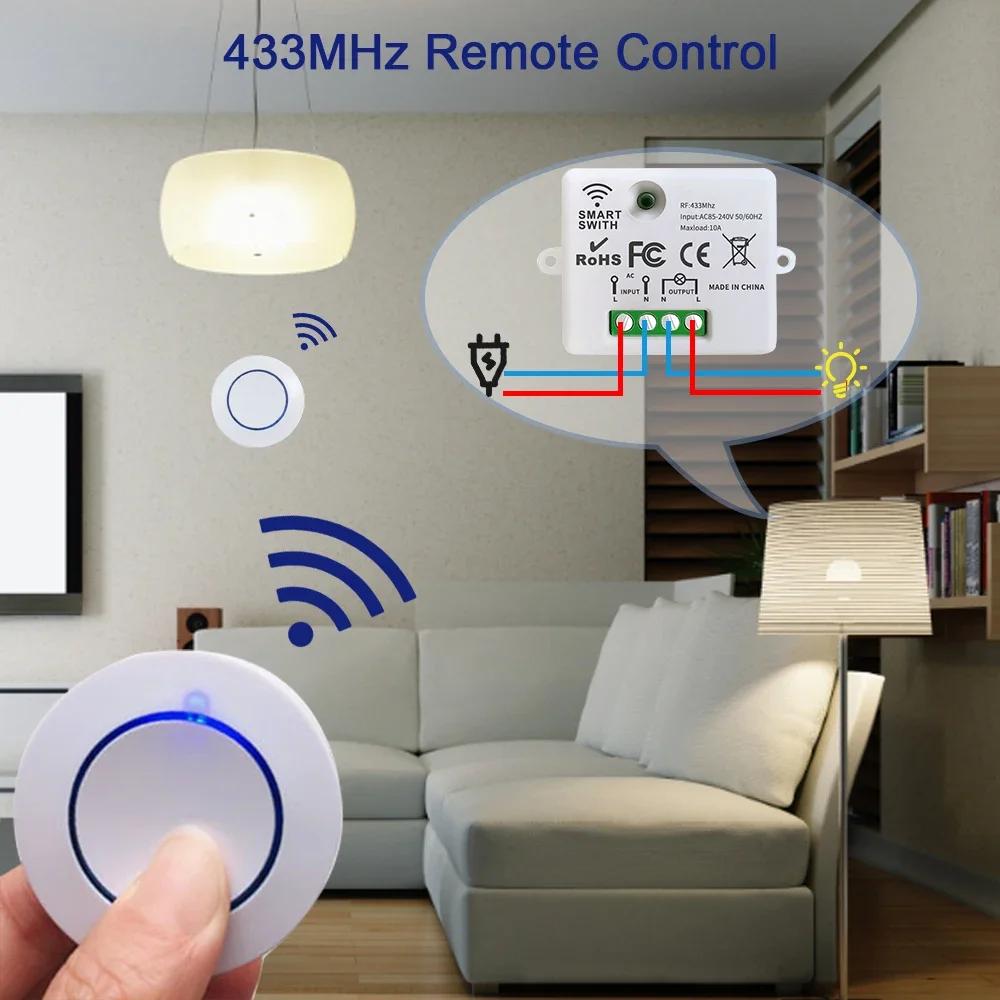

Control the light in the room, even outside the room, The receiver can be remotely controlled up to 50 meters through a wireless switch and the signal can be controlled through the wall;
Wide range of application
Products can be used in homes, farms, factories, offices, laboratories, supermarkets, and so on.
Remote control Water pump / Fan / Lamp / LED light / bulb / ventilation device/ Exhaust system, Kettle, water heaters / Signal transmission / Electrical equipment /Factory Home Office Ventilation Pump LED Light.
How to get the signal:
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control or wall panel. Wait for 3 seconds. Succeed.
How to clear the signal:
Only one step: Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
