Product Description:
Brand: NOYAFA
Product Name: Network Cable Tester
Type: NF-8518
Material: ABS
Size: 198x50x28mm, 148x70x32mm
Cable Type: CAT5/ CAT6
RJ45 Cable Length Test Function: Support 5-350 metre
Optical Power Meter Function: Support 10 wavelengths (850/980/1270/1300/1310/1490/1550/1577/1625/1650nm)
Red Light Pen Function: 10 kilometre
Withstand Voltage: 60V
Low voltage prompt function: Yes
Power Supply: 3.7V 1500mAh lithium battery
Product Features:

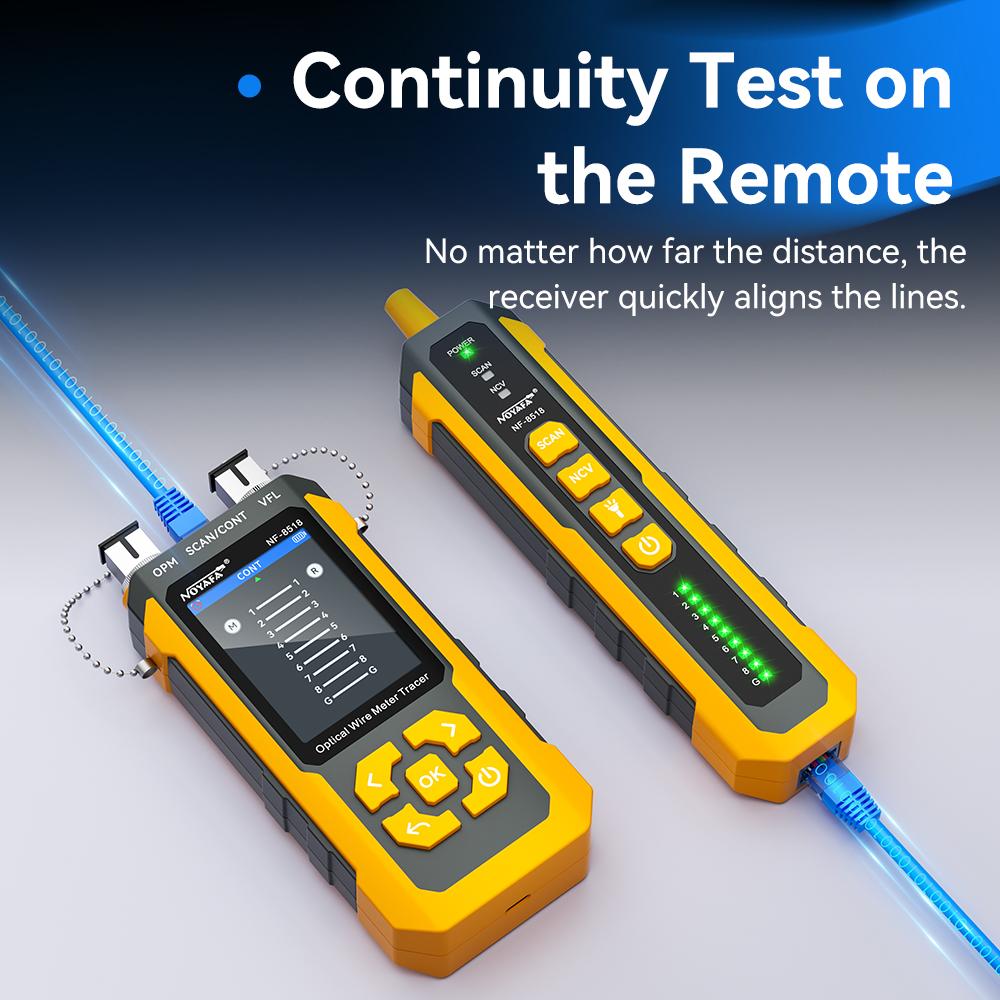

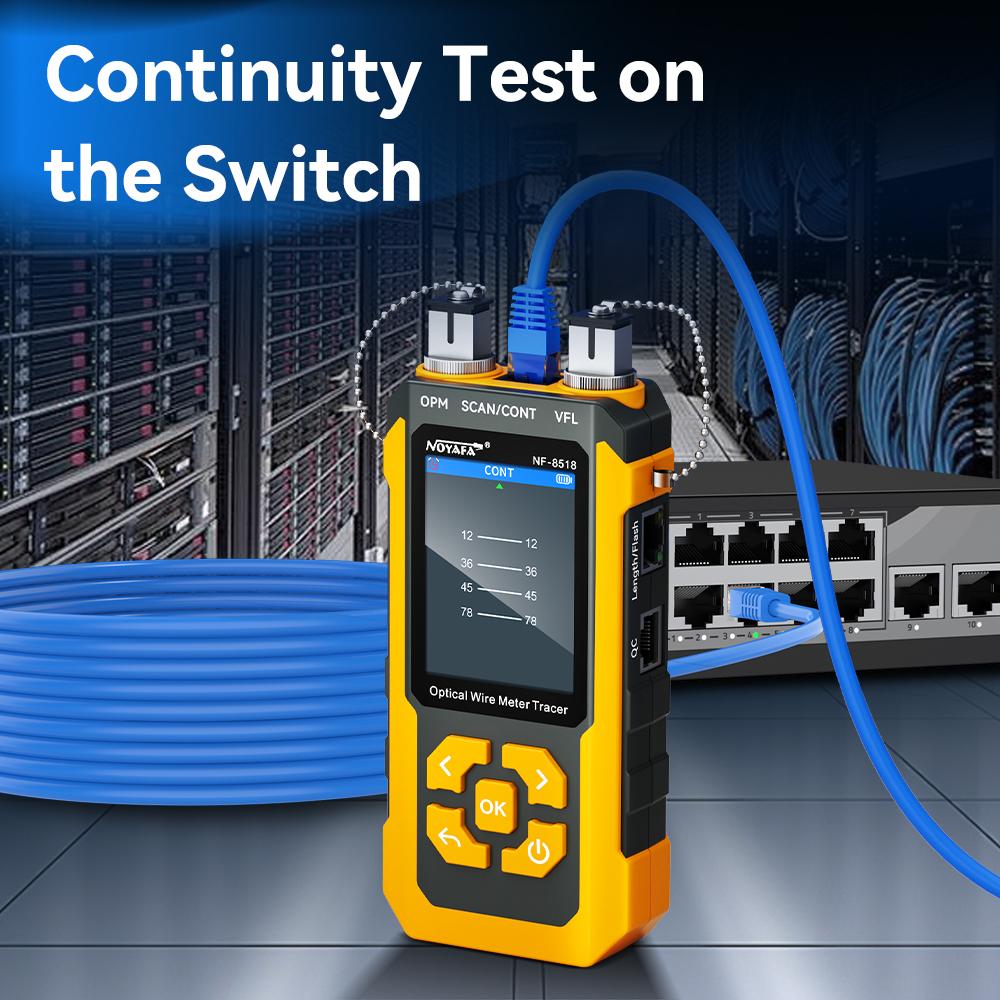

1. Cable Continuity Test: Test the short circuit, open circuit, crossover, normal, etc. of the network cableand POE Switch.
2. Cable Scan Test:

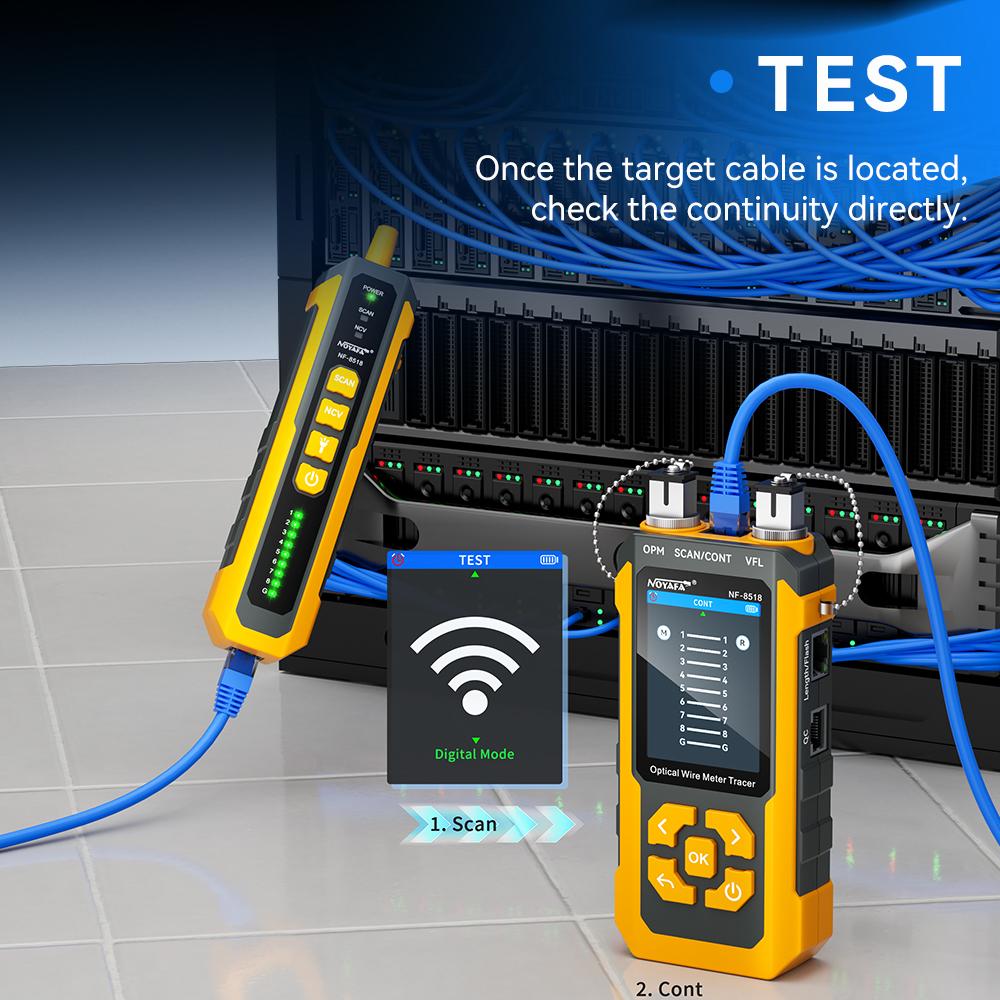

(1) Once the target line has been located, a direct Cable Continuity test may be conducted.
(2) Normal Mode/ Anti-jamming Mode. (The sensitivity can be adjusted.)3. Port Blink Function: For locating network port by the flashing port light on Hub/Switch.

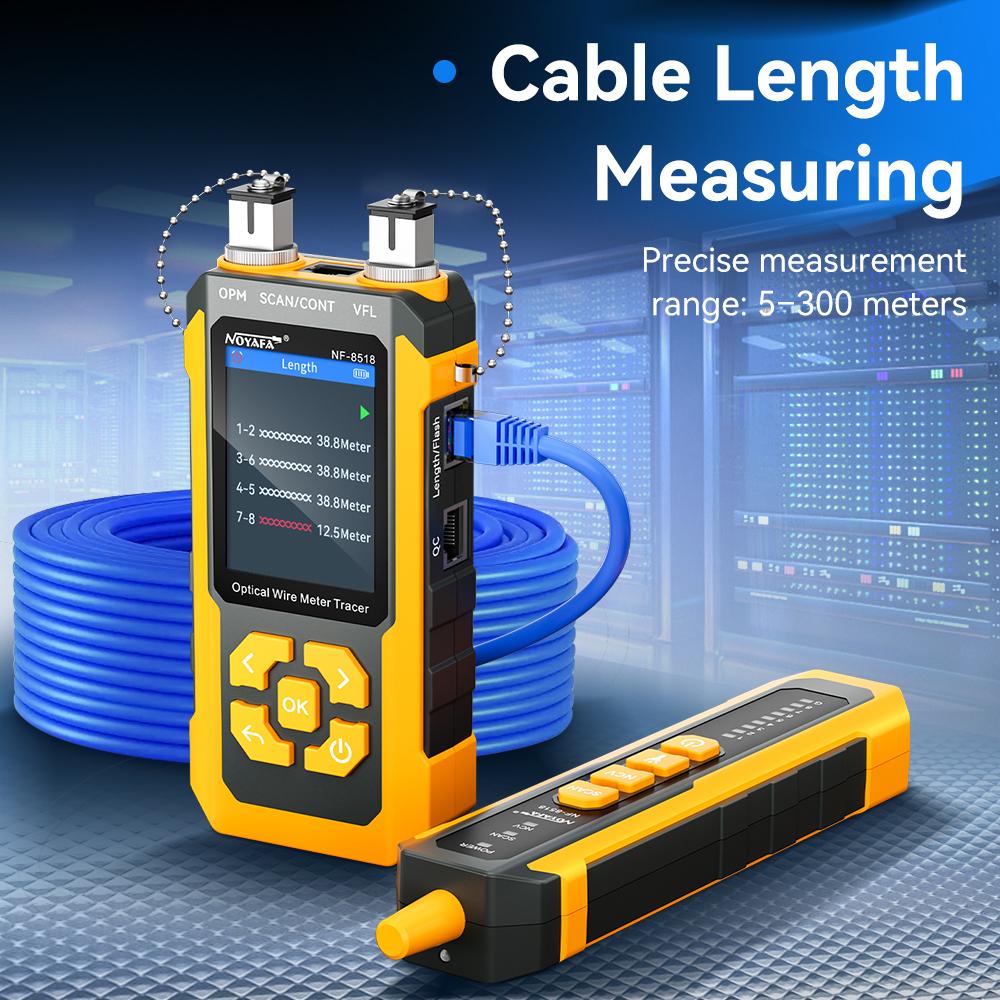

4. Length Measure:Measure CAT5, CAT6 cable length accurately , the range is 5m~350m.
5. POE Function:It can test the information of standard POE device, such as POE voltage, power supply polarity, power supply mode and also the type of PSE (af or at standard).

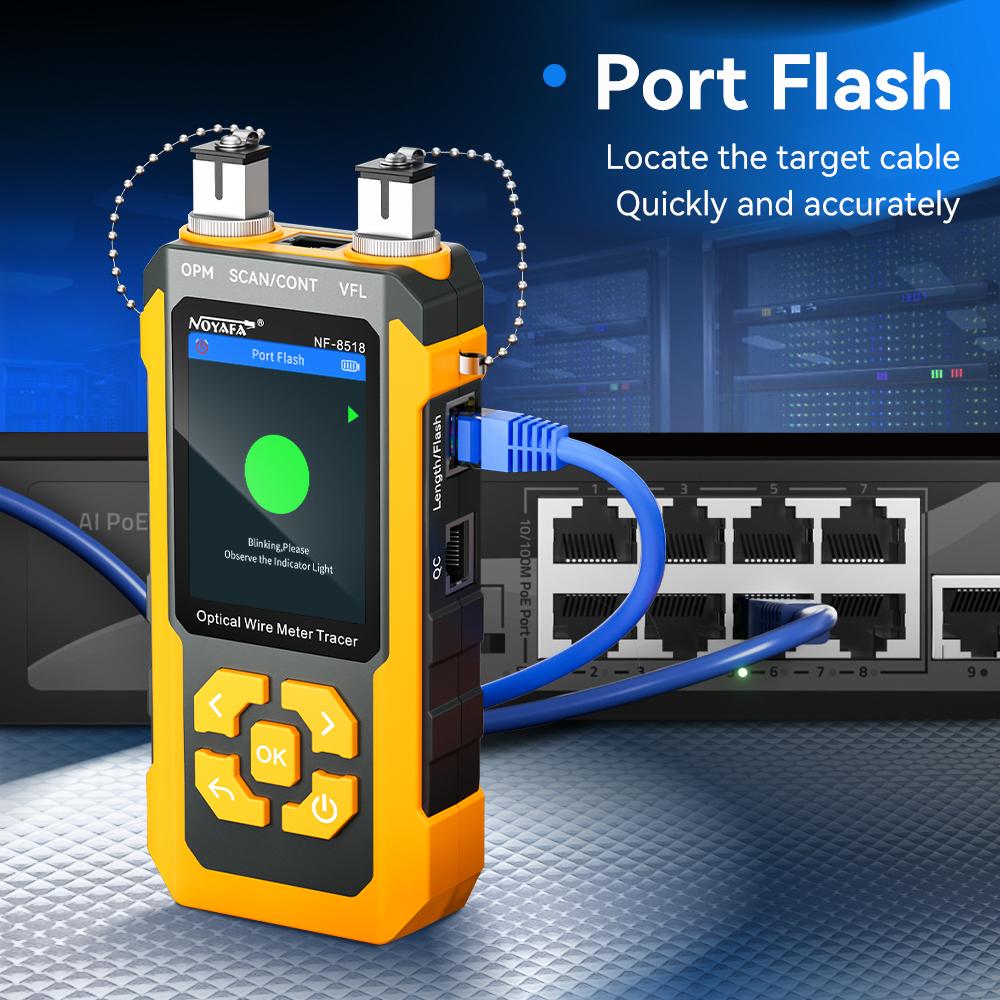

6. Port Flashing Function:Quickly find the network cable on the switch/router.

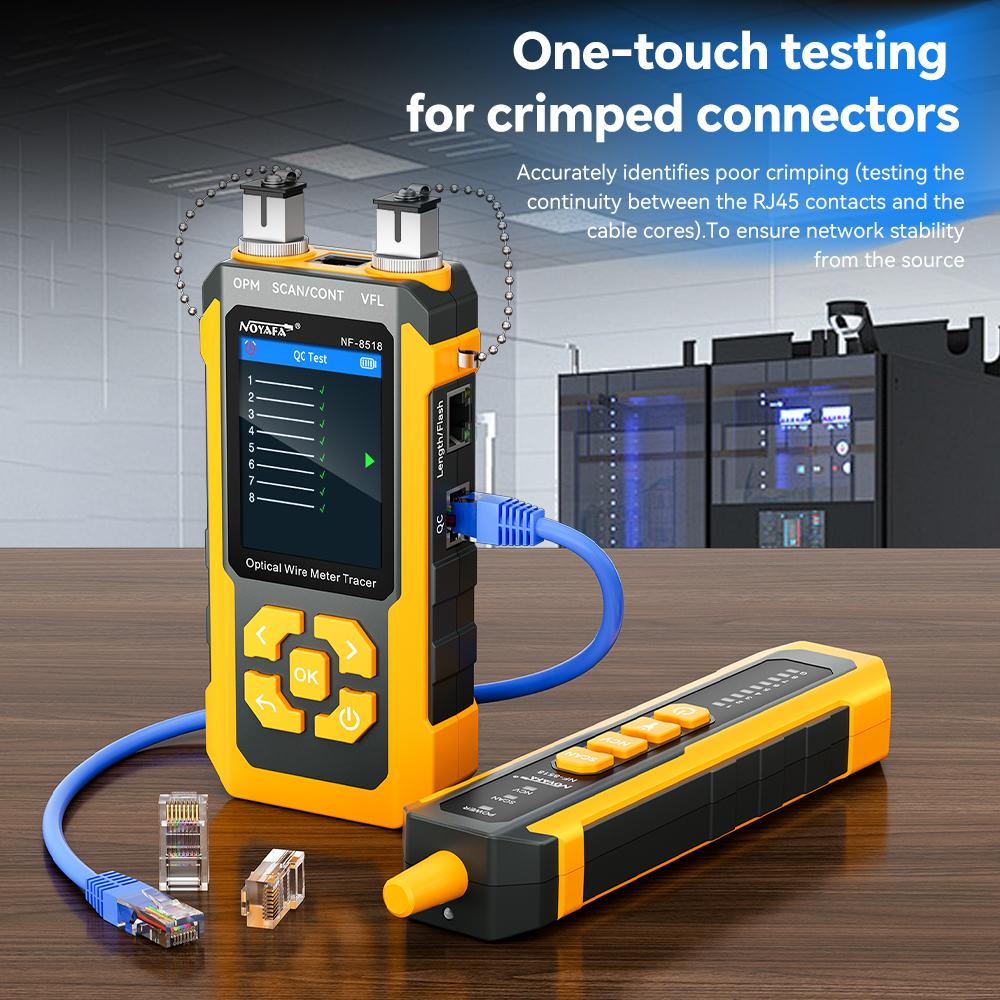

7. QC Testing for Crystal Head:Plug and unplug the cable that needs to be tested, and the results are updated automatically. A tick indicates that the channel is normal, and a cross indicates that the channel is abnormal.
8. Optical Power Meter Function:
(1) Available Unit: dBm, dB, or mw, uw, nw
(2) Available Wavelength: 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm.

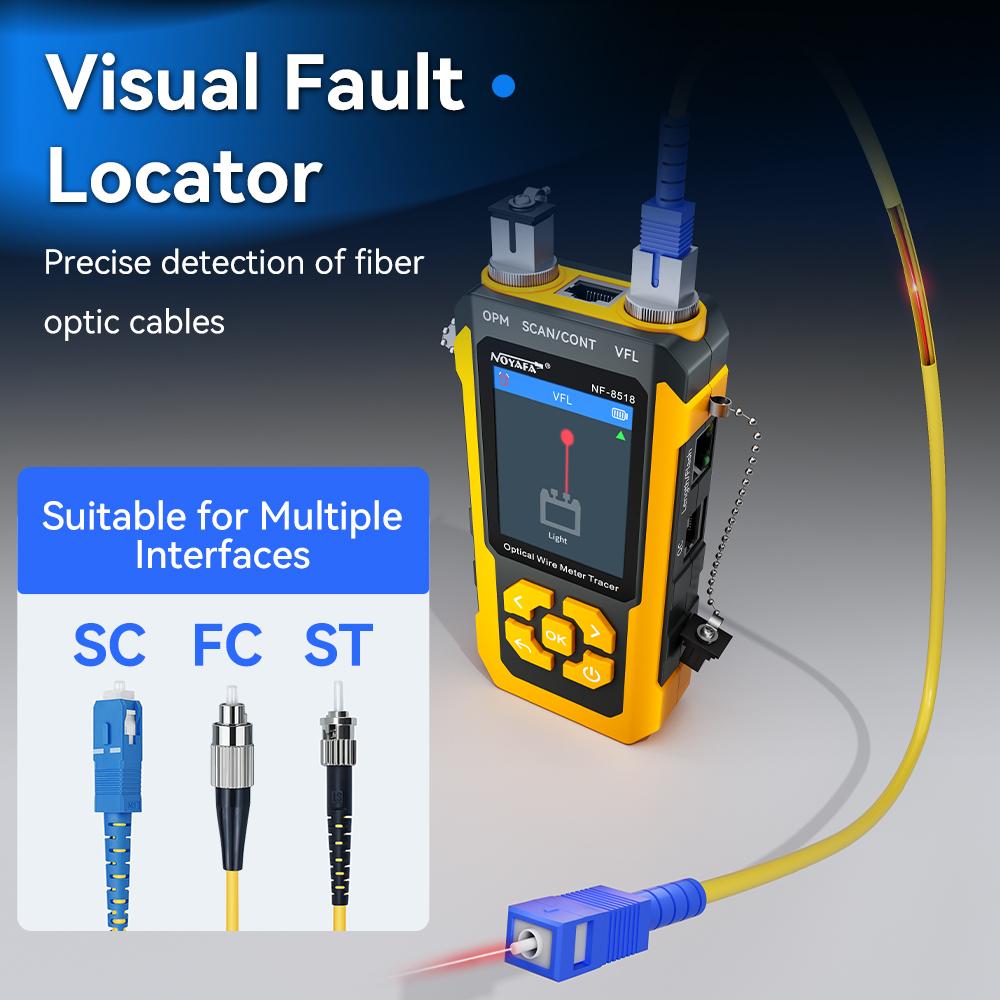

9. Red Light Pen Function:Can switch three modes : Fast flash, Slow flash and always bright.
10. NCV Function: The NCV indicator lights green, means NCV function turns on.
11. Set Function: Set up Language/backlight/ backlight time/ auto-off time/system information(version No.) etc.
12. Lighting Function, convenient to work in dark environment.
13. Rechargeable Lithium battery for long-time work. Adjustable auto-off time.
