Features:
* Support GPS L1/L2/L5, for Galileo, GLONASS, Beidou full-band signals, differential technology to achieve ±2.5cm agricultural surveying and mapping accuracy.
* IP67 waterproof and dustproof shell, resistant to -40°C~85°C extreme temperature, suitable for tractors, seeders and other agricultural machinery operating environments.
* Suppress electromagnetic interference to stable reception in complex farmland environments.
* SMA/TNC interface is suitable for mainstream agricultural machinery systems, no need to drive, ready to install.
* High sensitivity antenna design, support 50,000 hours of continuous operation, 40% longer life than ordinary antennas.
* Suitable for high-load scenarios such as agriculture and land leveling.
Specification:

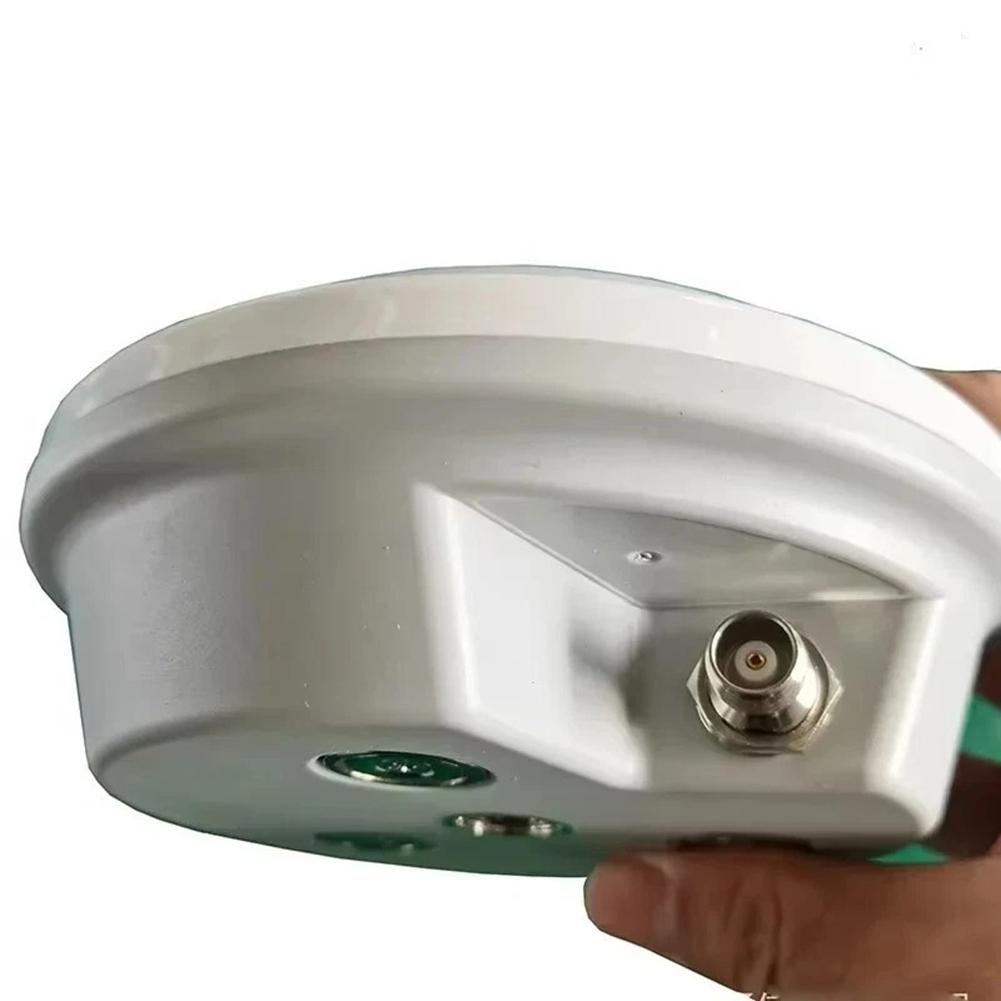

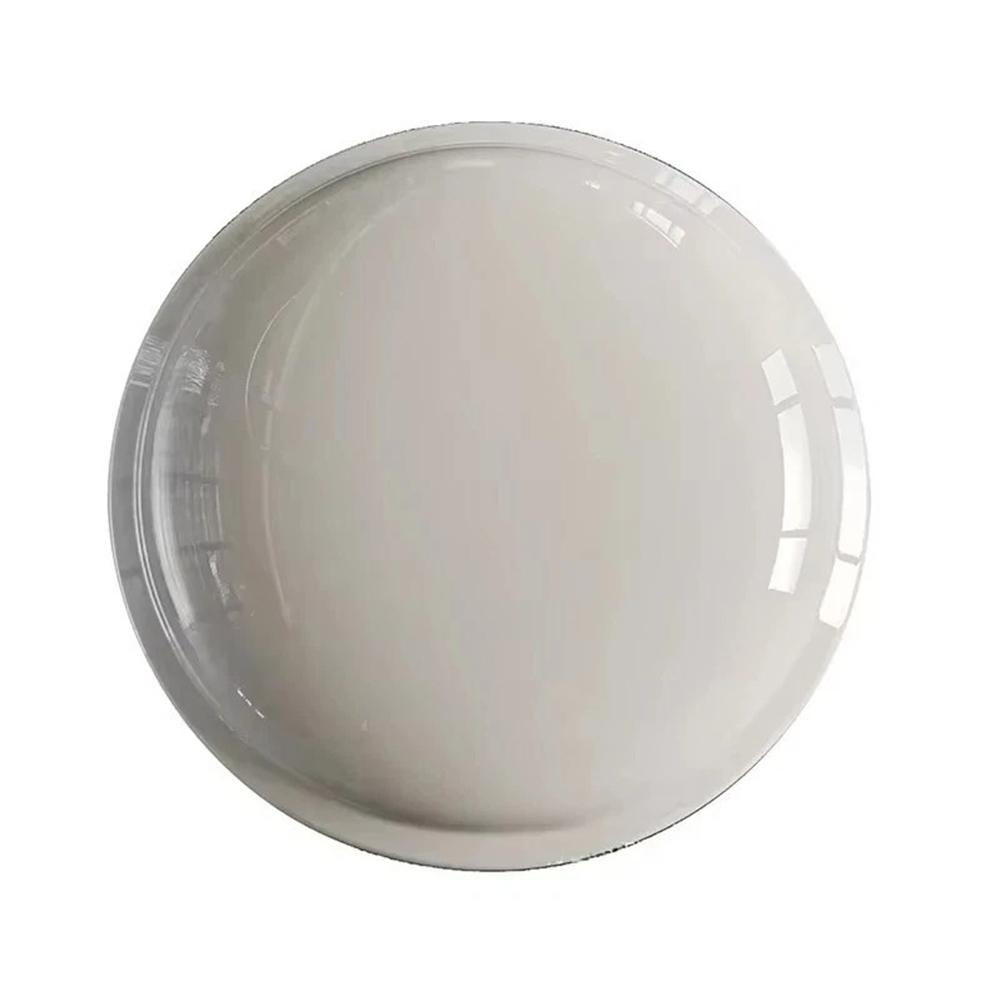

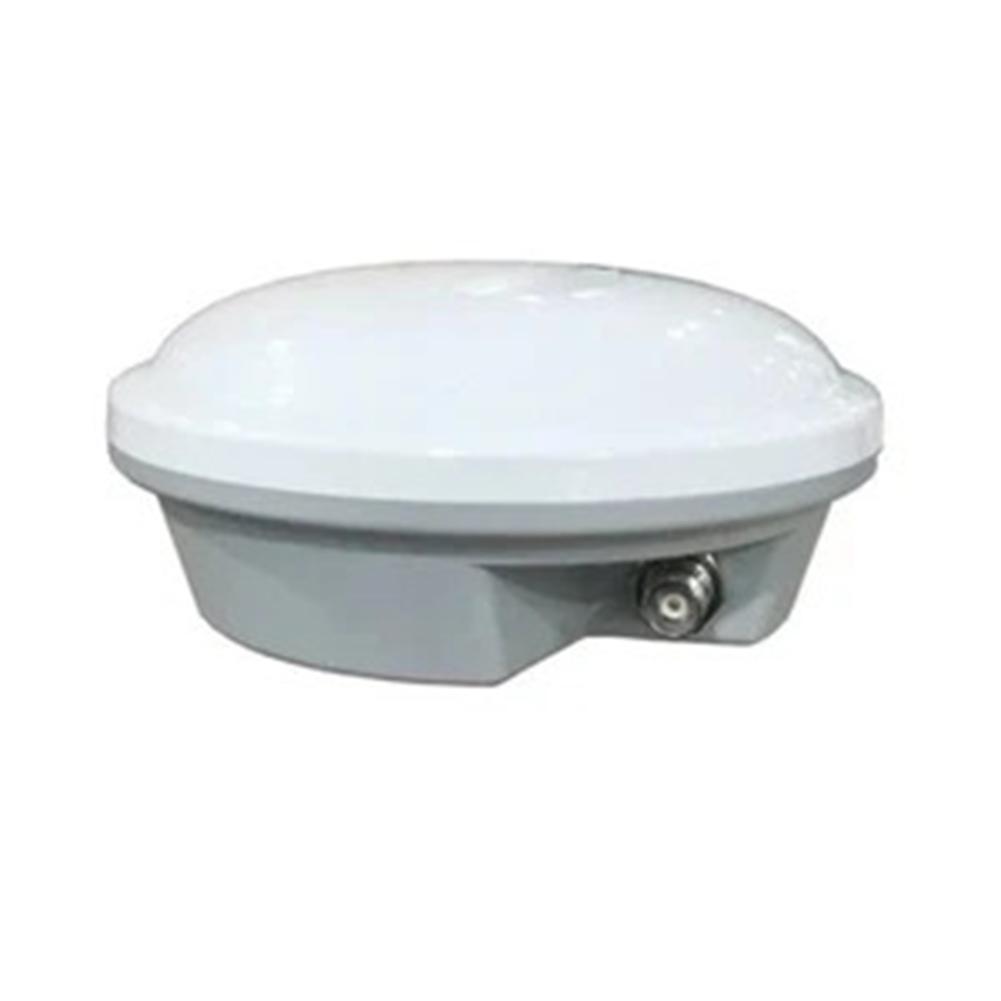

Part Name: Full Range Measurement Antenna
Connecting cable (optional): TNC-TNC, TNC-SMA
Material: ABS, metal
Color: white
Size: 152mm*67.5mm
Antenna structure: four feed points, double-layer superposition structure
Supported satellite signals: GPS: L1/L2/L5; BDS：B1/B2/B3; GLONASS: G1/G2/G3Galile0: El/E5a/E5b/E6L bands
Maximum gain: >5.0dBi@FC
Polarization: Right-handed circular polarization (RHCP)
Antenna Axis Ratio @ : <1.5dB
Horizontal coverage angle: 360°
Characteristic impedance: 50 ohms
Phase Error: ≤2.0mm
Repeatability of the Phase Center: ≤1.0mm
Working frequency: 1164MHZ~1300MHZ; 1525MHZ~1621MHZ
Low noise gain: 40 2.0dB (typical @25°C)
Cable length: 5M

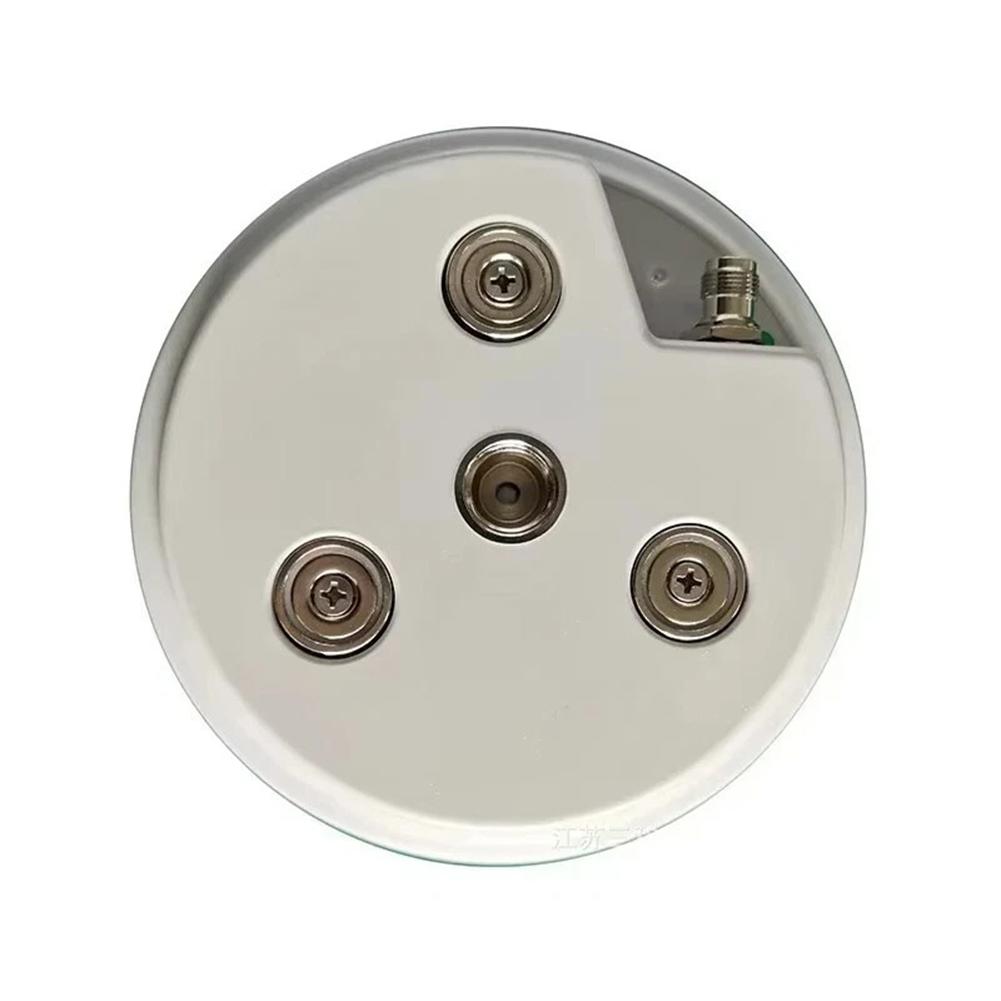

Mounting thread: 5/8-11
Package Contents:
Listing 1: 1 x Full-range measurement Antenna

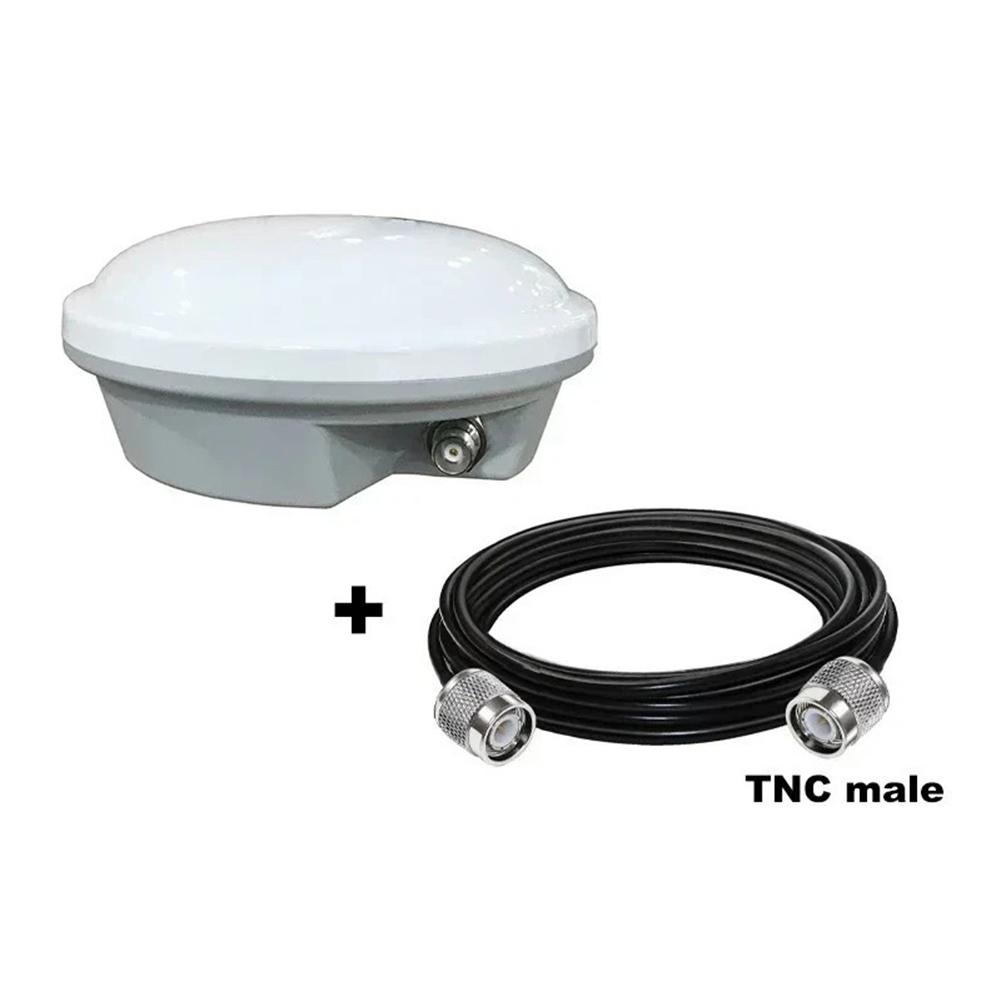

Listing 2: 1 x Full Range Measurement Antenna 1 x TNC-TNC Cable

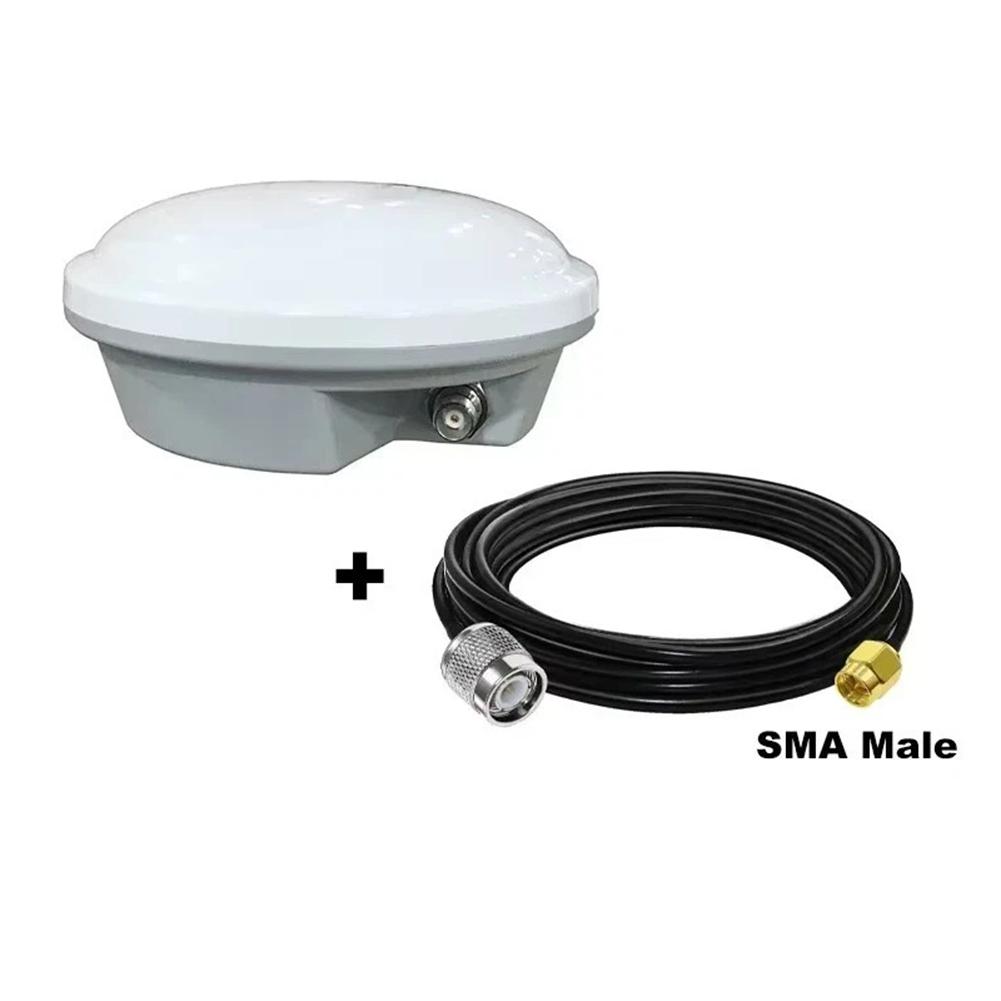

Listing 3: 1 x Full Range Measurement Antenna 1 x TNC-SMA Cable
Note：
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
