Note:
The relay controller is RF Receivers ,the wall switch is RF only. Wall switch itself cannot control lights on off. It needs to work with rf receiver together.

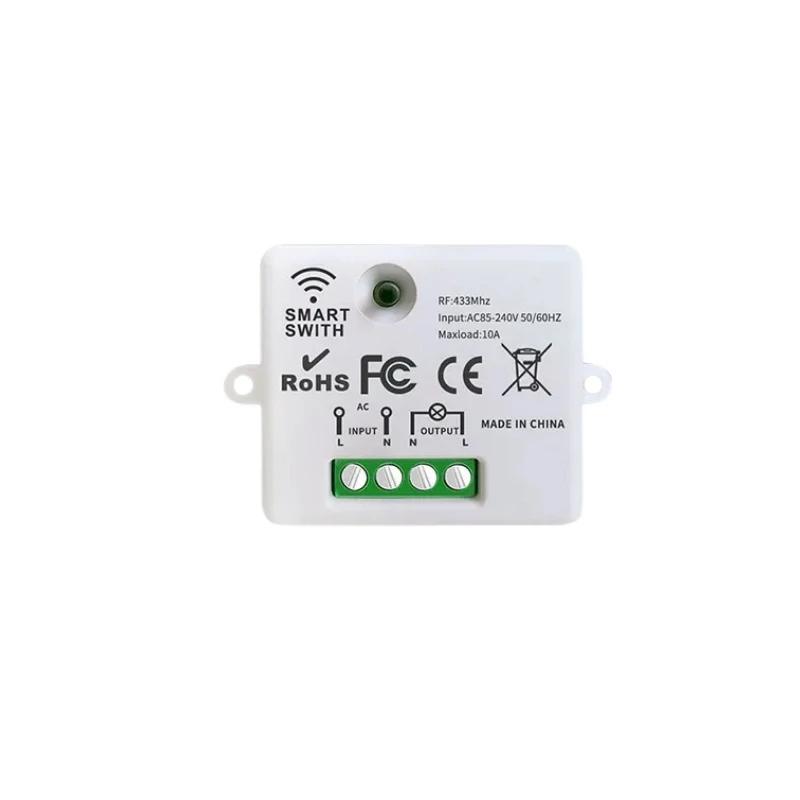

Relay Receiver Board Parameter

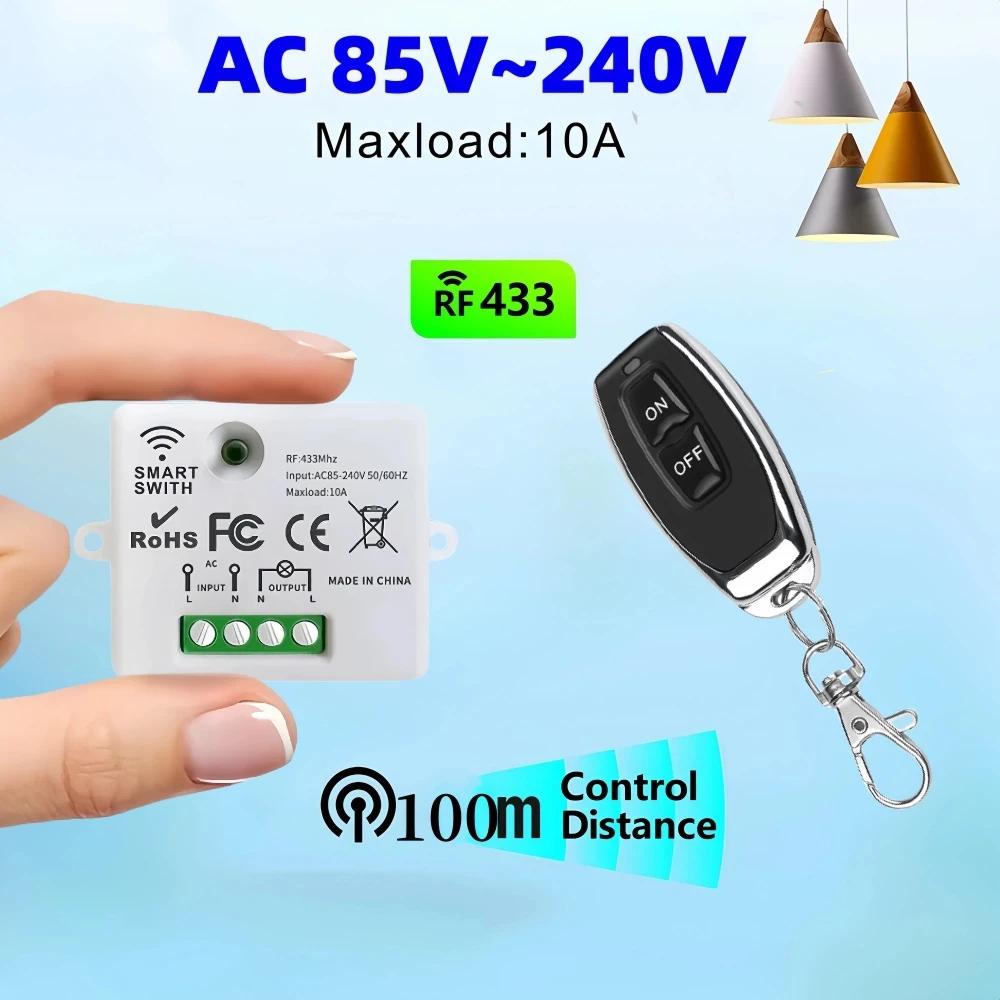

Working voltage : AC 85V 240V
Quiescent Current : <5MA
Max current : 10AMax load: 2200W
Receiver Body Size : 47*42*27mm
Weight:35gRF frequency : 433MHzPin : L / N
Working temperature : -10 +70 Celsius
Receiving Sensitivity : >97dbm
Amount of storage remote controls : 20 pieces
Support encoding : EV1527 Leaning code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is more than 100 meters
Remote operating mode : Toggle Mode / Latched Mode
Easy connect and multi control one
The receiver is easy to install, Multi switches can control different receivers or one receivers strong signal and Long distance controlControl the light in the room, even outside the room, The receiver can be remotely controlled up to 100 meters through a wireless switch and the signal can be controlled through the wall
Wide range of applicationProducts can be used in homes, farms, factories, offices, laboratories, supermarkets, and so onRemote control Water pump / Fan / Lamp / LED light / bulb / ventilation device/ Exhaust system, Kettle, water heaters / Signal transmission / Electrical equipment/Factory Home Office Ventilation Pump LED Light
Smart Home, Feel free to use it together

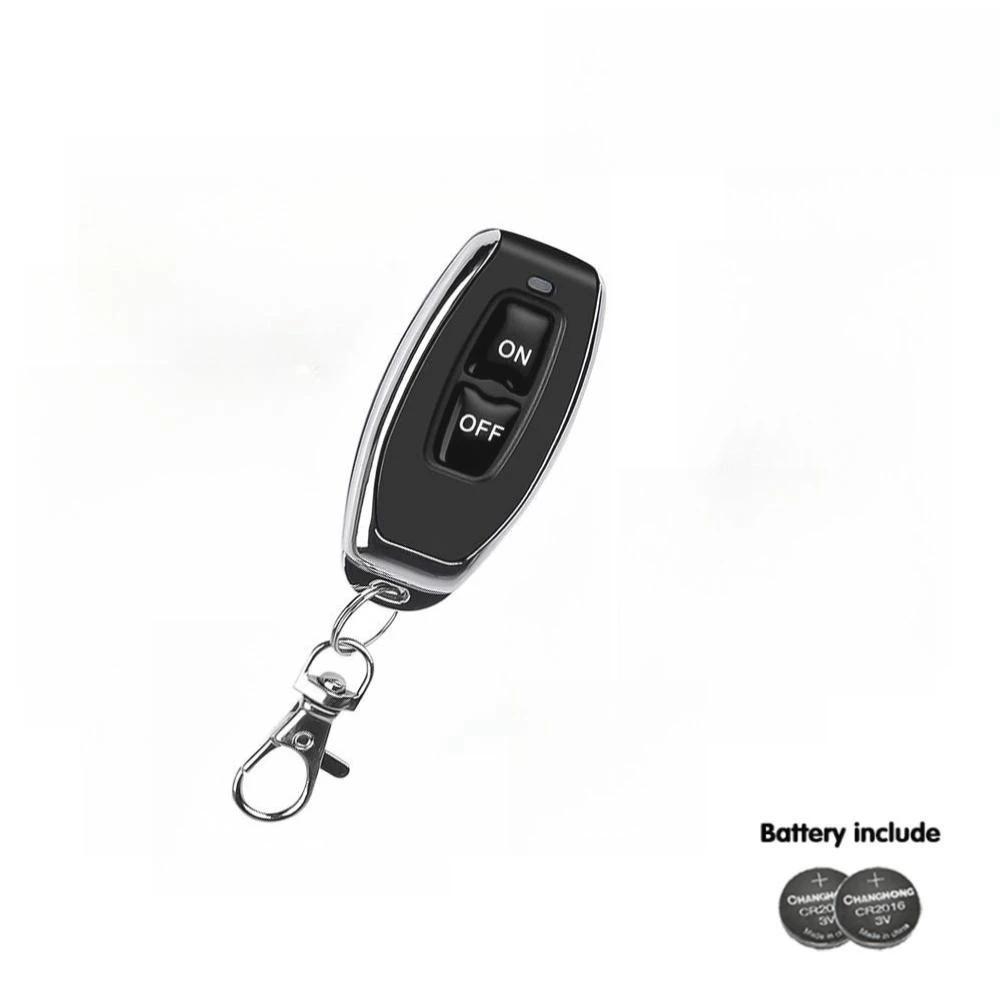

Learning Pair Codeit can work with any remote control with the same frequency, so you needn't worry about losing remotecontrol any more.(if the remote control is lost, buy one and pair with the PCB board is Ok )How to get the signal
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control or wall panel. Wait for 3 seconds. Succeed.
How to clear the signal
Only one step: Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;

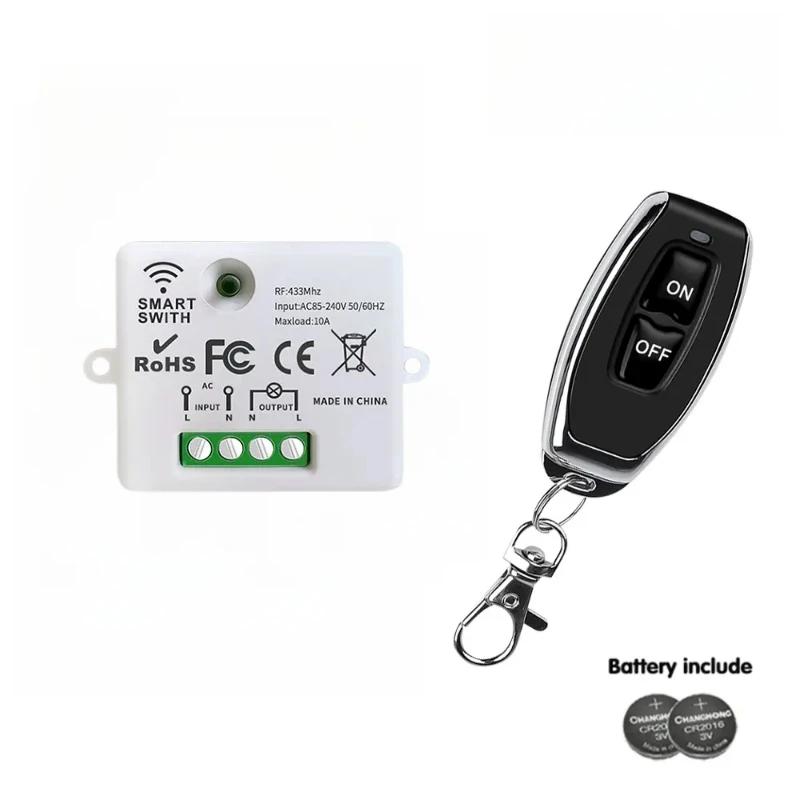

Package Contents:
AS the picture
✨NOTE:
①Images on this page are for illustration only and due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures,Thank you!
②Please allow 1-3cm measuring deviation due to manual measurement.
