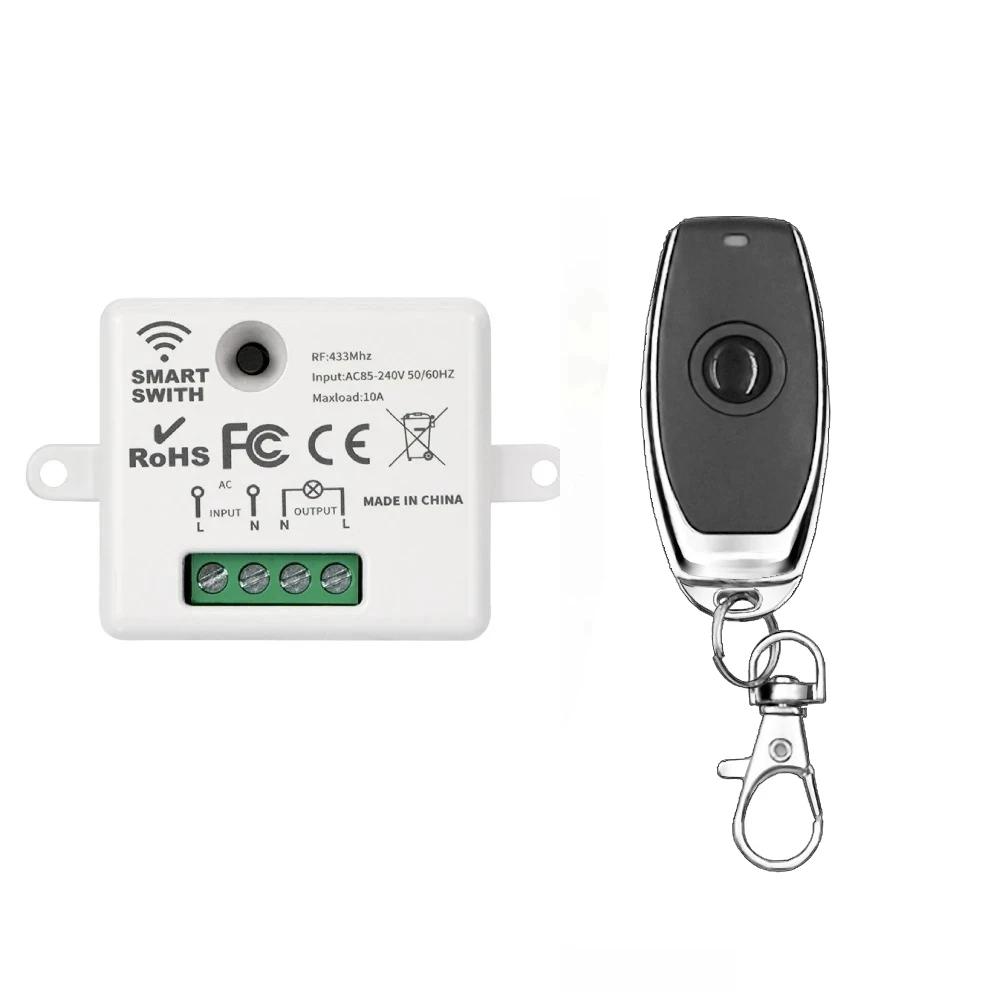

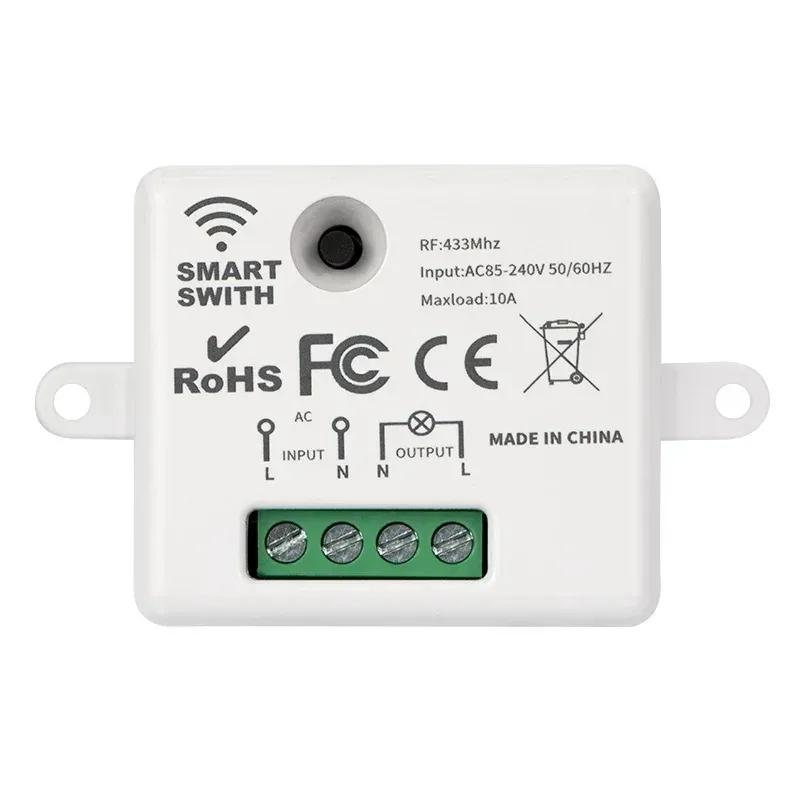

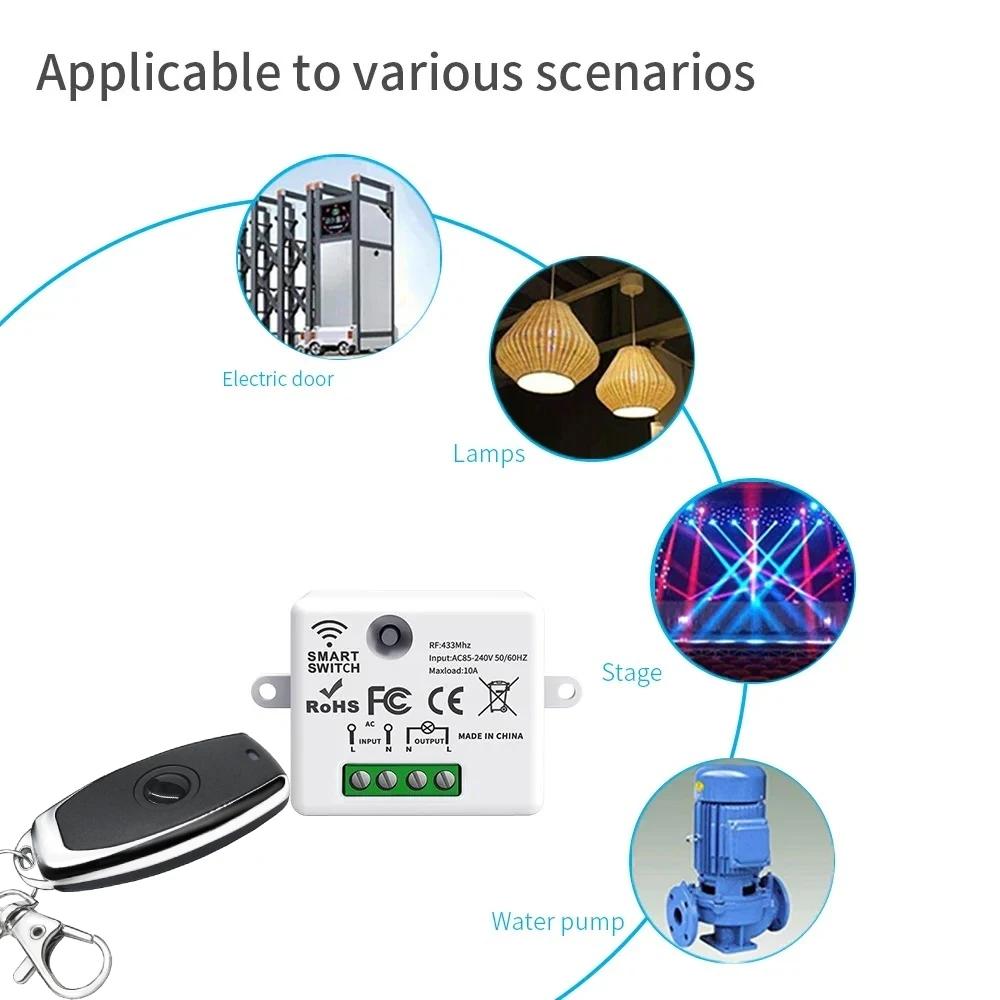

Mini Wireless Receiver Specification Data
Encoding Type: Intelligent Learning Code 1527
Modulation Mode:ASK
RF Frequency: 433MHz
Input Voltage: AC 85V 240V
Max current: 10 Amp
Remote distance : up to 50m (theoretical distance)

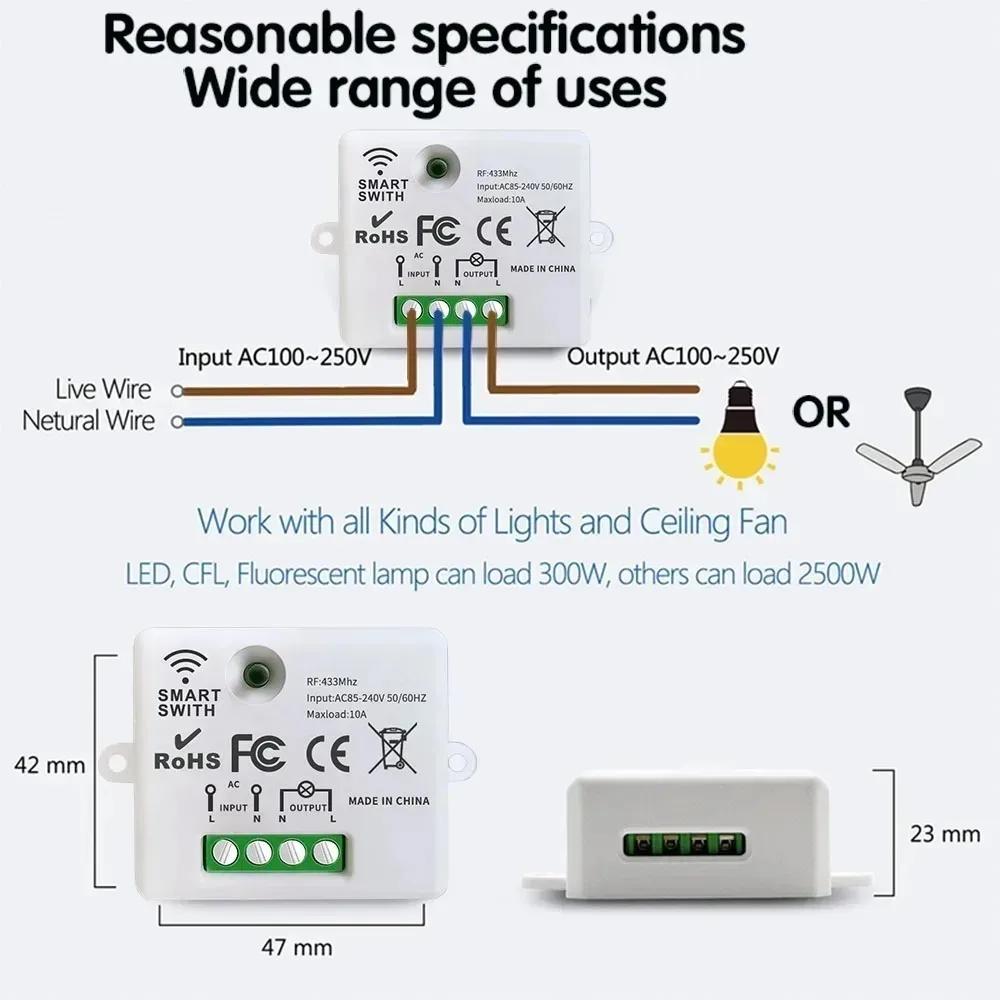

Wired Connection Way: Fixed Wiring Pillar
Output Terminal: L /N
L : Living line
N : Neutral line
Size:42*48*23mm
Color: White (Outside Shell)

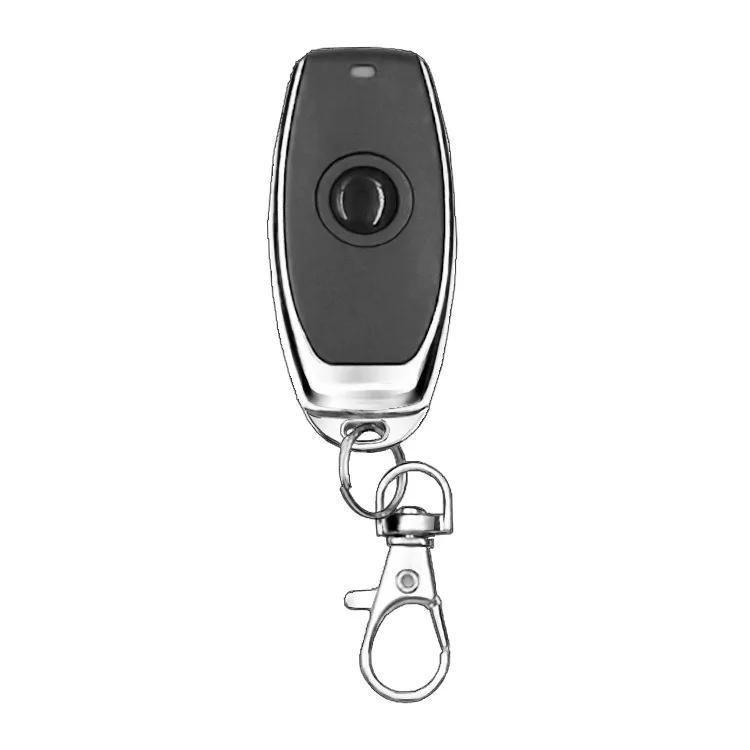

Remote control Specification Data
Control Distance : 100 meters in open sapce
RF frequency : 433MHz
Support encoding : 1527 Leaning code
Size:60*30MM
Battery : CR2016 2pcs * ( include )
Learning Methods:
1. Inching learning method:
Press the code pairing button on the control panel once, and the LED indicator will flash once. After the LED indicator lit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.
2. Self-locking learning method:
Press the code pairing button on the control panel twice, and the LED indicator will flash twice. After the LED indicator lit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.
3. Mutual lock learning method:
Press the code pairing button on the control panel three times, and the LED indicator will flash three times. After the LED indicator lit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.
4. 5S delay learning method:
Press the code pairing button on the control panel four times, and the LED indicator will flash four times. After the LED indicator lit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.
5. 10S delay learning method:
Press the code pairing button on the control panel five times, and the LED indicator will flash five times. After the LED indicator lit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.
6. 15S delay learning method:
Press the code pairing button on the control panel six times, and the LED indicator will flash six times. After the LED indicator lit, press the button you need to pairing on the remote control, the LED indicator on the control panel will flash for 3 times which means the pairing succeed.
Clearing method:
Press the code pairing button on the control panel eight times, then it will automatically clear all the learned remote controls. After clearing, the remote control previously learned can no longer be used.
Package Includes:
AS the picture
Notes:
①Images on this page are for illustration only and due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
②Please allow 1-3cm measuring deviation due to manual measurement.
