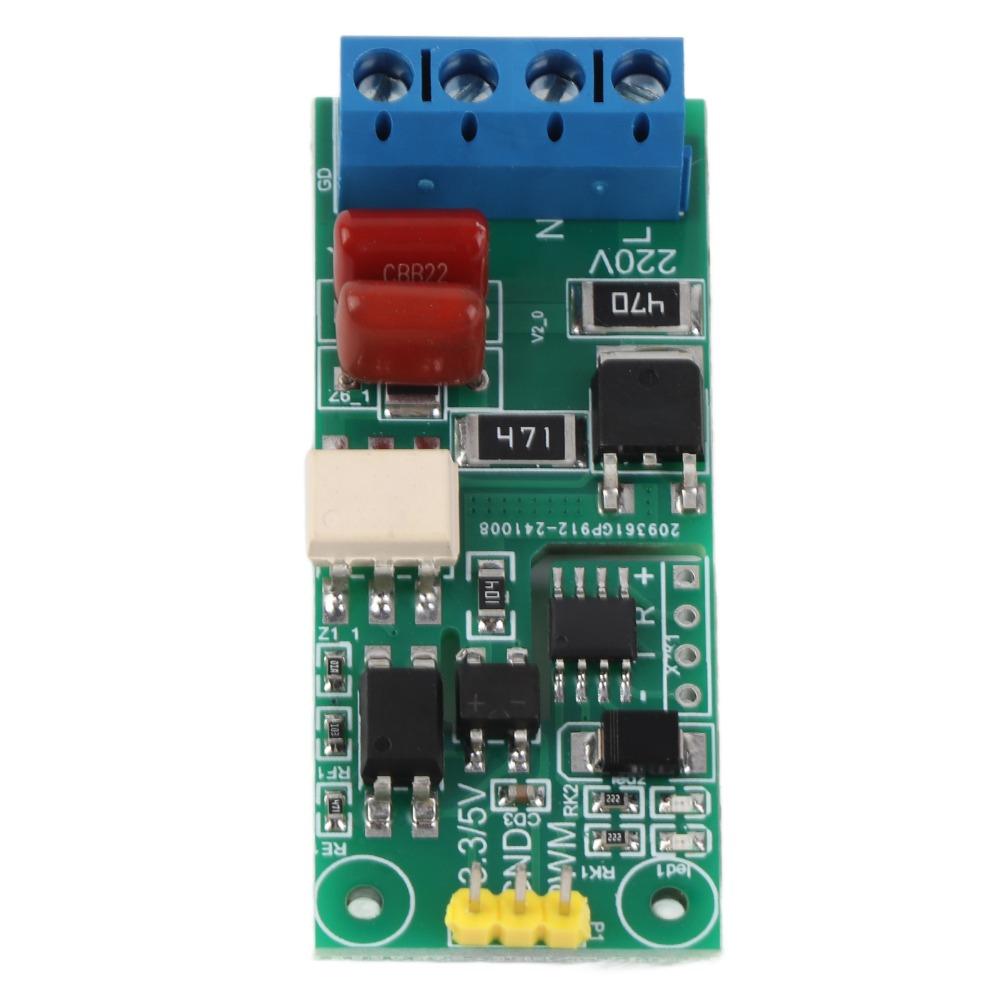

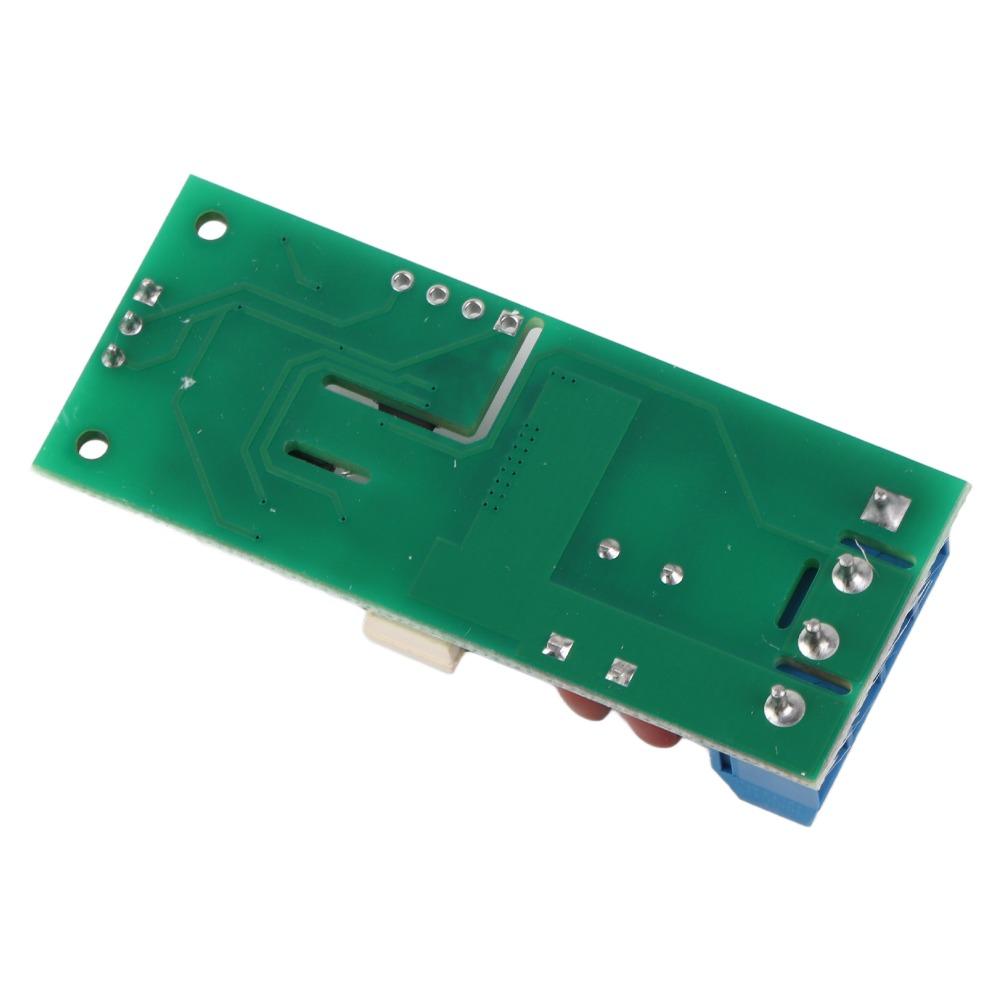

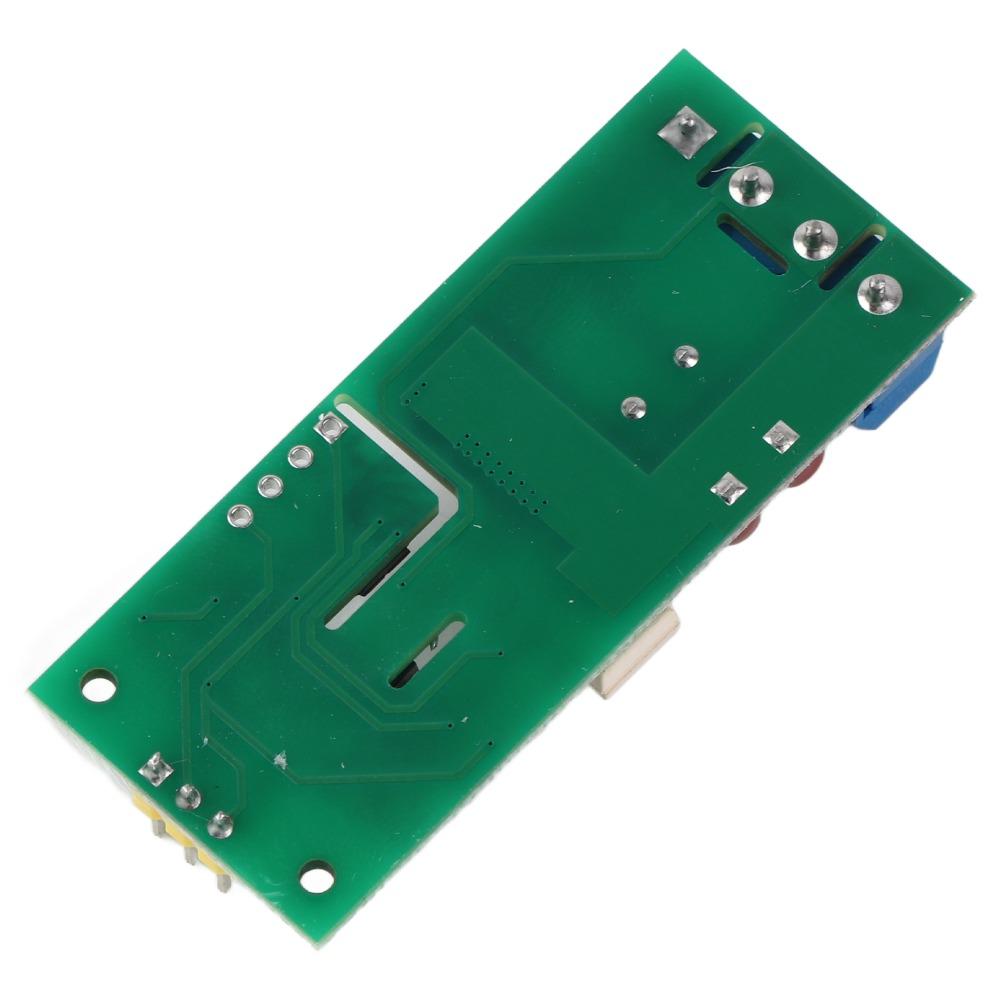

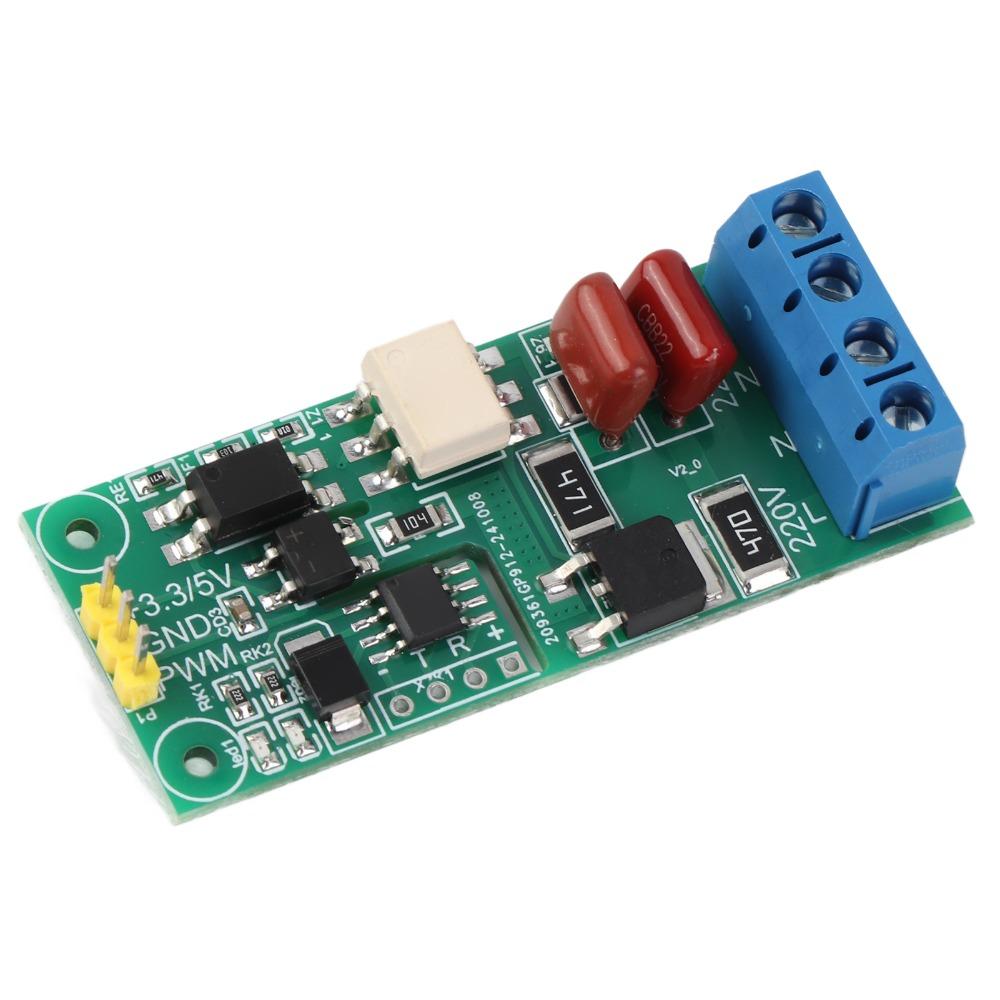

Adjustment Module YYAC-3S PWM Control Module AC220V 3A Voltage Controller PWM Voltage Controller Speed Adjustment

Safe Working: Adopts original thyristor and ensures completed isolated input and output optocouplers, can work safely under weak current. For Control: PWM output through the IO port on single chip microcomputer can adjust the duty ratio and change the 220V AC voltage to achieve the purpose of dimming, speed and power adjustment, etc. Output Power: Controllable load within the range of 220V 3A or 660W, and the output under certain load can achieve normal voltage regulation. PWM Input: When PWM directly inputs 0V low level, the output is 0V, and when PWM directly inputs 5V, the output is 220V. Application: Connect this control module to lamps or household appliances for dimming, speed, voltage and temperature control. Specification Item Type: PWM Control Module Product Model: YYAC-3S Single Chip Microcomputer Voltage: 3.3V~5V available; Single Chip Microcomputer Frequency: 1HZ~500HZ; Single Chip Microcomputer Duty Ratio: 0~100 Percent PWM: PWM inputs 0V low level directly, the output is 0V; PWM inputs 5V directly, the output is 220V. Load Voltage: 220VAC Output Power: Can control within 220V 3A, that is, load within 660W (the output needs to carry a certain load to adjust the voltage normally). Size: 55.7*23.3mm(2.19*0.92in) Color: As picture shown

Package List 1 x PWM Control Module
