Note:
The relay controller is RF Receivers ,the wall switch is RF only. Wall switch itself cannot control lights on off. It needs to work with rf receiver together.
Specifications:
Transmitter (Remote) :
Operating frequency: 433MHz
Power by 2 Pcs 3V CR2016 Battery (Battery included )
Material: PVC;
Button: 2 buttons;
Size: 60mm x 30mm;
Operating voltage: 3V ;
Operating Current: 12mA;
Transmitting power: 10mw;
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 20 50m
Controller (Receiver) :
Input Power: AC90V-250V 60HZ/50HZ
Max current: 10 A
RF Frequency: 433Mhz
Working temperature:-30 +80
RF working mode: superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: more than 50 m ( open space)
Remote storage:20pcs
Support remote type: Learning code 1527code
Size: 47.4*42*22.8 (mm)
Package Included:
1*Remote Control
1*Switch
433MHZ wireless switch signals

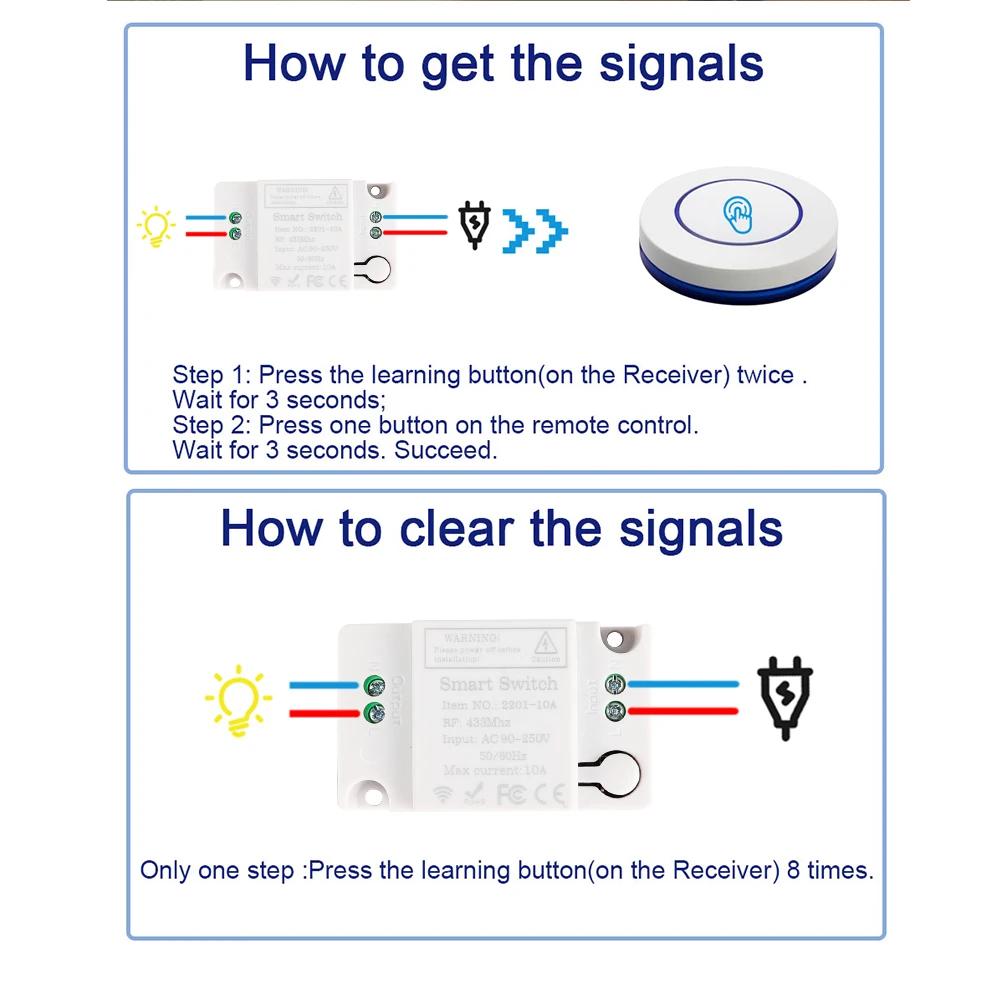

How to get the signals
Step 1: Press the learning button(on the Receiver) twice . Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signals
Only one step :Press the learning button(on the Receiver) 8 times.

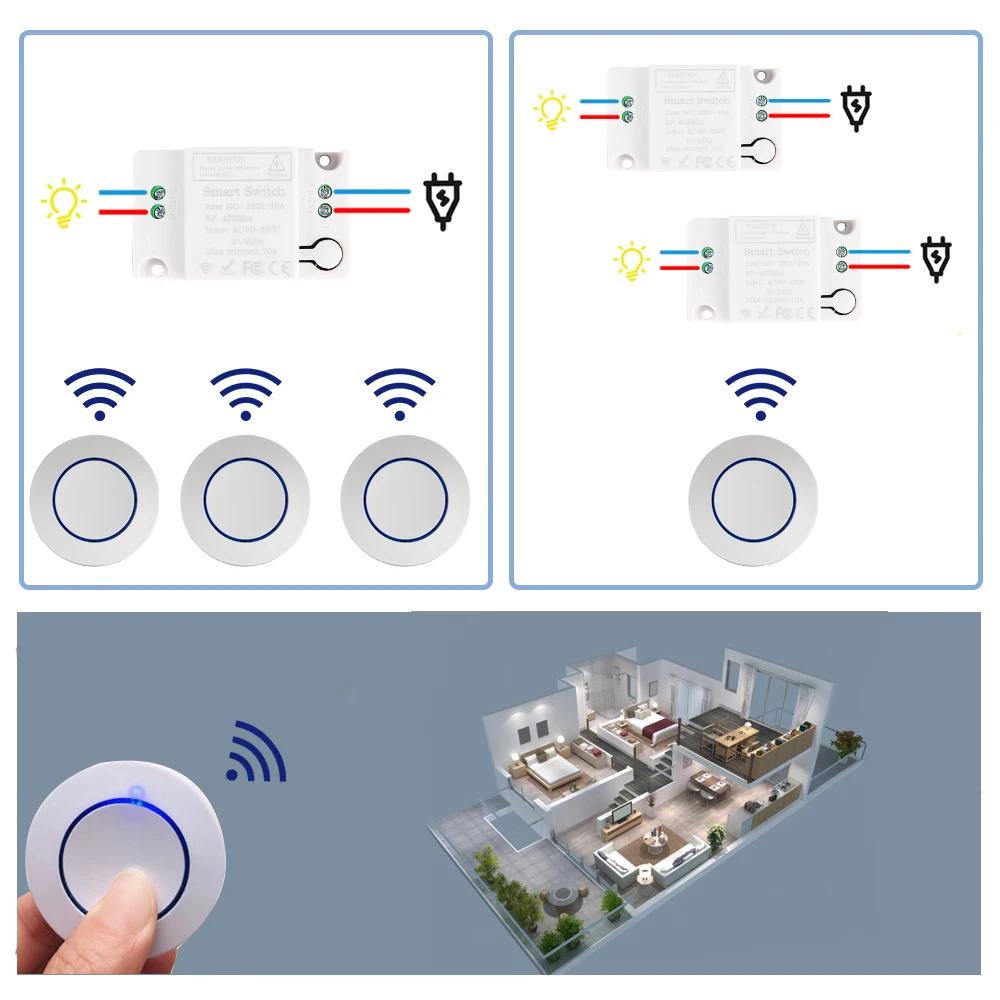

Easy connect and multi control one
The receiver is easy to install, Multi switches can control different receivers or one receivers

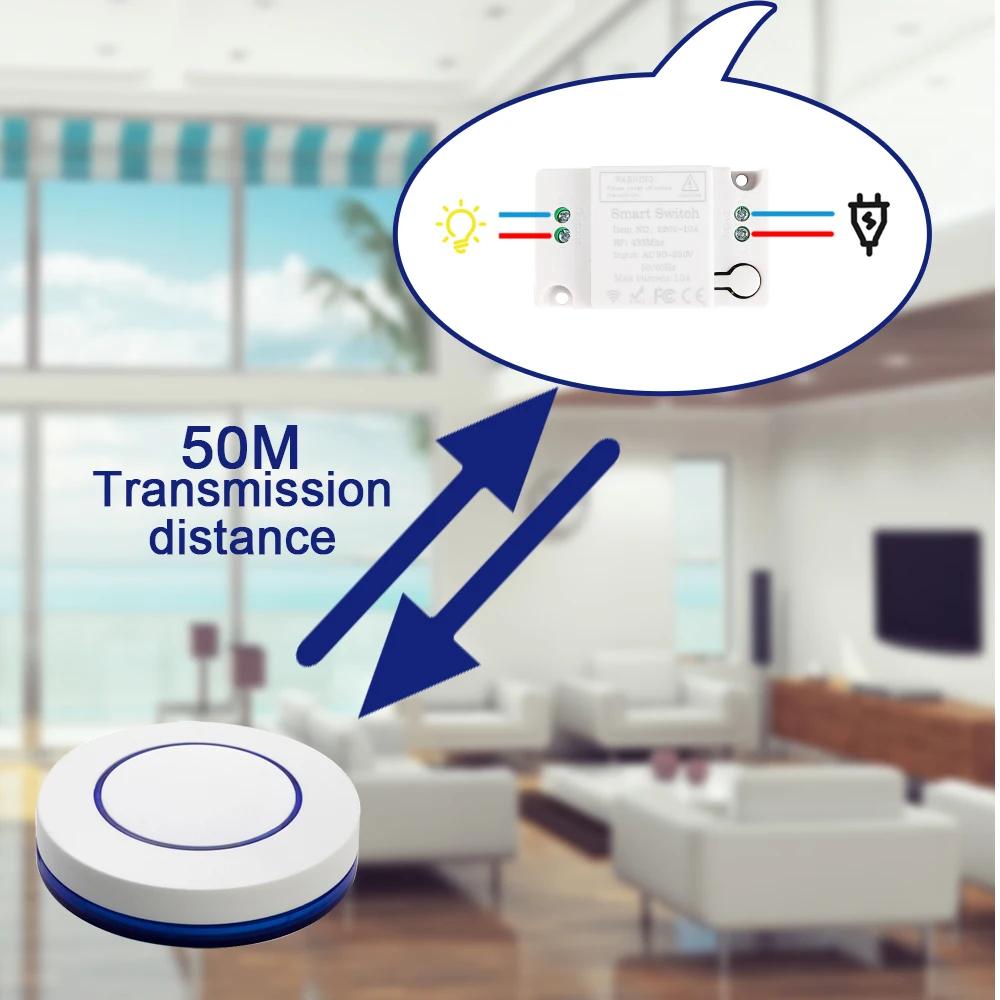

strong signal and Long distance control

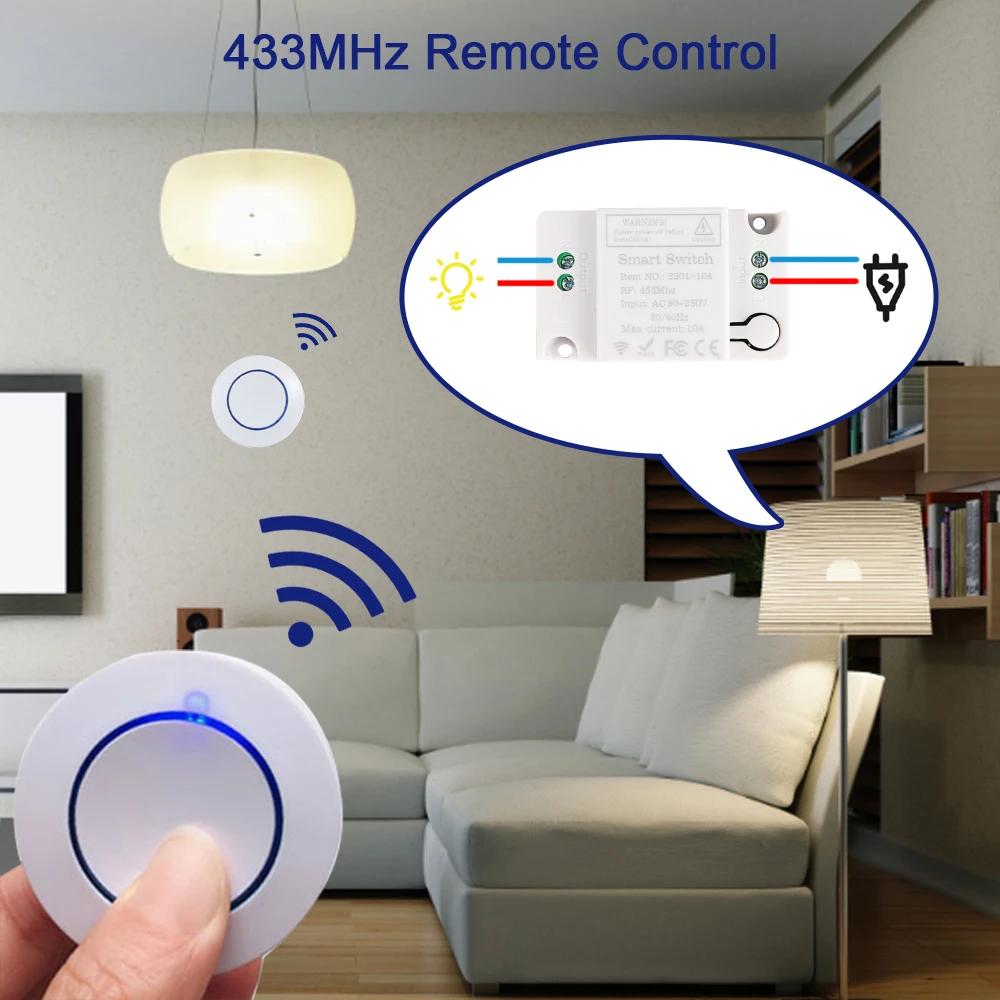

Control the light in the room, even outside the room, The receiver can be remotely controlled up to 50 meters through a wireless switch and the signal can be controlled through the wall
Wide range of application
Products can be used in homes, farms, factories, offices, laboratories, supermarkets, and so on
Remote control Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device\ Exhaust system, Kettle, water heaters \ Signal transmission \ Electrical equipment\Factory Home Office Ventilation Pump LED Light
How to get the signal
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control or wall panel. Wait for 3 seconds. Succeed.
How to clear the signal
Only one step: Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
