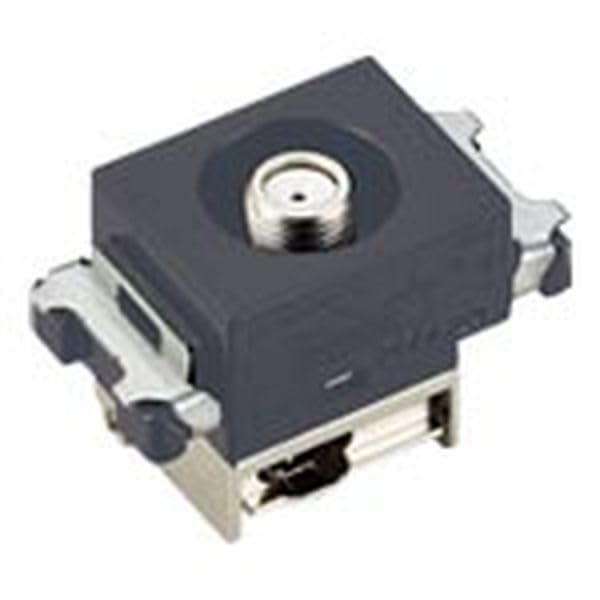

Panasonic Wiring Device Recessed TV Compatible with New Satellite Broadcasts Matte WCS3013MH SO-STYLE (So-Style) High-Shield Terminal, Single-Terminal

--------------------------------------------------- 【Voltage Compatibility】 Our products are selected to support international voltage ranges (e.g. 100–240V). However, please make sure your local voltage is compatible before use, as incorrect voltage may still cause malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without appropriate voltage or equipment. --------------------------------------------------- Size: 44mm wide x 29mm deep x 22.7mm high; Color: Matte gray Materials: Terminal screws: steel wire, clamp, body: zinc die-cast, assembly frame: zinc steel plate, cover: ABS resin, outlet: F-type connector (JEITA standard RC-5223C) Wiring method: Input terminal: screw terminal (coaxial core only, screwless terminal), Output terminal: F-type plug, Number of wires: 1 (input) Current passing terminal: Input (IN) - TV connection port (outlet) Rating: Applicable frequency band: 10 to 3224 MHz, Current passing capacity: 1A 30V AC, 0.8A 15V DC Compatible products: Cable: High frequency coaxial cable, characteristic impedance 75 ohms type: S-5C-FB; Connector: JEITA (RC-5221A), high frequency coaxial C13 type connector; JEITA (RC-5223C), high frequency coaxial C15 type connector; Ambient operating temperature: -10 to 40 degrees
