Specifications
■Outlet Type: Type A, 2-pin
■Number of Outlets: 8
■Outlet Spacing: 44mm horizontally and 43mm vertically (from the USB port side) (center-to-center measurement)
■Plug Type: Type A, 2-pin
■AC Cord Length: Approximately 1.5m
■USB Connector Type: 1 x USB Type-C port, 2 x USB-A ports
■AC Power Rating: Up to 14A, 125V, 1400W
■USB Input: 100V-125V AC, 50/60Hz, 0.5A
■USB Output (When Using One Port): USB Type-C Port: USB Power Delivery 20W (5V/3A, 9V/2.2A), USB-A Port: 12W (5V/2.4A)
■USB Output (When Using Two Ports): USB Type-C Port + USB-A Port: Total 15W (5V/3A) (USB Type-C 15W (5V/3A), USB-A 12W (5V/2.4A), USB-A port + USB-A port: Total 15W (5V/3A) (USB-A 12W (5V/2.4A) each)
■USB side rated output (when using 3 ports): USB Type-C port + USB-A port + USB-A port: Total 15W (5V/3A) (USB Type-C 15W (5V/3A), USB-A 12W (5V/2.4A))
■ Polarity Compatibility: Yes (Outlet is compatible, plug is marked only)
■ Switch: No
■ Lightning Guard: Yes
■ Dust Shutter: Yes (AC Outlet Only)
■ Anti-Pinup Function: No
■ Outlet Cap: No
■ Power Indicator Light: No
■ Double Wall Construction: Yes
■ Double Insulation: Yes
■ Plug with Insulated Cap: Yes
■ Swing Plug: Yes (180-Degree Rotation)
■ Magnet: No
■ Hanging Hole: Yes (L-Shaped Hole on Bottom)
■ Circuit Breaker: No
■ Noise Filter: No
■ Modular Jack: No
■ Interlocking Function: No
■ Adapter: No
■ Color: Black
■ Material: Polycarbonate Resin, PVC Resin, Urea Resin, Brass, Copper
■ Dimensions: Approx. 93mm W x 118mm D x 31mm H *Main unit only, excluding cord and protrusions.
■Weight: Approximately 343g
■Accessories: Instruction Manual
■Environmental Considerations: THINK ECOLOGY Compliant
■Available in: Japan only
■Standards: USB Power Delivery Compatible
■Regulations: PSE Specified Electrical Appliance
■Warranty: 1 Year
■Other: Non-Slip Bottom
[Description]

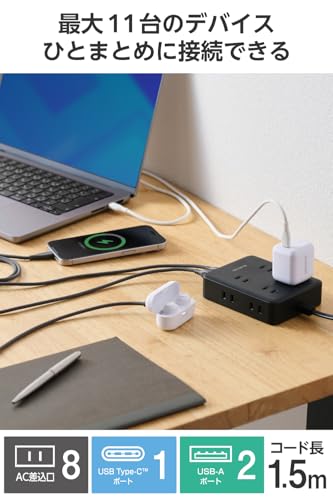

■This USB-powered power strip combines an AC power strip and a USB port, allowing you to simultaneously charge your smartphone, wireless earphones, and other devices. It consolidates your desk's power outlets into one for a neater, more organized look.

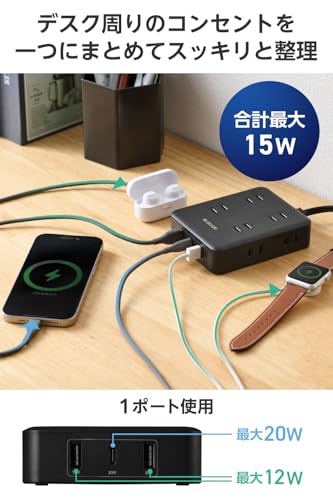

■Equipped with two USB-A ports and one USB Type-C port. When using the USB Type-C port alone, it can deliver up to 20W of power, enabling fast charging of compatible smartphones and tablets.
■The USB-A port features an "Auto Charging" function that automatically identifies the connected device and charges it at the appropriate output.

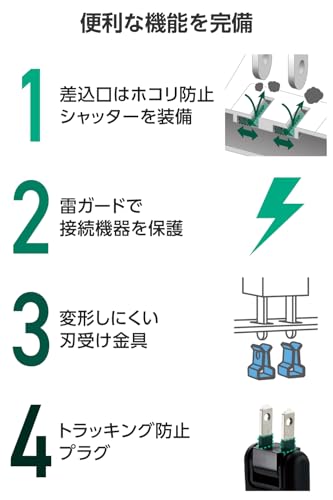

■The AC outlet is equipped with a dust shutter to prevent dust from entering when not in use.

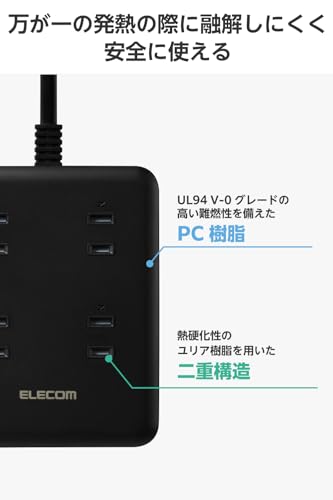

■The housing is made of PC resin with a high flame retardancy rating of UL94 V-0, and the AC outlet is surrounded by thermosetting urea resin, creating a double-layered structure that is less likely to melt in the event of overheating and effectively prevents electrical fires.

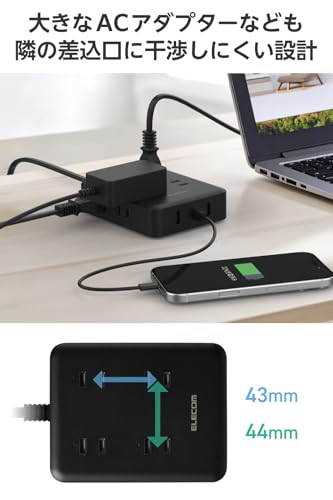

■The AC outlets are spaced 44mm apart from the left and right (when viewed from the USB port side) and 43mm apart from the front and back, preventing interference with adjacent AC outlets even when using large AC adapters.
■The varistor element has a surge current rating of 2750A/5 times, 2500A/10 times, and a clamping voltage of 935V max (500A 8/20μs), protecting connected devices from lightning surges caused by induced lightning. *In the event of a direct lightning strike or a lightning surge that exceeds the element's tolerance, even if it is induced lightning, it may not be able to protect connected devices. Performance also deteriorates depending on the voltage and number of times it is exposed to lightning.
■The blade holder is 0.8mm thick, making it resistant to deformation even with repeated use. The plug's retention is strong and heat generation is reduced.
■The outlet is compatible with 2-pin plugs, such as smart plugs made overseas, which have different blade widths depending on polarity.
■The power plug for this product does not have different blade widths depending on polarity.
■If you need to match the polarity of the connected device, align the longer hole of the outlet with the "E" side of the ELECOM logo (the side that simply says "ELECOM") on the power plug.

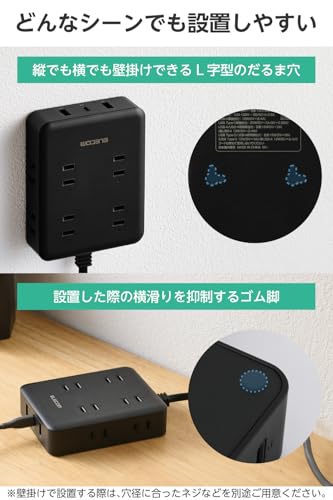

■The bottom of the unit features rubber feet to prevent sliding when placed on a table, and an L-shaped hole for wall mounting at two angles: vertically and horizontally. *For wall mounting, please purchase screws or other suitable screws separately.
■The plug features a thermosetting resin between the blades to prevent tracking, which can lead to fires, and an insulating cap to reduce the risk of electric shock.
■The 180-degree swing plug makes wiring easy, even in tight spaces.
■The cord is approximately 1.5m long, making it convenient for expanding its range of use. It is just the right length for easy handling.
■The flat cord with two parallel cores is flexible and easy to handle.
■The power cord is double-insulated in compliance with the Japan Wiring Systems Industry Association standard (JWDS0010), effectively preventing electric shock and fire caused by broken wires or torn insulation. *Cables required for USB use are not included. Please prepare them separately. *USB Type-C and USB-C are trademarks of USB Implementers Forum.
■This product meets one or more of ELECOM's environmental certification standards and displays the "THINK ECOLOGY" mark.
■This product is committed to environmental conservation, reducing the plastic weight of its packaging by more than 20% compared to products that meet ELECOM's internal standards.
■This product is committed to environmental conservation, using only paper, cardboard, and plastic bags for its packaging.
[Product Inquiries]
ELECOM Product Support
Please visit 8056.jp.
This USB-powered cord strip combines an AC power strip and USB port, allowing you to simultaneously charge devices such as smartphones and wireless earphones. Consolidate all the outlets around your desk into one for neater organization.
Equipped with two USB-A ports and one USB Type-C™ port. When using the USB Type-C port alone, it can supply up to 20W of power, allowing for fast charging of compatible smartphones and tablets.
The USB-A port features an "Auto Charging" function that automatically detects the connected device and charges at the appropriate output.
The AC outlet is equipped with a "dust prevention shutter" to prevent dust from entering when not in use.
The casing is made of PC resin with high UL94 V-0 flame retardancy, and the area around the AC outlet is made of thermosetting urea resin, creating a double-layered structure that is less likely to melt in the event of heat generation and is effective in preventing electrical fires.
