Antenna Diplexer VHF UHF FM ZWR-210DC Telkom Telmor

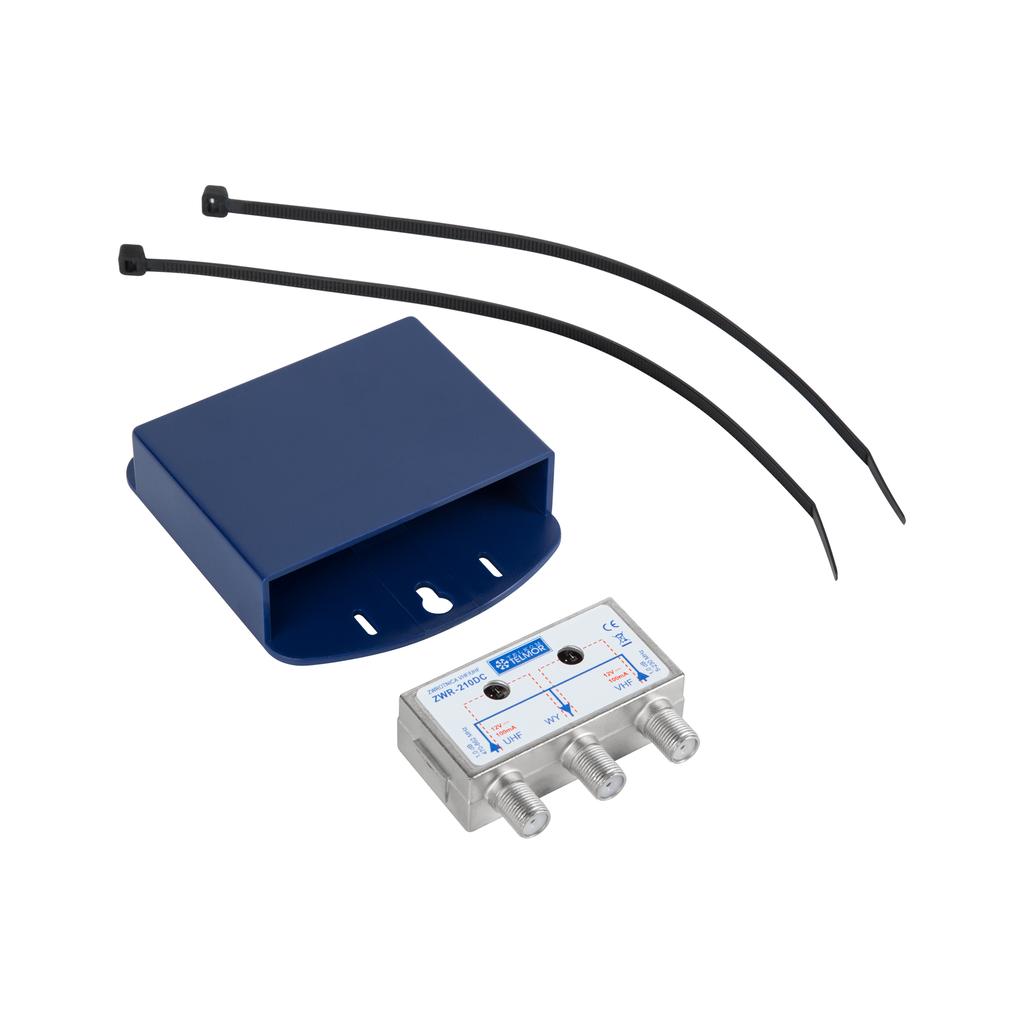

---------- Features ---------- Operating band and frequency: FM/VHF (47-230 MHz), UHF (470-790 MHz) Power supply voltage transferred independently to each antenna input and can be switched off Very solid mechanical construction Possibility of mounting on an antenna mast after placing it in a splash-proof housing ---------- Technical data ---------- Operating band: FM, VHF, UHF Operating frequency range: 47-230 MHz, 470-790 MHz Number of inputs: 1 (VHF+FM), 1 UHF Number of outputs: 1 DC pass-through: yes Possibility to disable DC pass-through: yes Product dimensions: 60 x 58 x 19 mm Mast housing dimensions: 85 x 105 x 26 mm Net weight with mast housing: 0.14 kg The ZWR-210DC is an antenna diplexer with two inputs: VHF and UHF, and one output. The device is used to combine signals from VHF and UHF television antennas. The diplexer transfers the supply voltage from the input to the VHF and UHF outputs, enabling powering antenna preamplifiers. To do this, place a jumper in the appropriate pin header, accessible through one of the holes in the housing. When using the diplexer with passive antennas, the jumpers should be completely removed from the contact strips. The ZWR-210DC diplexer can be mounted on an antenna mast after placing it in an MSA housing (splash-proof cover visible in the photo).
