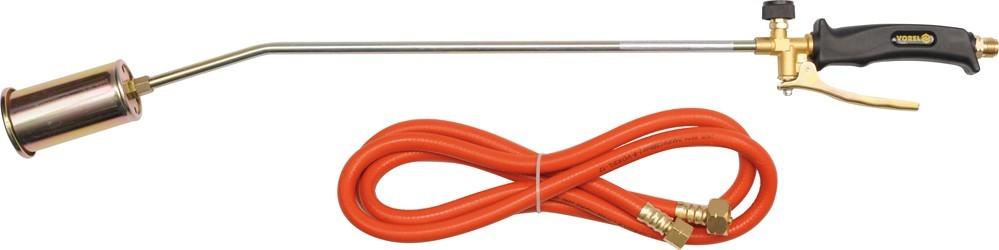

Roofing Torch 780mm with Nozzle Ø 50mm / 73341 / VOREL

A long roofing torch with a 50mm nozzle, designed for those covering large roof areas with heat-sealed felt. The torch's length allows for work while standing, and its high thermal efficiency (50mm nozzle) significantly speeds up work. The handle features a special valve that shuts off the gas supply when the torch is set down. This solution significantly reduces gas consumption.     TECHNICAL PARAMETERS:• Number of burner cups - 1• Cup size [mm] – 50• Nominal supply gas pressure [MPa] – 1.2• Flame temperature [ºC] – 1500-1800• Nominal flow rate [g/h] - 2000• Heat load [kW] – 28• Hose length [m] - 2• Torch length (without hose length) [mm] - 745Purpose/applicationThe gas torch is designed for roofing work. Powered by a compressed butane cylinder (propane-butane gas mixture is also possible), it allows operation in places without energy sources.

Instructions for useThe device should be installed in accordance with the operating instructions. Screw the hose onto the assembled appliance. Screw the other end of the hose onto the gas cylinder.

Check the tightness of the connections by slightly opening the cylinder valve, then apply soapy water to the connections. If bubbles appear, turn off the gas supply and tighten any leaking connections. Repeat this procedure until the gas is completely sealed.Open the gas cylinder valve, then open the appliance valve, but only enough to allow gas to escape. Ignite the gas at the outlet of the burner. To do this, use a special lighter designed for lighting portable gas burners. After approximately 20 seconds, press the burner lever. If the flame is too short, adjust the gas pressure using the burner valve. After releasing the lever, the flame will return to economy mode.After use, close the cylinder valve and, after the flame has extinguished, place the burner on a non-flammable surface to cool. Once cooled, proceed with maintenance.

Details regarding assembly, operation, and maintenance of the device can be found in the attached instruction manual.

Package Contents• Burner (G3/8”-19) with 50mm nozzle• 2m hose (G3/8”-19, 21.8-14)
