brand new and high quality
Features:
Minimum rated working voltage: for DC 5V-24V
Maximum operating current: 15 mA (for DC 5V)
Operating voltage range: for DC 5~18 V
Load capacity: ≤10 mA (for DC 5V)
Operating temperature range: ≤80°C
Humidity range: 35% to 90% RH (no frosting)
Allowable withstand pressure: water pressure below 1.75Mpa
Storage temperature: -25 ~ +80 ° C
Preservation humidity: 25% to 95% RH
Output pulse high level: >DC 4.5 V (input voltage for DC 5 V)
Output pulse low level: <DC 0.5 V (input voltage for DC 5 V)
Accuracy (flow--pulse output): 10~200L/min±3%
Output pulse duty cycle: 50±10%
Output rise time: 0.04μS
Output fall time: 0.18μS
Flow-pulse characteristics: horizontal test pulse frequency (Hz) = [0.2x Q] ± 3% (level test) (Q is flow rate L/min)
Impact resistance: The product is packed well, free from the 50cm height X, Y, Z direction to the concrete surface without abnormalities, the accuracy changes within 5%.
Insulation resistance: The insulation resistance between the Hall sensor and the copper for valve body is 100 MΩ or more. (for DC 500V)
Heat resistance: placed in 80±3°C environment for 48h, returning to normal temperature for 1-2h without abnormality, and the parts have no crack, slack, expansion, deformation, etc., and the accuracy changes within 10%.
Cold resistance: placed in -20±3°C environment for 48h, returned to normal temperature for 1-2h without abnormality, and the parts have no crack, slack, expansion, deformation, etc., and the accuracy changes within 10%.
Moisture resistance: After being taken out for 72 hours in an environment of 40±2°C and relative humidity of 90% to 95% RH, the insulation resistance is 1 MΩ or more.
Pulling strength: Applying a pulling force of 10N for 1 minute on the lead wire, no looseness or breakage, and no change in performance.
Durability: At normal temperature, 0.1MPa water pressure is introduced from the water inlet to turn on 1S, and 0.5S is turned off.
Specification:

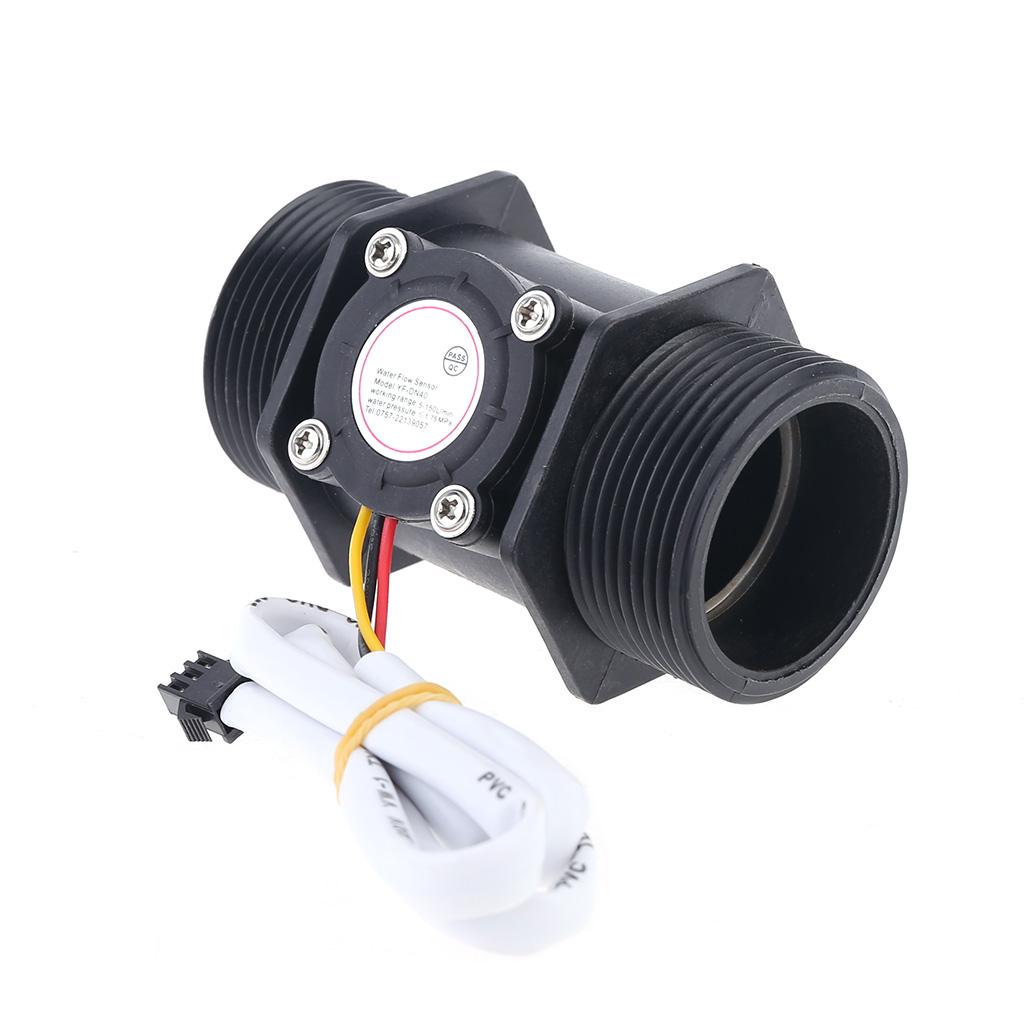

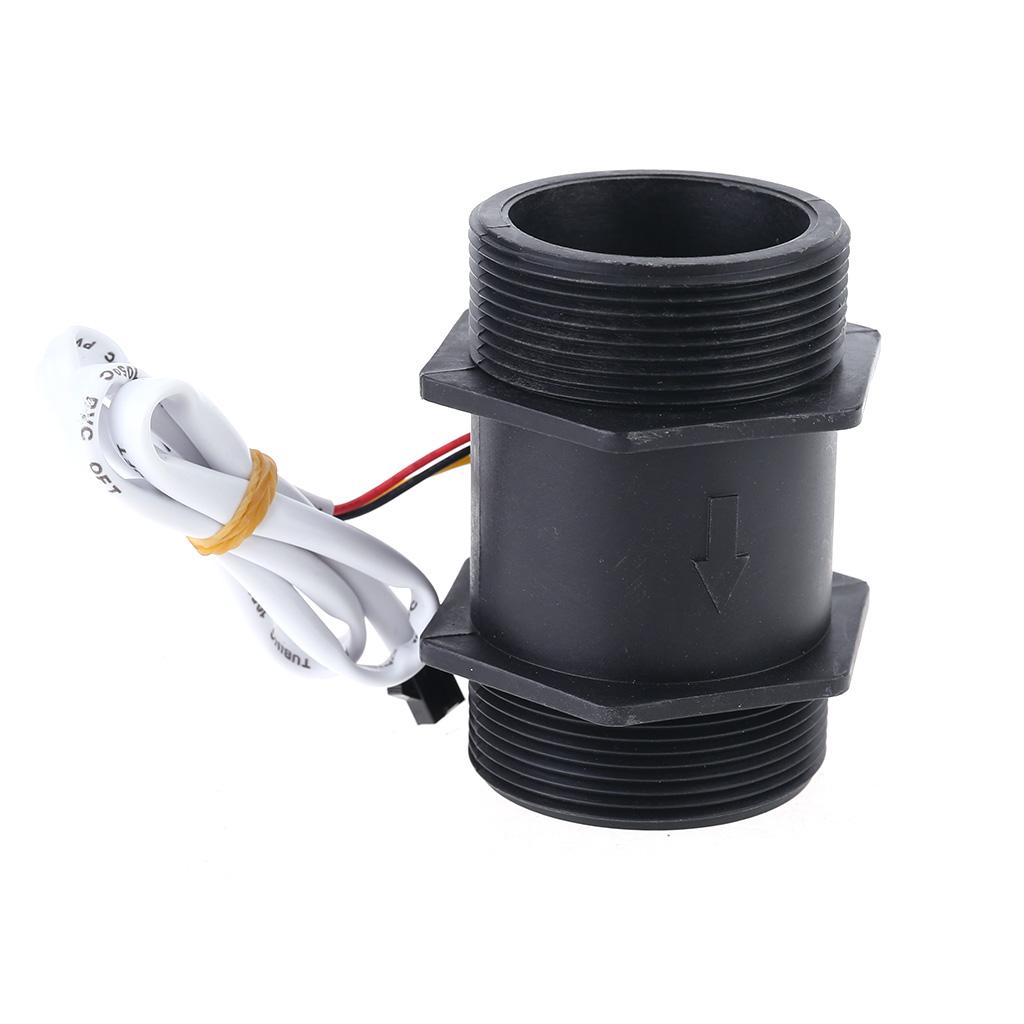

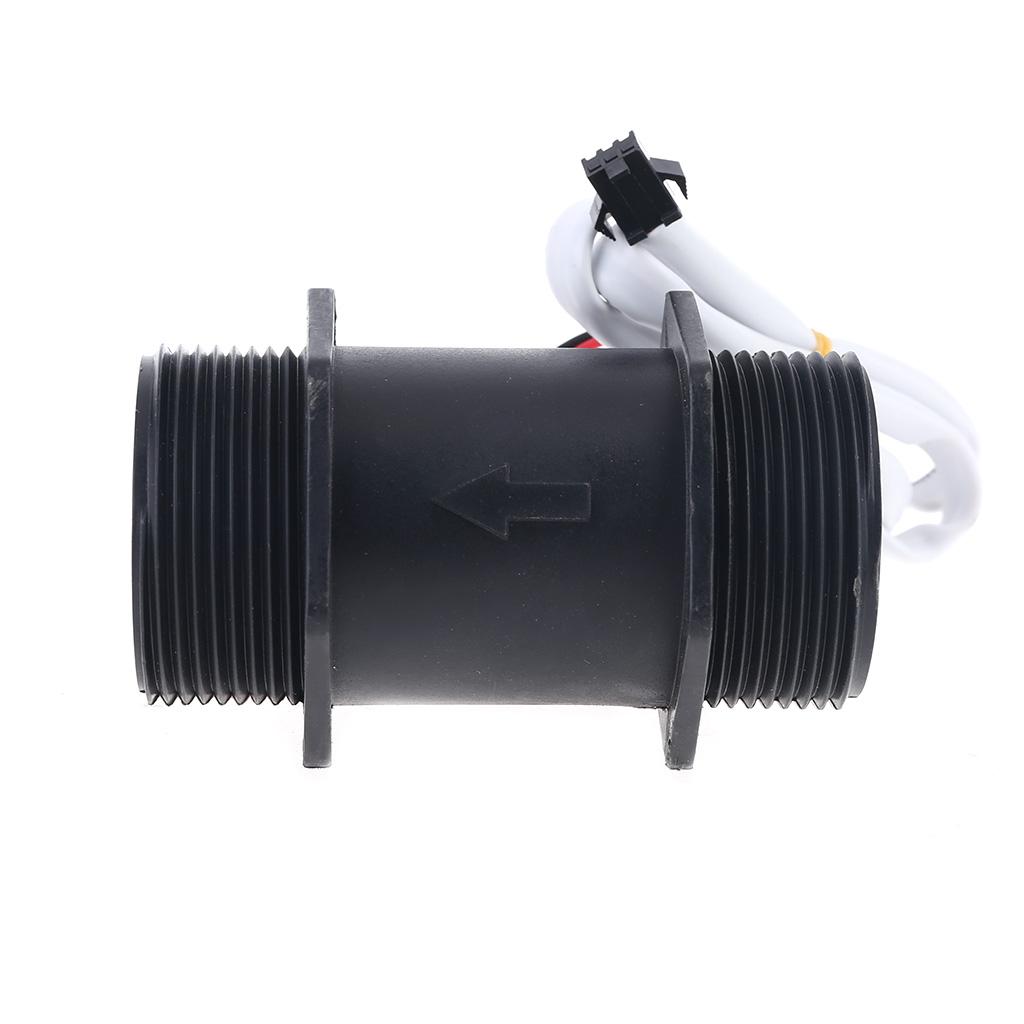

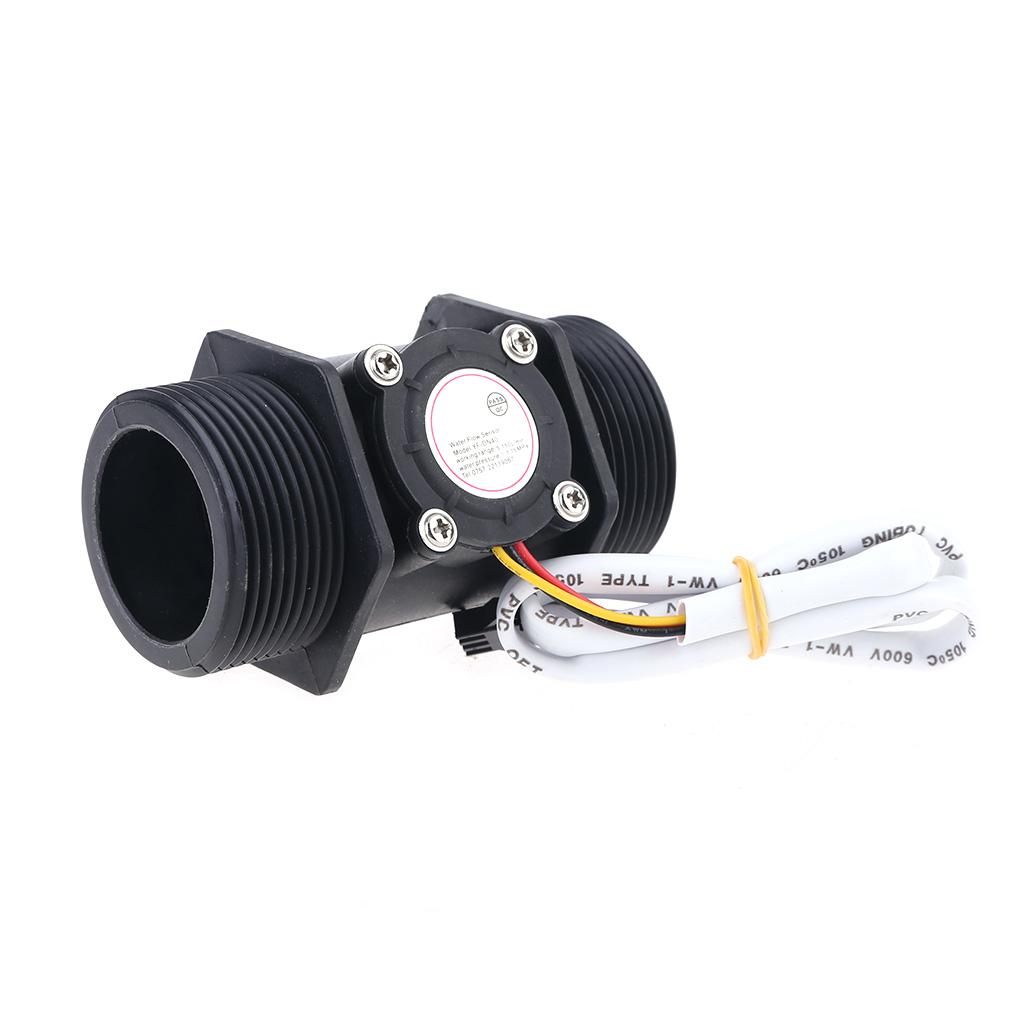

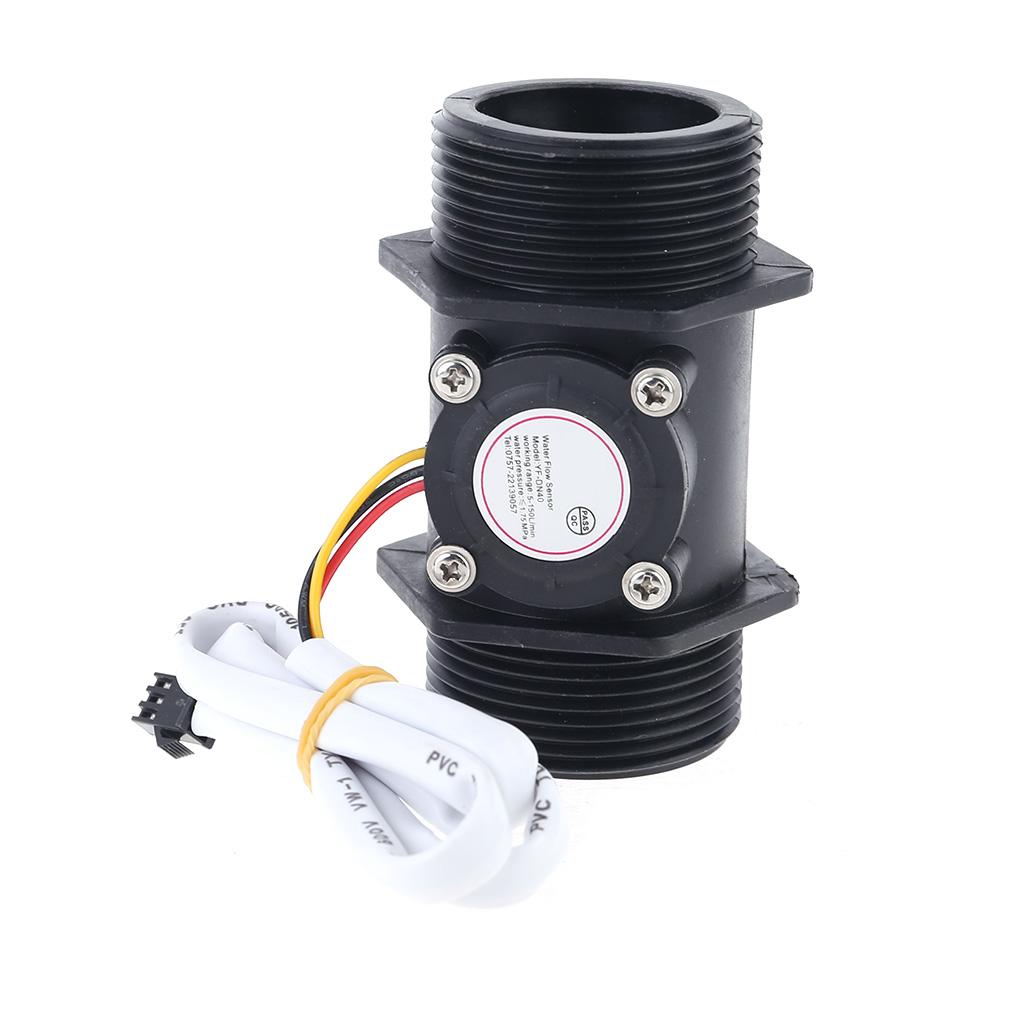

Type: Flow Sensor
Material: Plastic
Applications: Suitable for automatic gas water heaters
Features: for Turbine flow sensor, instrumentation, measurement, insulation, impact resistance, durability, convenient and practical, tools

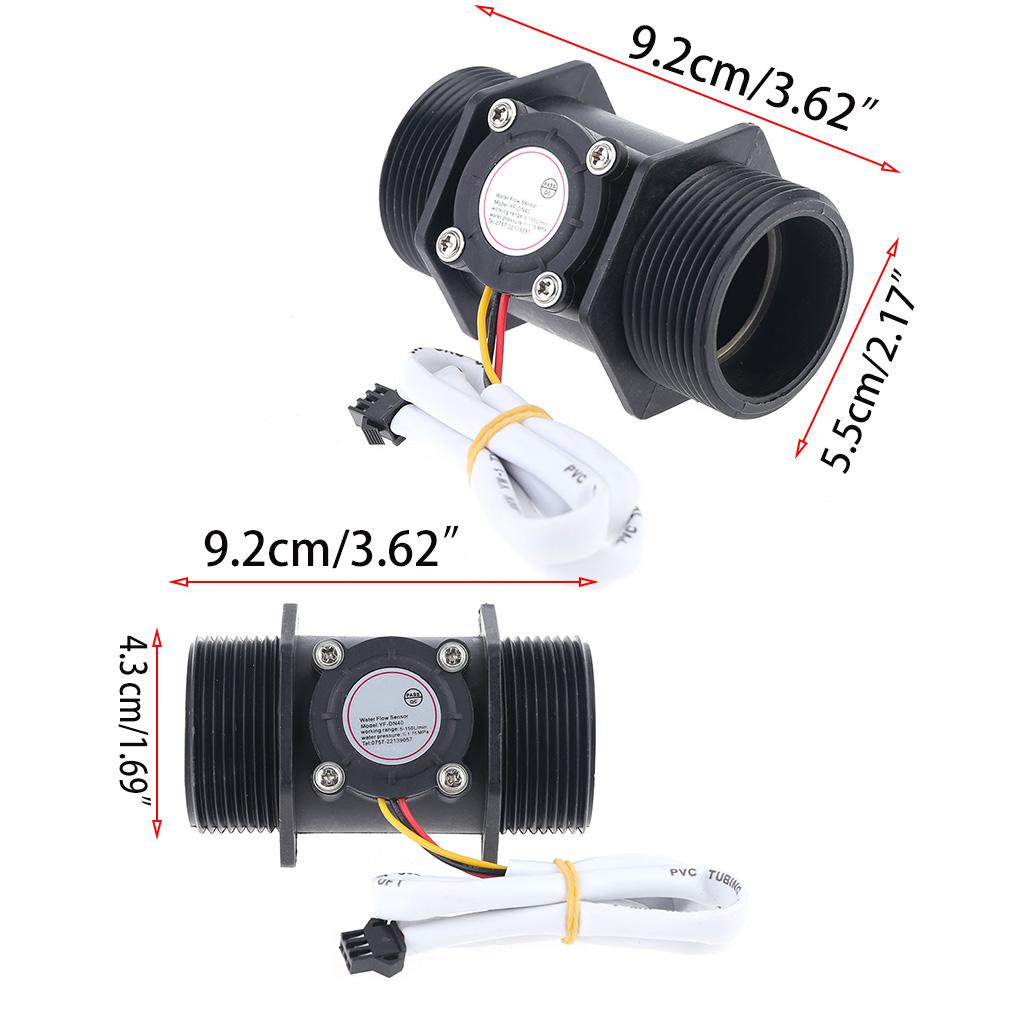

Dimension: app.9.2cm/3.62in
Color: Black

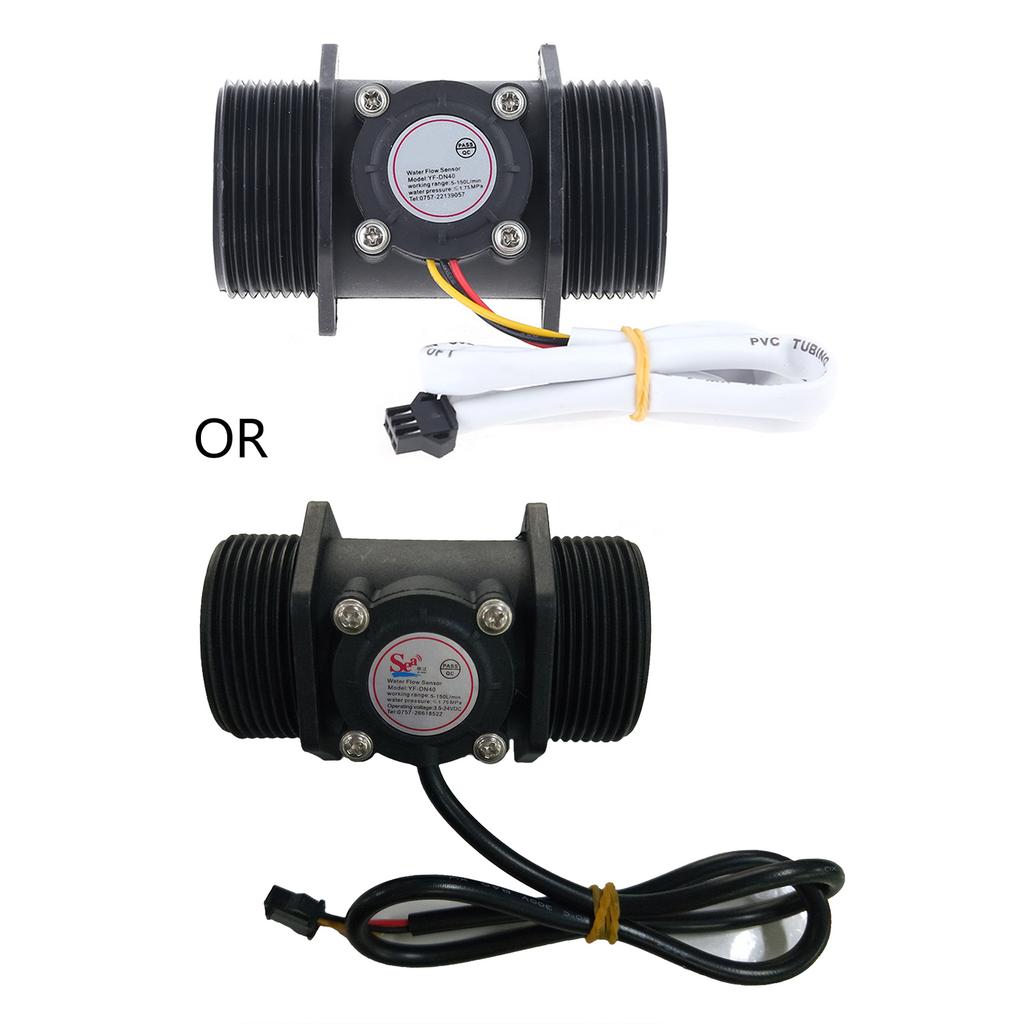

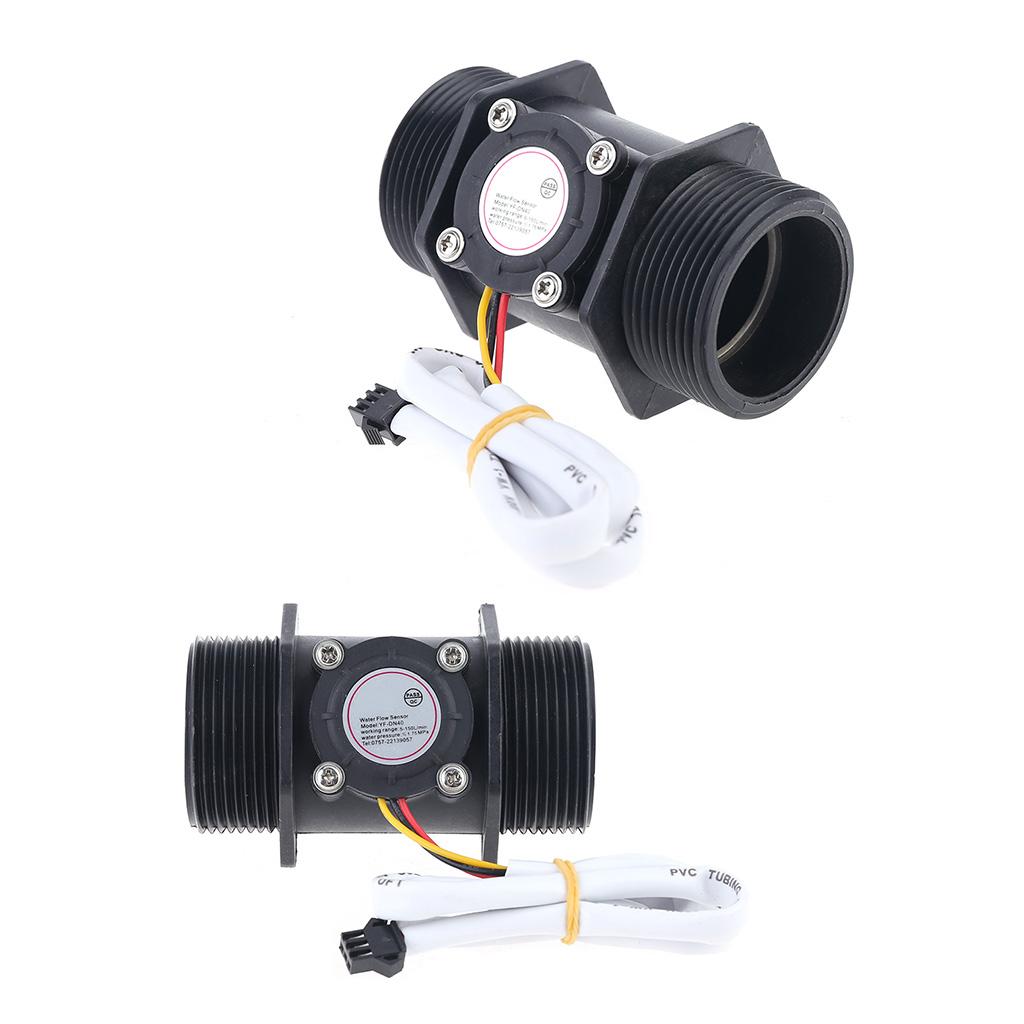

Type: DN40, DN50 (optional)
Quantity: 1 Pc
Note:
1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
No-delivery refund
