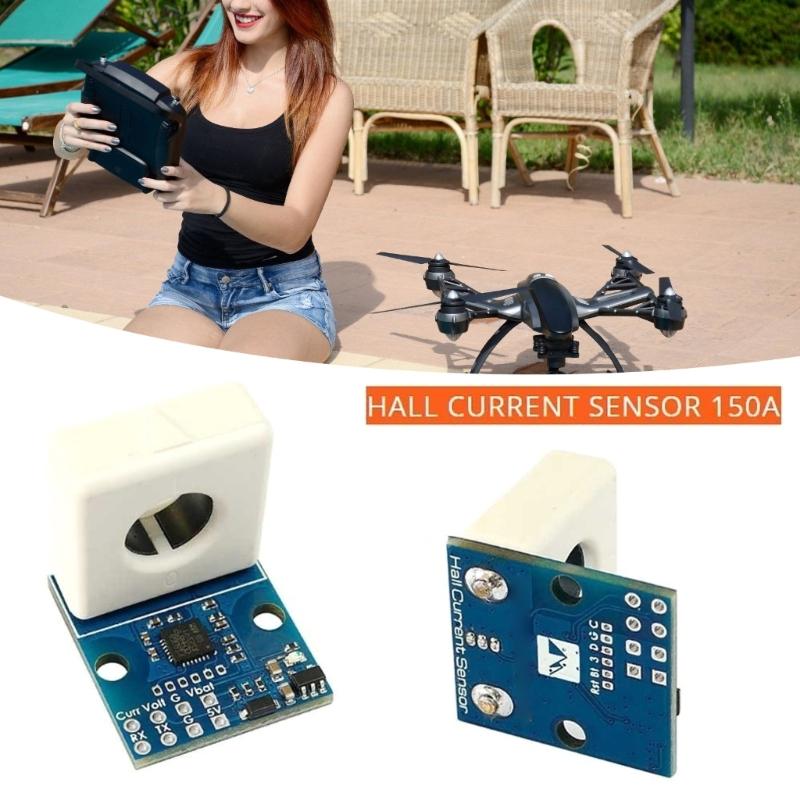

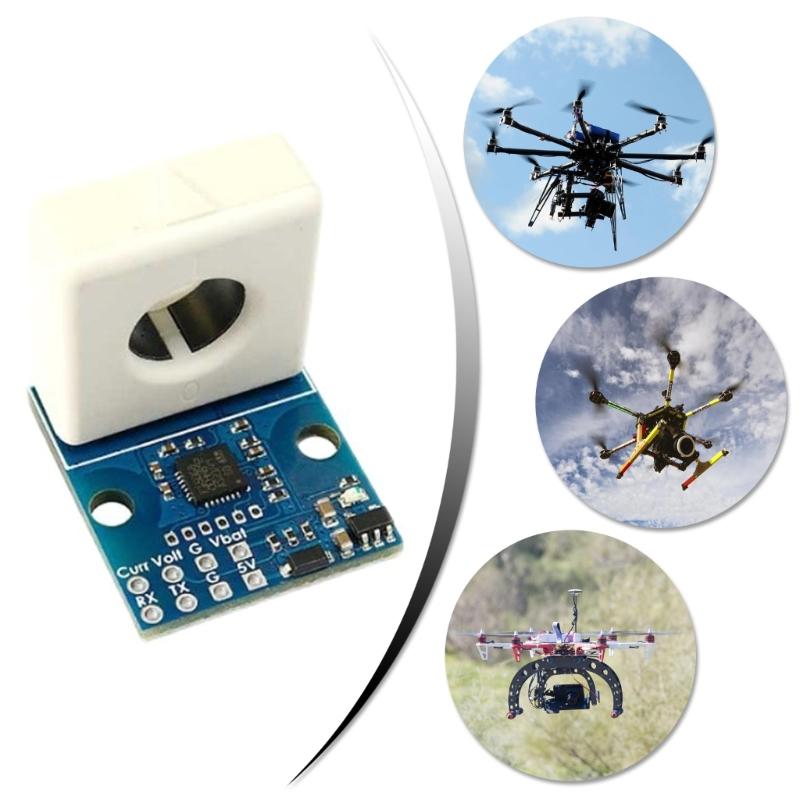

Features:
Hall effect current Sensors.
No Voltages drop and heat on current Sensors components.
Offsets and Sensitivity calibrated in factory.
Tips:mount Hall Sensors far from iron and magnetic materials.
Continuous current rating: 0~150A.
Specifications:
Continuous current rating: 0~150A
Sensitivity: 20mV/A, scale = 200, BATT_AMP_PERVLT = 50
VBAT Voltages sense: 0~69V, scale = 2100, scale = 210
Power Consumption: 17mA
Voltages offsets error at 0 current : +-10mV
Curr output Voltages error: 5%
Operating Temperatures: -30~80 °C

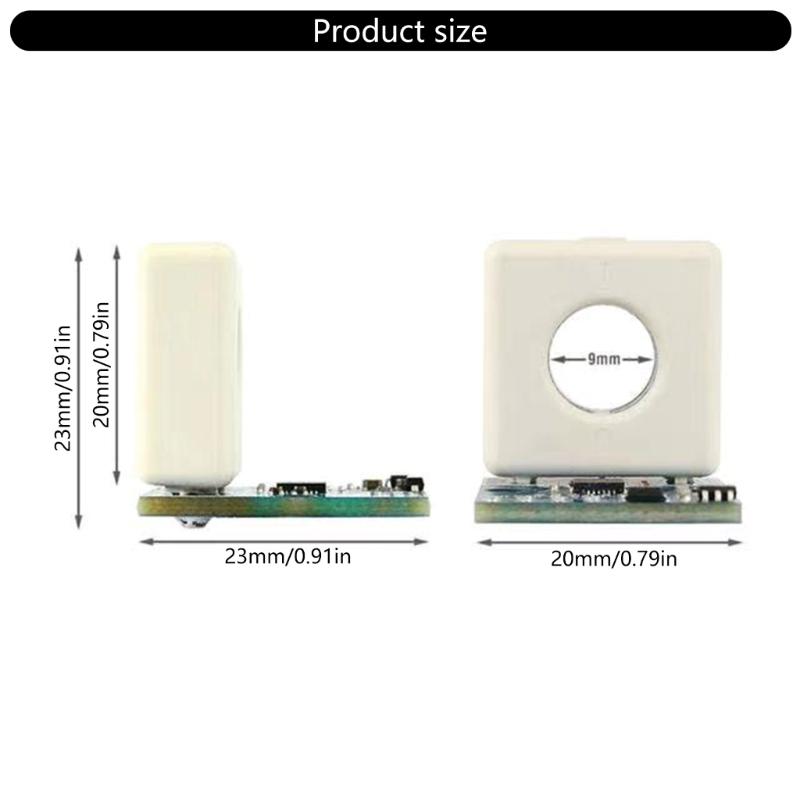

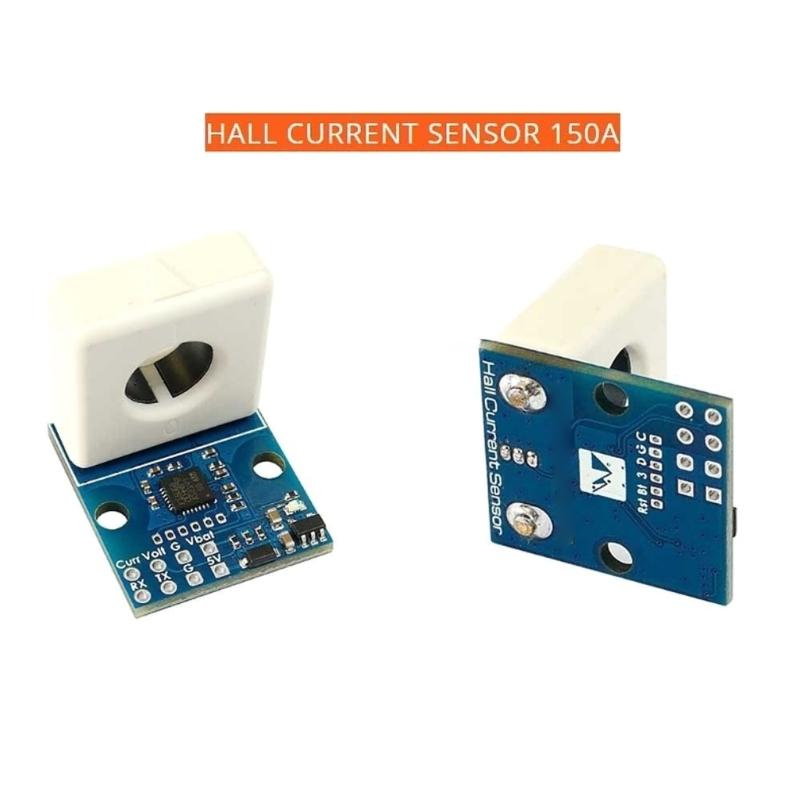

Size:23x20x23mm, 7g
step file

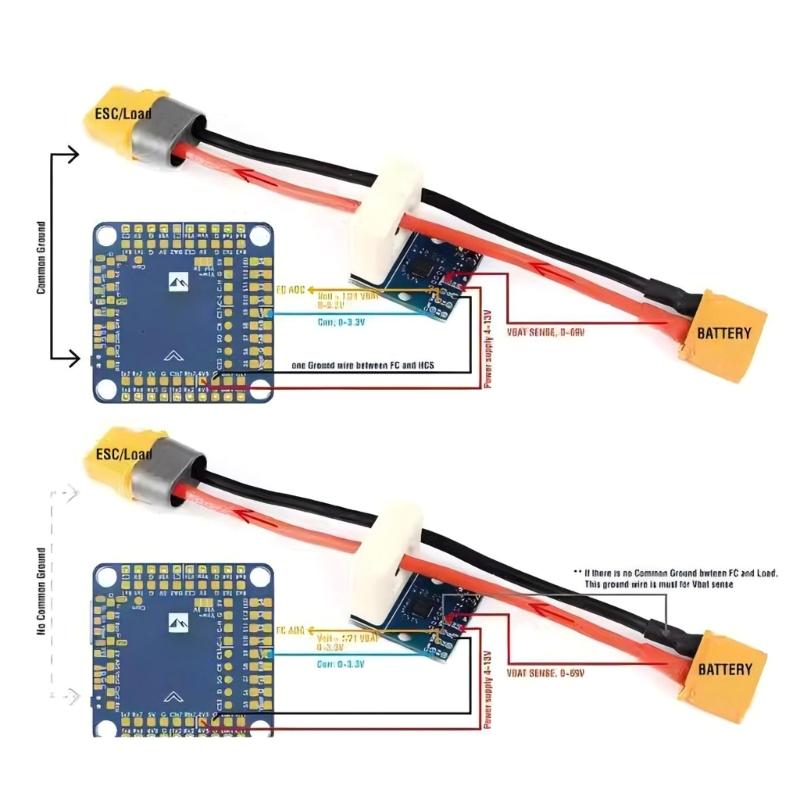

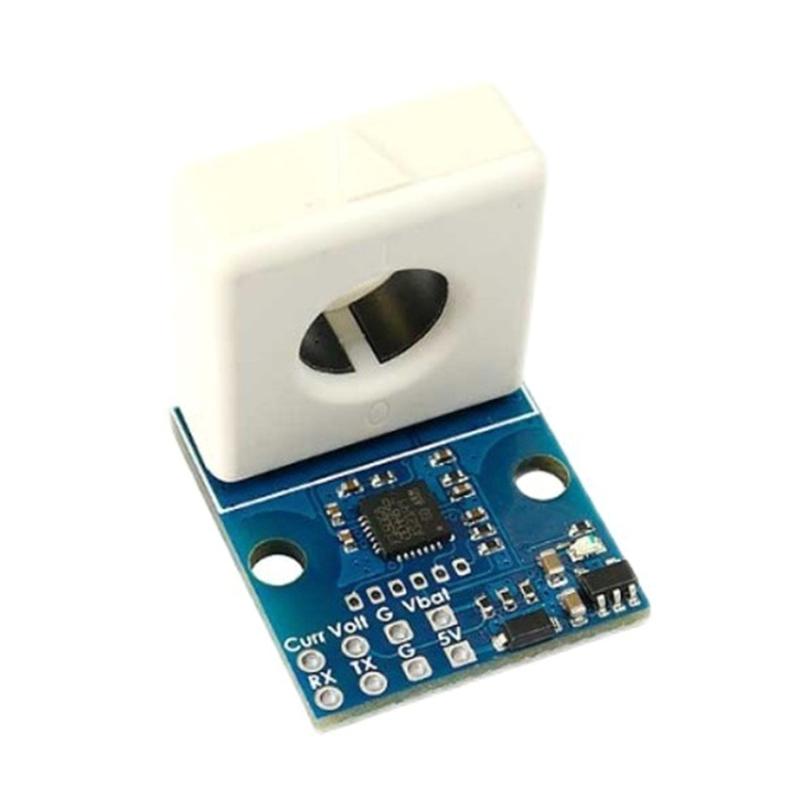

1.Vbat: for Voltages sense, support 0~69V IN
2.Voltages: = 1/21 Vbat, 0~3.30V out
3.Curr: Current signal, 0~3.30V out
4.V: power supply for HCS150A board, support 4~13V IN, 17mA
RX: for firmware updates and configure (to be supported)
