6Ka 1-Pole Overcurrent Circuit Breaker B 10A - E+1Mbn110E

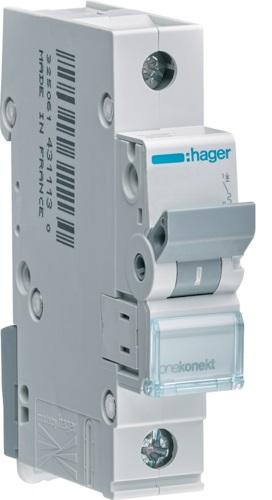

Technical data: Number of poles protected 1 Number of poles 1 P Pole arrangement 1 P Tripping characteristic B Rated current In 10 A Rated operating short-circuit breaking current Ics 6 kA Min./max. tripping AC current value of time-delayed protection 1.13 / 1.45 In Min./max. tripping AC current value of instantaneous protection 3 / 5 In Rated breaking capacity short-circuit breaking capacity Icn below 230V AC according to IEC 60898-1 6 kA Rated ultimate short-circuit breaking capacity Icu for ETIM (PN-EN 60947-2) Frequency Frequency (range to ETIM) 50 to 60 Hz Power Total power loss for rated current 2.75 W Power loss per pole for rated current 2.75 W Endurance Electrical endurance (number of cycles) 4000 Mechanical endurance (number of cycles) 20000 Dimensions Product depth 70 mm Product height 83 mm Product width 17.5 mm MCB Miniature circuit breaker Icn=6000A 1P B 10A ** Illustrative photo
