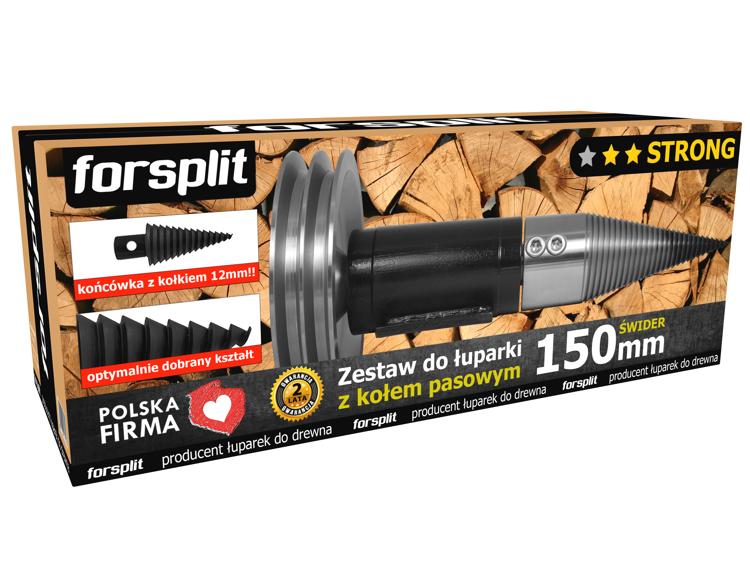

150mm screw log splitter with pulley / ZK2P-150K2 set
Model: ZK2P-150K2
The ZK2P-150K2 set with a pulley is designed for building a screw log splitter powered by an electric or internal combustion engine.. The set is based on a solid and durable hub with built-in 6207 bearings, the auger is mounted on an output shaft of type 35A with a diameter of 35mm, the pulley is mounted on a shaft with a diameter of 35mm and locked with a 10mm key, additionally it is secured from the back with an Allen screw. The set is equipped with a wood auger (with a replaceable, dowelled tip) with a diameter of 150mm, which is the most frequently chosen auger for the construction of professional industrial log splitters. The 150mm auger consists of the most popular 80mm auger and an extension piece that increases its diameter to 150mm. The set containing the aforementioned auger with an attachment is the best solution for the most demanding customers for splitting large logs with a diameter exceeding 40cm. The two-stage drill bit angle will handle even the most knotty wood. The auger is equipped with a replaceable tip that is secured with a solid cotter pin, so the tip will not fall out when changing the rotation direction.
The presented set was developed based on many years of experience and is entirely manufactured in our company from high-quality materials, using modern numerical machines and technologies - which guarantees trouble-free operation for many years.
What are the advantages of our product:
The hub construction was made of thick-walled pipe and SOLID, proven bearings, which ensures its maximum RELIABILITY.
We offer the highest quality products along with a written 24-month Warranty!
You are buying directly from a POLISH MANUFACTURER!
The specialized design of the Auger allows for smooth and fast screwing into wood.
The drill bit tip undergoes professional heat treatment, which maximally extends its durability and lifespan!
All parts are manufactured in our company, by POLISH employees under strict quality control - by buying our set, you support the Polish economy.
Very good value for money.
Thousands of satisfied customers ALL OVER THE WORLD!
TECHNICAL DATA
Auger with interchangeable tip (pegged):
[S150K2-35A]
Material type: Experimentally selected HIGH-STRENGTH CHROME STEELPROPERLY HARDENED TIP - which guarantees its high durability and lifespanDrill diameter: fi 150mmDrill length: 250mmWorking part length: 245mmDiameter of the hole for the shaft: 35mmDrill Mount with Shaft: two M12 screws, which guarantees correct operation in both directionsDeep left-hand thread of the drill bit with a saw-like shape ensuring free screwing into woodThe tip is locked with a 12mm diameter expansion plug! thanks to which the appropriate strength of the connection is maintainedReplaceable tips available in continuous sale!Recommended drill speed: 400-600 rpm
PARTS OF THE AUGER:
Drill body (1):
[K-S080K2]
Body length: 140mmLength of the working part of the body: 85mmInterchangeable tip mount: 12mm expansion plug!!
Replaceable tip:
[SWK2]
Material type: Experimentally selected HIGH-STRENGTH CHROMIUM STEELPROPERLY HARDENED TIP - which guarantees its high durability and lifespanTip length: 115mmLength of the working part of the tip: 90mmMounting in the body: 12mm expansion plug!!Tips available for continuous sale
Attachment 150 for auger 80:
[NS080-150]
Material type: Experimentally selected HIGH-STRENGTH CHROME STEELFits the drill bit: 80mm diameter of the cap: 150mmLength of the cover: 80mmDeep left-hand thread with a saw-like shape ensuring free screwing into woodThe attachment is locked to the drill bit using two fixing screws, which guarantees correct operation in both directions
Base set:
[ZK2P]
Hole spacing: 95mm x 75mm
Hub:
[PA6207]
Housing length: 150mm with two built-in solid bearings 6207ZZHousing diameter: fi 82mmHub base: 120mm x 100mmHub base - hole spacing: 95mm x 75mmHub base - diameter of holes: fi 10.5mm
Roller:
[WK2P]
Material type: Experimentally selected HIGH-STRENGTH CHROMIUM STEELShaft length: 252mmDiameter for bearings: fi 35mmDiameter for auger: fi 35mmMounting screw holes for the auger: 2x dia 12mm Diameter for the pulley: 35mm
Pulley:
[K2X17-200-35-K10]
SOLID STEEL PULLEY - we do not sell brittle cast iron pulleys!Diameter: fi 200mmShaft hole diameter: fi 35mmKeyway hole (groove): 10mmNa V-belts: 2X17mm
