5/10pcs PCT Universal Wire Quick Connector Insulation Terminals Compact Hard Wire/soft Wire Connector 2/3/4/5/8 Channels / Base Press-fit Connection

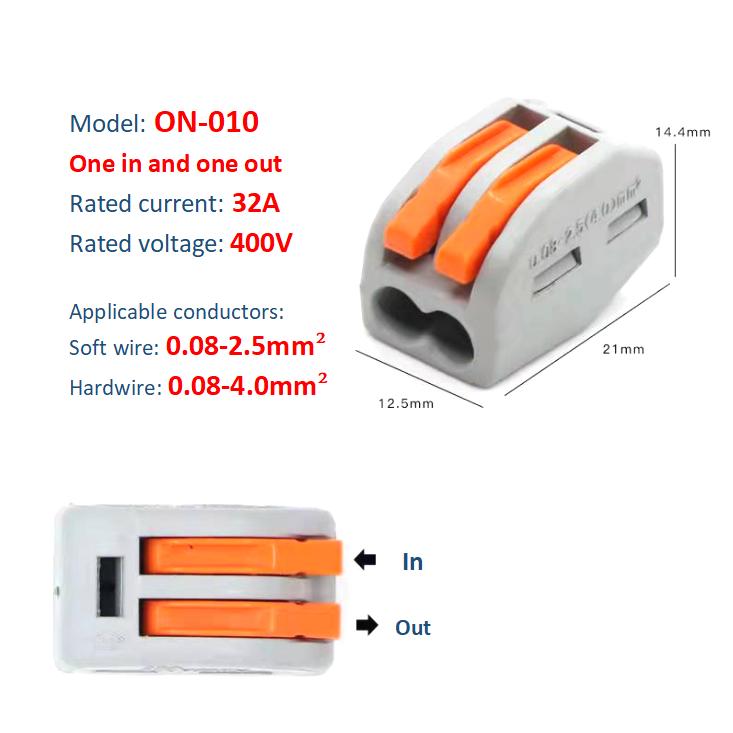

Specifications Product Name: Universal wire connector Model Number: ON-010(2 loch), ON-011(3 loch), ON-012(4 loch), ON-013(5 loch), ON-014(8 loch),ON-015(Pedestal) Material of Insulation: Modified nylon(PA66) Contact Material: Phosphor copper Wire Cross section: 0.08~2.5mm²(hard wire); 0.08~4mm²(soft wire) Rated Current: 32A Rated Voltage: 400V Rated Impulse Voltage: 4KV Rated Power: 8KW Gauge: 28~12AWG Strip Length: 9-10mm Maximum Operating Temperature: 105℃ Color: Orange Connector Size:About 21x14.4x12.5mm/8.27x5.67x4.92inch(ON-010)

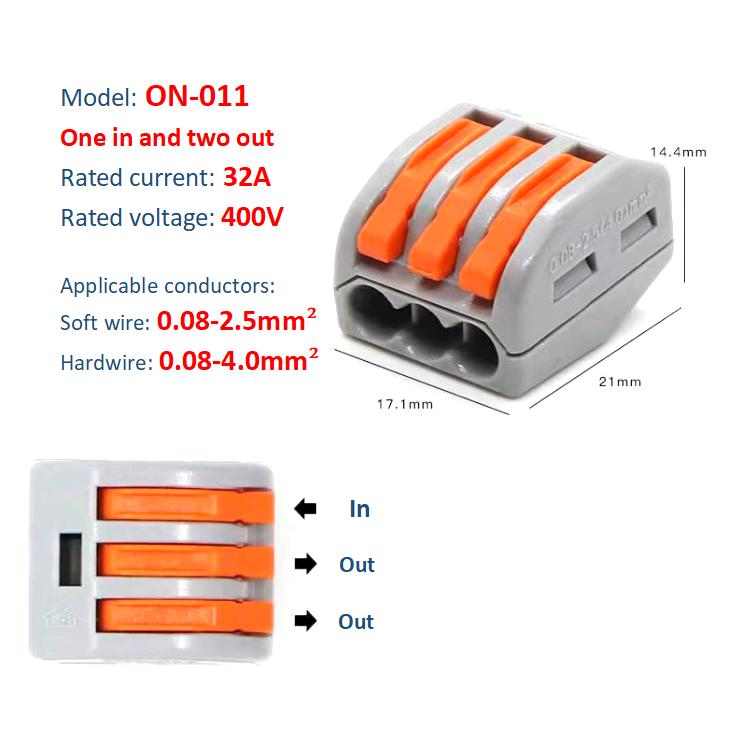

21x17x14.4mm/8.27x6.69x5.67inch(ON-011)

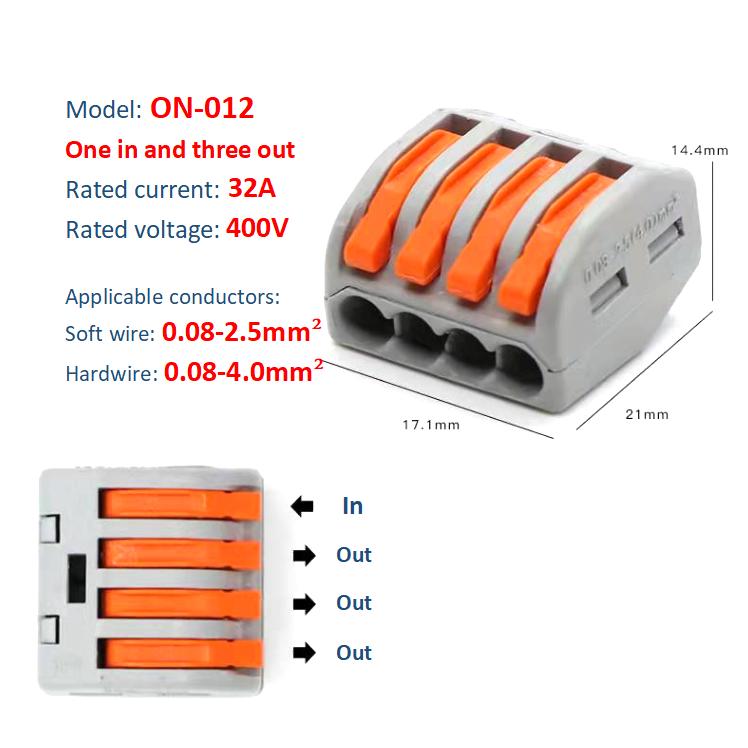

21x17x14.4mm/8.27x6.69x5.67inch(ON-012)

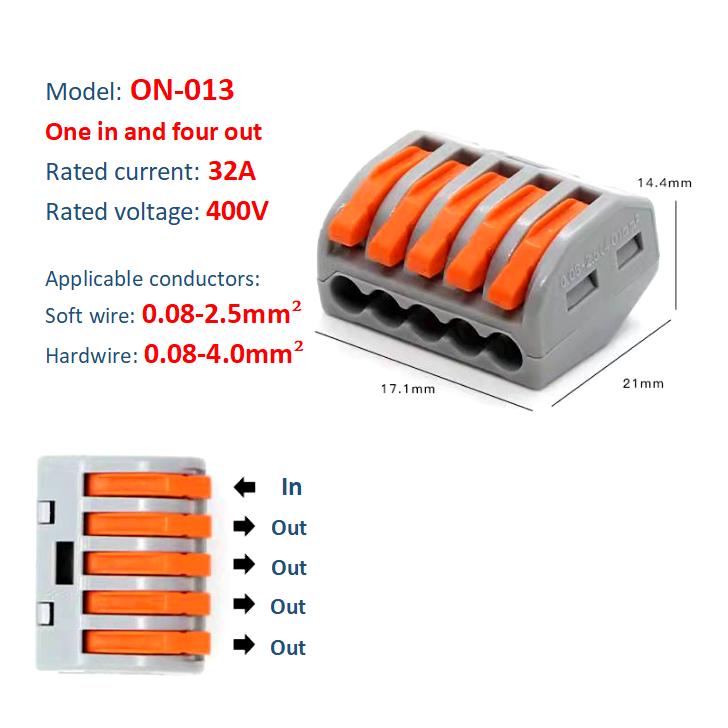

21x17x14.4mm/8.27x6.69x5.67inch(ON-013)

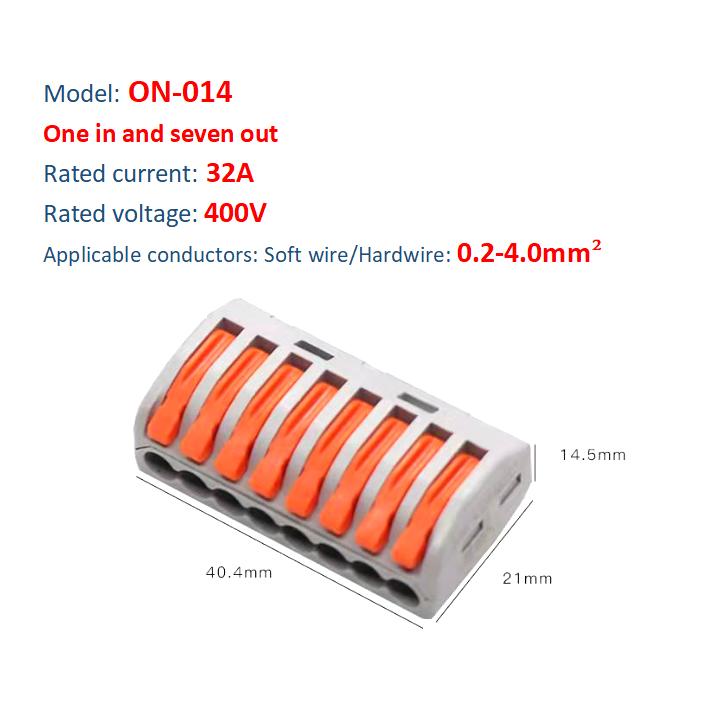

40.4x21x14.5mm/15.9x8.27x5.7inch(ON-014)

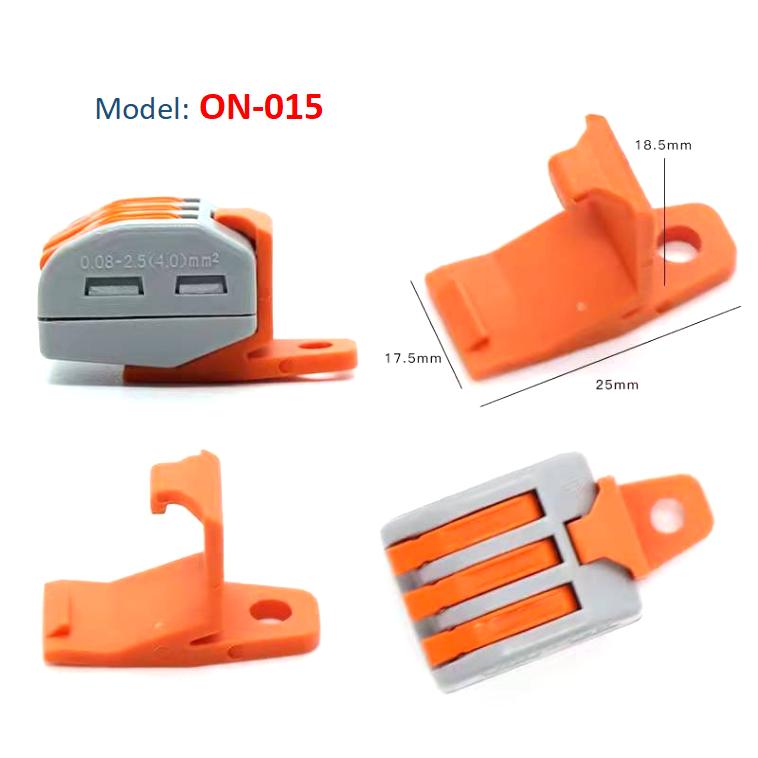

25x17.5x18.5mm/9.84x6.89x7.28inch(ON-015)

Attentions Please allow tiny size deviations due to human measurement. Due to the effect of light and monitor's brightness, there may be slight differences between the color tone of the photo and the actual item!

Package Included 5/10pcs x Wire Connectors
