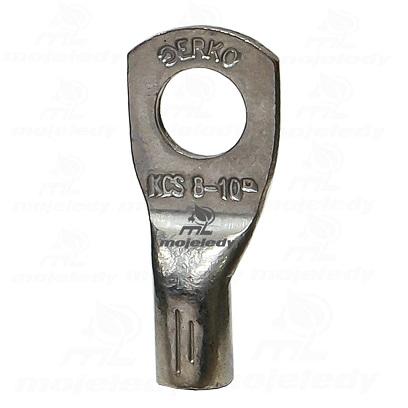

Copper tubular ring terminal KCS 8-10 /1 pc./
Technical data
Producer: ERKO
Product series: KCS
Manufacturer index: KCS_8-10
EAN 5905912828603
Eyelet tip shape
Simple connection angle
Material Copper
Model without a collar
Type of cable Multi-core
Metric thread size of connection 8
With insulation NO
With inspection hole NO
Surface protection Tinning
Rated cross-section [mm2] 10
Copper tube eyelet terminals DIN series (electrolytically galvanized) in accordance with
DIN 46235 standard, for crimping. They allow the termination of cable conductors
copper, are used where the need for connection arises
wire to e.g.. distribution board, busbar, or other device by means of
screw clamp. The use of DIN ring terminals increases
safety and durability of this type of connections. Unlike connections
The use of crimped ring terminals reduces the risk of overheating
lived and insulation. When crimping sector conductors, they should be
reformat to "round".
All copper tubular ring terminals are subjected to an additional
the process of hardening and tempering at a temperature of 700°C. This process
causes the removal of all impurities from the material from which it is made
end. Hardened tips, unlike unhardened tips, are in
less prone to cracking and micro-cracking during
of pressing, and thus have better operating parameters. For
DIN 46235 standards dimensional tolerance for size "d1" for cross-sections 10-150 mm2
is +/- 0.3 mm for cross-sections 185-400 m2 +/- 0.4 mm, for dimensions 500-625 mm2
+/- 0.5 mm, tolerance for dimension "b" for cross-section 10-70 mm2 is +/- 1 mm,
for cross-sections between 95 and 625 mm2 it is +/- 2 mm for the entire range of cross-sections
The dimensional tolerance for size "l1" is +2 mm, for dimension "c" -3 mm.
Crimping effectiveness (cable end connectors) depends on the application
appropriate tool and matched to the die cross-section.
material: electrolytic copper (compliant with EN13600)
minimum layer of tinning: 3µ;m
dimensional tolerance according to. DIN 46235
