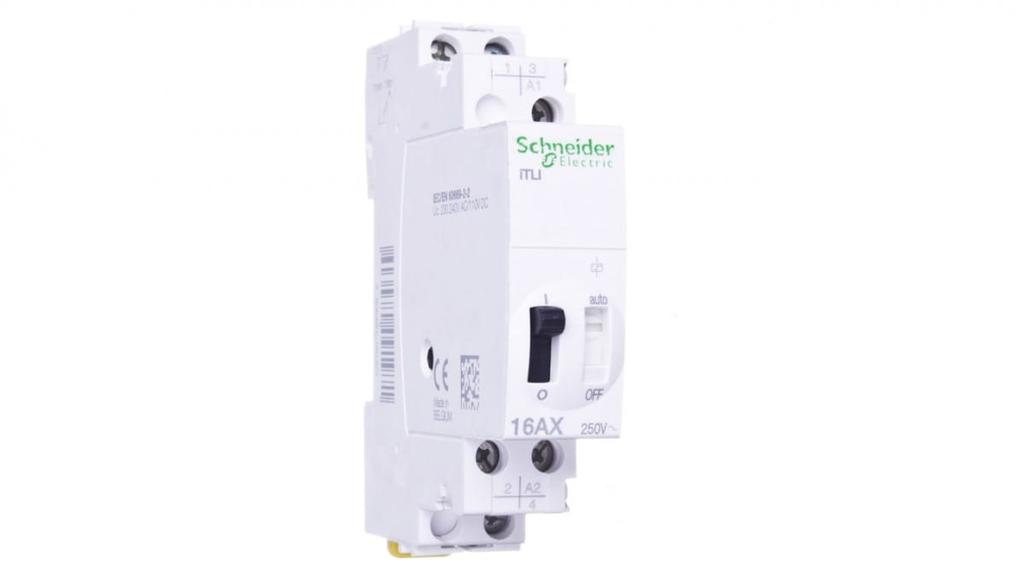

Impulse Relay 16A 230-240V AC 1NO 1NC iTL A9C30815

CN: 85364900 Control voltage frequency 1 [Hz] to: 50 Control voltage frequency 1 [Hz] from: 50 Length: 85 EAN: 3606480091971 Function: Electronic group switch Built-in depth [mm]: 67 Manufacturer's index: A9C30815 Number of changeover contacts: 0 Number of break contacts: 1 Number of make contacts: 1 Maximum switching capacity for fluorescent lamps (compensation): 2000 Maximum switching capacity for fluorescent lamps (with compensation): 900 Maximum switching capacity for fluorescent lamps [VA]: 1300 Maximum switching capacity for incandescent lamps [W]: 1500 Manual operation possible: Yes Control voltage 1 [V] to: 240 Control voltage 1 [V] from: 230 Control voltage 2 [V] to: 110 Control voltage 2 [V] from: 110 PKWiU: 27.12.24.0 Type of control voltage 1: AC Type of control voltage 2: DC Type of supply voltage: AC series: Acti9 Mounting method: DIN rail Width: 75 Width expressed in number of modules: 4 Weight: 0.1200 Height: 18 Supply voltage range [V] up to: 250 Supply voltage range [V] from: 24 Rated inrush current [A]: 16
