DC DC Buck Boost Converter Power Module CC CV 0.5-30V LCD Display Step Up Down Transformer DIY Solar Battery Charging Module

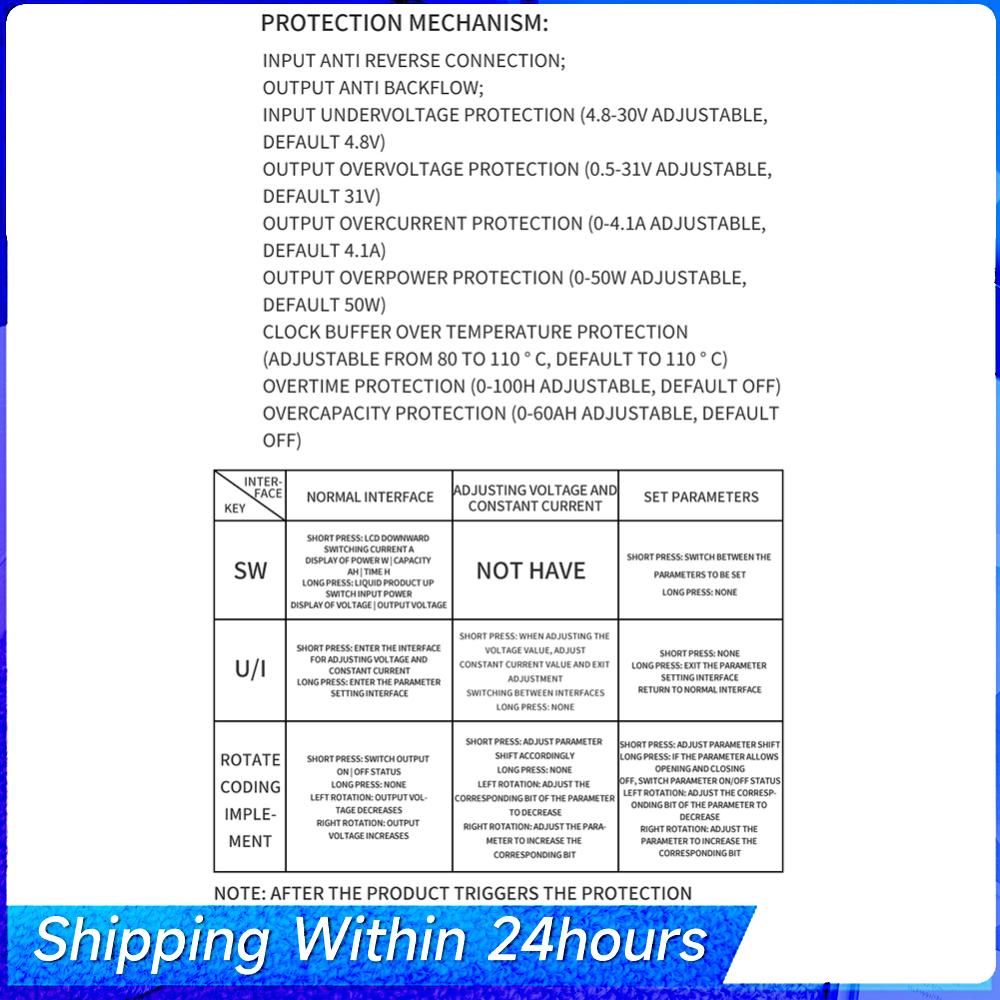

DC DC Buck Boost Converter Power Module CC CV 0.5-30V 35-50W 4A Adjustable Laboratory Power Supply LCD Display DIY Solar Battery Charging Module Feature: 1. Multiple Protections:This DC DC buck boost converter power module features various protections including reverse connection, backflow prevention, undervoltage, overcurrent, overvoltage, and overpower. When the module's operating parameters exceed the protection threshold, the output will automatically shut off. 2. CNC Control:This variable voltage regulator is a programmable automatic buck-boost module, offering more precision and faster performance. The output voltage ranges from 0.5V to 30V, with a current limit of 0-4A. Both the output voltage and current can be adjusted as desired. By default, the module can be set to toggle on/off. 3. Excellent Heat Dissipation:This adjustable laboratory power supply is equipped with a thickened heat sink and intelligent temperature-controlled fan. The smart fan starts and stops automatically. It activates when the temperature exceeds 50℃ or the current goes beyond 1A, ensuring efficient heat dissipation. 4. LCD Display:The power supply module features an LCD display that shows input voltage/output voltage/output current/output power/output capacity/output time/temperature. This provides convenient and intuitive operation. 5. Wide Range of Applications:This adjustable voltage regulator is a high-power (50W) buck-boost module with low ripple. It can be used in laboratory power supplies and has a wide range of applications. Additionally, it can be employed for DIY projects to create devices according to your requirements. Specification: Origin: Mainland China Input voltage: 5.0-30V Output voltage: 0.5-30V Output current: It can work stably at 3A for a long time, and can reach 4A with enhanced heat dissipation. Output power: natural heat dissipation 35W, enhanced heat dissipation 50W Voltage display resolution: 0.01V Current display resolution: 0.001A Conversion efficiency: about 88% Shell material: ABS Product size: about 78.00x61.00x42.00mm (3.07x2.4x1.65inch)

Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement. 1 x DC DC Buck Boost Converter Power Module
