1、 Complete technical specifications
Basic Information
Project parameters

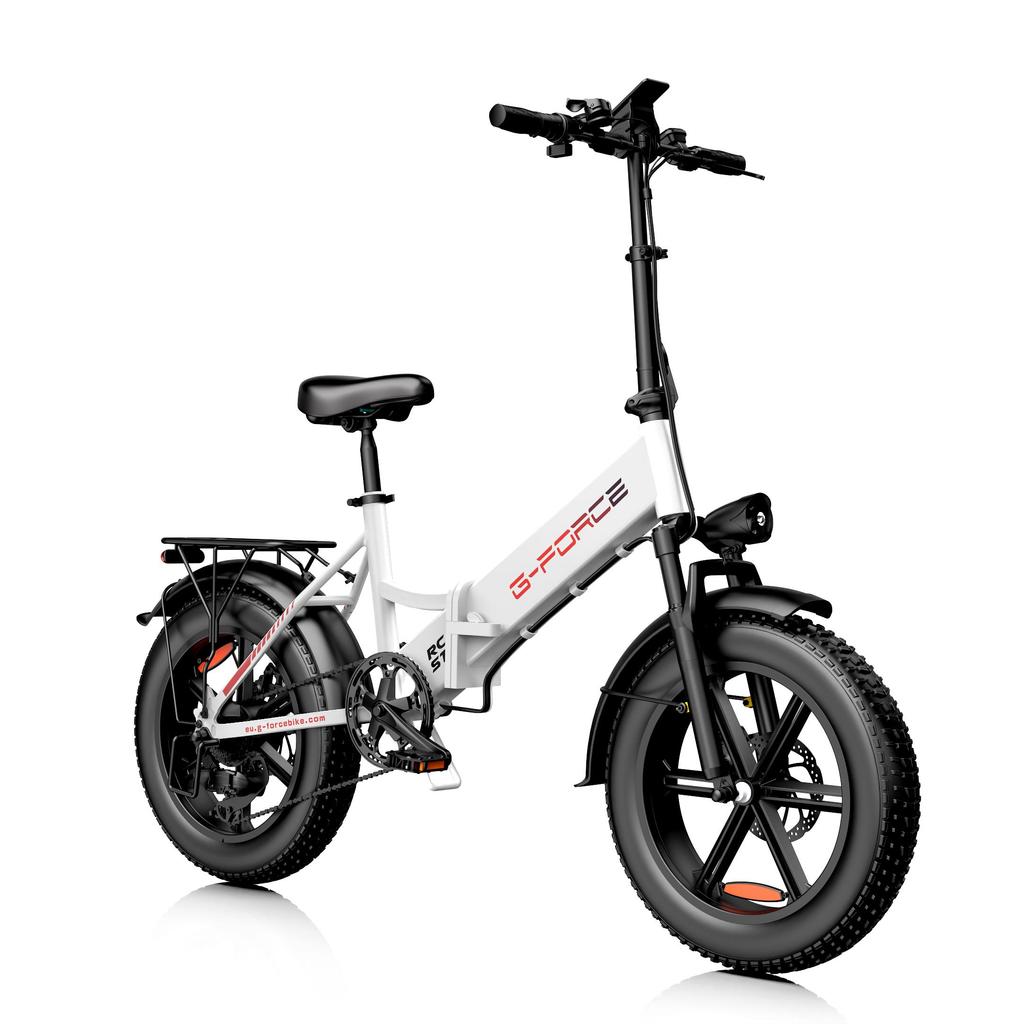

Model: G-Force RC ST
Model type: Folding electric bicycle

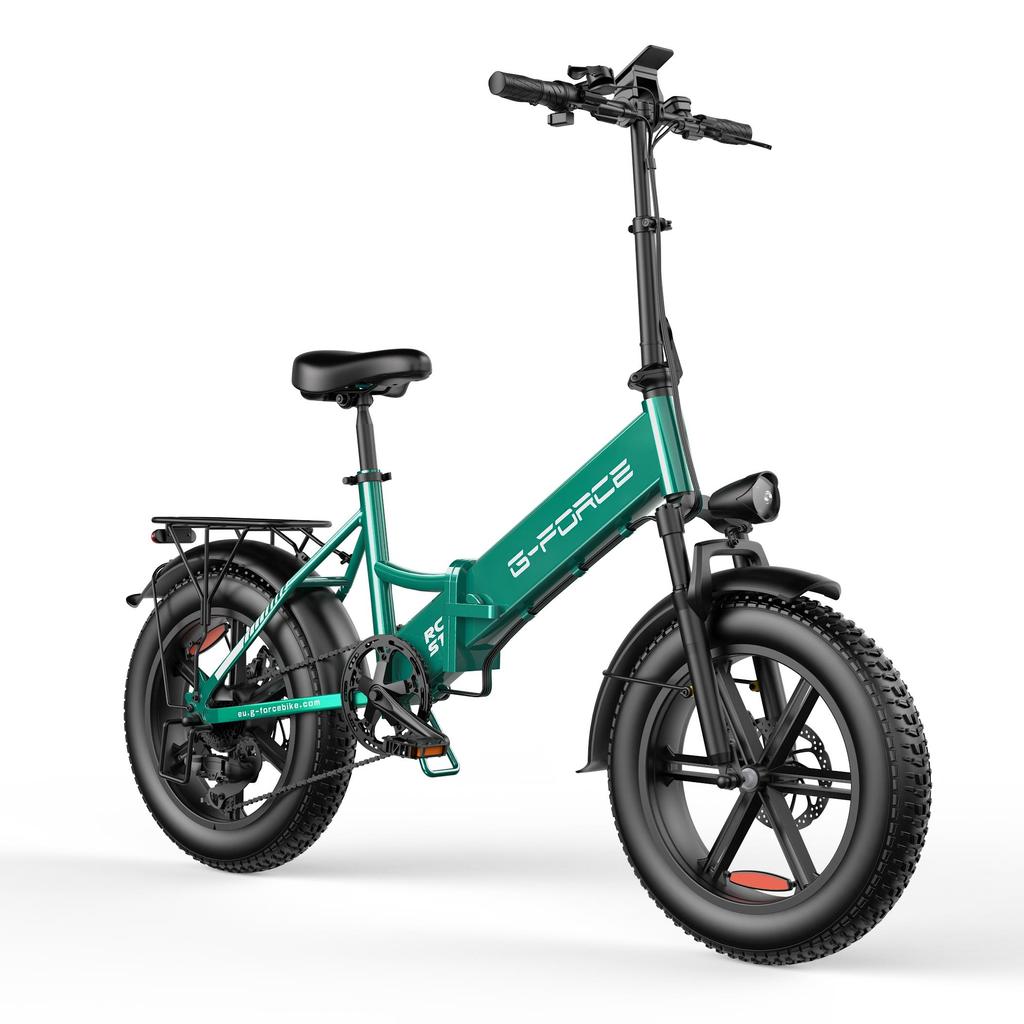

Color options: White, Green
Motor: 750W brushless wheel hub motor
Top speed: 28 mph (approximately 45 km/h)
Maximum climbing angle: 25 °
Torque: 80 Nm
Current limit: 18A
Battery capacity 48V/15Ah/20Ah (optional)
Range (15Ah) Up to 45 miles (approximately 72 km)
Charger: 54.6V 2A output
Display screen: 3.5-inch mid mounted color instrument panel
Display content: speed, riding time, distance, remaining battery, fault code, etc
Throttle: Steering throttle (not pre installed, independently placed in the packaging box)
Foot pedal: Foldable foot pedal
Headlights: LED headlights+horn function (20Ah version with daytime running lights)
Tail lights: LED tail lights+turn signal lights
Brake type: Hydraulic disc brake (oil disc)
Brake disc: 160mm front and rear
Suspension: shock-absorbing front fork (lockable)
Tire: 20 "x 4.0 Fat Tire
Tire characteristics: anti-skid
Wheel hub: integrated wheel hub
Vehicle length 65.3 "(approximately 166 cm)
Vehicle height 49.2 "(approximately 125 cm)
Handlebar width 14.9 "(approximately 38 cm)
Seat cushion height 34.2 "(approximately 87 cm)
Cross height 13.5 "(approximately 34 cm)
Folding size: 30.3 "x 18" x 38.5 "(approximately 77 x 46 x 98 cm)
Recommended height: 5'3 "-6'3" (approximately 160-190 cm)
Pre assembly degree: 85% pre assembly
Speed range: 25-45 km/h
2、 Core Summary
🔋 Long endurance&branded battery cells
48V 13/15/20Ah optional large capacity battery
15Ah range can reach 45 miles (approximately 72 km)
Built in waterproof design, worry free on rainy days
⚡ strong power
750W brushless wheel hub motor
Top speed of 28 mph
80 Nm torque+25 ° climbing ability
Shimano 7-speed transmission, easily handling cities and slopes
🚇 portable foldable
Quick folding design, easy to fit into the car trunk or take the subway
The folded size is only 30.3 "× 18" × 38.5“
85% pre assembled, ready to use out of the box
🛞 All terrain passability
20 "x 4.0 anti slip fat tire
Fully adaptable to sandy, snowy, muddy, and urban roads
🛑 Safe braking
Front and rear hydraulic disc brakes+160mm brake discs
Dual disc brakes, fast response, stable braking
🔧 Comfortable suspension
Shock absorber front fork (lockable)
Effectively absorb road impact, improve riding stability and comfort
📟 Intelligent color screen instrument panel
3.5-inch mid mounted color screen
Real time display: speed, riding time, distance, remaining battery, fault code
Information is clear at a glance
💡 Whole car lighting system
LED headlights+horn (20A h-version with daytime running lights)
LED taillights+turn signals
Riding at night is safer
🪑 Convenient Details
Foldable foot pedals for more compact storage
Steering throttle (individually packaged, installed as needed)
Recommended height 160-190 cm, covering most adults
The height span is only 13.5 inches, making it convenient to get on and off the bus
