Specifications:
Capacitance: 10nF (±5.0 + 20), 100nF / 1uF / 10uF / 100uF (±2.0% ±5), 1000uF / 10000uF (±5.0% ±5)
DC Voltage: 600mV (±1.0% + 10), 6V / 60V / 600V / 1000V (±0.5% + 3)
AC Voltage: 600mV (±3.0% + 3), 6V / 60V / 600V / 750V (±1.0% + 3)
DC Current: 600uA / 6000uA (±1.5% + 3), 60mA / 600mA (±1.5% + 3), 10A (±1.5% + 3)
AC Current: 600uA / 6000uA (±1.5% + 3), 60mA / 600mA (±1.5% + 3), 10A (±1.5% + 3)
Resistance: 600Ω (±0.5% + 3), 6K / 60K / 600K / 6M (±0.5% + 2), 60MΩ (±1.5% + 3)
Frequency: 5/50/500/5k / 50k / 500k / 5M / 10M (±0.1 + 3)
Duty Cycle: 1% to 99% (±1%)
Measurement Mode: Dual-Integration A/D Conversion
Over-Range Indicator: OL
Operating Environment: 0 to 40℃, Relative Humidity <80%
Auto-Range: Yes
True RMS: Yes
Sample Rate: 3 times per second
Backlight: Yes
Data Hold: Yes
Polarity Identification: Yes
Low Voltage Indicator: Yes
Auto Power Off: Yes

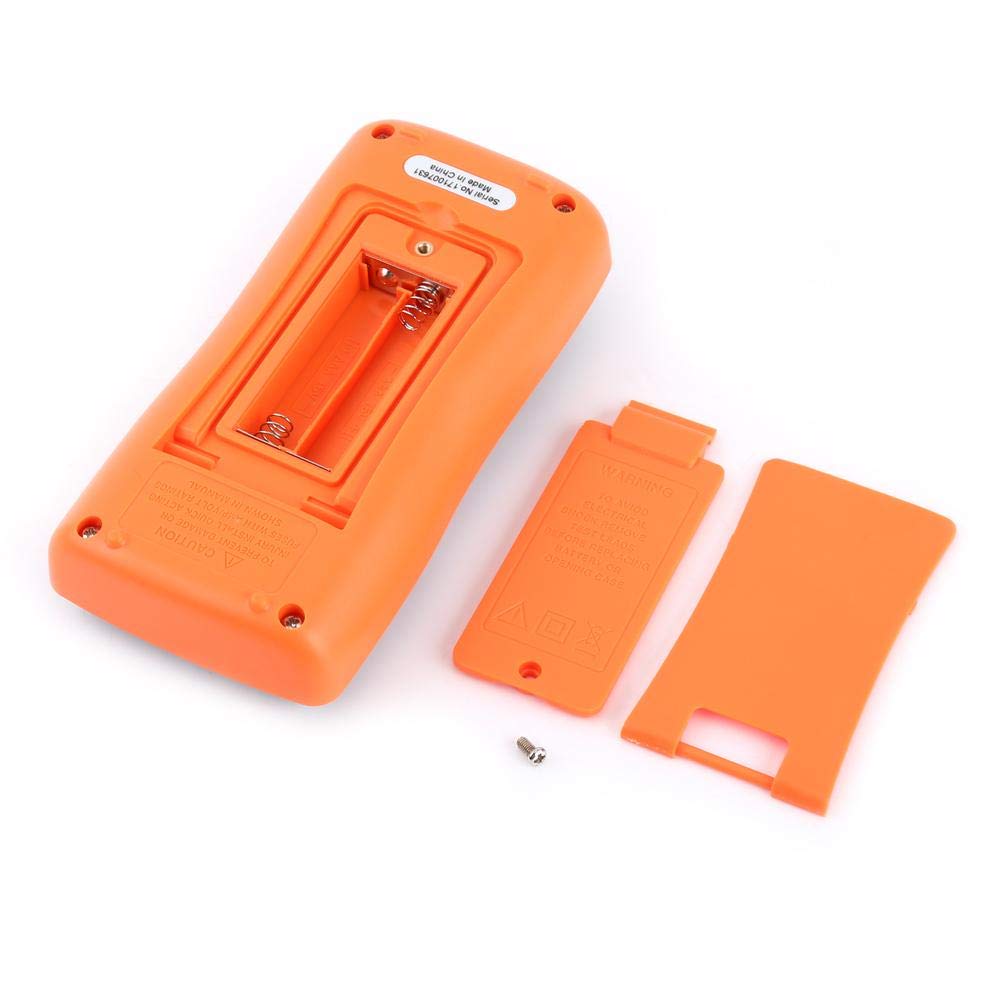

Power Supply: 2 x 1.5V AAA Batteries (not included)

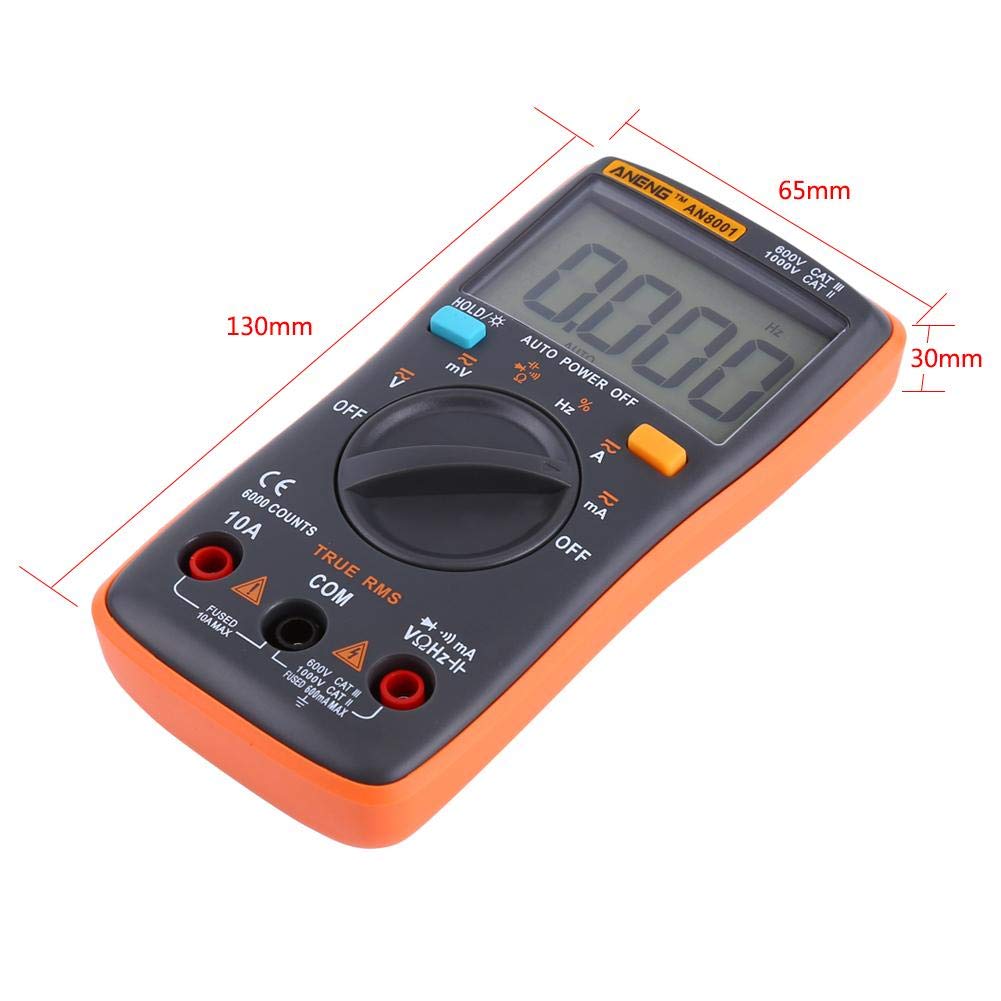

Size: 130 x 65 x 30mm / 5.12 x 2.56 x 1.18"
Package Includes:
1 x Multimeter

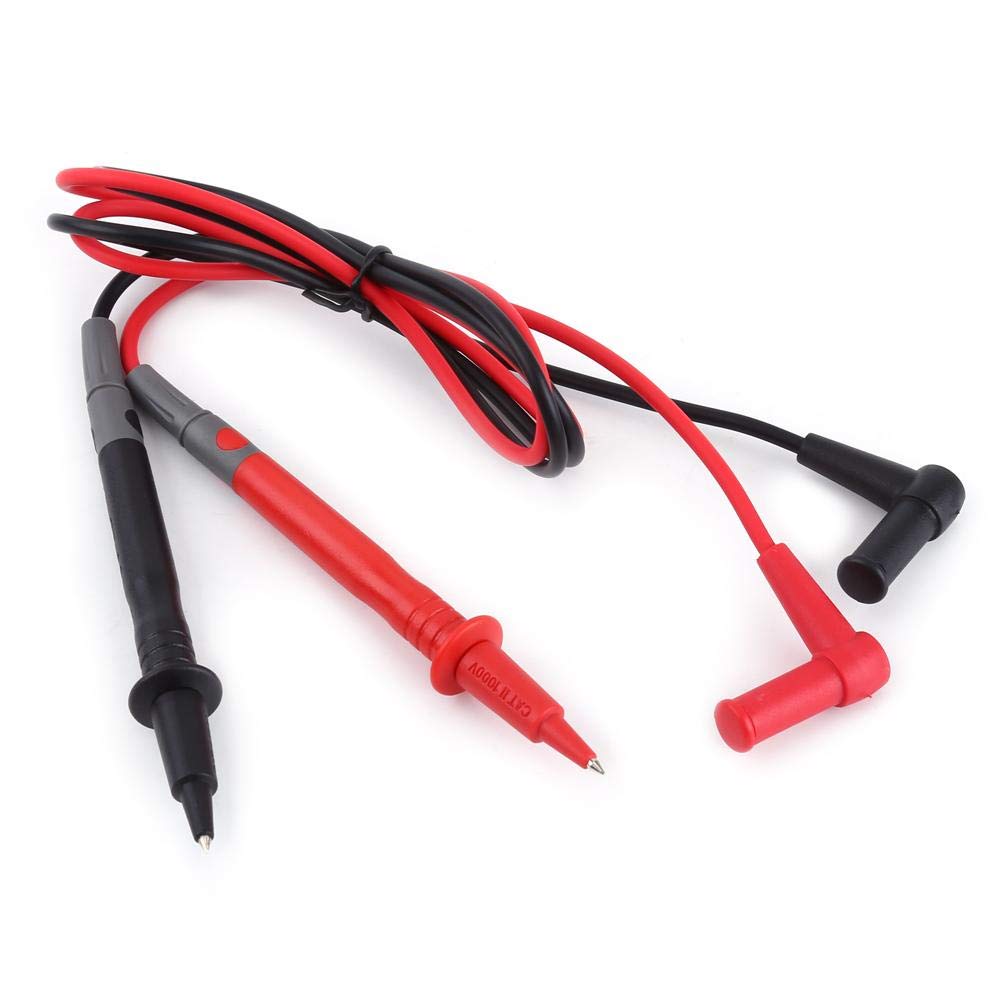

2 x Test Leads

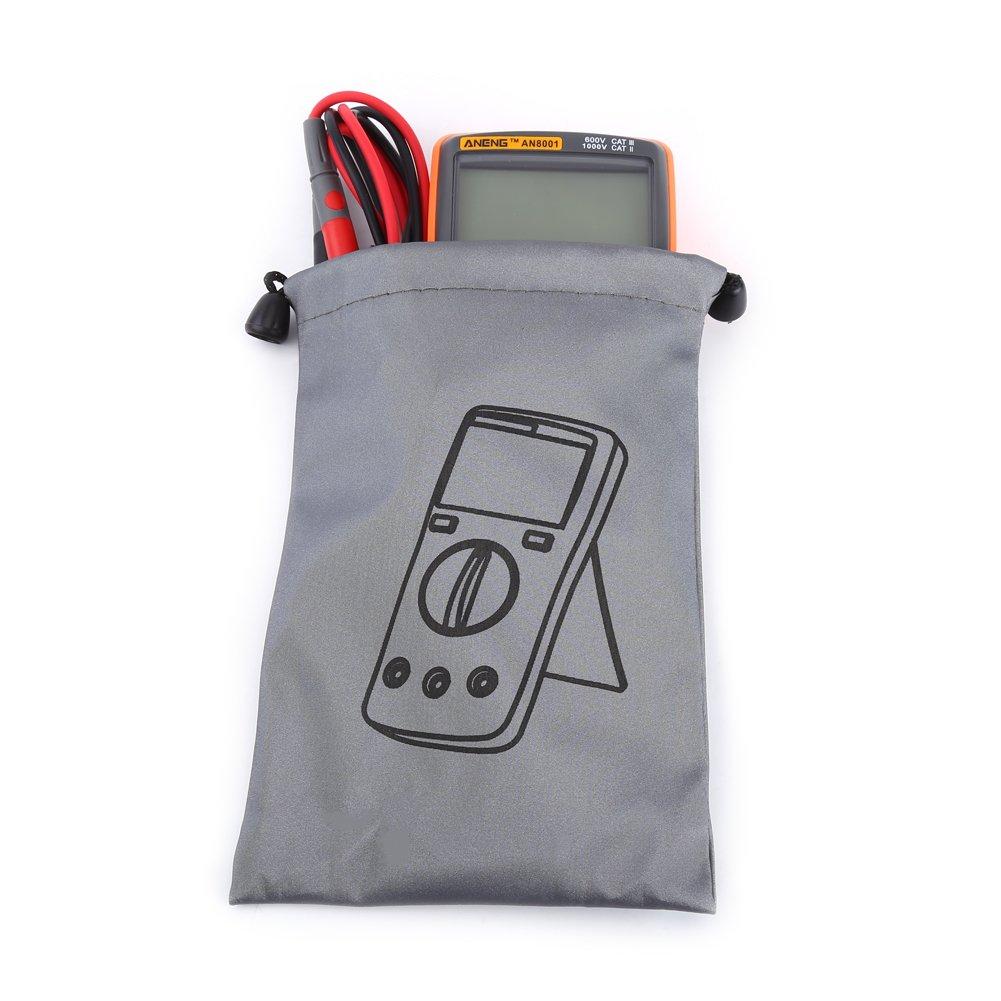

1 x Bag
【Troubleshooting Tool】A digital multimeter is a powerful and reliable tool for safely measuring AC/DC voltage, resistance, capacitance, and frequency. This digital multimeter is designed to safely and accurately troubleshoot a variety of automotive and household electrical problems. It measures DC/DC current, resistance, continuity, diode/shutdown, frequency and duty cycle measurements, etc., providing a safe environment.
【Troubleshooting Tool】A digital multimeter is a powerful and reliable tool for safely measuring AC/DC voltage, resistance, capacitance, and frequency. This digital multimeter is designed to safely and accurately troubleshoot a variety of automotive and household electrical problems. DC/ This device measures DC current, resistance, continuity, diode/shutdown, frequency, and duty cycle, providing a safe environment.

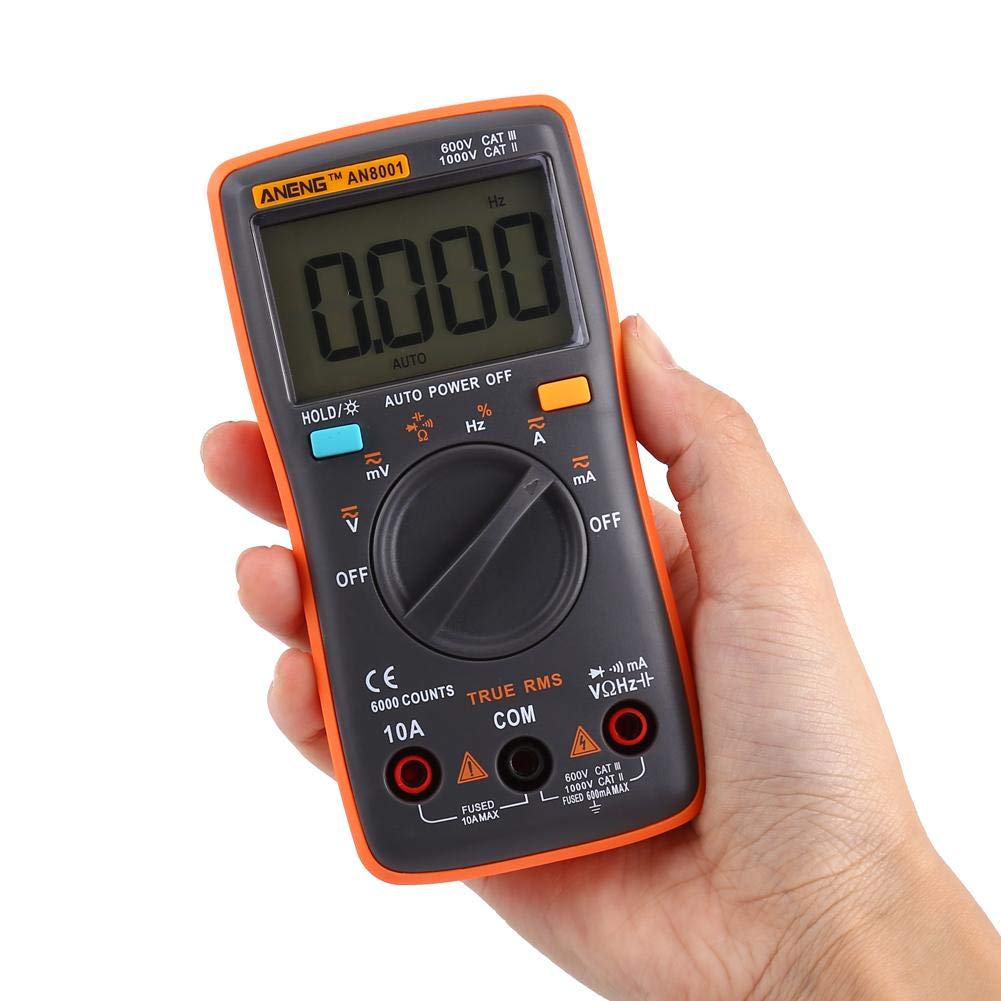

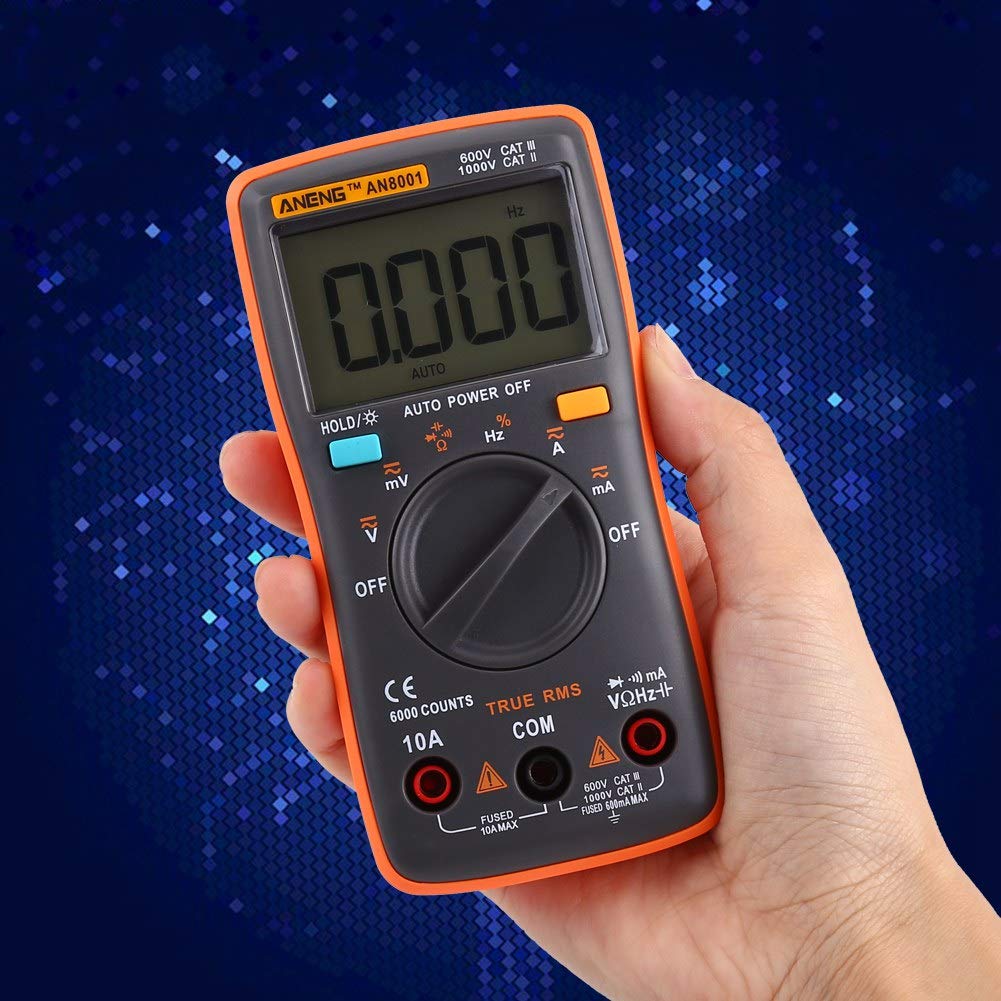

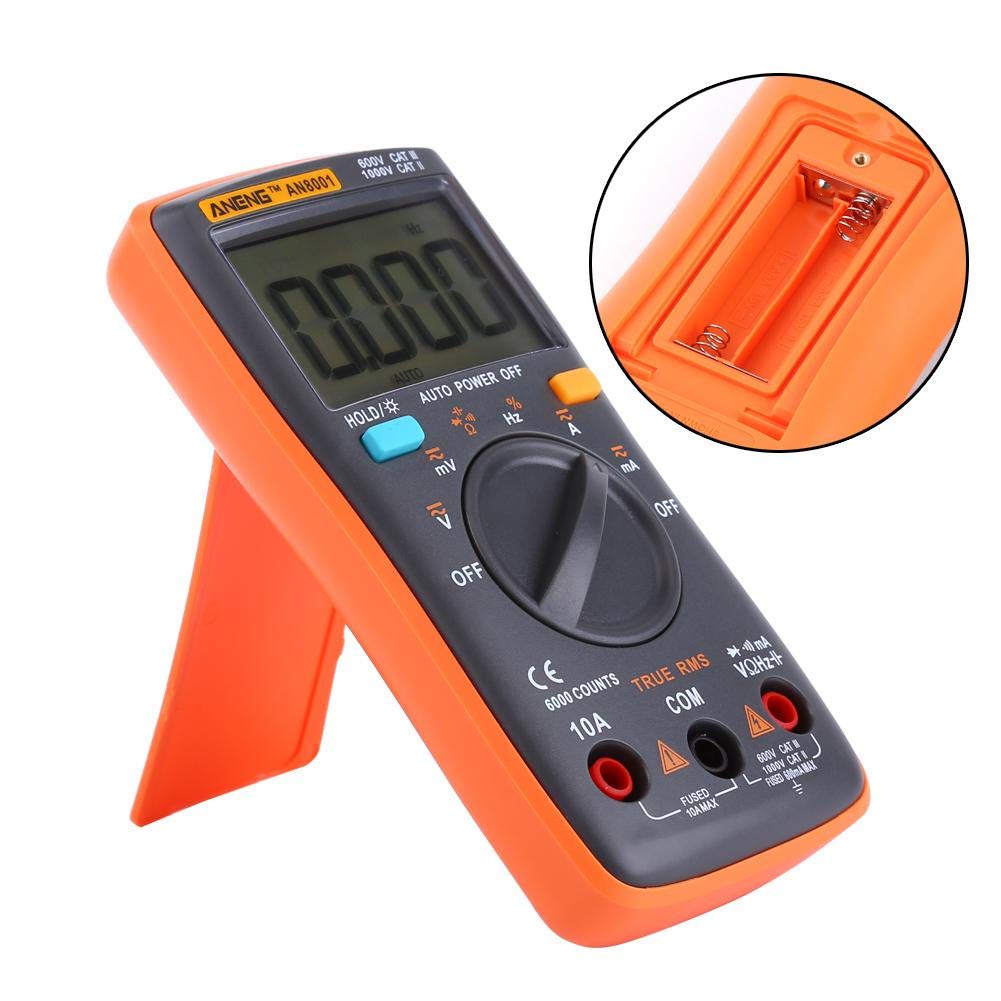

【Ergonomic Design】The multimeter uses two 1.5V AAA batteries (power supply not included), features low voltage display, and supports an auto power-off function for significant power saving. The meter body has a rubber case for a comfortable, ergonomically designed grip. The non-slip, slightly soft plastic case helps prevent drops, and the stand positions the device at a 45-degree angle for easy viewing of the screen and hands-free operation.

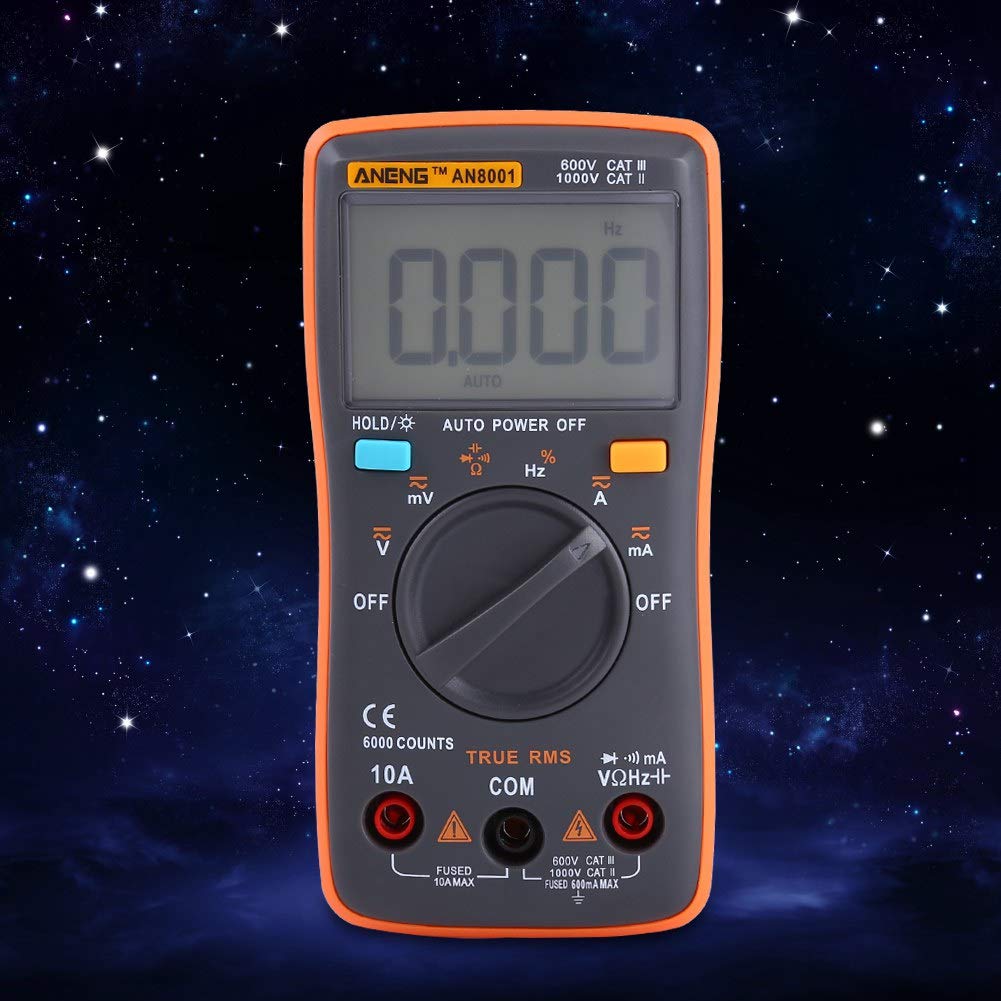

【LCD Display Design】This voltmeter adopts a large 4-digit (6,000) LCD display, providing accurate and easy-to-read results. It can display up to 6000 values, supports a backlit display and data hold function, allowing you to complete tasks quickly and efficiently. Equipped with a universal multimeter plug for easy use.
【For Safe Use】This AC/DC voltage multimeter's voltage test function can test both AC and DC voltages and is designed to protect against high voltages up to 550V. It also has a built-in overload protection function. It supports polarity identification.
