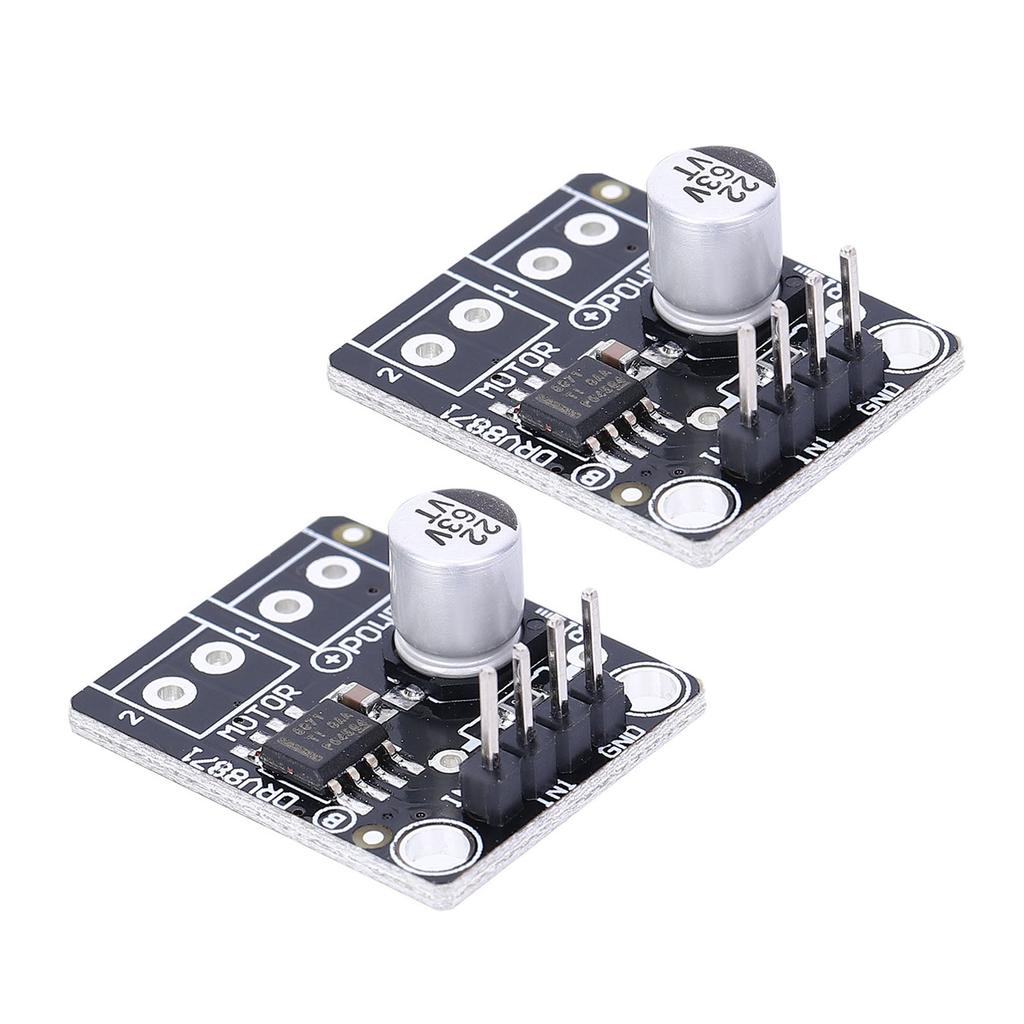

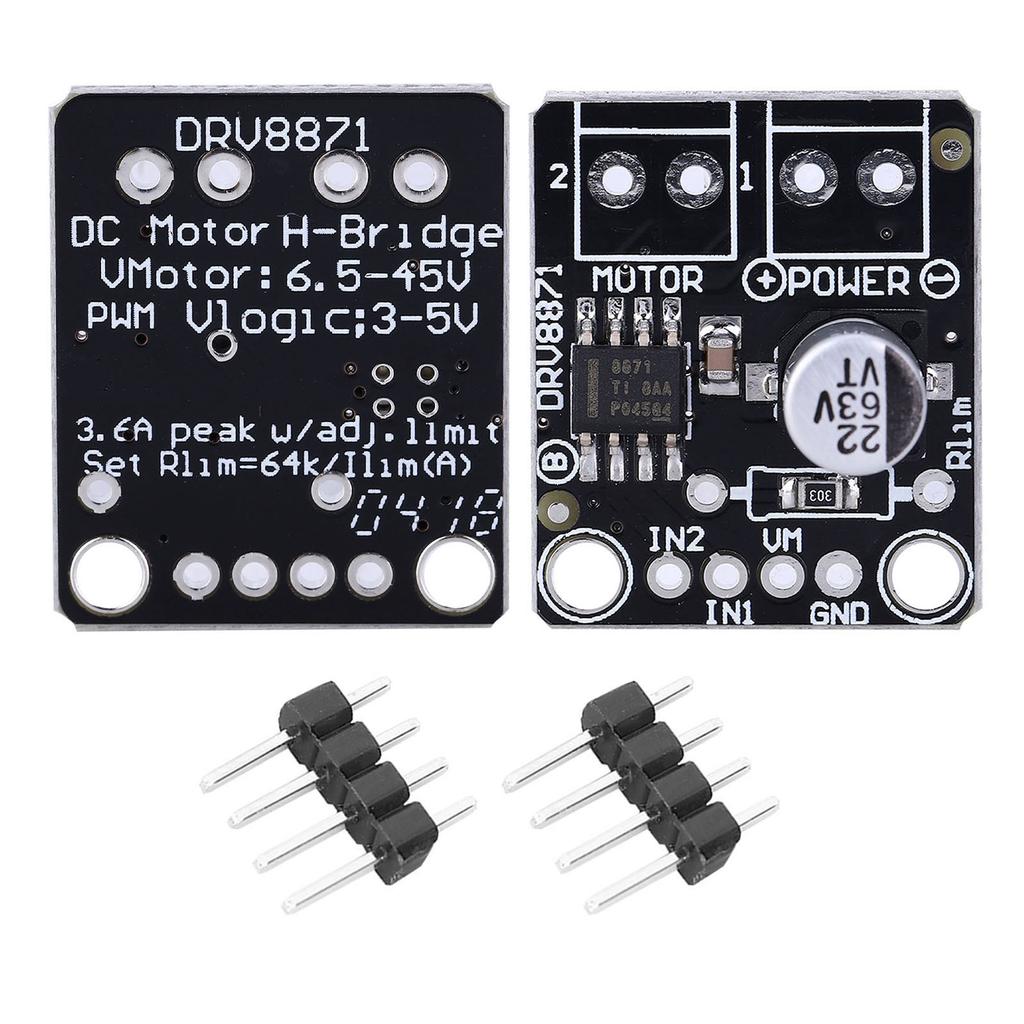

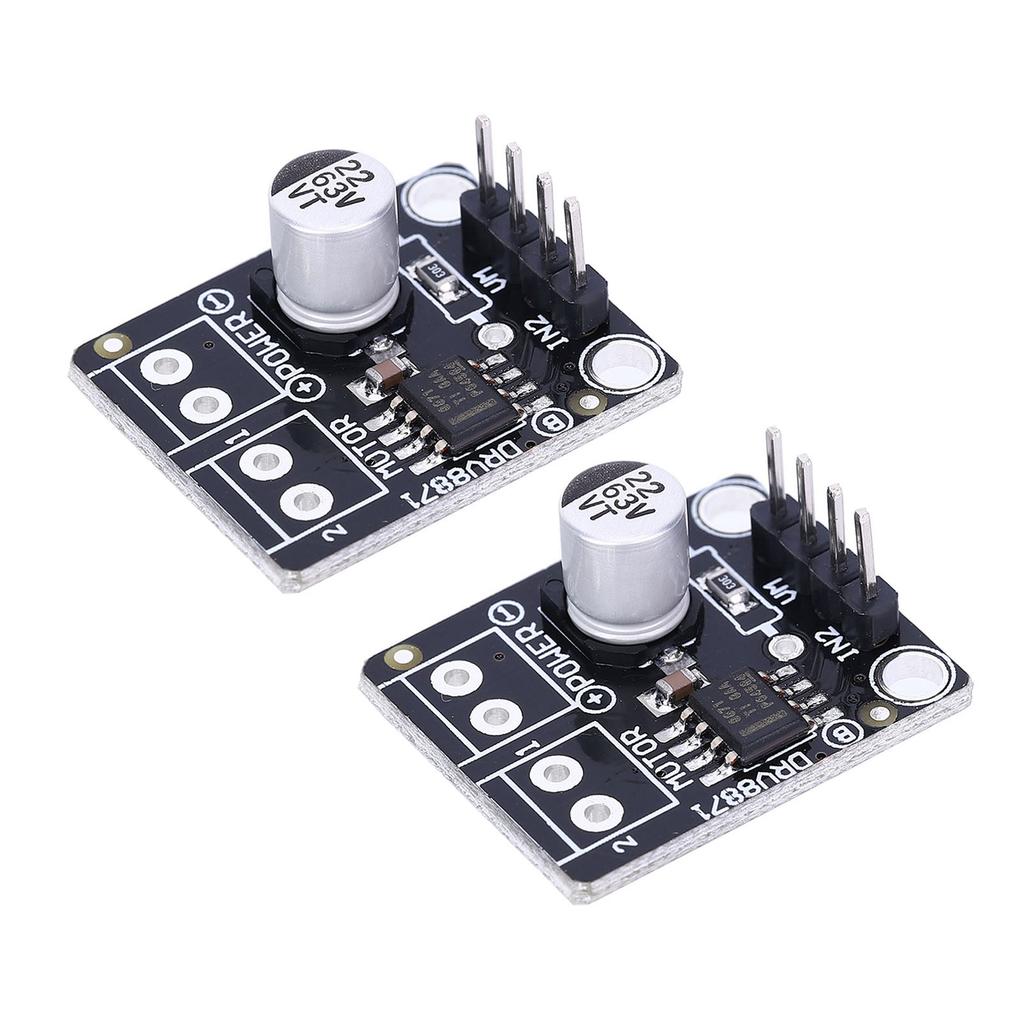

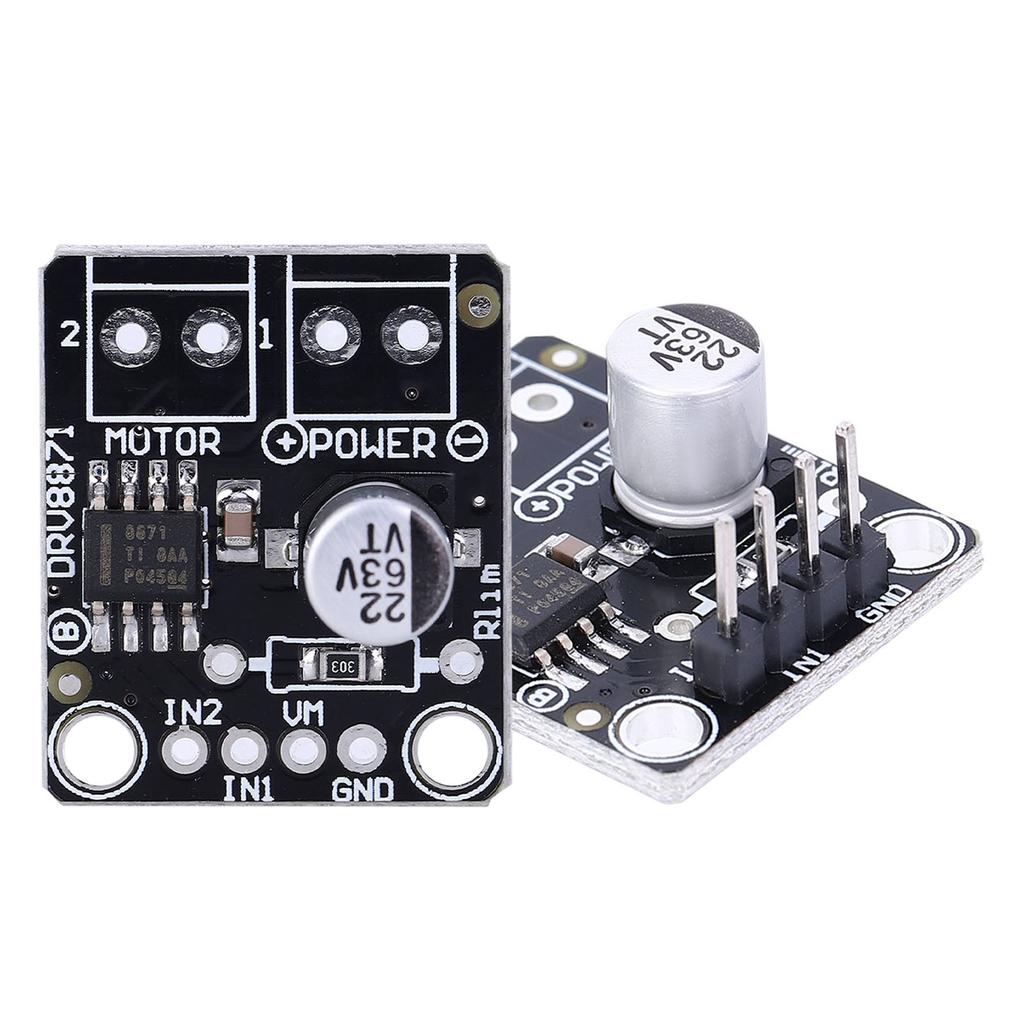

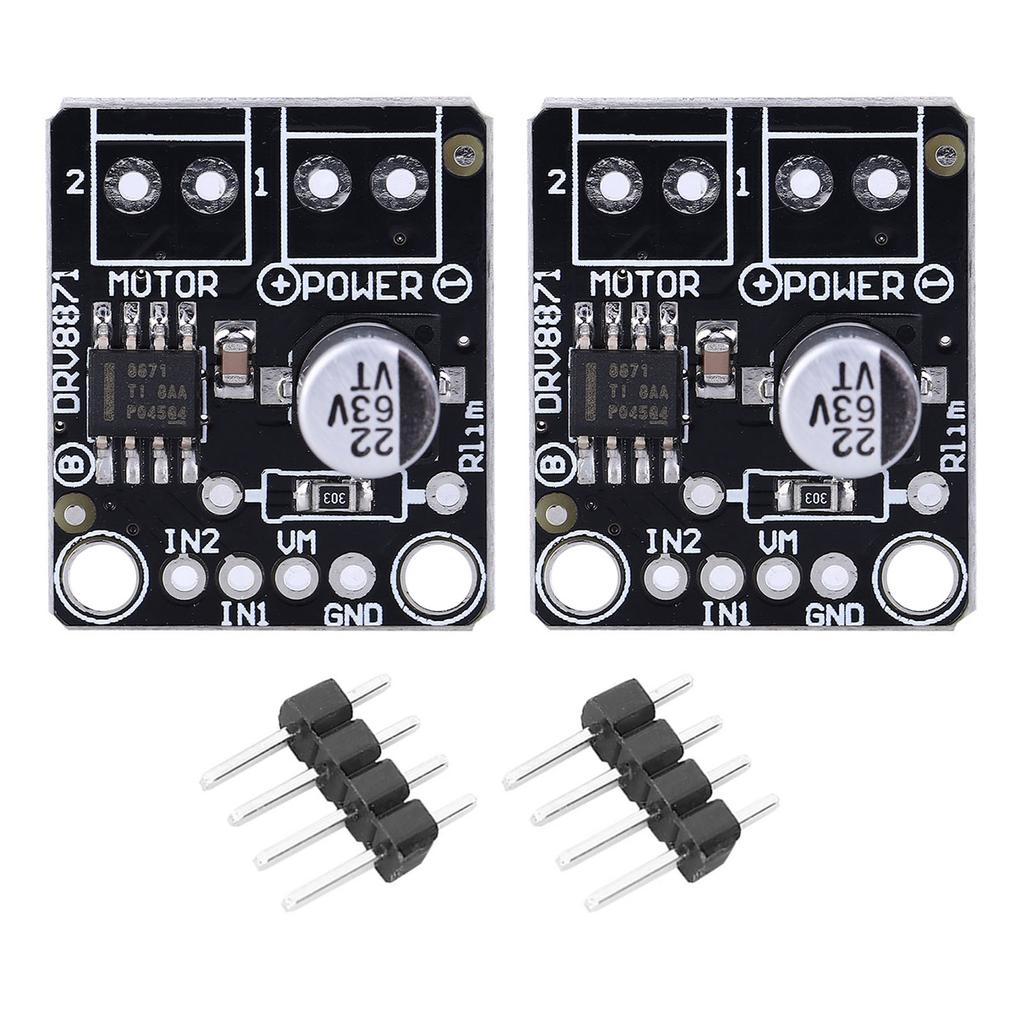

2 Set Motor Driver Module DC 3.6A H Bridge PWM Controller PCB with Various Guard Pin Headers

Feature: 1. Applicable Scenario: The DRV8871 device is a brushed DC motor driver for printer, appliance, industrial equipment and other small machines. 2. PWM Control: The inputs of motor driver module can be pulse width modulated (PWM) to control motor speed, using a choice of current decay modes. 3. Bidirectional Control: Two logic inputs control for H bridge driver, which consists of four N channel support for MOSFET that can control motors bidirectionally with up to 3.6A peak current. 4. Various Guard: 3.6A motor driver module has VM undervoltage lockout (UVLO), overcurrent protecting (OCP), thermal shutdown (TSD) and automatic fault recovery. 5. Low Power Consumption: PWM driver module support wide voltage and integrated protecting function, setting both inputs low enters a low power sleep mode. Specification: Item Type: Motor Driver Module Material: PCB Output Current: 3.6A(peak) Control Interface: PWM PHASE(IN1 IN2) Interface: 4 wire motor interface and 4 wire control interface Module Size: Approx. 25 x 20 x 8mm 0.98 x 0.79 x 0.31in Integrated Protecting Function: VM undervoltage lockout (UVLO), overcurrent protecting (OCP), thermal shutdown (TSD), automatic fault recovery. Package List: 2 x Drive Module 2 x Pin Header
