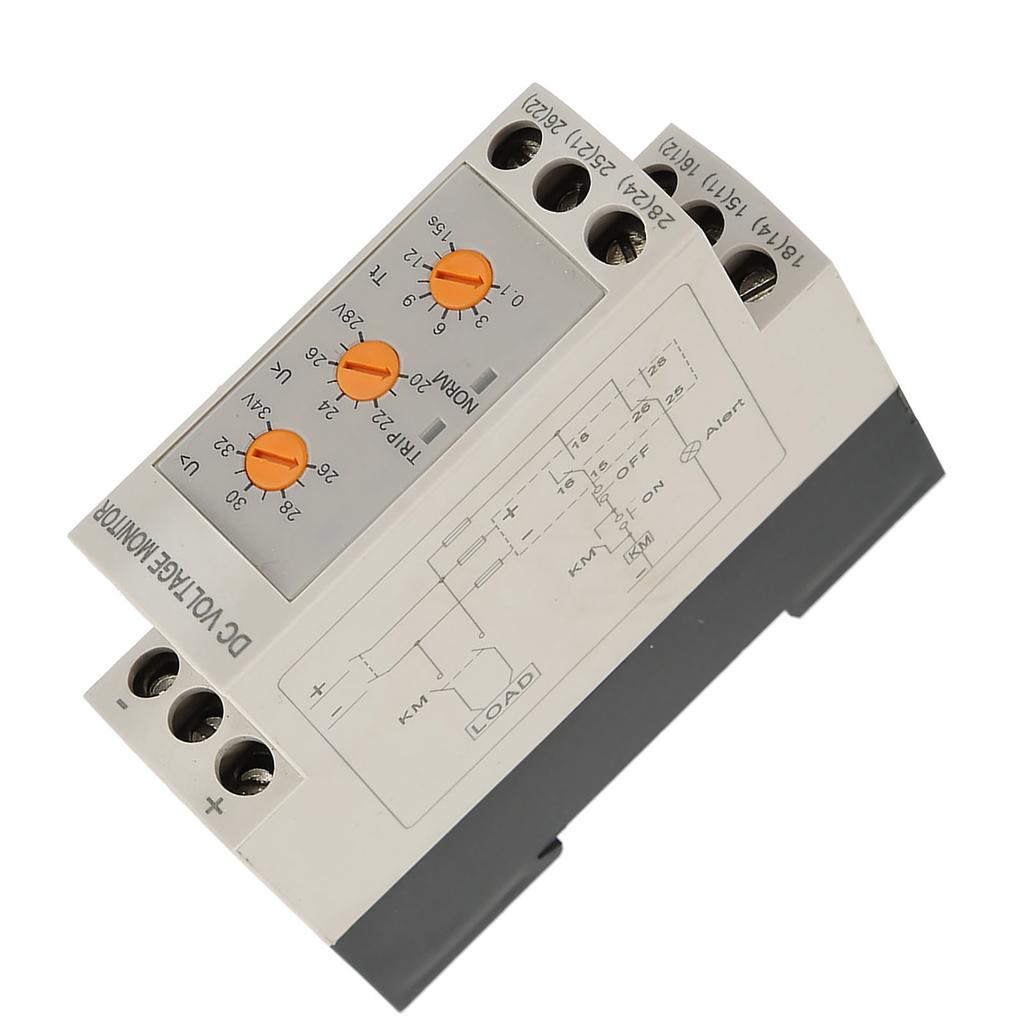

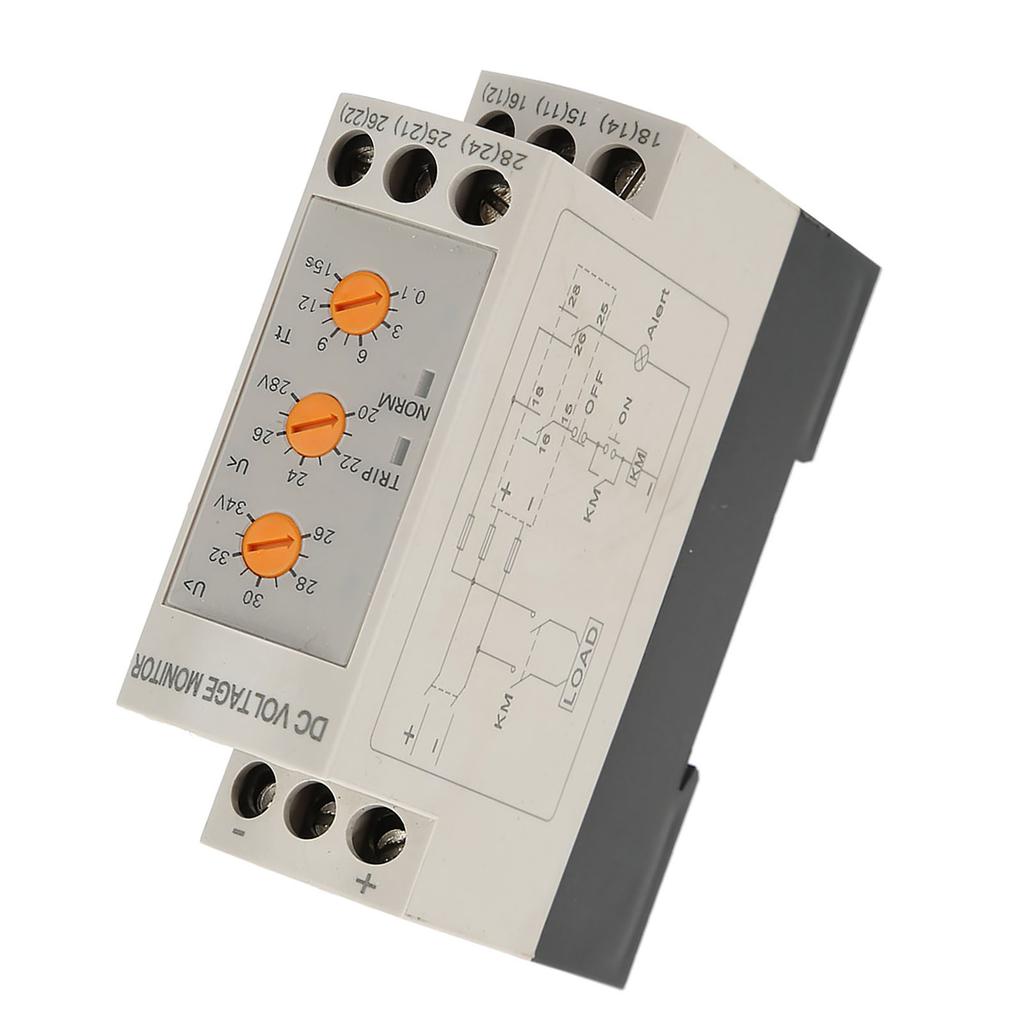

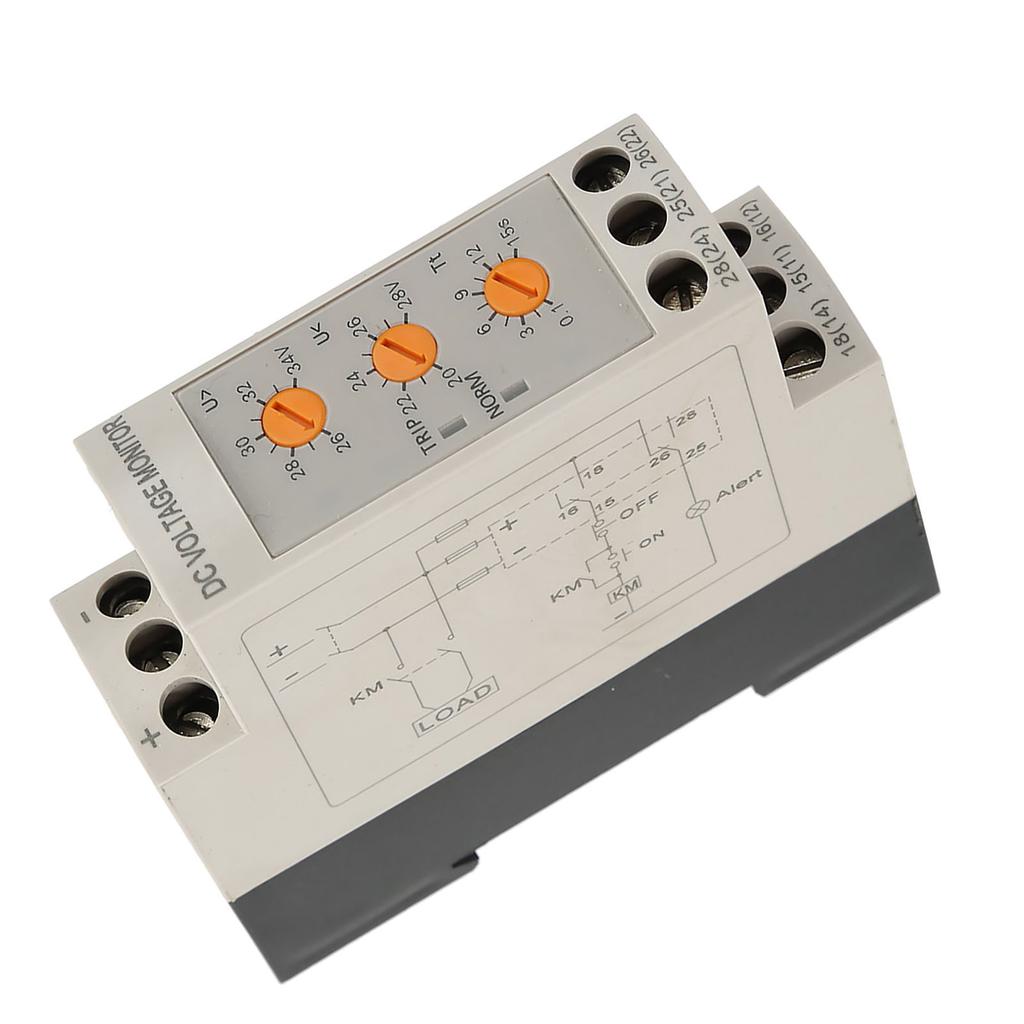

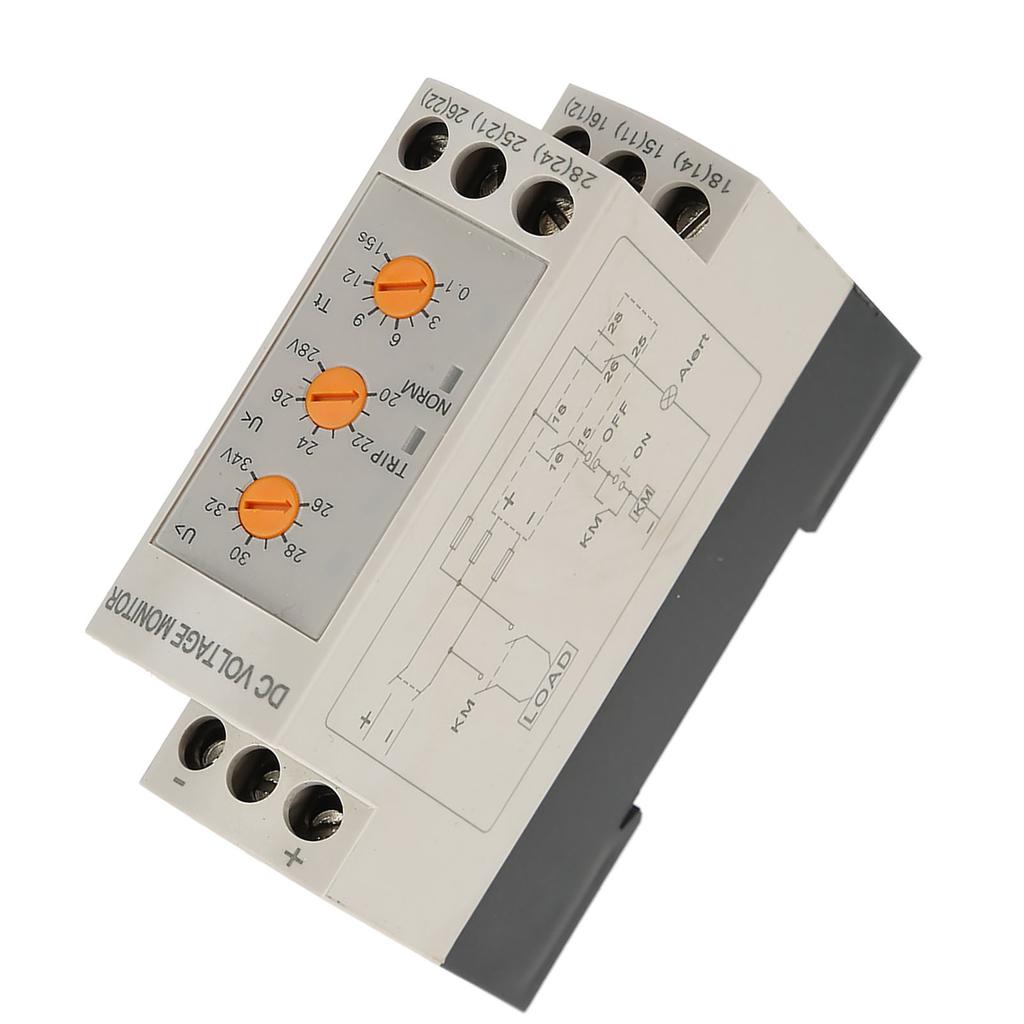

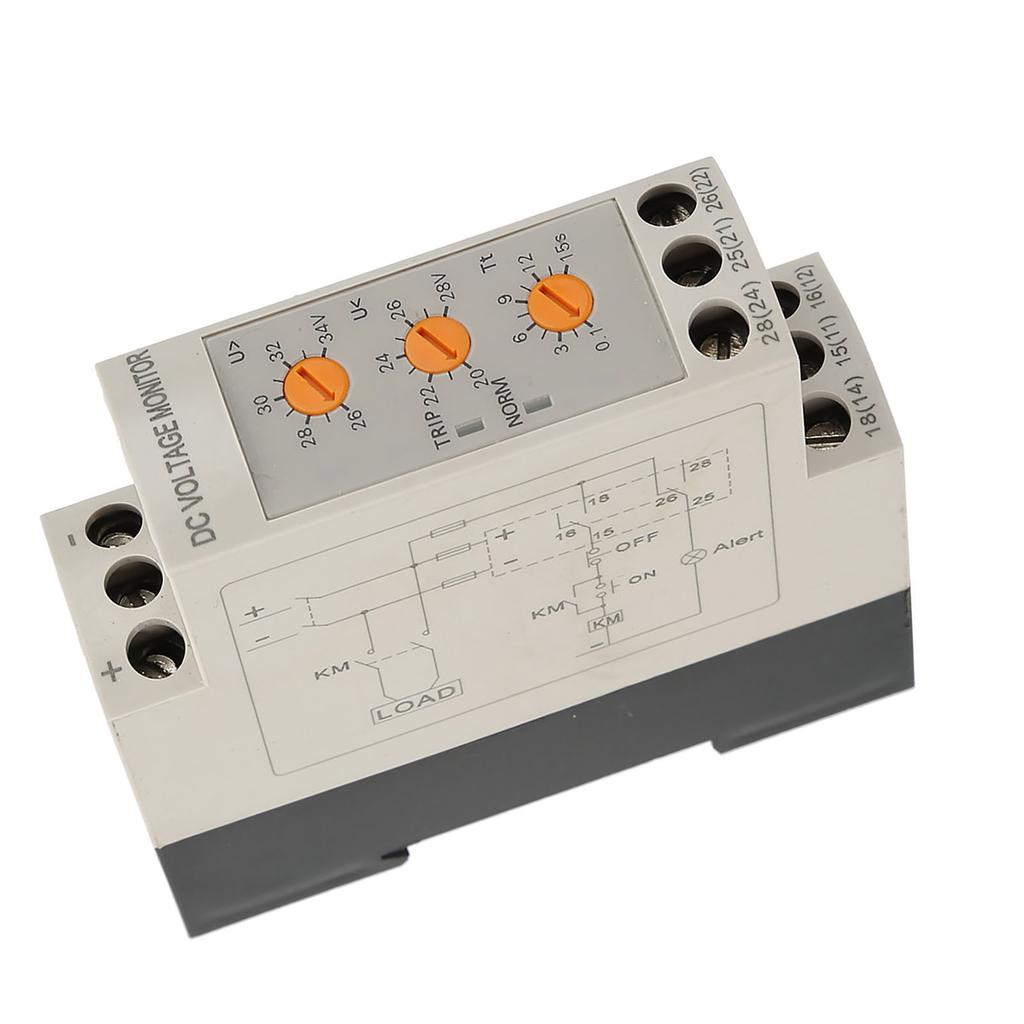

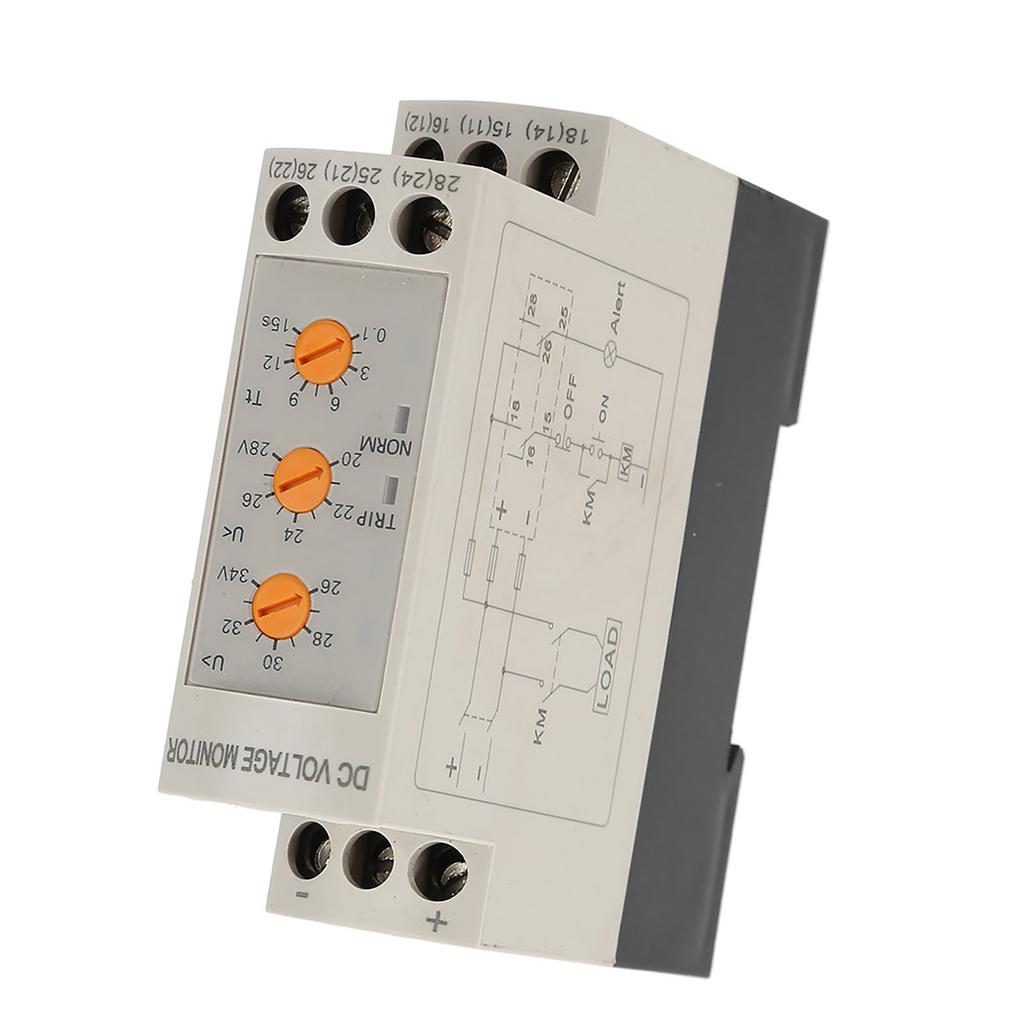

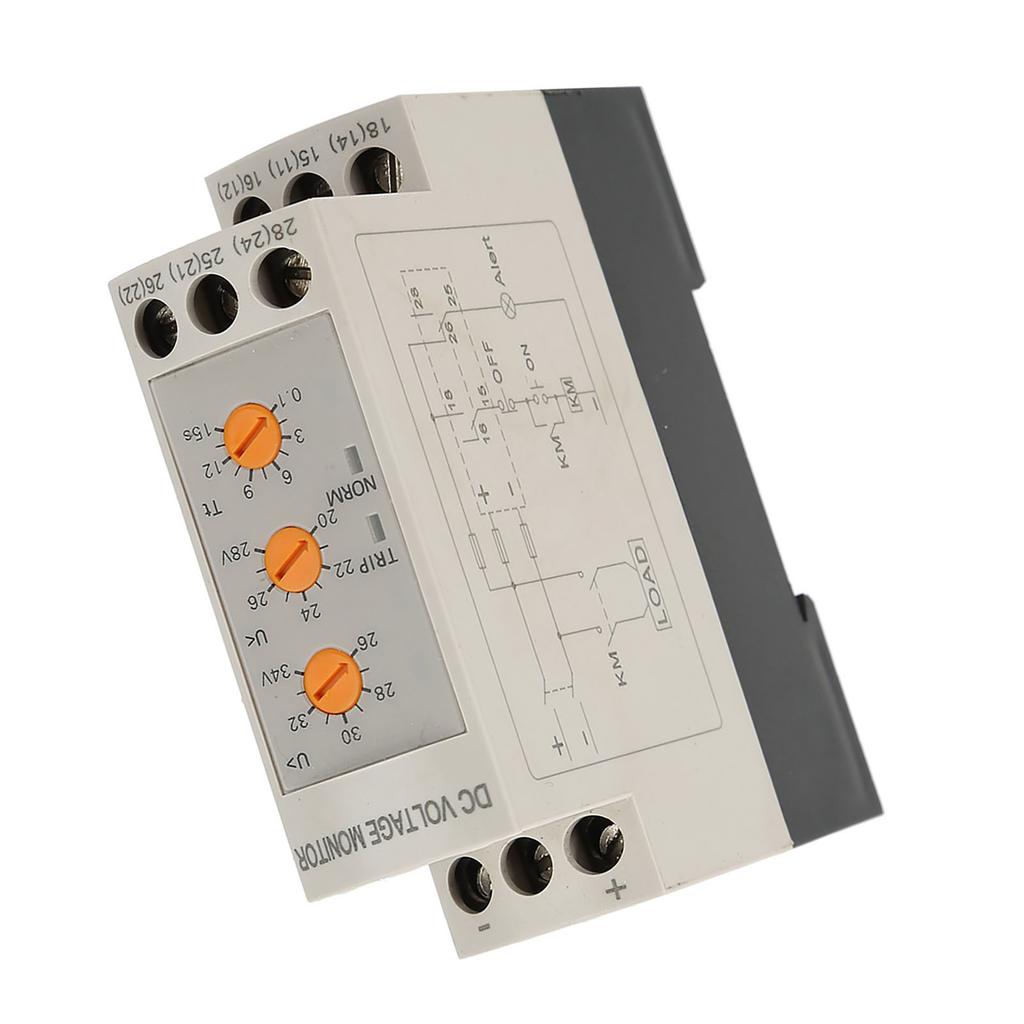

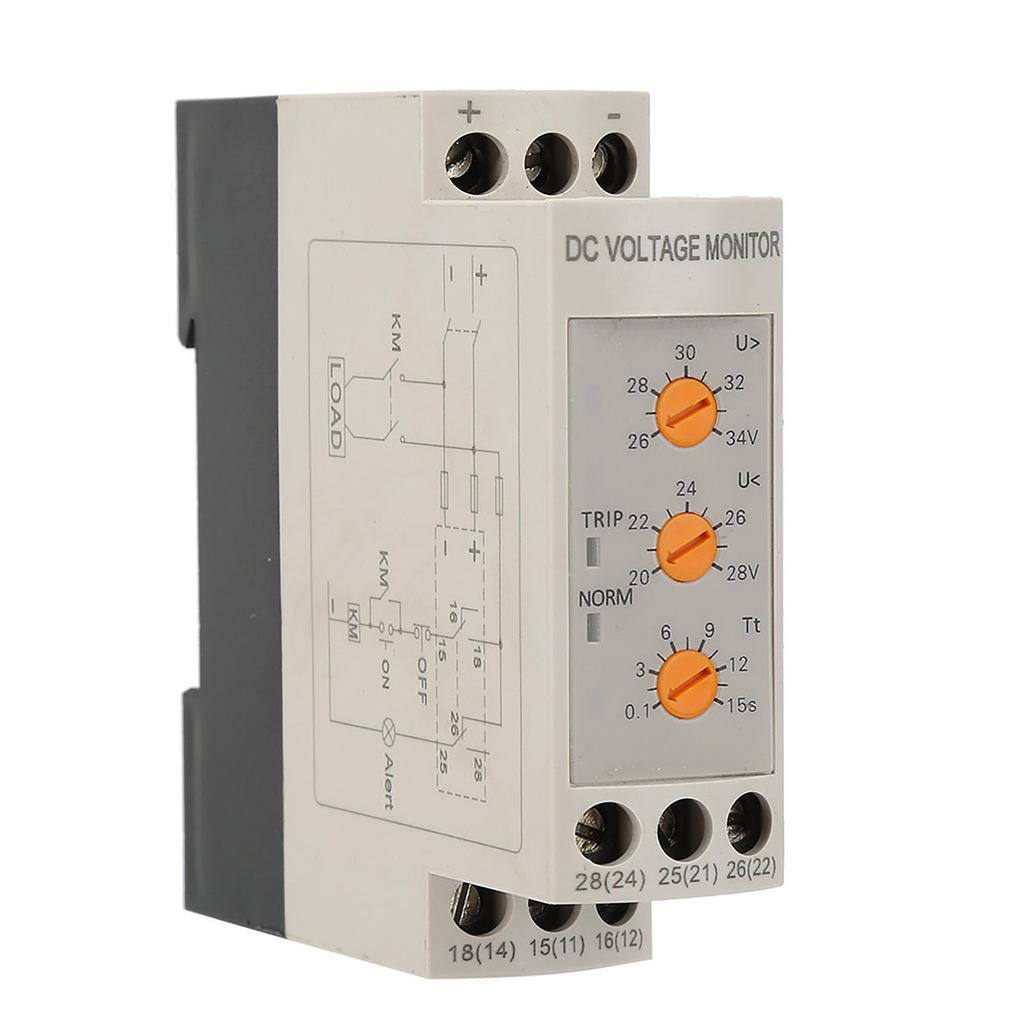

DVRD Over Voltage and Under Voltage Protection Relay(DC 24V)

Features: Standard modular structure, guide rail type installation Real time monitoring of dc overvoltage and undervoltage faults No additional auxiliary power supply is required Both over voltage and under voltage value can be adjusted Action time can be adjusted 2 sets of normally open and normally closed contacts 2 indicator lights indicate various working conditions Typical applications: dc motor, battery,UPS power supply, dc switchgear, dc panel, industrial control system Specification: Protection function: over voltage, under voltage Model: DVRD 12 24 36 48(Optional) Rated voltage: DC 12V 24V 36V 48V(Optional) Monitoring circuit: direct current circuit Protection function: over voltage, under voltage Overvoltage regulation range: DC 12V: 13 17V DC 24V: 26 34V DC 36V: 39 51V DC 48V: 52 68V Undervoltage adjustment range: DC 12V: 10 14V DC 24V: 20 28V DC 36V: 30 42V DC 48V: 40 56V Action delay range: 0.1 15s Display mode: normal, action 2 LED lights indicate the working status Contact form: 2 set of normally open and normally closed contacts Contact capacity: 6A 250VAC (resistivity) Installation: 35mm guide rail Overall dimension: Approx. 79 * 23 * 79mm 3.1 * 0.9 * 3.1in Weight: 200 g 7.1 oz(approx.) Package list: 1 x Overvoltage Undervoltage Protector .Note:
