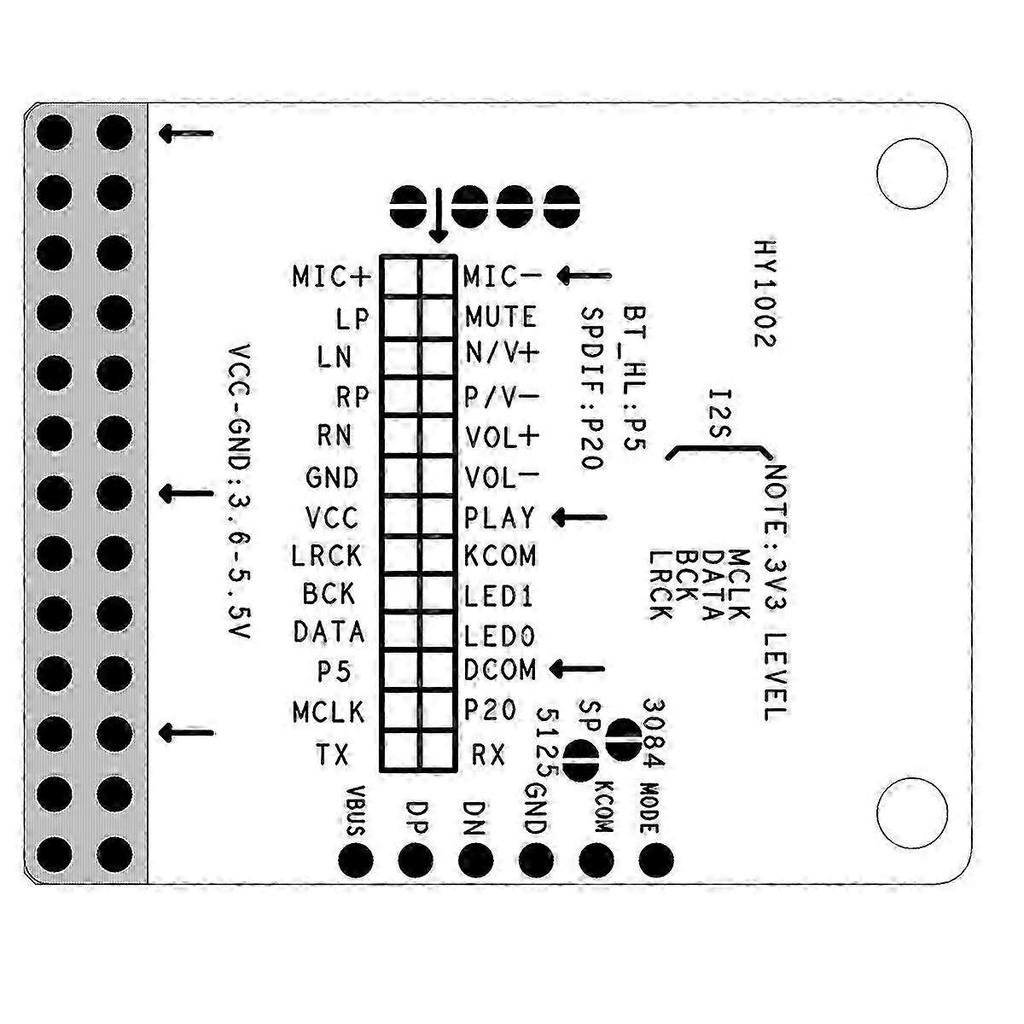

Analog differential output (RP, RN, LP, LN). When is used with a box: the highest protocol Clear pairing information: the highest protocol LDAC (5125 default). Support serial port AT commands, 115200, N, 8, 1 Support Android APP to modify Bluetooth name (support any language), pairing password, custom EQ, switch prompt tone, with call (select in category)
5125 supports , AAC, , APTXLL, APTXHD, LDAC,Function keys: KCOM, PLAY, VOL+, VOL-, P/V-, +, MODE, high level 3V3 is valid. Bluetooth connection status output foot BT_HL (Bluetooth connected: output high 3V3, Bluetooth disconnected: output 0V)
Button Description: "VOL+": short to increase volume, long to increase volume; "VOL-": short to decrease volume, long to decrease volume; "+": short to play next song, long to increase volume; "P/V-": short to play previous song, long to decrease volume; "PLAY": short to play/pause/answer/hang up, long to reject
Special Function Description: "PLAY": long for 3 seconds and release to force pairing mode, long for 6 seconds and release to clear pairing list; "PLAY" + "VOL+": long for 1 second at the same time to enter host mode and search ; "PLAY" + "VOL-": and hold for 1 second to enter slave mode and is searched; "VOL+" + "VOL-": and hold for 1 second to disconnect
"+" + "P/V-": and hold for 6 seconds and release at the same time to clear pairing information and pairing password, and reset
MODE/ key:
Bluetooth is not connected to the mobile phone:
Short , host mode search (with prompt sound);
Double click, slave mode is searched (with prompt sound);
and hold for 6 seconds and release, clear pairing information, clear pairing password, and reset (with prompt sound).
After Bluetooth is connected to the mobile phone:
Short : play pause;
Double click: next song;
and hold for 3 seconds and release, disconnect the mobile phone and enter pairing mode.
LED light: Pairing status, two lights flash alternately; pairing successful, single light flashes
DCOM, LED0, LED1: common anode two-color light-emitting diode
Always in pairing when not connected, no standby
Control external amplifier mute foot MUTE (with sound: output high 3V3, no sound: output 0V)
Specifications: B With call
Color: Green
Material: PCB
Package Contents:

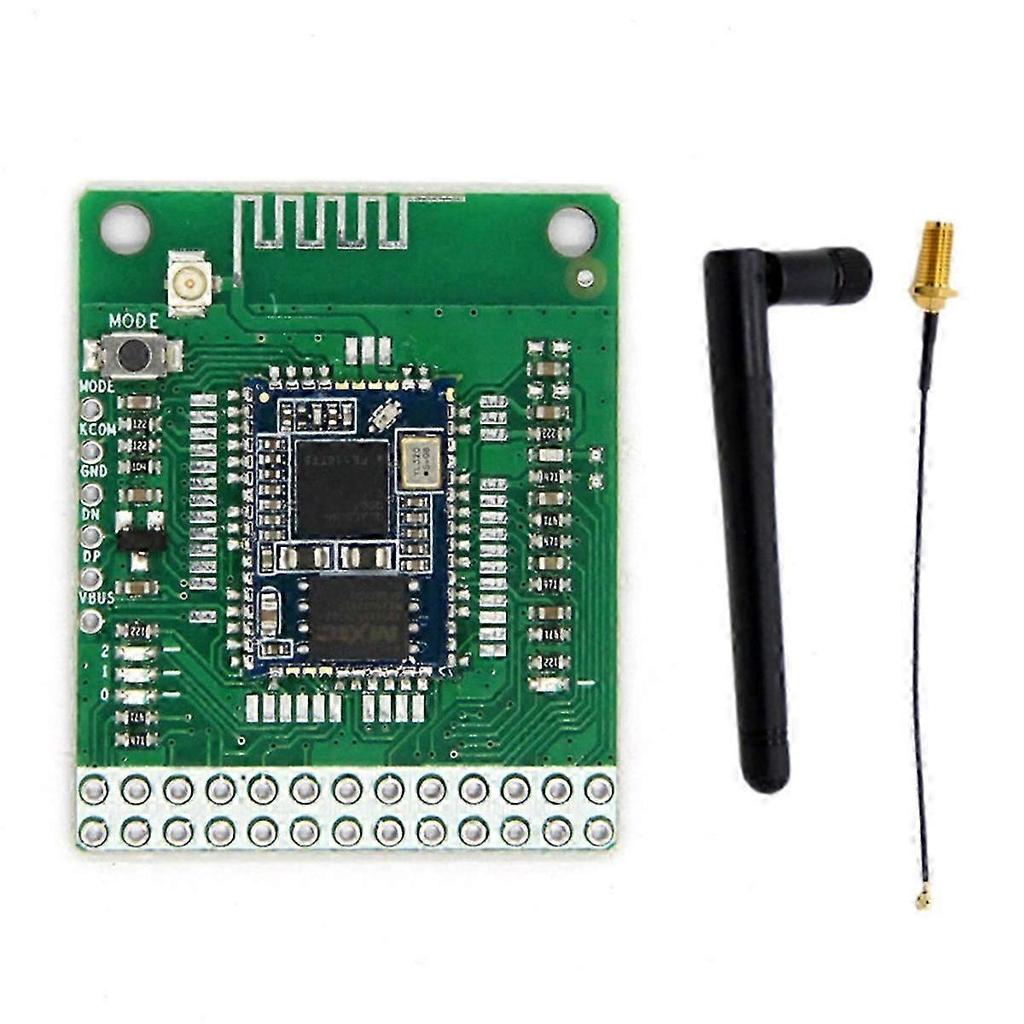

1 * Module
1 * Antenna
Only the above package content, other products are not included.
