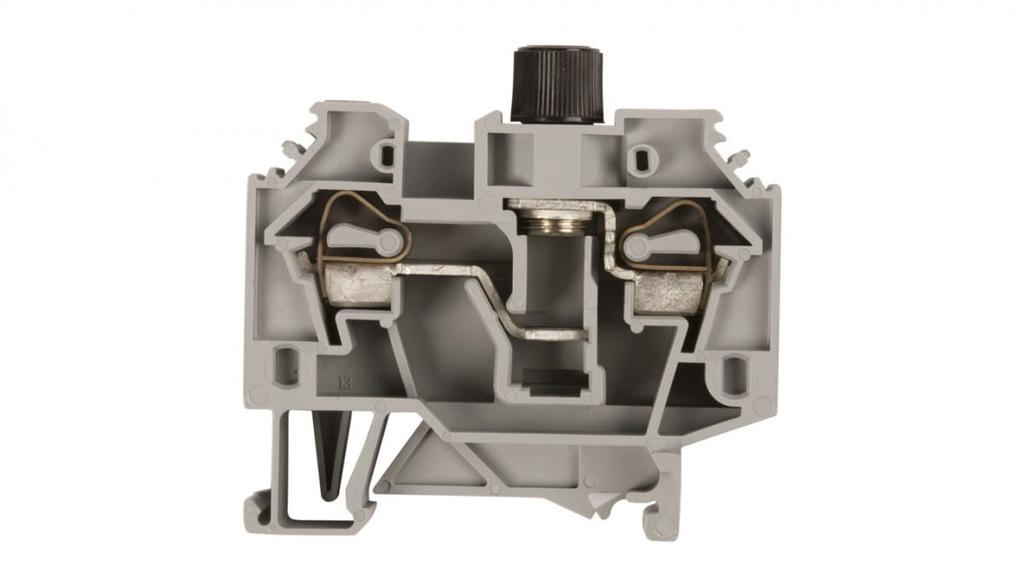

Fuse Connector 6Mm2 Gray 10A G 5X 20Mm Din 35Mm 282-122

CN: 85369095Length: 60Length [mm]: 62EAN: 4044918562027Manufacturer index: 282-122 Fire class of the insulating material according to UL94: V0Color: GrayNumber of levels: 1Connection point: From the side / sideRated current In [A]: 10Cross-section of the single-core cable to be connected [mm2] to: 6Cross-section of the single-core cable to be connected [mm2] from: 0.2Cross-section of the stranded wire to be connected without a ferrule end: 6Cross-section of the connected multi-core cable [mm2] to: 6Cross-section of the connected multi-core cable [mm2] from: 0.2Type of insulating material: Thermoplastic materialElectrical connection type 1: Spring clampElectrical connection type 2: Spring clampType of fuse holder: RotaryType of fuse insert: Fuse G 5x20 mmType of indicator: Brakseria: 282Installation method: DIN 35 mm Mounting RailWidth: 60Width / grid size [mm]: 13Weight: 0.0300Required closing plate: NotHeight: 13Height at the lowest mounting method [mm]: 54.5000Operating temperature range from/to [°C] to: 105Operating temperature range from/to [°C] from: -35
