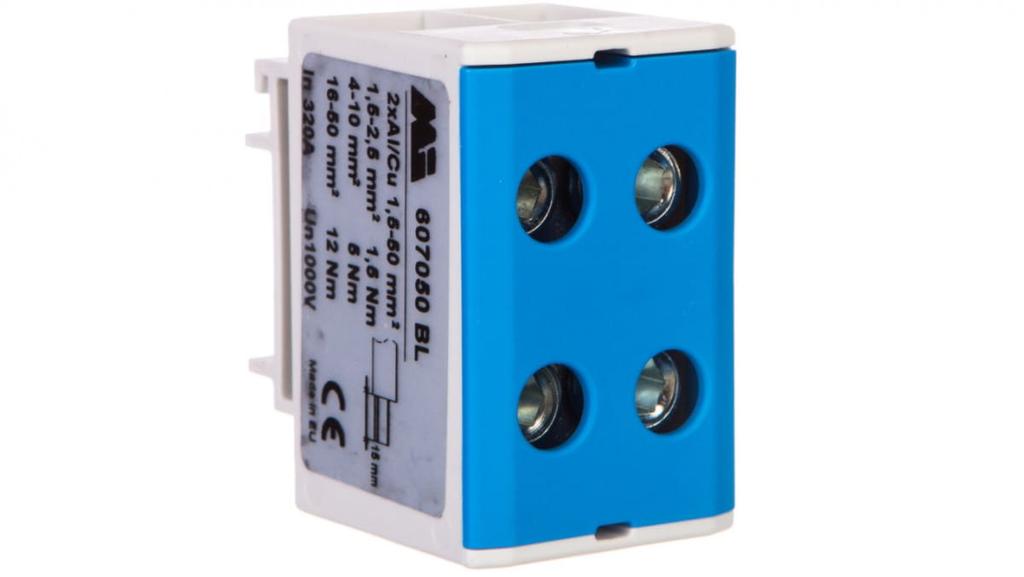

2-Way Busbar Connector 1.5-50Mm2 Gray-Blue Euro Multiotl 50 2Xal/Cu 607050 Bl 607050Bl

CN: 85369010Length: 50Length [mm]: 49EAN: 5901592105775Manufacturer index: 607050BLColor: OtherNumber of levels: 1Number of terminals per level: 4Rated voltage [V]: 1000Position connection: From the side / sideRated current In [A]: 160Cross-section of the single-core wire to be connected [mm2] to: 50Cross-section of the single-core wire to be connected [mm2] from: 1.5Cross-section of the stranded wire to be connected without a ferrule end: 50Cross-section of the connected stranded wire with a ferrule terminal: 50Cross-section of the connected multi-core cable [mm2] to: 50Cross-section of the connected multi-core cable [mm2] from: 1.5Type of insulating material: Thermoplastic materialElectrical connection type 1: Screw connectionType of electrical connection 2: Screw connectionAssembly method: DIN 35 mm Mounting RailWidth: 43Raster width / size [mm]: 30Weight: 0.0600W Explosion-proof version „EEx e”: Non-internal bridged floors: Non-explosive construction Ex-e - confirmed: Closing plate not required: NotHeight: 31 Height at the lowest mounting method [mm]: 43
