Description:

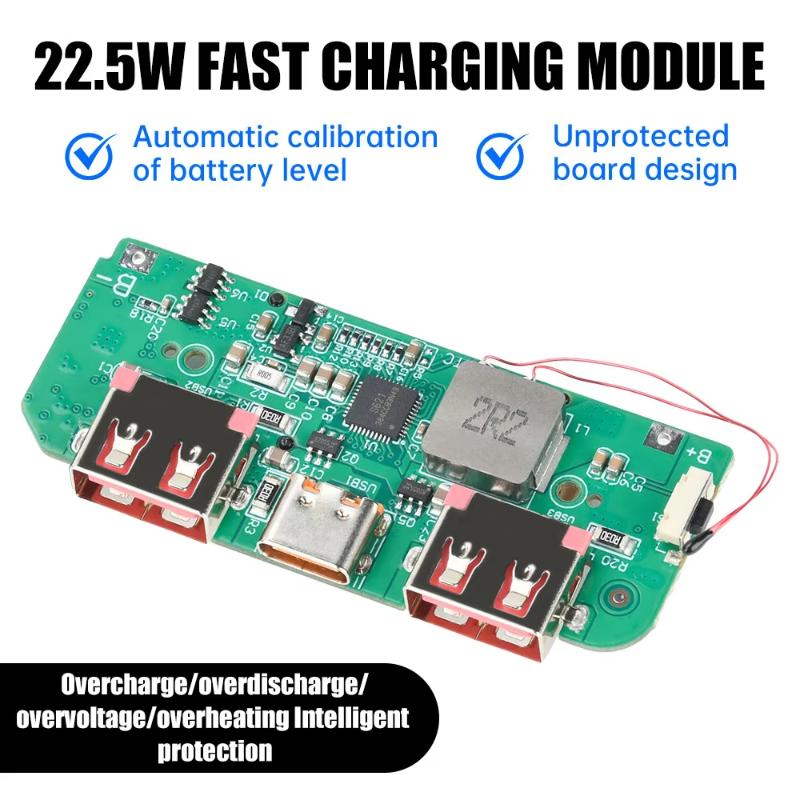

1. Quadruple safety protection: overcharging/over-discharging/over-voltage/overheating intelligent protection, to avoid potential safety hazards
2. TFT color screen display strength: -time display of power/voltage/temperature, status at a glance
3. Protection-free board design: integrated protection function on the main board, directly weld the battery to save space and simplify assembly
4. Intelligent self-learning power: automatically calibrate the power display after the first use, accurately reflecting the remaining battery power
Specification
Product Name: 22.5W fast charging module
Input Parameters: 5V3A/9V2A/12V1.5A
Output Parameters: 5V3A/9V2A/12V1.5A/10V2.25A
Interfaces: Configure 1 Type-C fast charging port (can be charged as well as output) , 2 USB fast charging output ports
Function: with over-charging / over-discharging / over-voltage / overheating and kinds of protection, high conversion rate, current and voltage stability
Material: Plastic+Metal

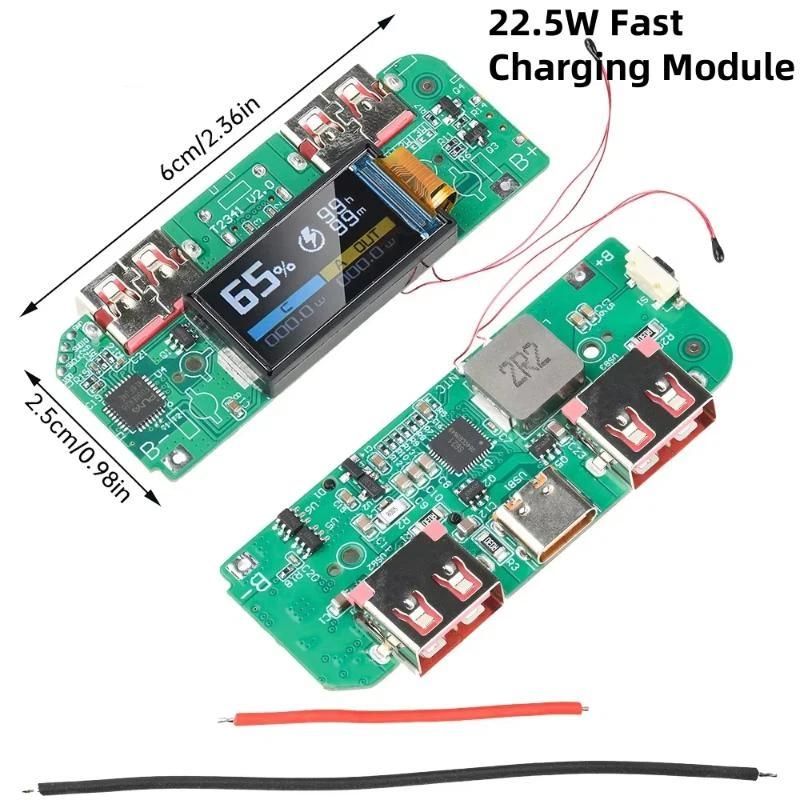

Motherboard size: 62 * 25mm
Packing: 1 set
Attention: 22.5W is the super fast charging protocol, bidirectional fast charging is the PD20W protocol, multiple interfaces at the same time the output of the fast charging of no
Assembly instructions:
1. Because the motherboard screen is fragile, upon receipt, please power on the screen to test whether the screen is normal after welding on the tin, the screen wires will be extruded by external forces will be spent on the screen burst screen, please pay attention to protect the screen when using.
2. Normal use, the battery wires are welded up, wire twisting / alligator clips / spring box and access methods will lead to insufficient power supply to affect the charging and discharging, the battery positive and negative need to do a good job of insulation protection to avoid damage caused by the use of the process of touching with the motherboard.
3. motherboard B , position connected to the battery positive, B - position connected to the battery negative, do not connect the reverse, the reverse will burn the motherboard, burn board IC there will be traces, only the reverse or touch connection will occur.
4. Access to the battery to use 3.7V ternary lithium batteries, lithium iron phosphate batteries can not be used, the battery parallel welding, not in series, series voltage is too high will burn the motherboard.
5. The motherboard has a protection function, welding batteries do not need to add a protection board, the battery protection board has a limit on the current, beyond the limit will disconnect the output.
