140W Fast Charger Step Up Module Voltage 2-6S Lithium Battery Charging Board IP2366 with Auto Temperature Controller

Quantity : 1 High-concerned chemical : none Package : TQFP Supply Voltage : As Description Application : MOBILE PHONE Type : Voltage Regulator Brand Name : DIY NOW Origin : Mainland China Condition : New Operating Temperature : As Description Condition : New Type : Fast Charger Step Up Module Key Word : IP2366 Module Dropship : Support

140W Fast Charger Step Up Module Voltage 2-6S Lithium Battery Charging Board IP2366 with Auto Temperature Controller

Feature: 1. Support 140W high-power two-way fast charging, high charging and discharging efficiency, saving time 2. Compatible with 2-6S lithium batteries, suitable for a variety of battery configurations, strong flexibility 3. High-efficiency buck-boost circuit to ensure stable output and adapt to the needs of different devices 4. Built-in automatic temperature control function, real-time temperature adjustment to ensure safe and efficient operation 5. Optimize circuit design, reduce power consumption, improve conversion efficiency, and reduce heat generation Product parameters: Integrated FCP input and output fast charging protocol Integrated AFC input and output fast charging protocol Integrated SCP input and output fast charging protocol Integrated DRP Try.SRC protocol, PD3.1 Input and output fast charging protocol Integrated QC2.0/QC3.0/QC3.0+ output fast charging protocol Support 5V, 9V, 12V, 15V, 20V, 28V gear voltage Maximum support 28V5A, 140W Support lithium iron phosphate, ternary lithium, polymer and other batteries

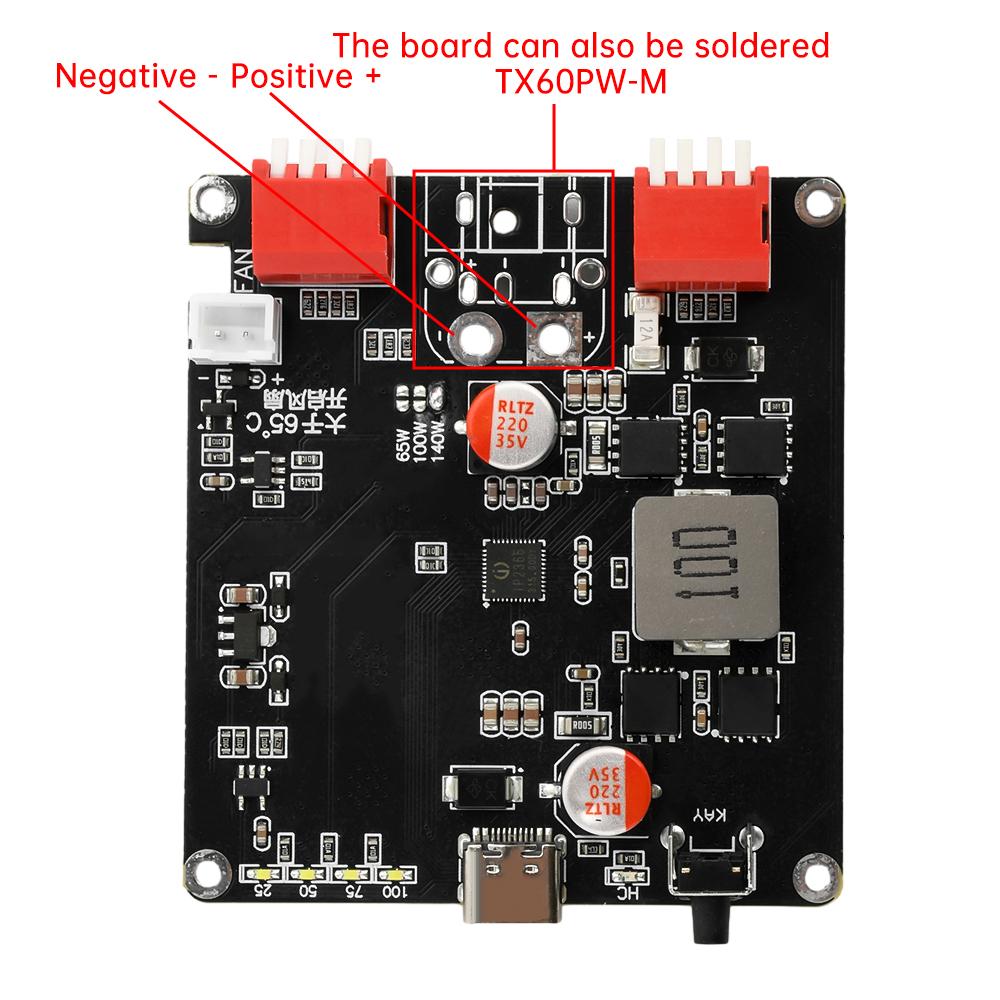

Operation: 1. Turn on the switch first (and turn it correctly) 2. Then connect the battery (the battery can only be 2-6S, and cannot be reversed) 3. Plug the charger from the TYPE-C port to activate (please use a standard and regular charger. Note that the charger with a rare protocol fast charging that comes with a certain big-name mobile phone has been modified by the original factory and does not belong to the standard charging protocol. It is only suitable for charging the original mobile phone) 4. If you want to discharge, plug in the mobile phone first and then press the button briefly 5. If the power indication requires high accuracy, first ensure that the consistency of your battery voltage, capacity and internal resistance is good enough, especially the internal resistance should be less than 15mΩ, and the connected wire should ensure that the current is more than 15A. After these conditions are met, the charge and discharge cycle will be performed more than once and the power will be automatically calibrated.

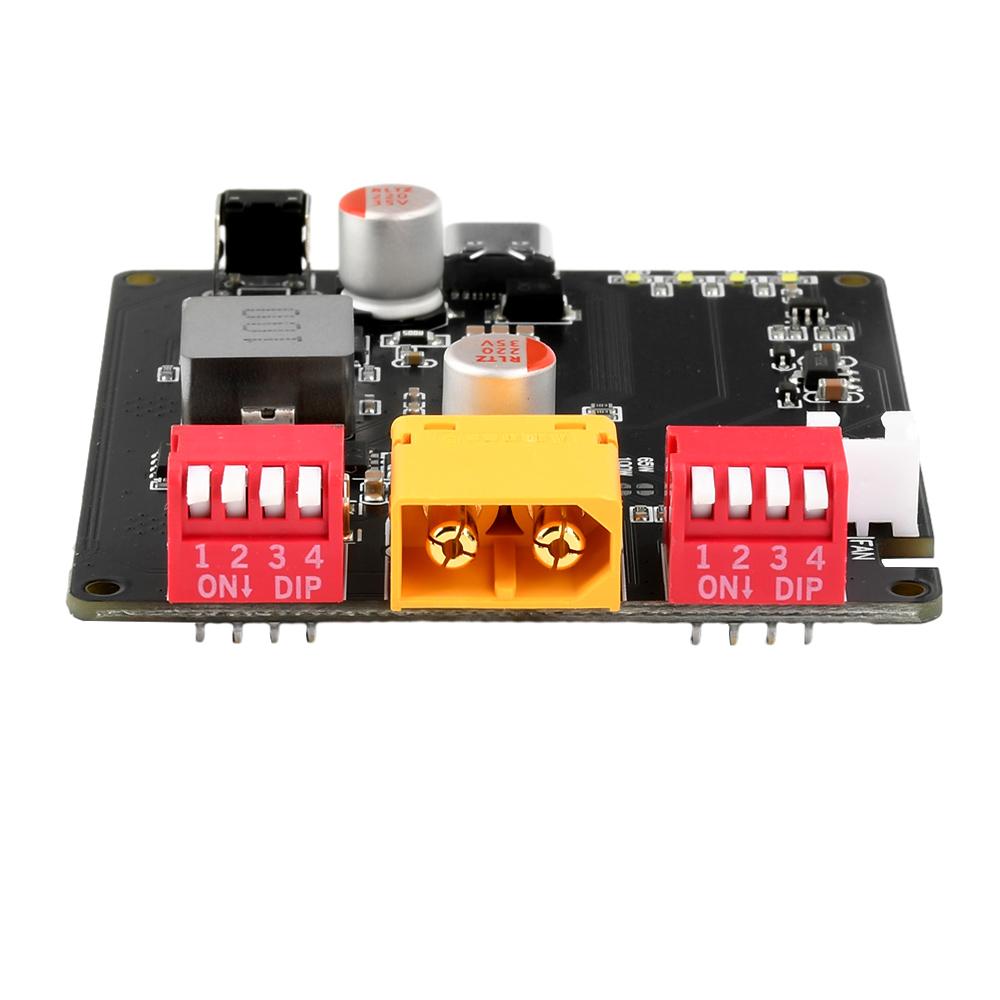

How to choose the switch:

The first step is to confirm how many strings of your batteries are? What is the full voltage of a single battery?

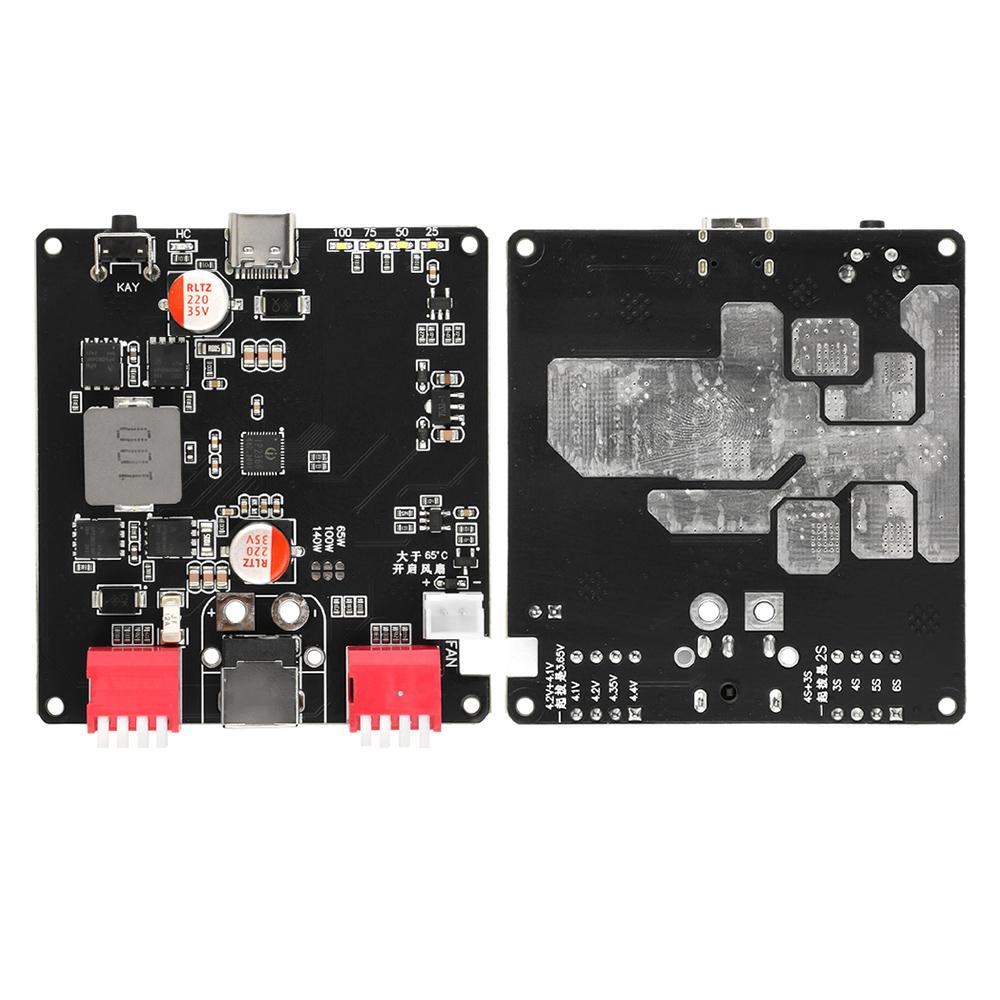

The second step is to see the corresponding silk screen indication under the circuit board module switch, and turn the switch down to open

The third step is to turn the string number switch

1. 6S, turn the switch corresponding to 6S

2. 5S, turn the switch corresponding to 5S

3. 4S, turn the switch corresponding to 4S

4. 3S, turn the switch corresponding to 3S

5. 2S requires the two switches corresponding to 3S and 4S to be turned together Step 4: Dial the voltage switch 1. If the single cell is fully charged at 4.4V, dial the switch corresponding to 4.4V 2. If the single cell is fully charged at 4.35V, dial the switch corresponding to 4.35V 3. If the single cell is fully charged at 4.2V, dial the switch corresponding to 4.2V 4. If the single cell is fully charged at 4.1V, dial the switch corresponding to 4.1V 5. If the single cell is fully charged at 3.65V, dial the two switches corresponding to 4.2V and 4.2V together

Why does the indicator light keep flashing? 1: The indicator light keeps flashing, indicating an error prompt. 2: It may be that the switch is not dialed correctly or the voltage is incorrect, causing the main control to identify overvoltage or undervoltage, etc., so the indicator light keeps flashing. 3: The output voltage of the inserted charger may be too high or too low, the voltage deviation of the fast charging gear is too large or the ripple is too large, causing the board to fail to work properly, so the indicator light keeps flashing. Package list: Bidirectional fast charging module*1 (optional style) label:yes
