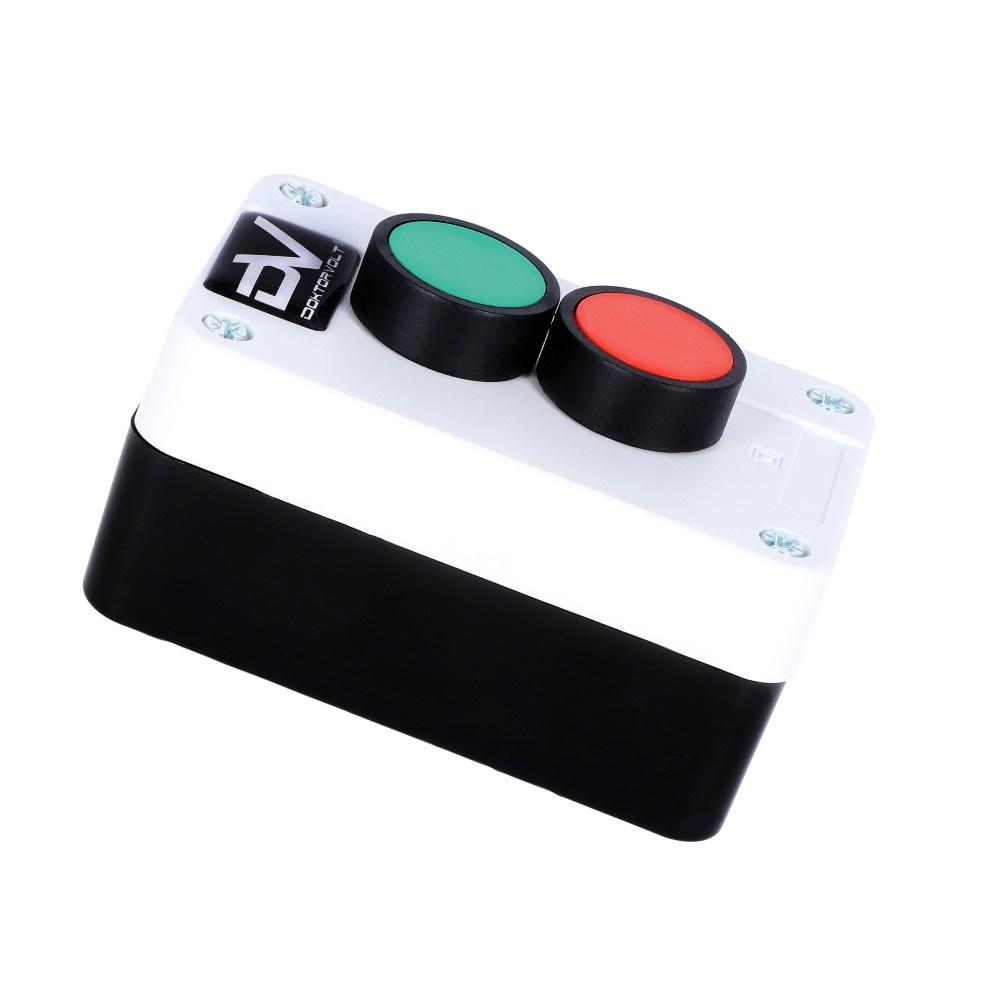

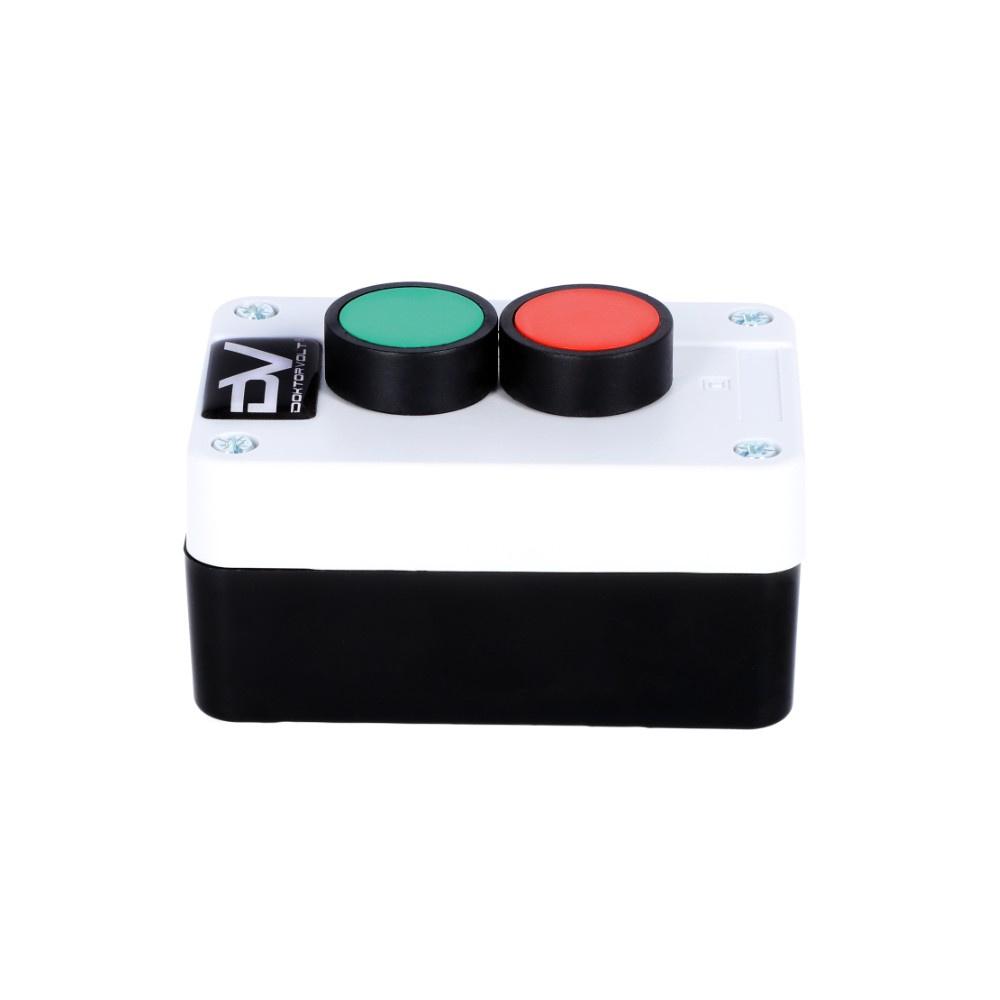

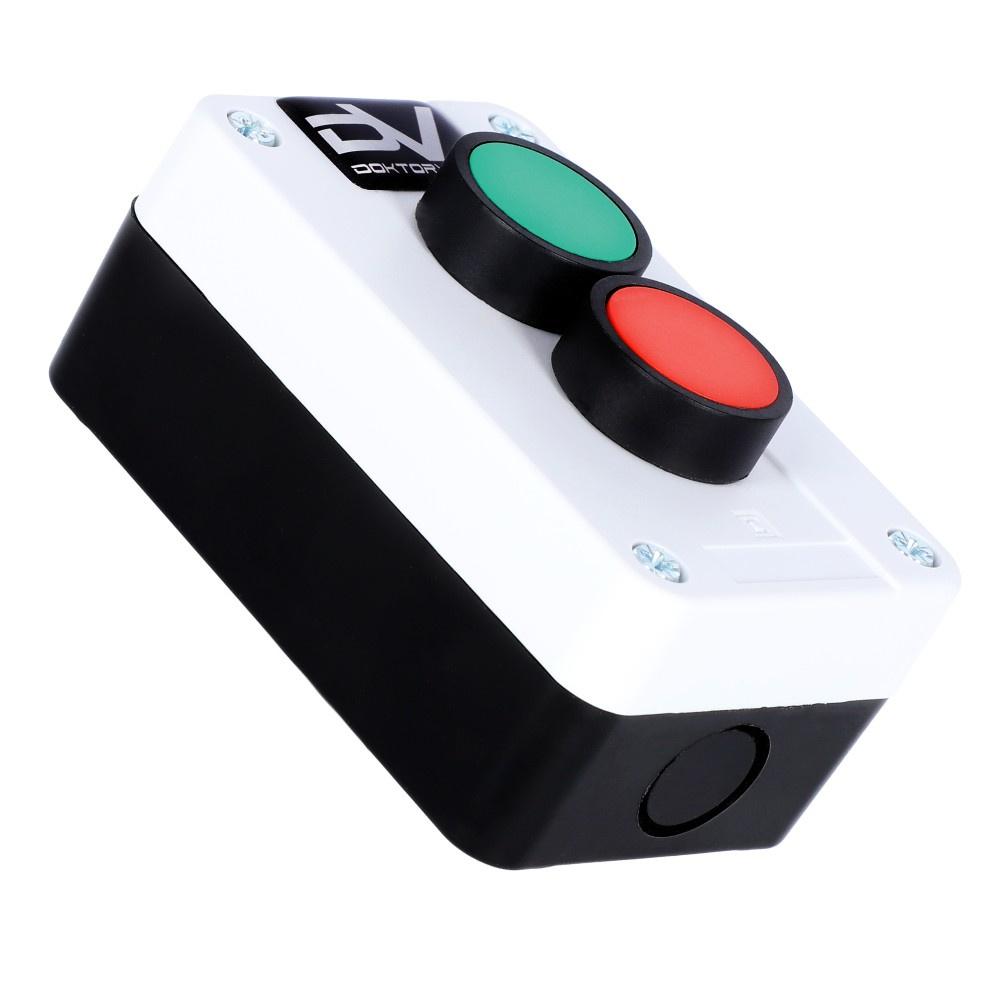

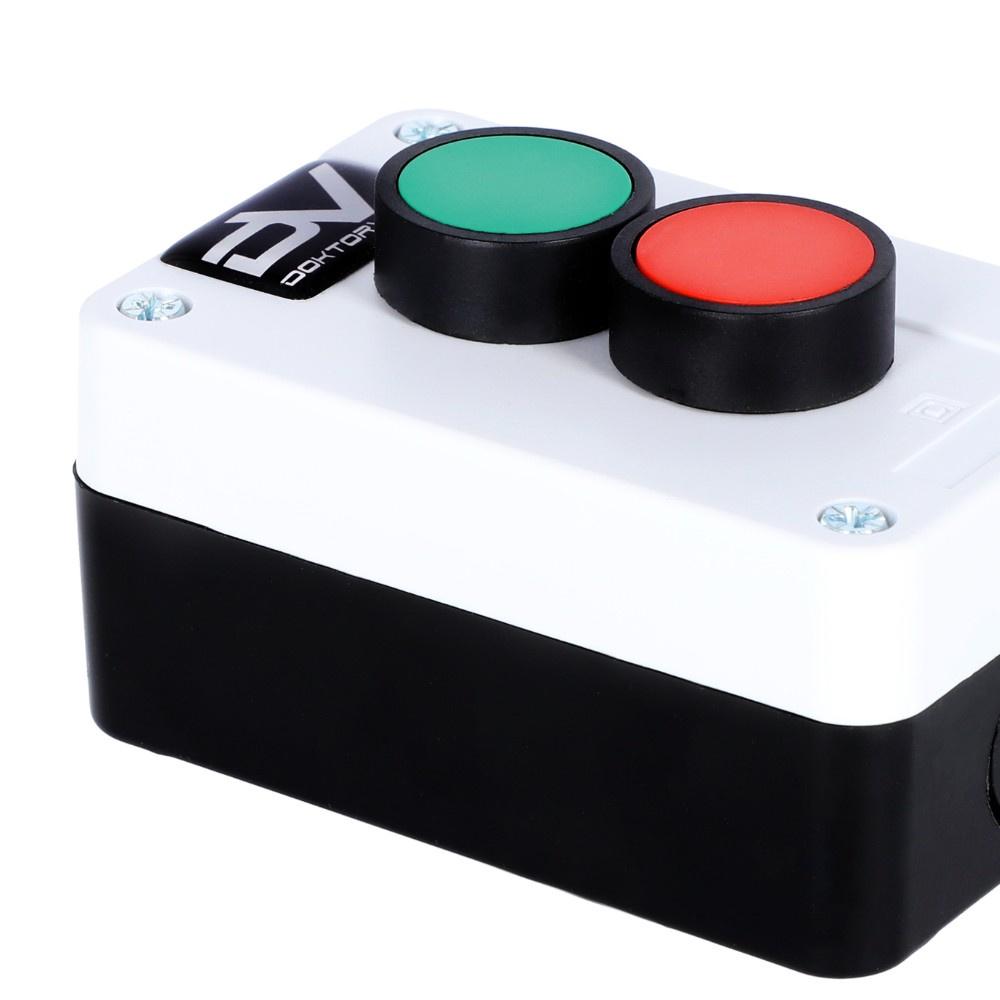

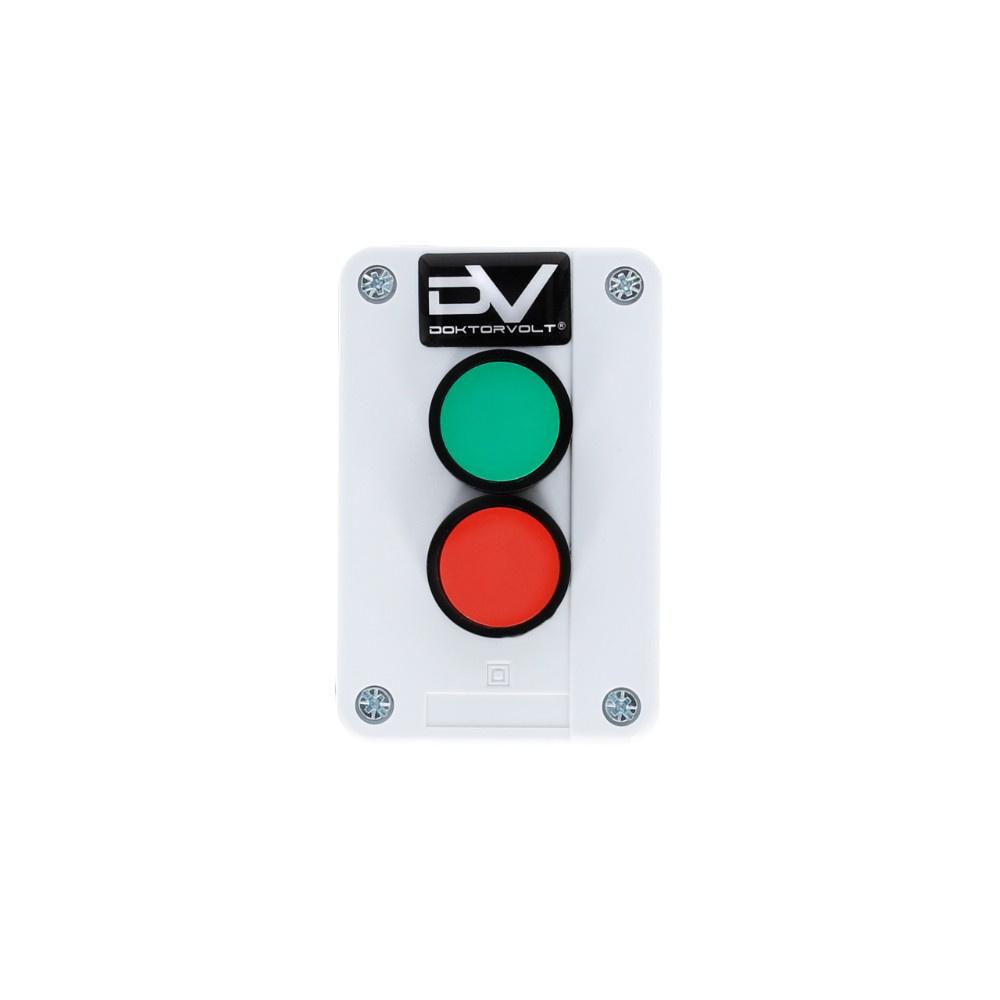

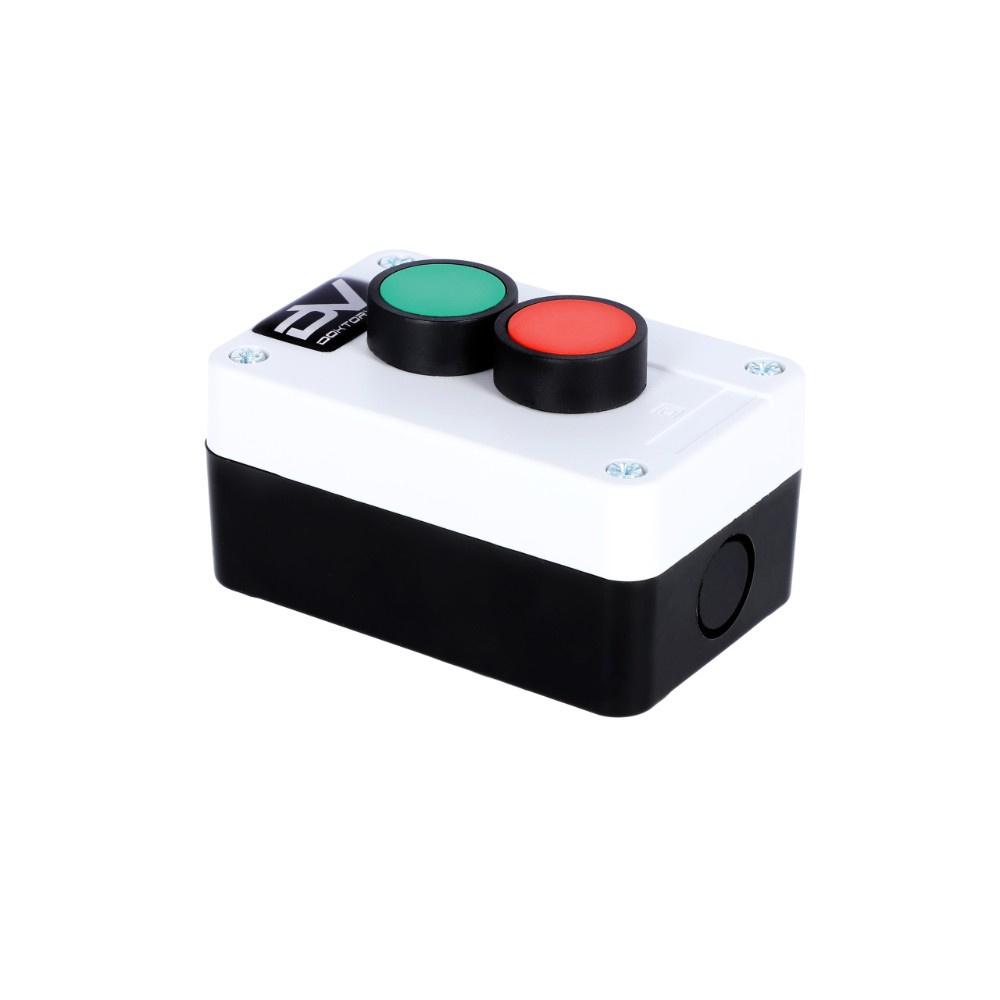

Control Box Housing 2 Buttons 10A 230V Ip65 Button

Control box 2 buttons DV-0072 10/6A 230V IP65

⭐⭐⭐⭐⭐

➡️ The control cassette is used to control devices that are in motion. ➡️ Product made of high-quality plastic, available in gray-black color, equipped with a green button (piece NO) and the red button (NC). ➡️ Control cassettes are suitable for many applications, used among others. in conveyor rollers, stationary machines, overhead cranes, hoists, lifts, machine tools, trolleys.

➡️ Product specification ✔️ Thermal rated current 10/6A, ✔️ Voltage 230 V, ✔️ Rated voltage/impulse withstand voltage 6 kV, ✔️ Connecting wires Screw terminals, ✔️ Housing dimensions (without buttons)103 x 67 x 49mm, ✔️ Cable cross-section 1×0.5...1×2.5 mm2, (2×1,5 mm²), ✔️ Mechanical durability 1×106 switching cycles, ✔️ Vibration resistance (IEC 60068-2-6) max. 8 hours (40...500 Hz), ✔️ Impact resistance (IEC 60068-2-27) max. 15g, ✔️ Ambient temperature -25 °C ~ +70 °C, ✔️ Stationary/mobile construction Stationary, ✔️ IP 65 protection rating, ✔️ Manufacturer's designation DV-0072, ✔️ Norms and CE certificates, ✔️ EAN 5905191010072.
