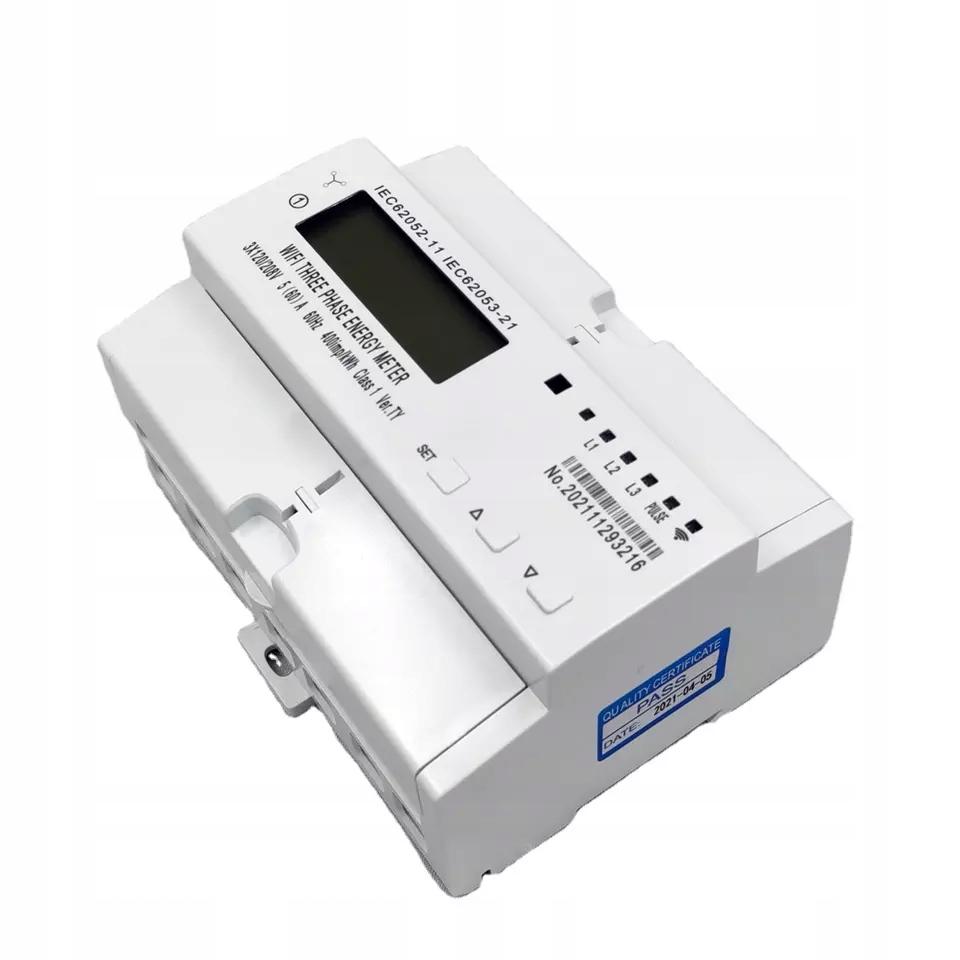

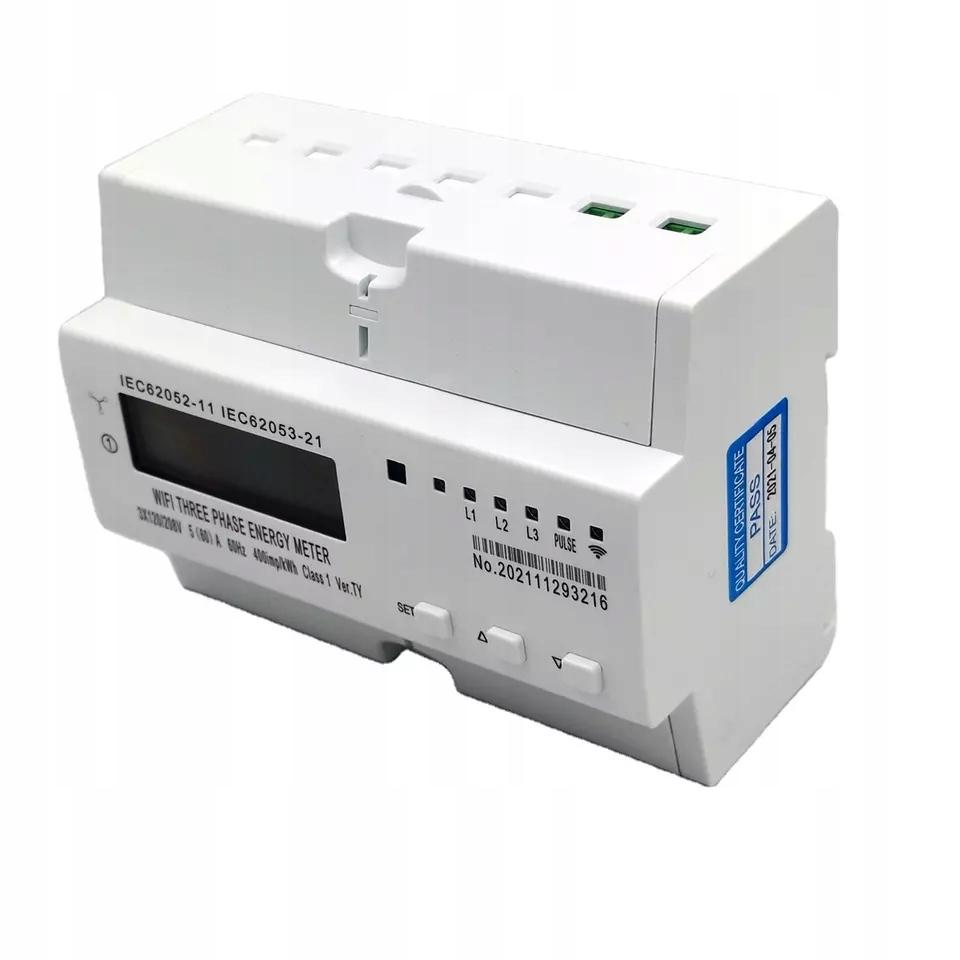

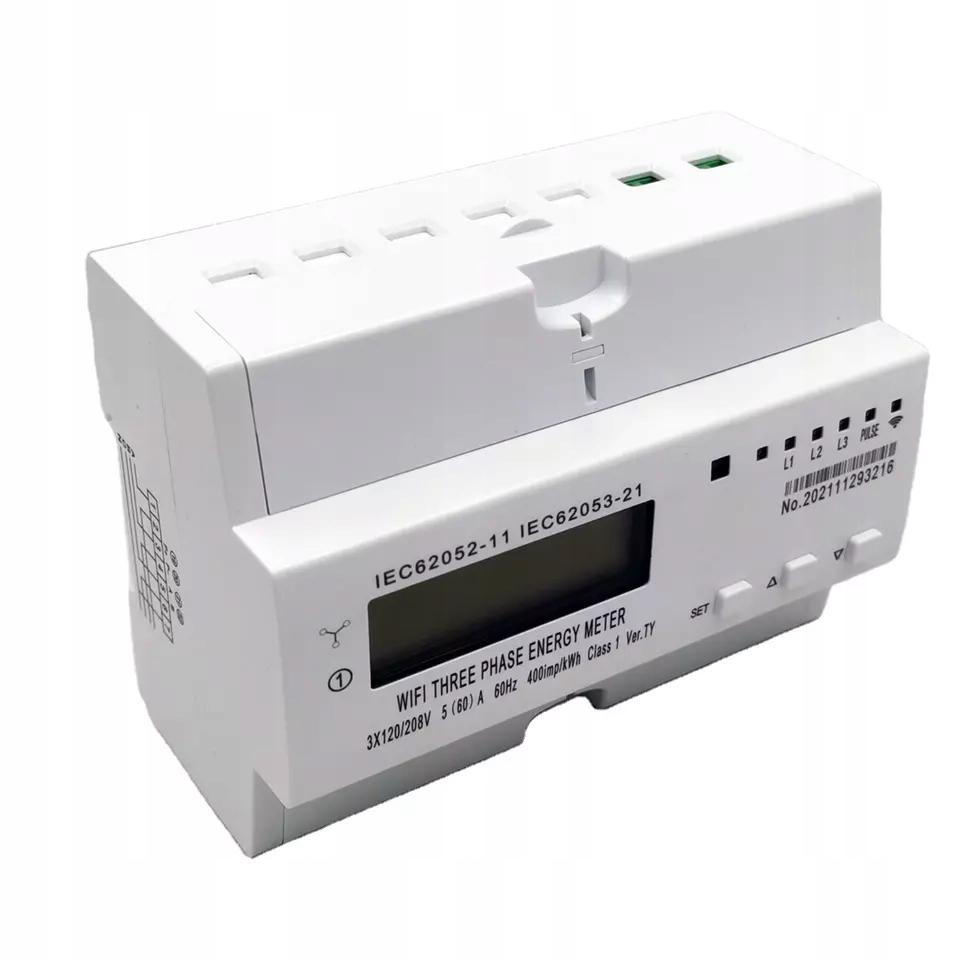

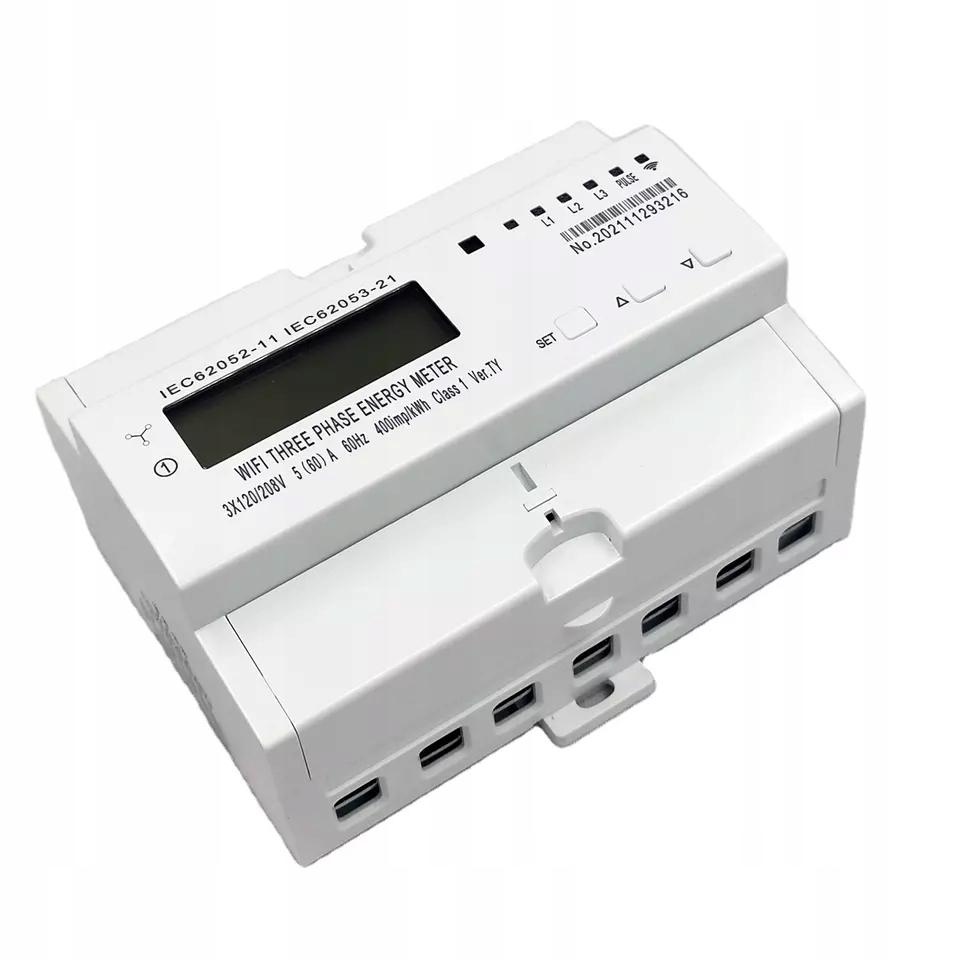

ZigBee electricity consumption meter
65A | display | Tuya | 3 phases
The meter connects to the Wi-Fi network via the ZigBee protocol and allows for precise measurement of electricity consumption and remote control, and additionally, thanks to integration with the Tuya ecosystem, on:
management from anywhere outdoors
access to energy usage statistics
control of energy flow depending on the status of other smart home components
Attention!
For correct operation, the meter requires an installed and configured ZigBee gateway. You will find it on our other auction or in the BUY AS A SET section above the description
Advantages of the device

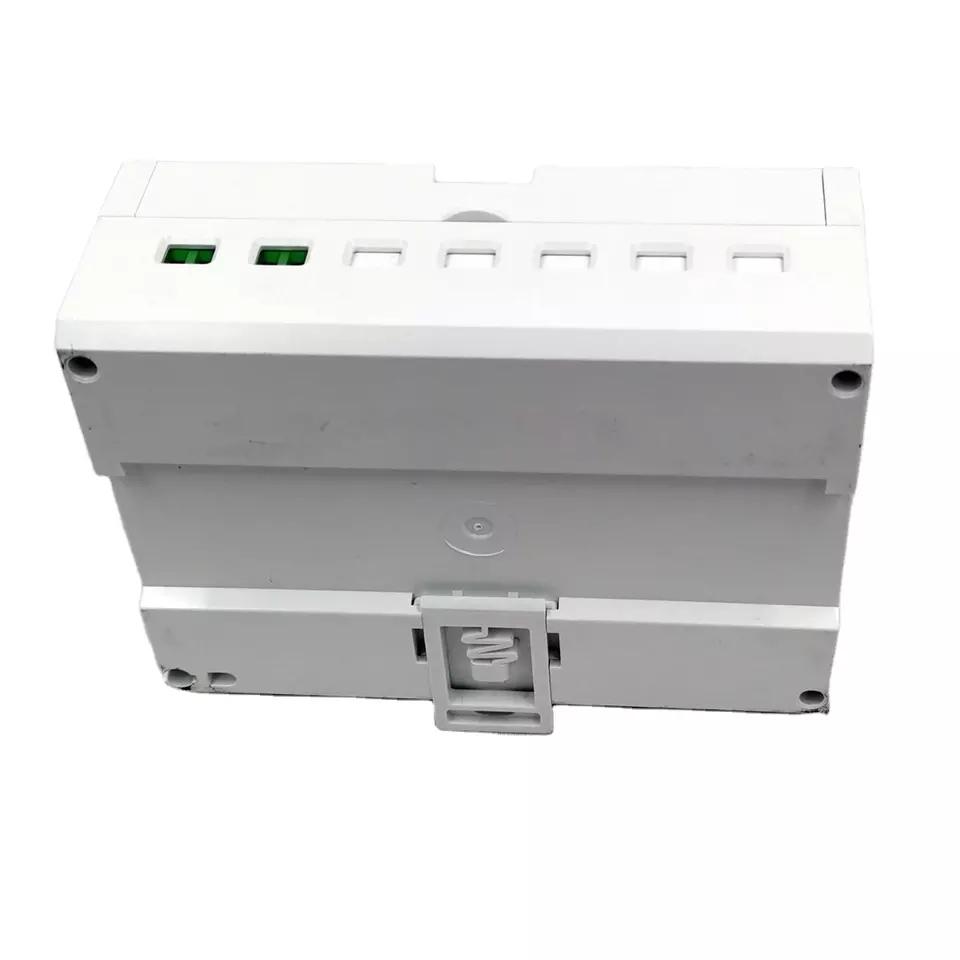

easy installation and operationDIN rail mountingLCD display showing current parameters10 display options ww. additional output for pulse meters and other integrations
Tuya mobile application
This is the most popular application for managing a Smart Home.
Allows remote control of many diverse devices from anywhere in the world, min. bulbs, switches, sockets, sensors, and creating mutual connections and automations between them, e.g.:
> Turn on the light if movement is detected in the room
The offered meter fully cooperates with the Tuya ecosystem
Thanks to integration with the ecosystem, you gain:
cooperation of the meter with IFTTT, Google Home and Amazon Alexa
reading of instantaneous and daily consumption
monthly summary
energy consumption chart
remote turning on and off (manual, based on consumption, according to the schedule, depending on the status of another smart home component)
ZigBee Ecosystem
ZigBee is a wireless communication system designed min. for supporting networks of smart home devices.
ZigBee differs from classic Wi-Fi in its extremely low energy consumption, which ensures a long operating time for battery-powered smart home components.
Additionally, ZigBee ecosystem components powered by 230V become so-called. repeaterem. This means that if a battery-powered device cannot connect directly to the gateway (e.g.. due to the excessive distance), communicates with it precisely via the nearest repeater.
This allows for the creation of extensive networks, covering much greater distances than would be possible using classic Wi-Fi.
ZigBee Alliance
This is an initiative bringing together manufacturers and distributors of smart devices, aiming to ensure their broadest possible compatibility.. At the moment, the ZigBee Alliance is:
over 11,000 different devices in 30 categories(control, air conditioning, monitoring, lighting, etc.)10,000 manufacturers and distributors of smart devices (min. Samsung, Ikea, Philips, Amazon)free Tuya / Smart Life apps available for Android and iOS devices
Technical data

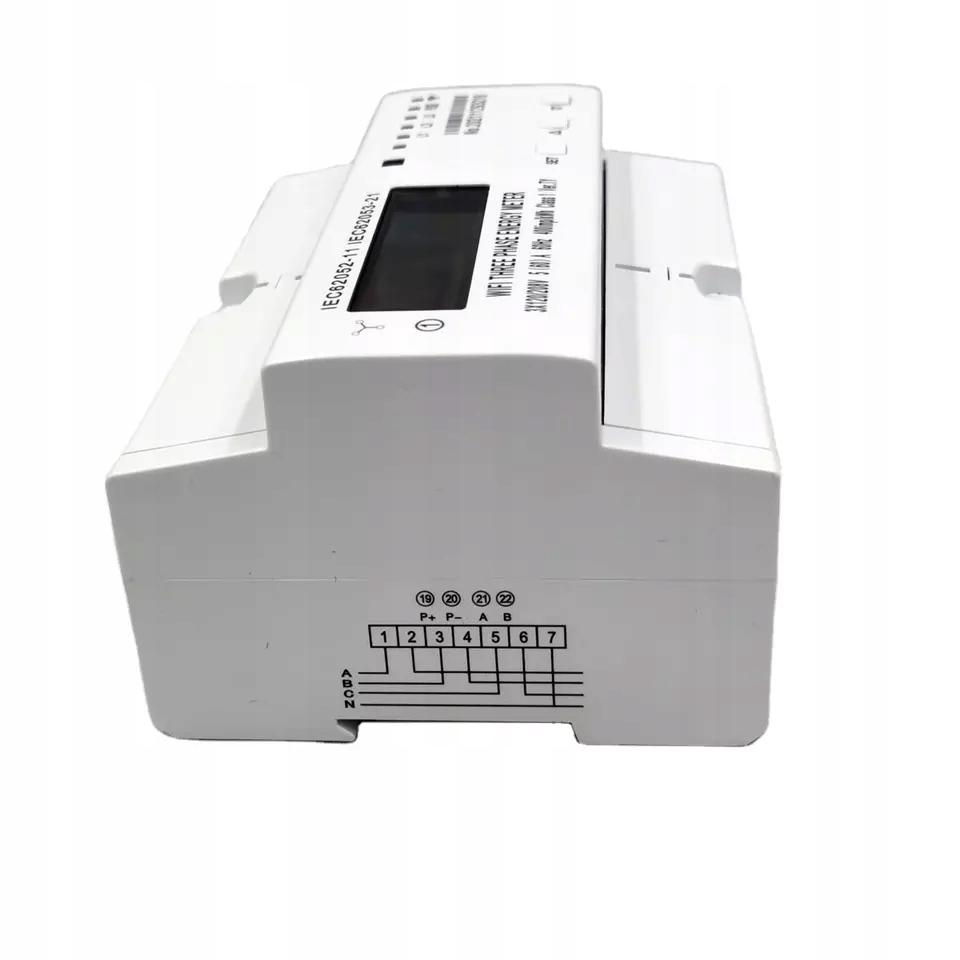

Energy measurement range 400 imp/kWhRated voltage 230VBase current 5AMaximum current 65APhase three-phaseActive energy measurement accuracy class 1 - according to IEC62053-21Operating temperature from -25 to +45 °CAc power supply 90-250V, 50/60HzSelf-consumption 1W / 6VAConnectivity ZigBee 3.0Power supply L + NDimensions 65 x 125 x 100 mm (occupies 7 modules in the box)
Warning the offered device is not a fuse!
In the electrical circuit, a residual current device (RCD) to protect against electric shock must be installed absolutely before the device, and a fuse to protect the circuit and the device must be installed after the device.
