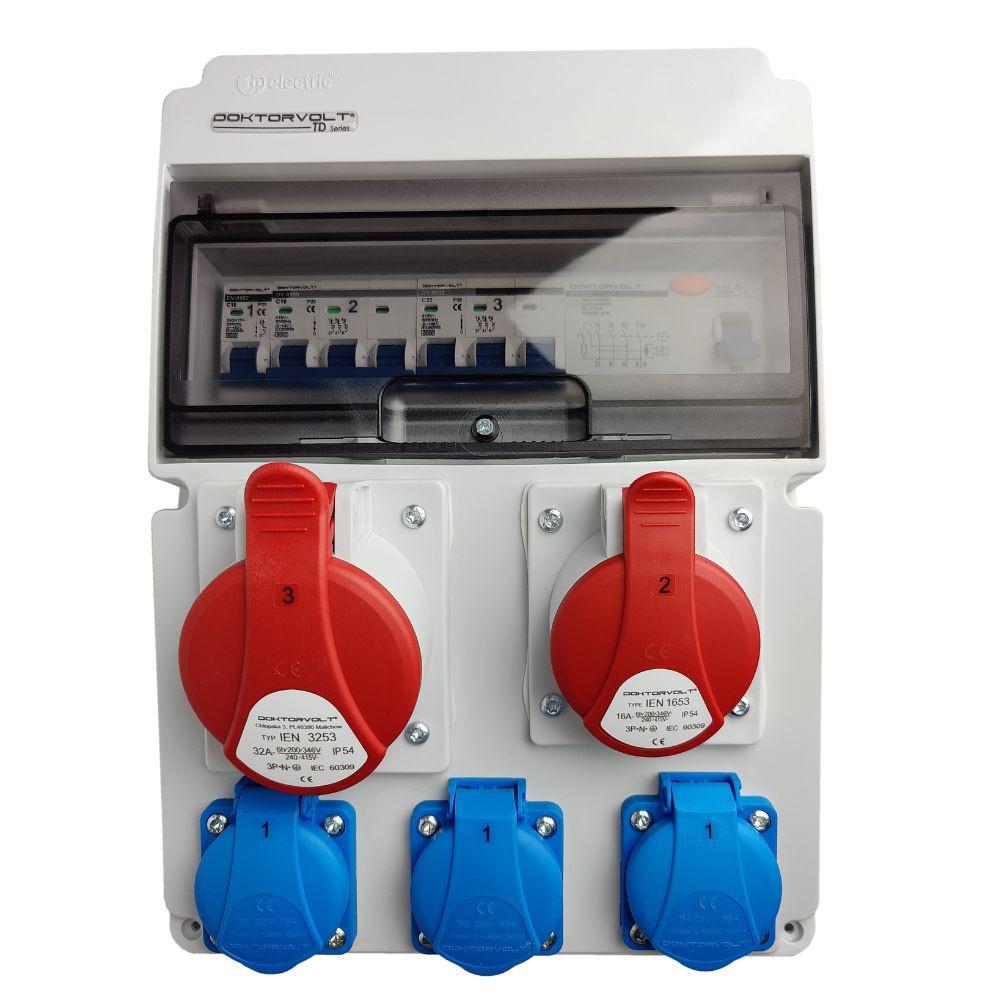

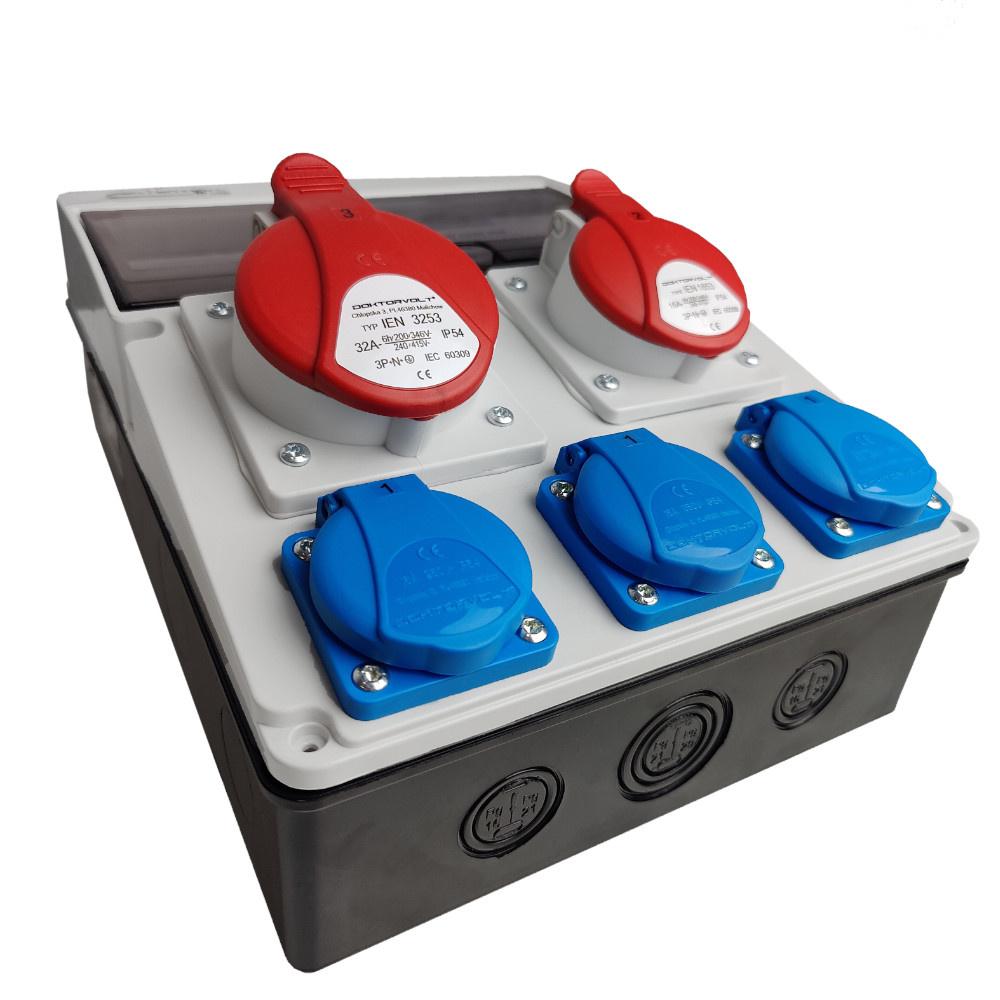

Construction distribution board 32A 16A protected erbetka 3x230V IP54 DOKTORVOLT JUN-S/FI DV-0294-F
The device is equipped with three 230V sockets with IP54 ingress protection, additionally protected by a Type AC residual current device, minimizing the risk of electric shock.. The distribution board contains two power sockets, 16A and 32A
Comfortable and safe 230V connections
The device is equipped with three 230V 16A sockets (1 Phase + Neutral + Protective Earth) about IP54 protection class, which meet the needs of numerous construction power tools or lighting. Additionally, protection by a 40A 4P 30mA Type AC residual current device minimizes the risk of electric shock.
Protection and thoughtful placement of sockets
Thanks to the high IP54 protection rating, the distribution board is resistant to dust and splashes.. Ideal for outdoor applications, even in adverse weather conditions. The ergonomic design allows for comfortable connection of tools, without the risk of tangled cables.. Stability and functionality in one.
Technical Specification
Distribution board enclosure
Construction: stationary
Installation: surface-mounted
Distribution board protection rating: IP54
Dimensions of the housing with sockets: 223 x 310 x 112 mm
Ambient temperature: -25 °C ~ +50 °C
Housing material: Plastic
Color of the front panel: gray
Color of the rear case panel: black

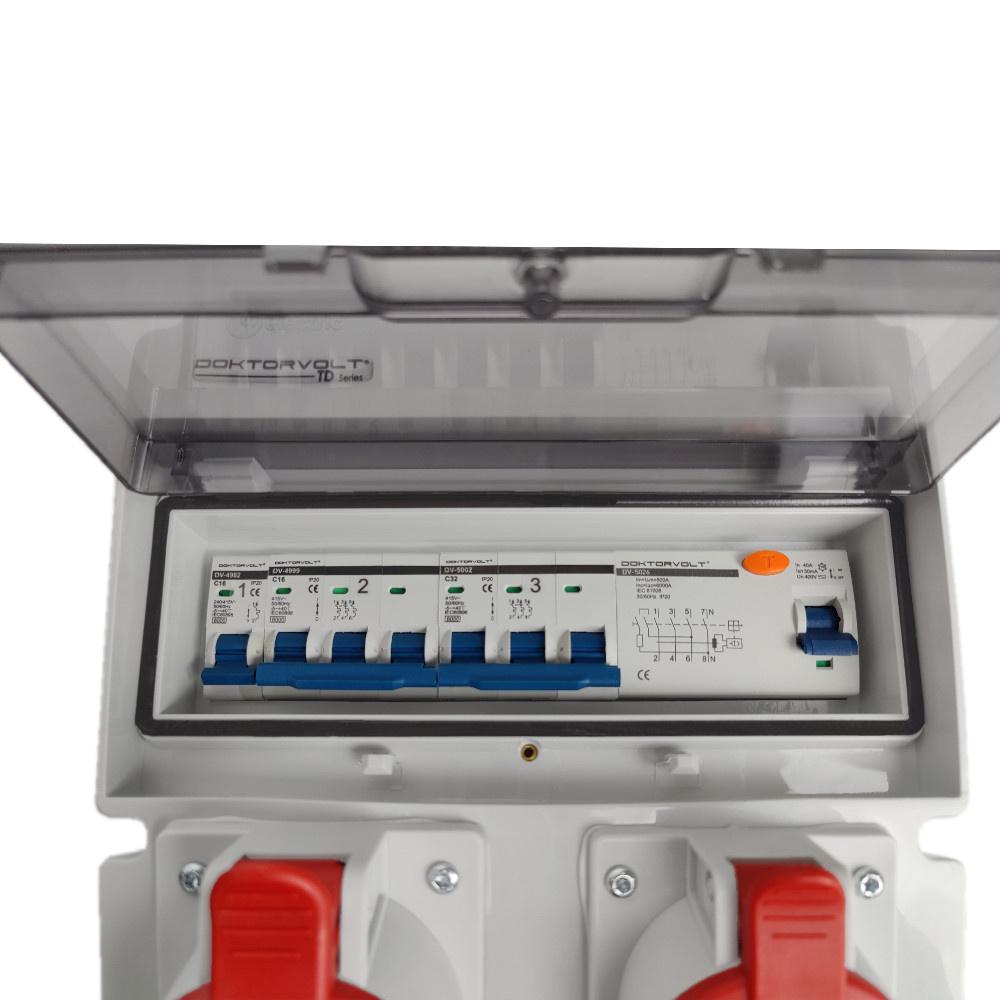

Modular sockets and devices
Residual current device: 40A 4P 30mA Type A
230V sockets: 3x 230V 16A 1P+N+PE IP54
Overcurrent protection for 230V sockets: 1x C16A 1P 6kA
Power sockets:

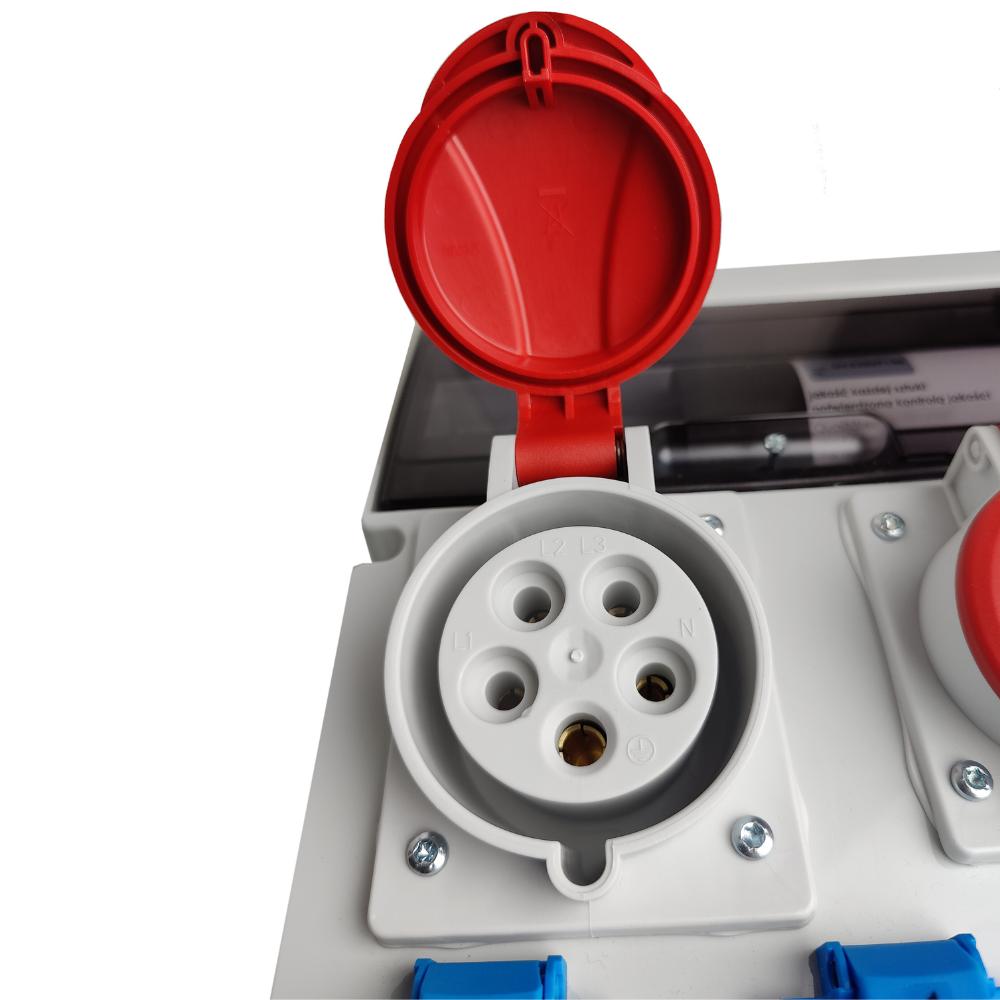

1x 16A 400V IP54
1x 32A 400V IP54
Overcurrent protection for power sockets:
1x C32A 3P 6kA
1x C16A 3P 6kA
Accessories: membrane 1x PG21
Certificates and cabling
Manufacturer's certificates and standards:
TÜV SÜD
ISO9001:2015
CE
IEC 61439

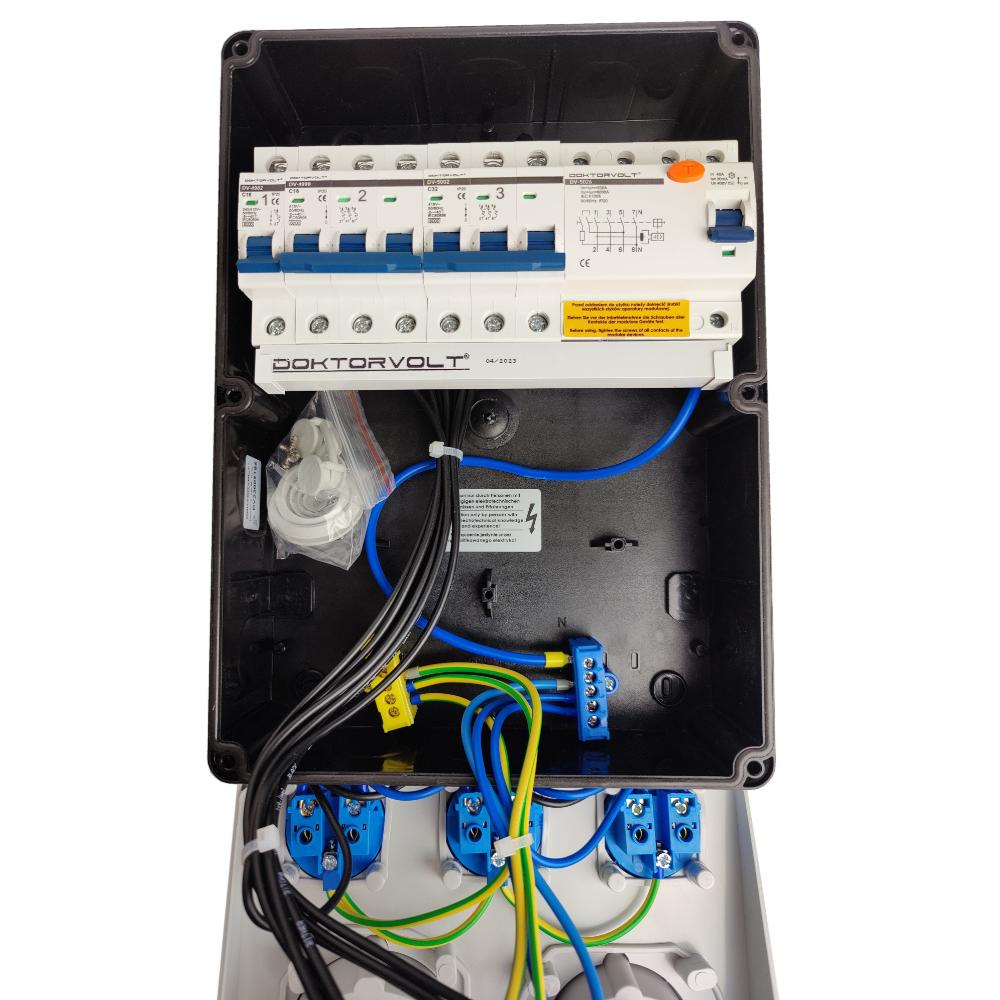

Type of wiring:
H07V-K 2.5/4 mm² yellow-green
H07V-K 2.5/4 mm² blue
H07V-K 2.5/4 mm² black
General information
Rated current: 40 A
rated voltage: 230V / 400V 50Hz
ICC: ≤ 6 kA
RDF: 0.7
Producer: Doctorvolt
Manufacturer's marking: DV-0294-F
EAN: 5905191010294
Certification = high quality:
DOKTORVOLT brand products are routinely tested to ensure the highest product quality. Each product, after passing tests, receives an individual certificate confirming compliance with IEC standards.. The company uses a certified TÜV SÜD system in its production process, which attests to its high quality.
IP protection rating = greater safety:
The IP degree of protection is an international standard informing the user about the object's resistance to potential hazards.. Products with IP protection guarantee reliable operation of the device in less controlled conditions and user safety. The IP44 protection rating in our distribution board means:
Protection against ingress of solid bodies larger than 1 mm
Protection against splashes from any direction
Trusted manufacturer:
Doktorvolt® is a company founded in 2013. A dynamically developing company conquered the Polish and foreign market. The company's headquarters is located in Malichów in the Opole Voivodeship, where a modern production hall and warehouse are also situated.. The company specializes in the production of construction distribution boards and is distinguished by its quality and solid workmanship.. Each distribution board consists of high-quality components. Doktorvolt® products meet European safety norms and standards.
