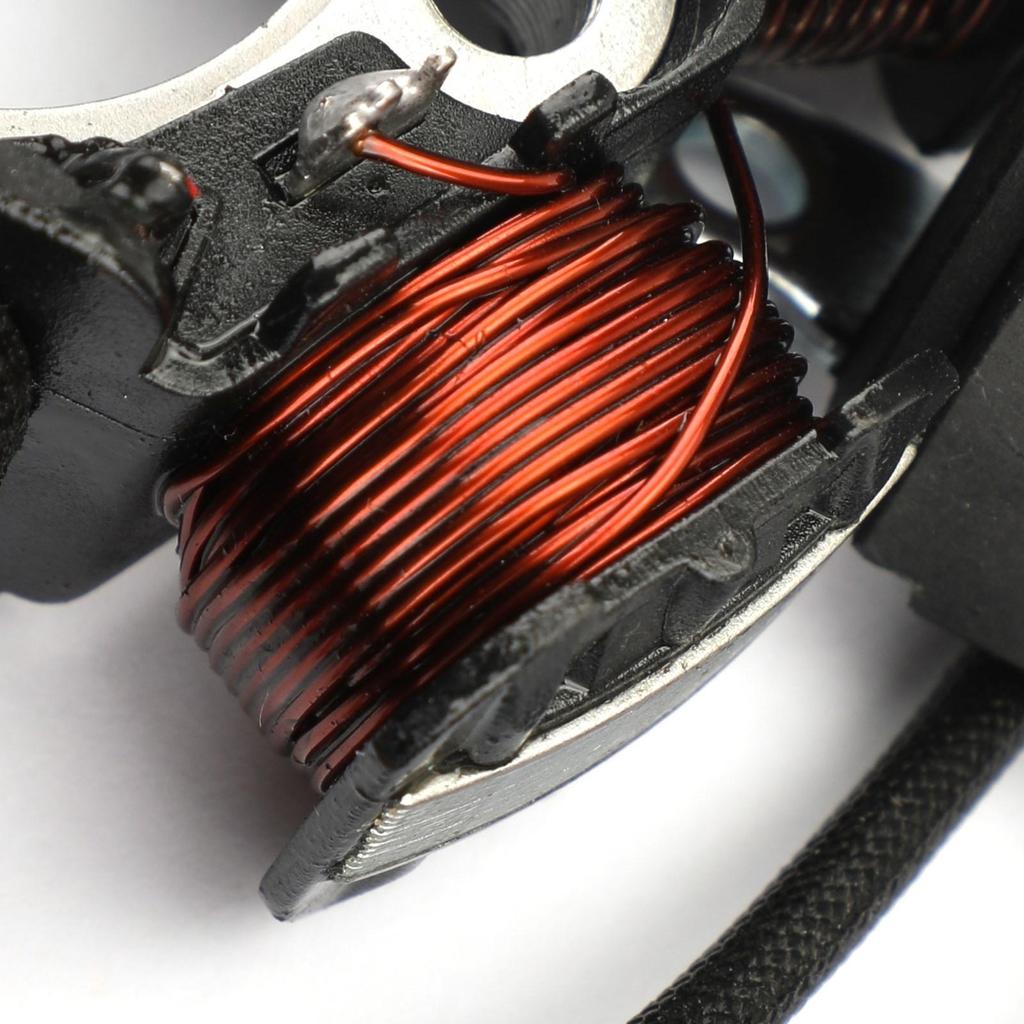

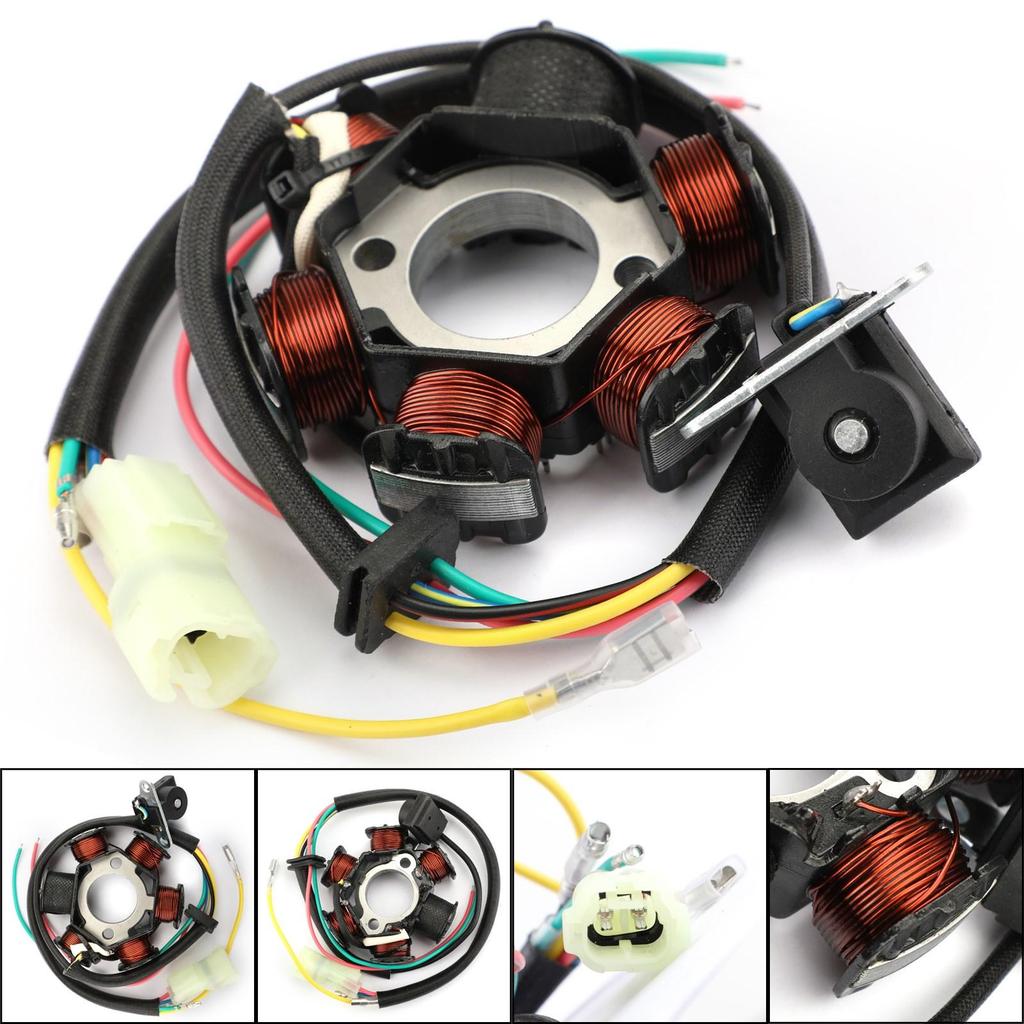

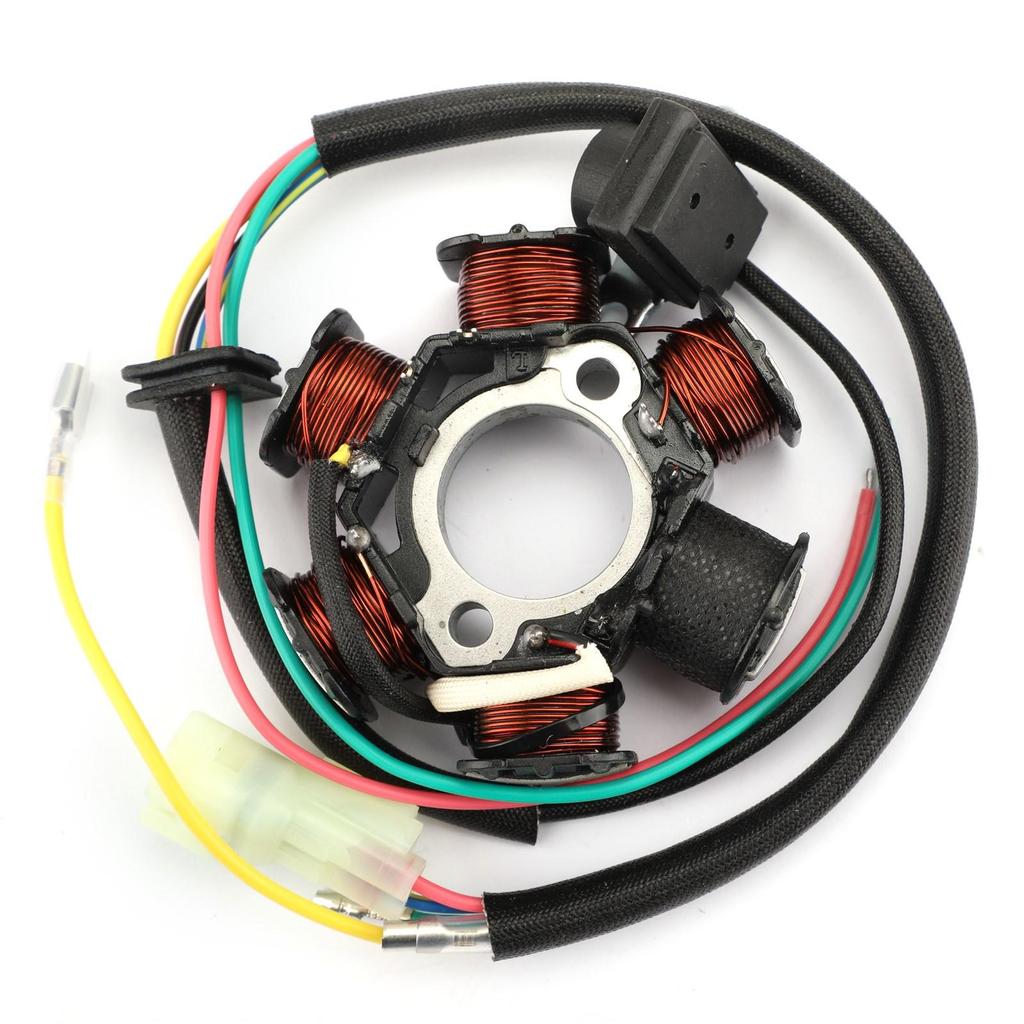

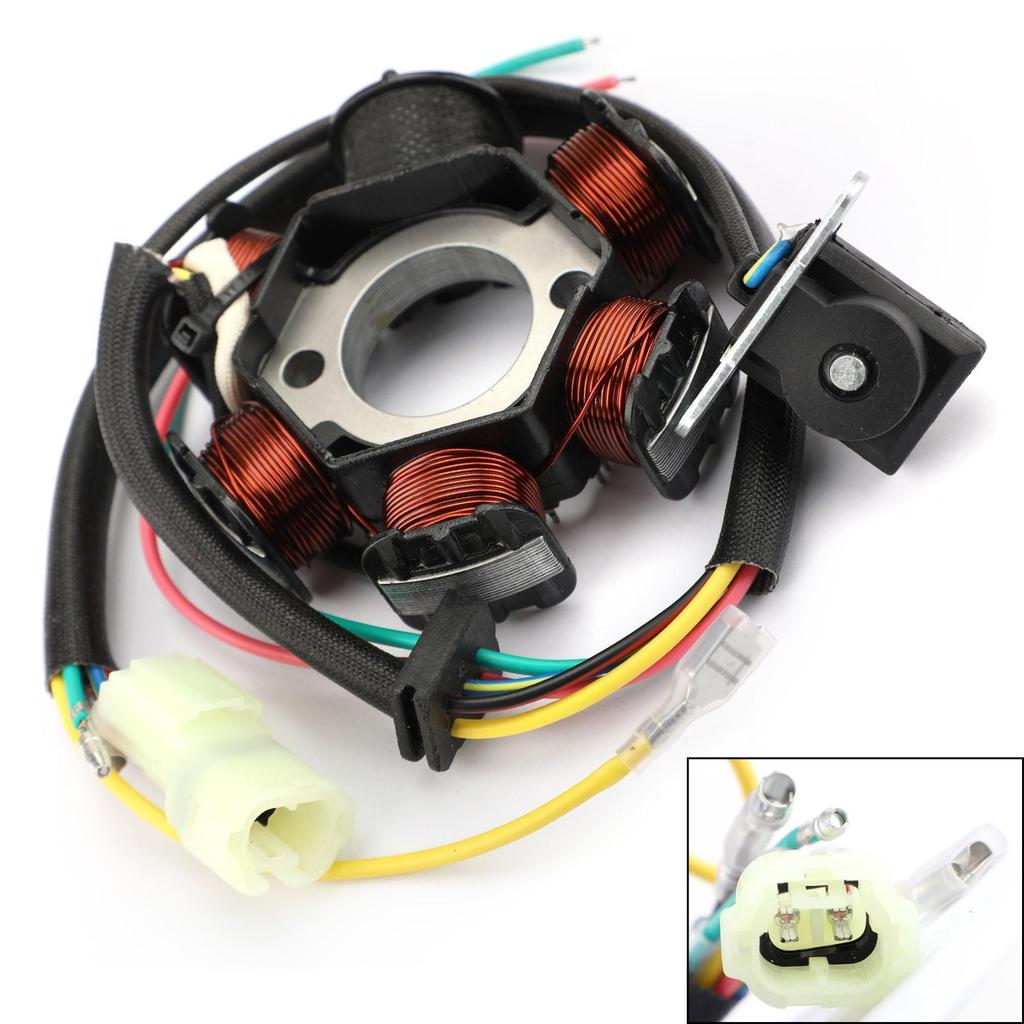

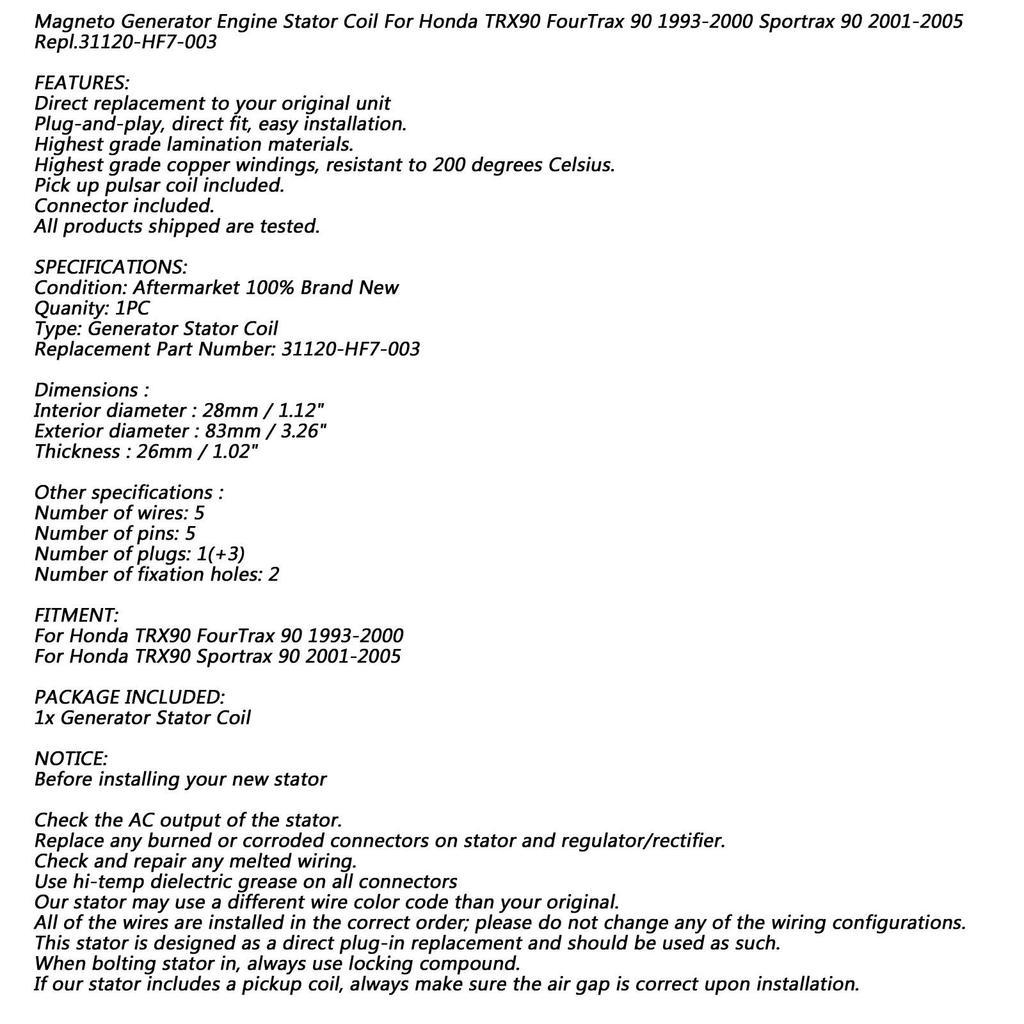

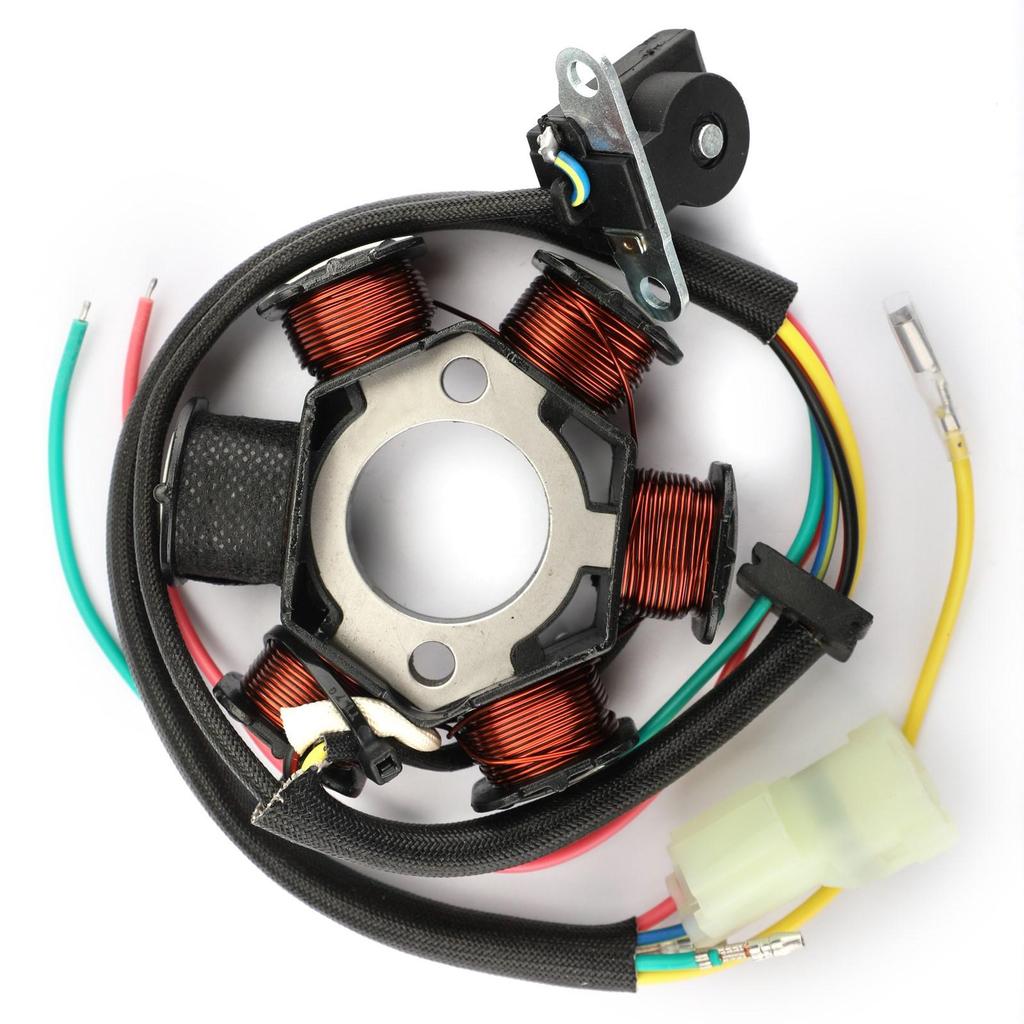

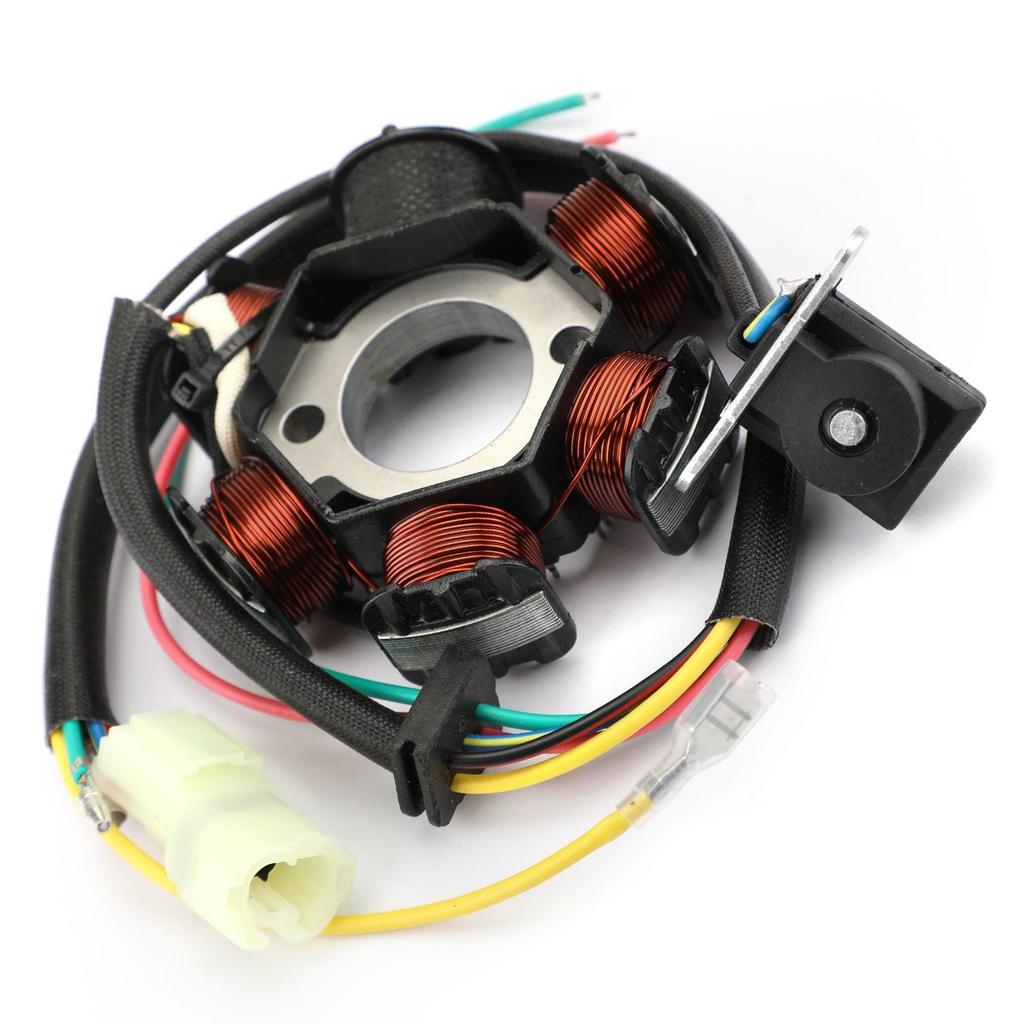

Magneto Generator Engine Stator Coil For Honda TRX90 FourTrax 90 1993-2000 Sportrax 90 2001-2005 Repl.31120-HF7-003
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

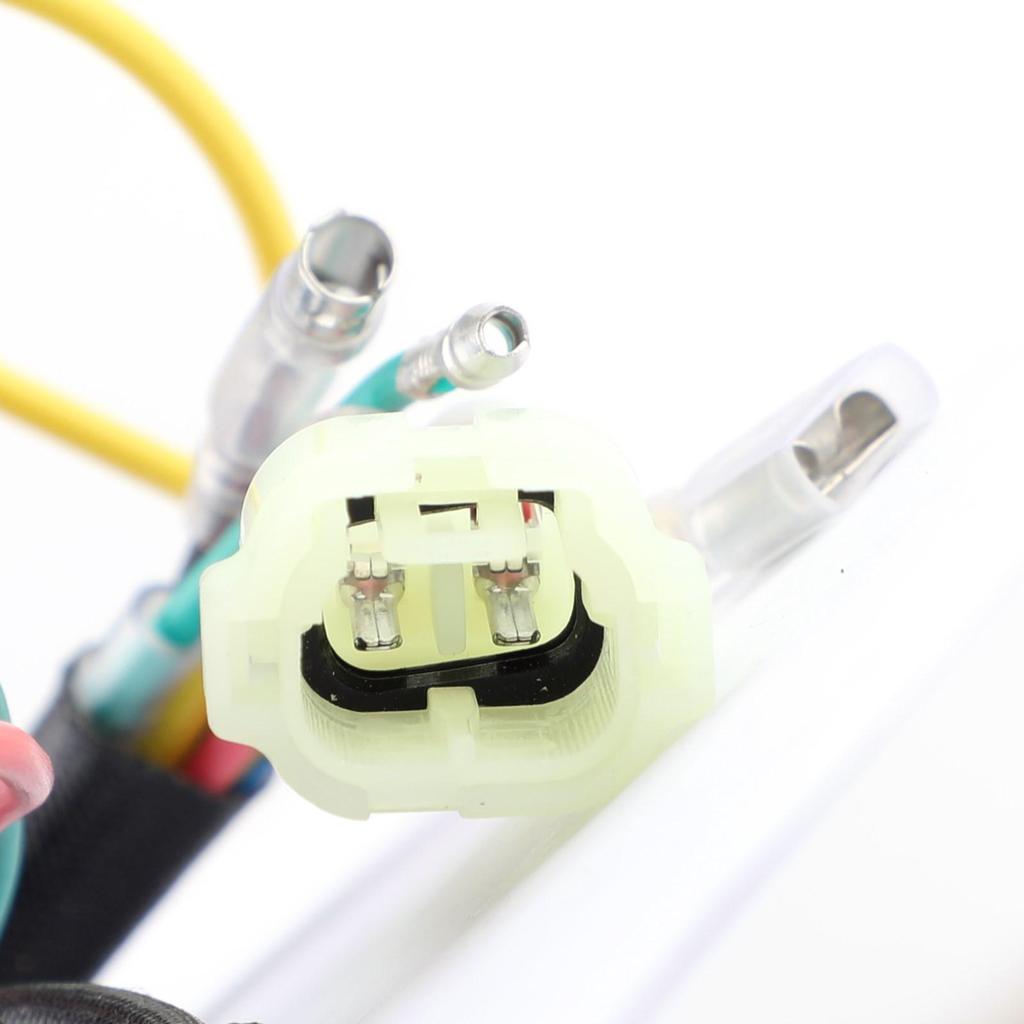

Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 31120-HF7-003

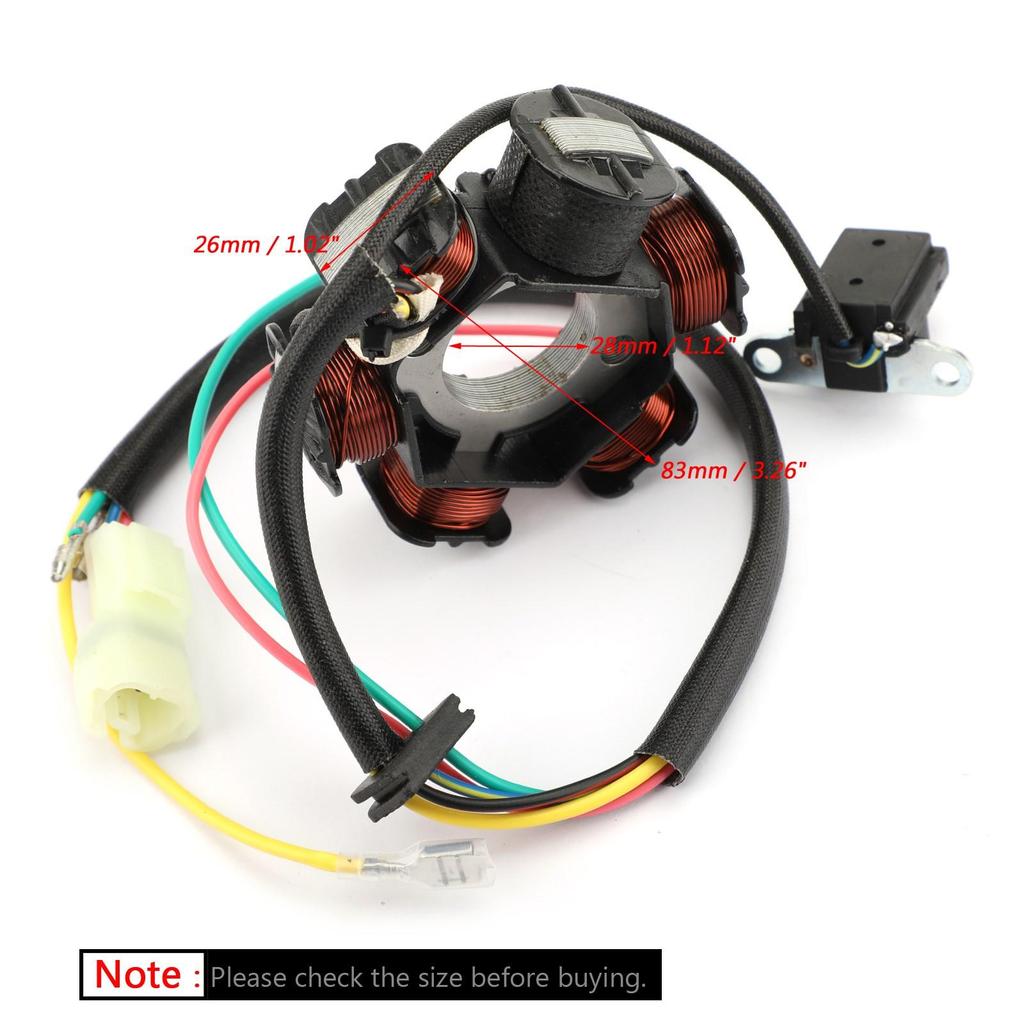

Dimensions :
Interior diameter : 28mm / 1.12"
Exterior diameter : 83mm / 3.26"
Thickness : 26mm / 1.02"
Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 1(+3)
Number of fixation holes: 2
FITMENT:
For Honda TRX90 FourTrax 90 1993-2000
For Honda TRX90 Sportrax 90 2001-2005
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
