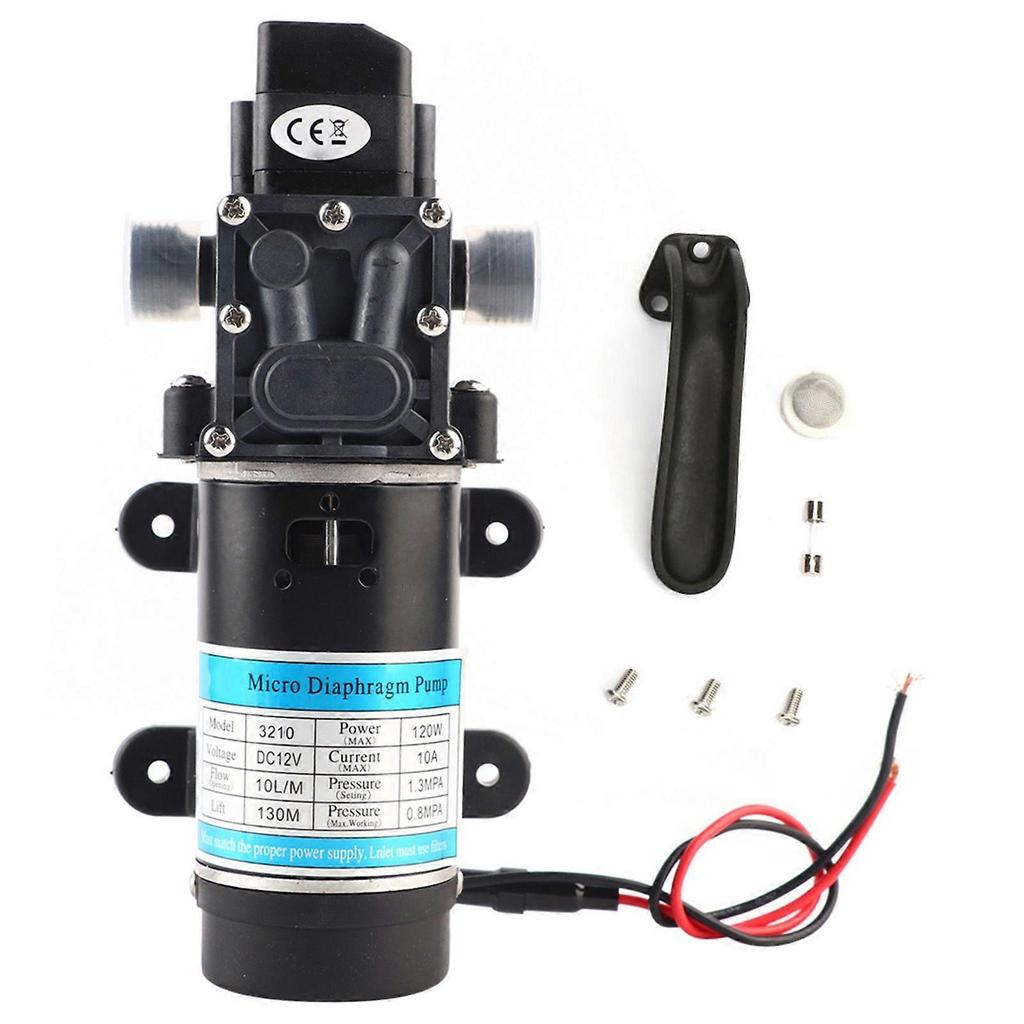

120W Electric Water Pump 10L/m Self Priming Diaphragm Pump for High Pressure Washer 12V/10A

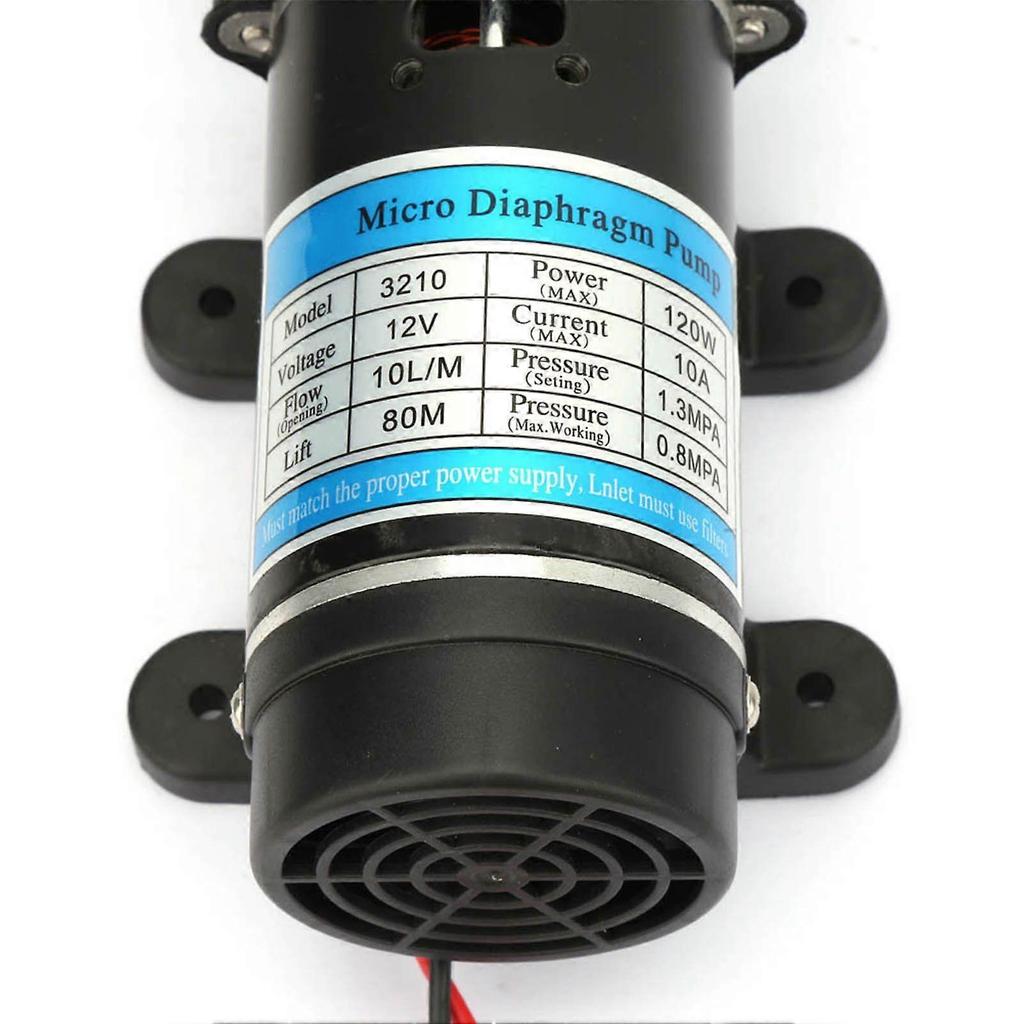

Feature:The product has stable and reliable performance and long service life. The product has over-current protection device and is safer to use.120W, strong power output, the maximum lift is 130m. The product is compact and easy to install. The theoretical value of pump flow can reach 10L/m. Products are widely used in: high pressure washer, water spray, pesticide spraying, garden watering, filling machines and other equipment. Specification:Maximum power: 120WMaximum pressure: 13KGWorking pressure: 8GOpening flow: 10L/mVertical suction: 1.5mLift: 130mPackage list:1 * Pump1 * Filter net1 * Handle of pump3 * Installation screw1 * Spare fusesNote:1. The actual product color may deviate from the photo due to light.2. There may be a slight deviation in the measurement of product.3. Please note that this product has no function to control the faucet.4.If the product is connected to a faucet, it must be ensured that the faucet is turned on. If the faucet is not turned on, the pump will be dry and the pump will be burned out.Operation guide:1. Connect the pump to the inlet and outlet pipes. It must be ensured that the connection between the inlet and outlet pipes and the pump is tight, otherwise it will cause low pressure or water leakage. (Hint: there are arrows on the pump cover to indicate the direction of water in and out, and the direction of the arrowis the direction of water discharge)2. Install the filter at the inlet end, and the filter density is preferably above 80 mesh. (ie, 80 holes per squarecentimeter)3. Connect the micro diaphragm pump to the motor. The electrical parameters of the connected power supply must meet the input requirements of the motor.4. Turn on the power and the motor pump starts to run.5. The water is discharged for 5~10 seconds, drain the air in the pump and the pipeline. After the water is stable, temporarily turn off the power and connect the water gunor pump head..
