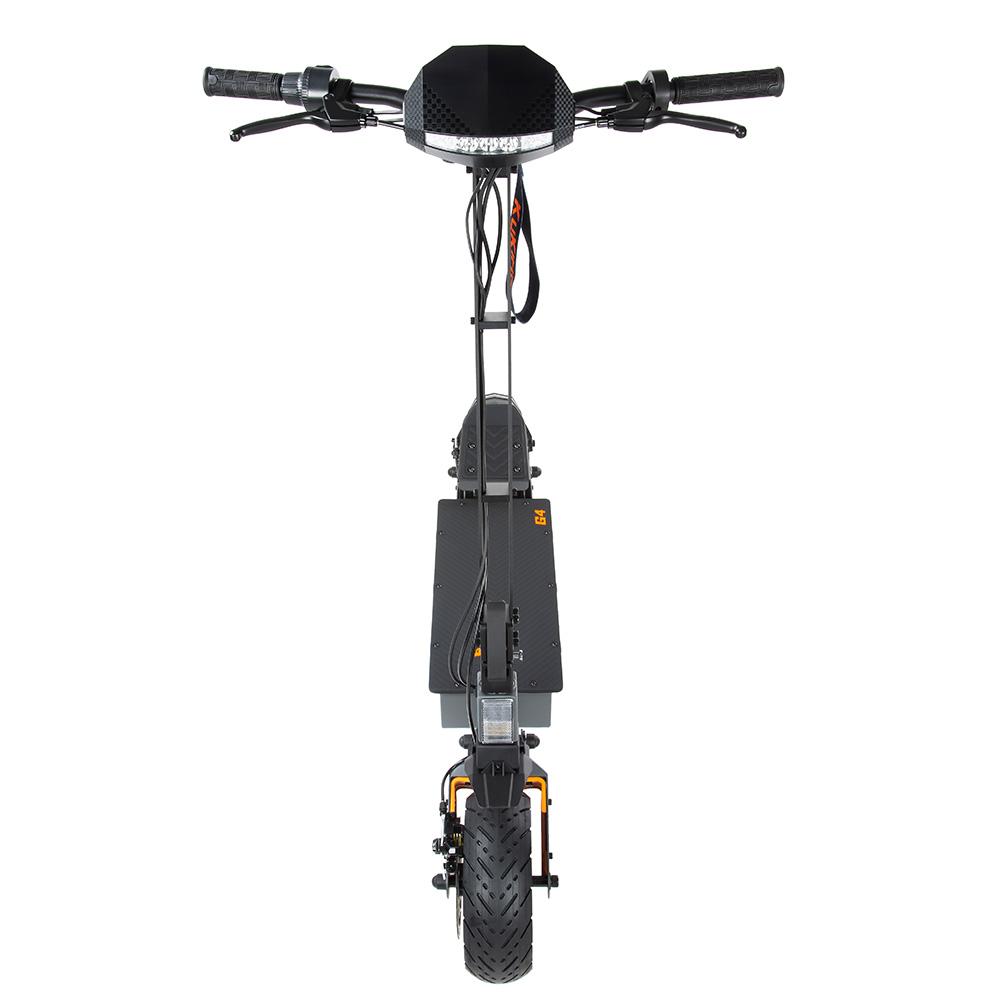

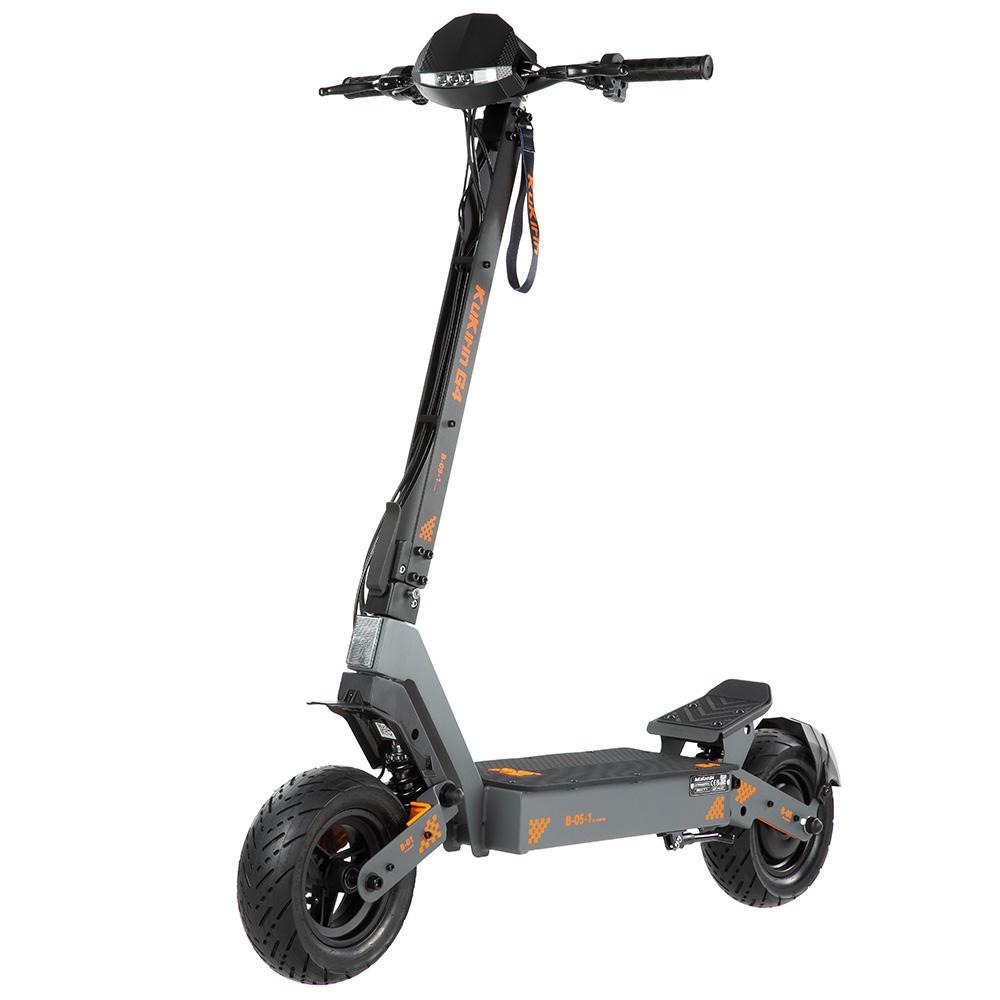

Kukirin G4 11-inch Foldable Off-Road Electric Scooter
💗Please note: Kukirin allows you to set a speed limit mode, so please use it with confidence.
Note: The scooter and the gift will be shipped separately, and the gift will arrive in approximately 10-15 days.
[⚡2000W High-Power Motor]
Provides rapid power response and continuous power output, easily conquering 20-degree steep slopes and various complex terrains.
[🔋60V 20AH High-Voltage Battery]
Uses automotive-grade power cells, providing a range of 60-75 kilometers, meeting the demanding needs of high-intensity off-road and long-distance riding.
[🛞11-inch Off-Road Tubeless Tires]
Equipped with deep-tread all-terrain tires, featuring self-healing capabilities and excellent shock absorption, fearless of extreme road conditions such as gravel and mud.
[🚀60-70km/h Top Speed]
Breaks conventional speed limits, allowing you to experience the thrill of speeding along the ground in professional road conditions.

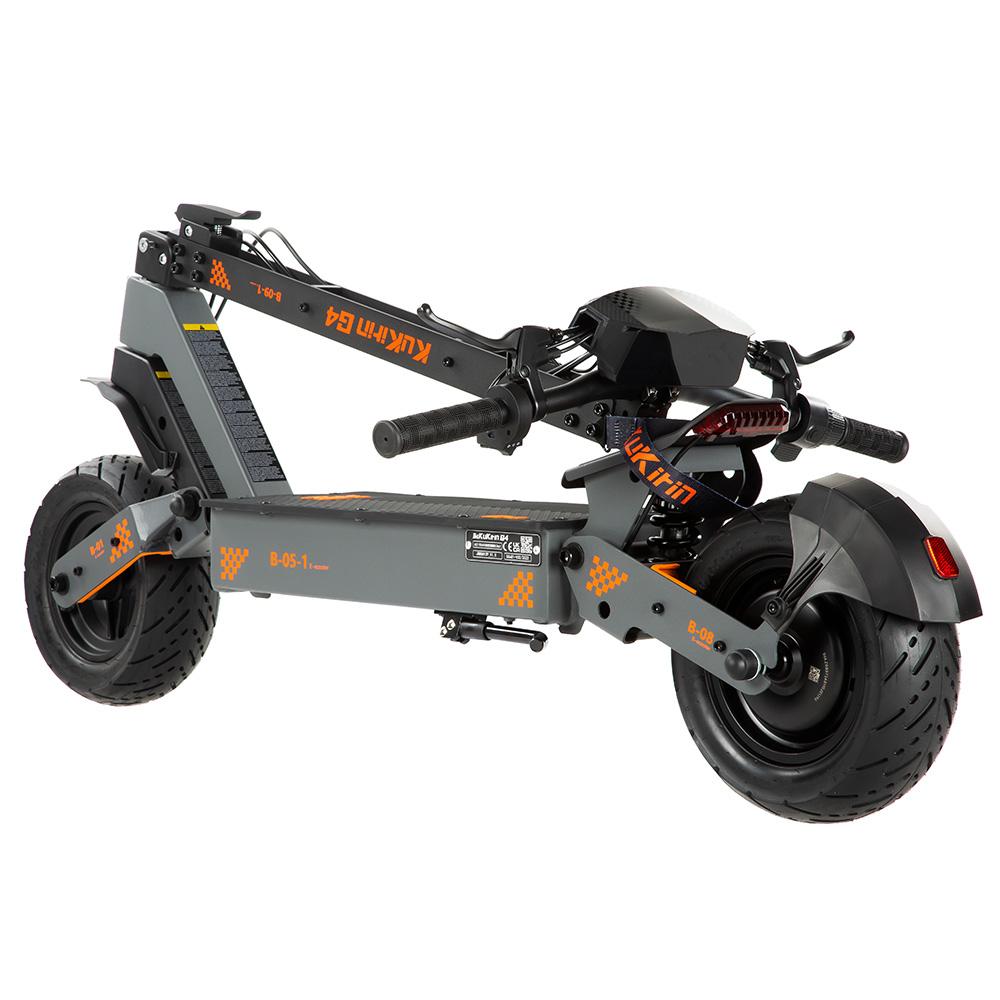

[🔄Quick Folding Structure]
Passes rigorous folding tests, achieving rapid folding while maintaining frame rigidity, facilitating transport on off-road vehicles.
[⚖️120KG Dynamic Load Capacity]
Utilizes an aerospace-grade aluminum alloy main frame, tested for 200,000 vibration cycles to ensure structural integrity during intense riding.
Product Specifications:
Maximum load capacity: 120kg
Speed: Maximum speed: 70km/h
1st, 2nd, 3rd gear (idling): 20km/h, 40km/h, 70km/h
1st, 2nd, 3rd gear (65kg load): 20km/h, 40km/h, 70km/h
Range: Medium speed (65kg load): 75km
Performance: Gradeability: ≤30° slope
Brake system: Front and rear disc brakes + power-off brake
Stopping distance: 7-10m
Waterproof rating: IP54
Material: Frame material: Steel + aluminum hybrid
Motor type: Integrated in-wheel motor (rear wheel drive)
Voltage: 60V
Acceleration mode: Sine wave
Power: Rated power: 2000W
Maximum instantaneous power: 2400W
Rated speed: 1470 rpm
Maximum torque: 46.19 N·m
Model 18650 lithium battery
Voltage: 60V
Capacity: Single cell: 2500mAh
Battery pack capacity: 20Ah
Typical power consumption: 1.2kW·h
Battery protection system: Battery management system (BMS)
Input voltage: 180-240VAC, 50/60Hz
Input current: 2A (max)
Output voltage: 67.2V
Output current: 2A
Charge time: 10-11 hours
Front shock: Spring-loaded
Rear shock: Spring-loaded
Headlight type: LED
Headlight power: 6W
Headlight beam angle: 45°
Headlight illumination area: 8㎡
Turn signals: Yes
Taillights: Yes, taillights illuminate when the headlights are on and flash when braking. Size: 11-inch (90/65-6.5)
Type: Off-road tubeless
Optimum tire pressure: 350kpa (50psi)
Type: LED
Instrument material: ABS instrument case/PA6 instrument bracket
Dimensions: 155*55mm
Displays: Speed, battery level, mileage, cruise control, speed mode, start mode, light mode, mileage unit mode, etc.
Function Settings:
1. Single-click "set" to switch speed and mileage units. Press and hold "set" to switch between non-zero start and zero start.
2. Single-click "mode" to switch gear. Press and hold "mode" to turn cruise control on and off.
3. Single-click "light" to turn the headlights on and off.
4. Single-click the multi-function button to turn the headlights on and off. Double-click to change gear. Press and hold to enter sleep mode. Single-click to wake up from sleep mode.
5. Press and hold the brake lever and single-click the multi-function button four times to toggle speed limit mode.
