• DC 24V~12V 3A Buck Converter: Rated input voltage 24V, input range 15~35V, output voltage: 12V, output power 36W MAX, support 3A maximum output current.
• Intelligent protection: Provides overcurrent, overvoltage, short circuit and other intelligent protection functions, in abnormal situations, it can quickly respond to automatically restore normal conditions or safely stop working to ensure you and your electronic equipment are not damaged. Note: This product does not have input reverse protection function, please pay attention that if the input is correct, the reverse of the negative pole will lead to permanent damage to the product!

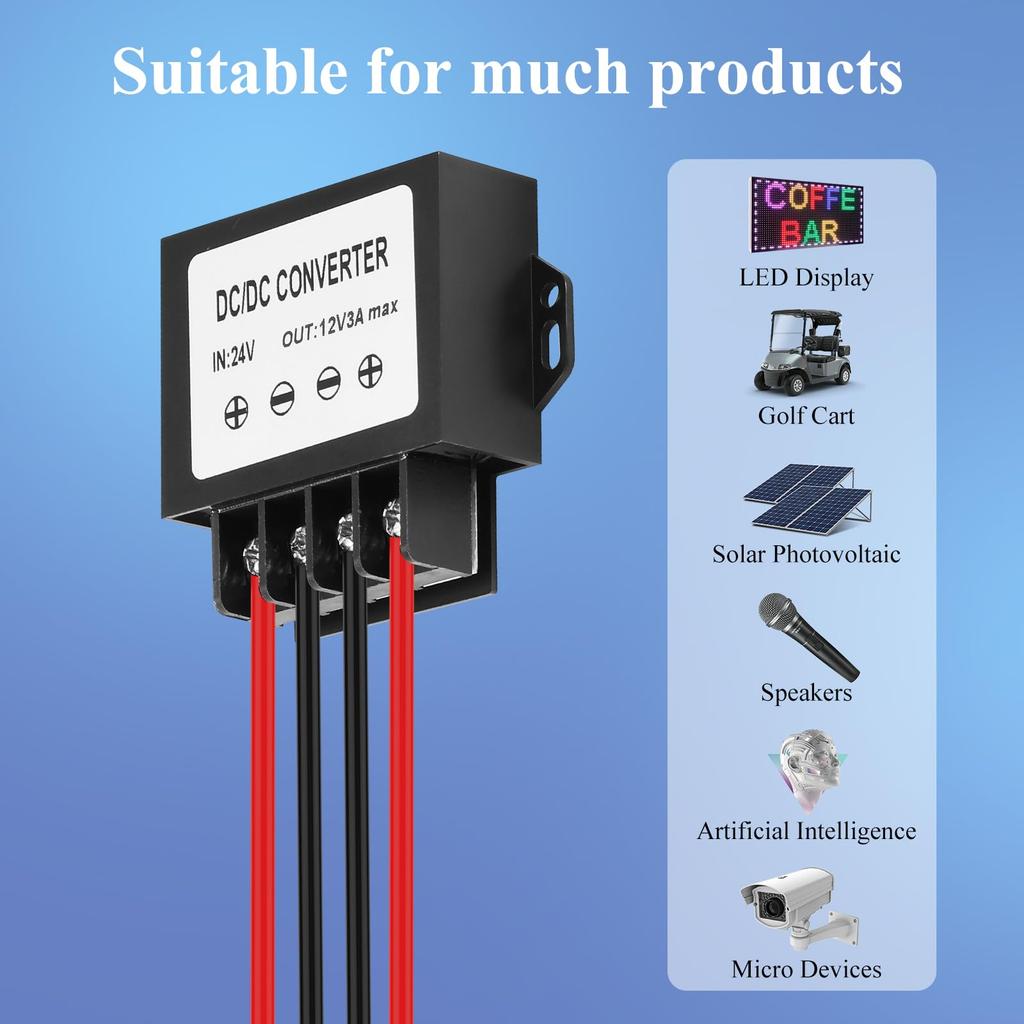

• Wide range of applications: Suitable for ball cars, cars, trucks, DIY projects, railway signals, instruments, light tapes, surveillance systems, cable TV, etc., meeting your power needs in various scenes.
• Safety and Durability: The 24V to 12V 3A power buck converter module is small and portable, easy to install in most spaces. The converter has passed the safety tests of drop test and vibration test, is durable and safe to use with natural heat dissipation.

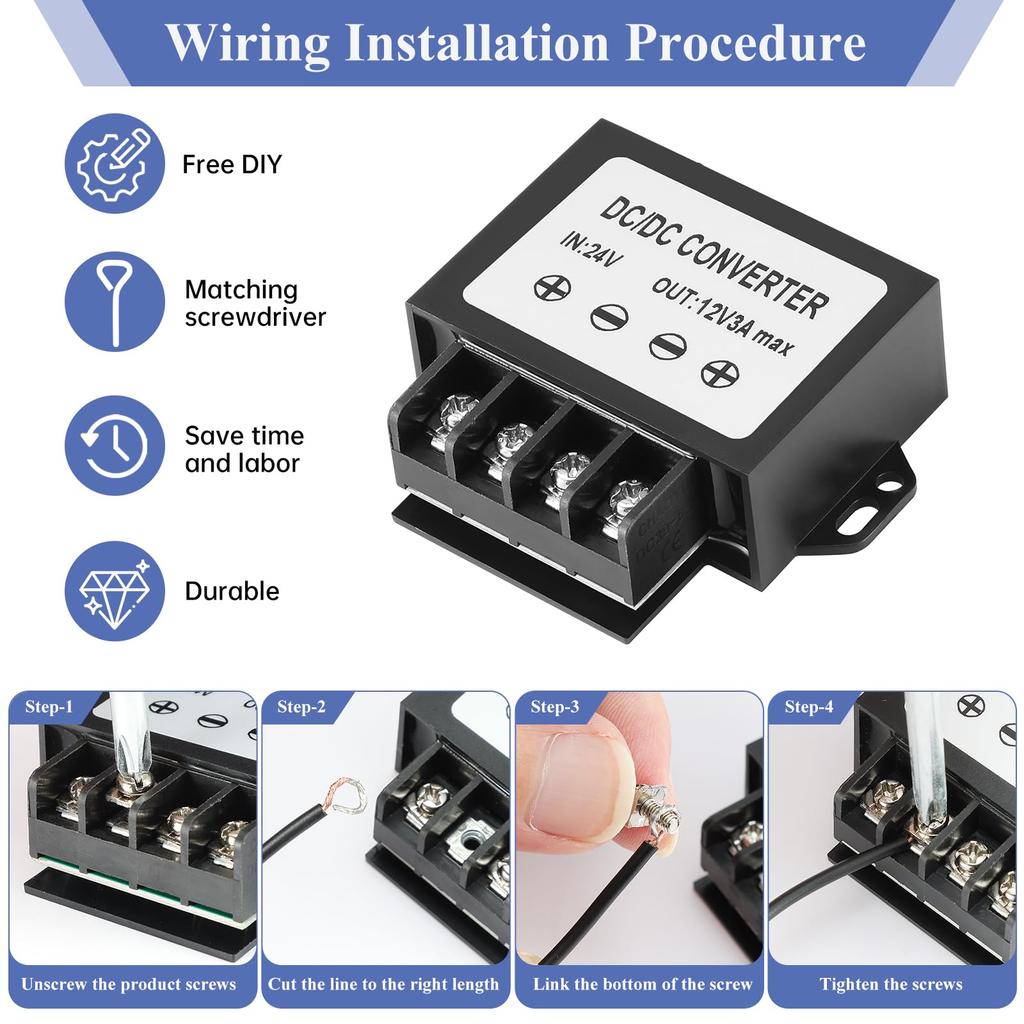

• Package contents 1x 24V to 12V 3A Buck Converter and 1x Triangular Screwdriver; You can install the DC converter by yourself. Simply unscrew the four ports, strip the wire insulation to the appropriate length, wrap the copper wire around the connector, and tighten the screws.

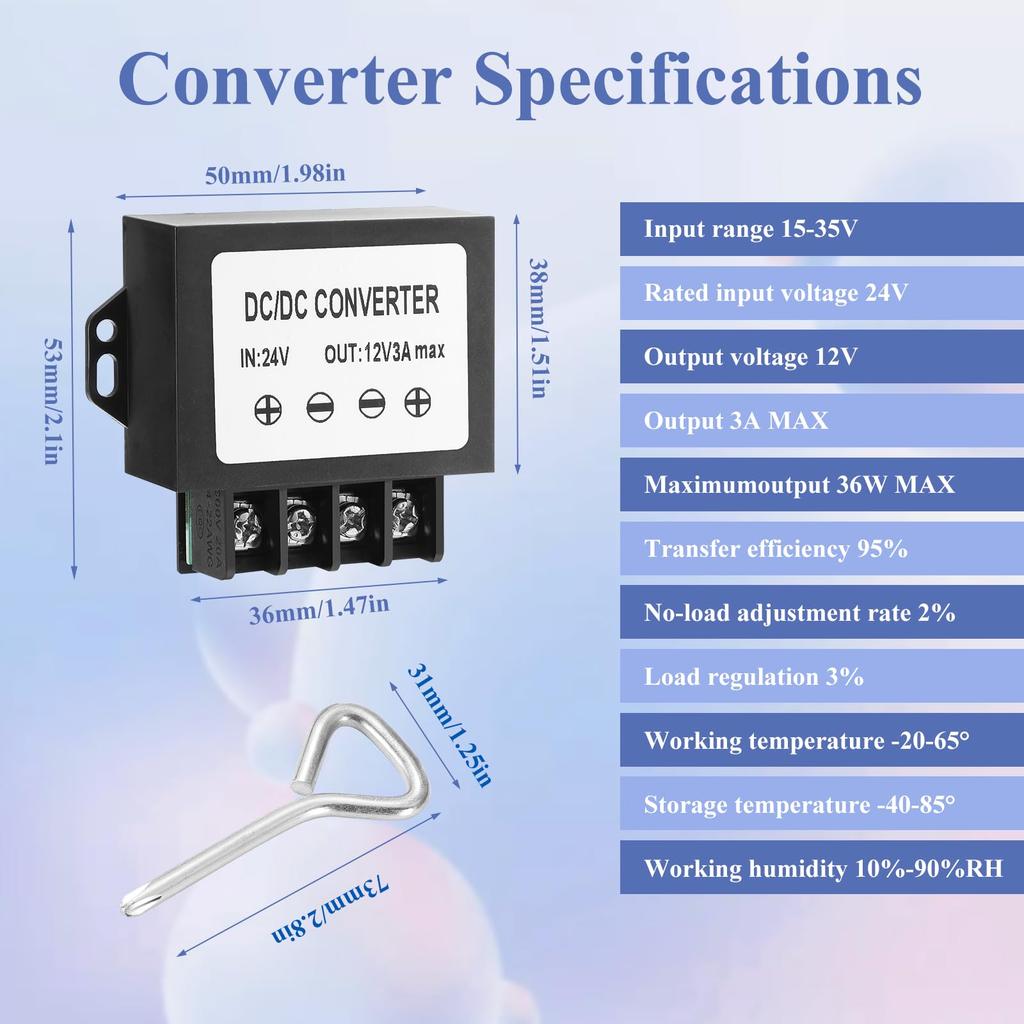

DC 24V to 12V 3A Steps Converter Specifications:
Input range: 15V-35V
Rated input voltage: 24V
Output voltage: 12V
Output power: 36W MAX
Input Amps: 3A MAX
Operating temperature: -20°~65
Storage temperature: -40°~85
Operating humidity: 10%~90%RH
Input line: 7.62POST
Discharge line: 7.62POST
Features of buck converter function

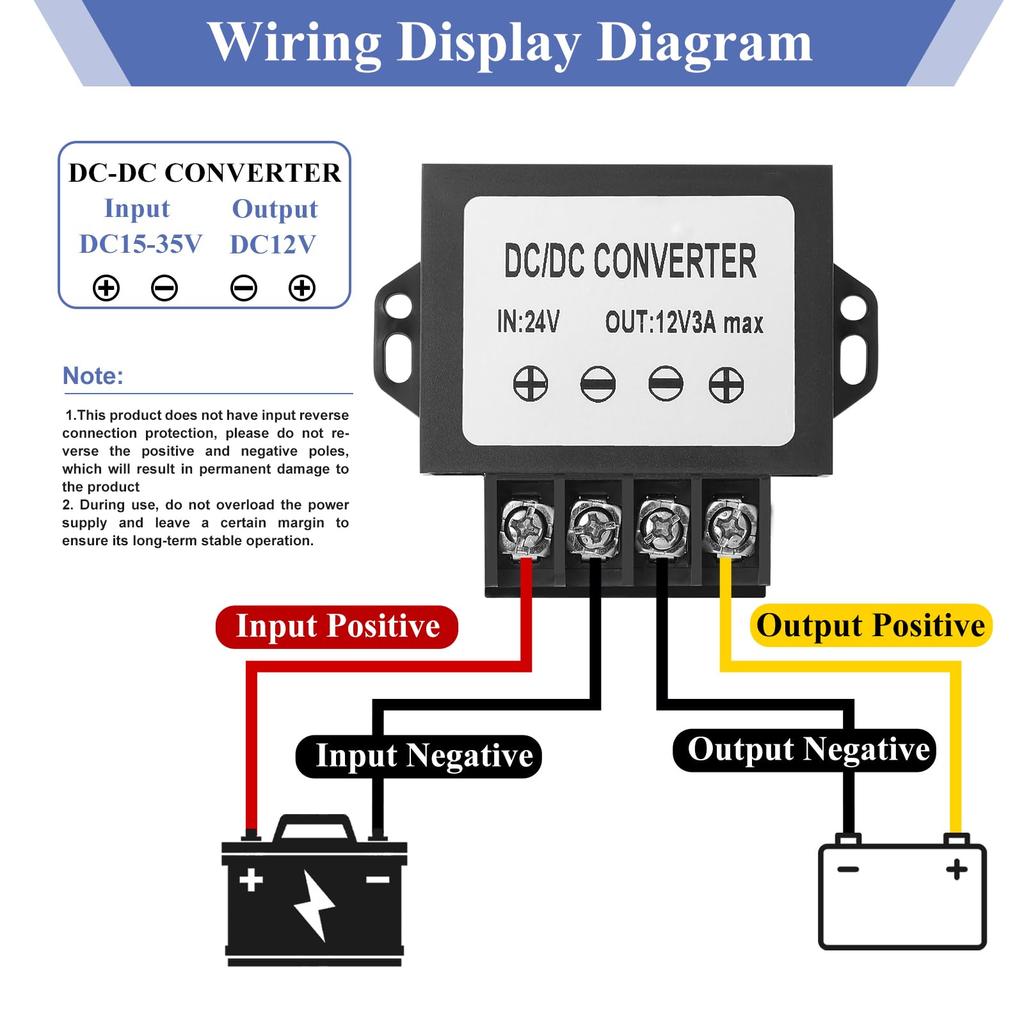

1.Meet DIY request: You can install the DC converter by yourself by removing the screws on the four ports, stripping the wire insulation to the appropriate length, wrapping the copper wire around the connector, and screwing the screws; Note: Do not reverse the positive and negative poles of the input and output ports!
2. Can withstand various conditions while maintaining sufficient power, stable voltage output, high conversion efficiency, aging resistance, good heat dissipation, and optimal functions to ensure long-term use.

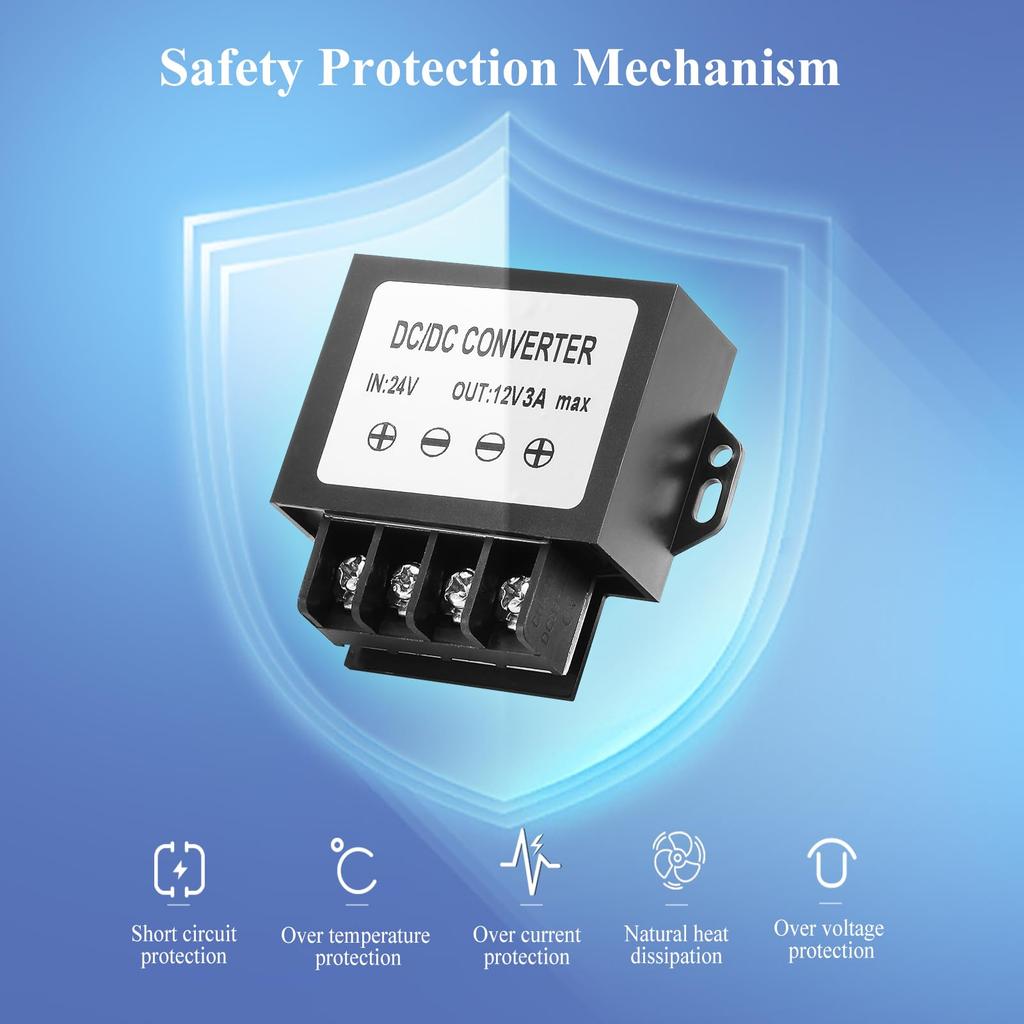

3.Voltage converter has support for over-temperature protection, over-current protection, over-voltage protection, short circuit protection, short circuit phenomenon of output terminal, the product will stop without troubleshooting to restore the output.
4.The power converter is compact and versatile. It can be easily installed in most spaces ensuring it will not interfere with your other equipment or gadgets.
special attention
1.The product has reverse input protection, but if input incorrectly, do not pay attention to negative reverse, which will lead to permanent damage to the product.
2.The product is stored in a dry and cool place with a temperature range of-40℃ ~80℃, avoid contact with corrosive substances, and stay away from fire and heat sources.
3.Do not use near heat sources (such as fire or heaters).
4.Do not connect the input line to 220V electricity
5.Do not put the product into fire or heat it.
6.Do not short the product's positive or negative rod with wire or other metal objects
7.Non-professional personnel are prohibited to disassemble and repair by themselves.
8.Product working environment temperature: -20~65℃, when the working environment temperature is 35℃, please use 50% rated output current to extend the life of the power supply.

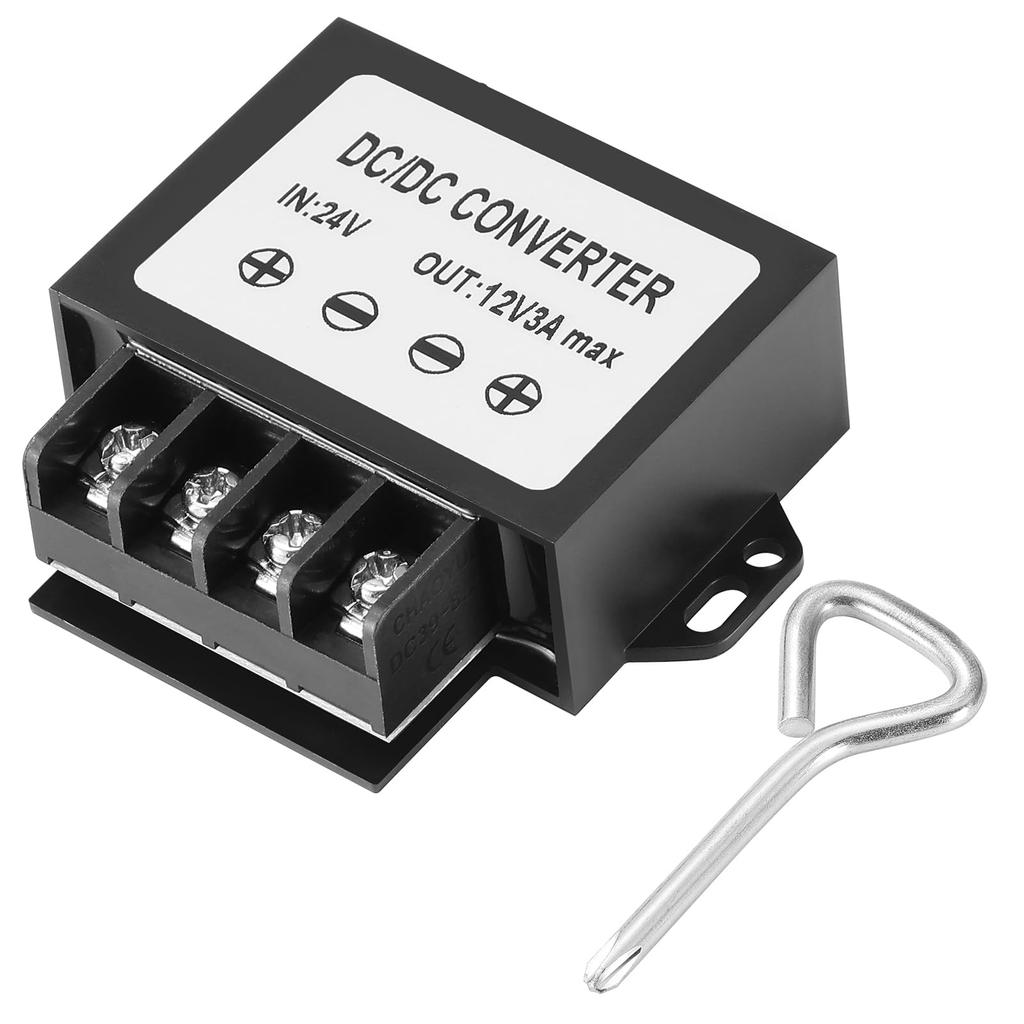

What's included in the package
1 x 24V to 12V 3A Step Down Converter
1 x Triangular screwdriver
