5. Suitable for industrial automation, LED displays, CCTV, 3D printers, communications, and other 24V DC equipment.
4. DC24V power supply driver after 100% total load burning test, you can use with confidence
3. Aluminum casing promotes effective heat dissipation for reliable low-temperature performance, extending service life.

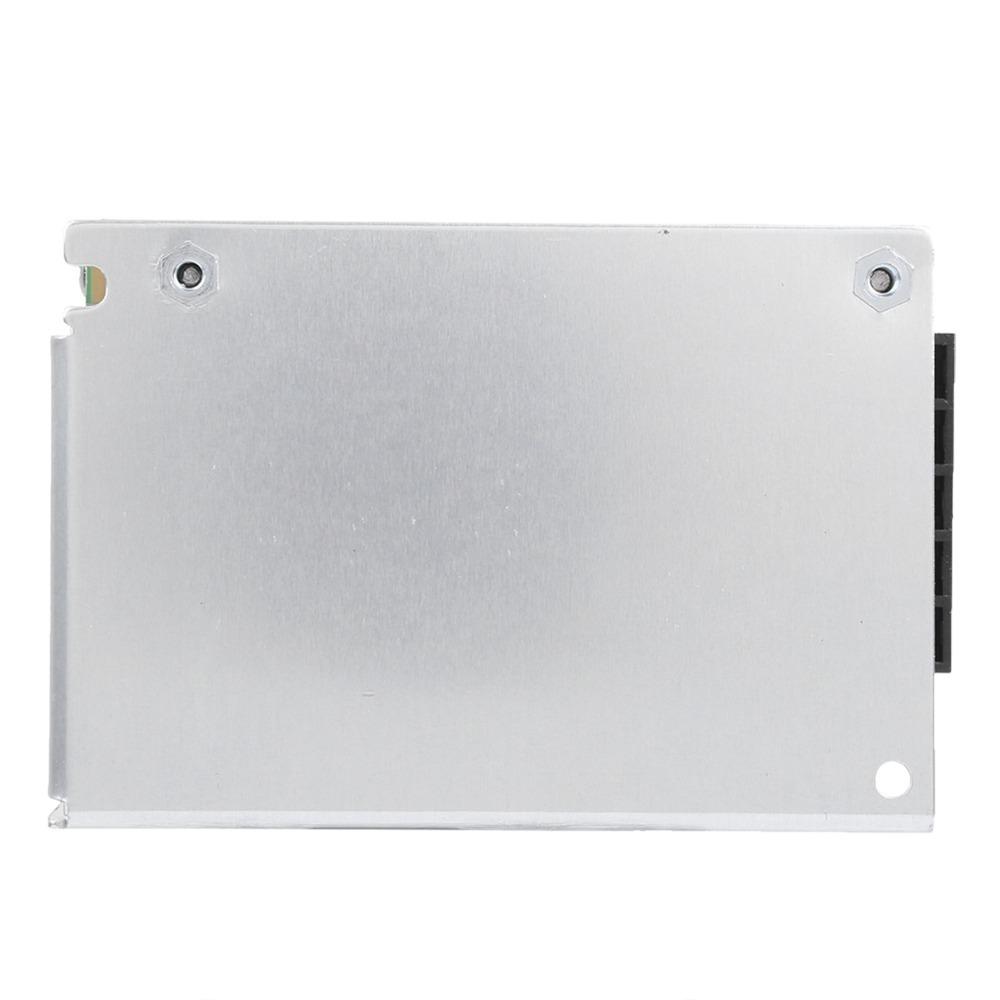

1. Aluminum-housed power supply (Model S-120-24/S-48-24) accepts AC 100-240V input, provides DC 24V output at 5A (120W) or 2A (48W). Offers high efficiency and low fluctuation.
2. The product have protection function of short circuit, overload, and overvoltage situations. Integrated safeguards automatically cut off power during faults, ensuring safety for both the supply and connected devices.
Specifications:
Item Type: Switch Power Supply Driver
Model:S-120-24/S-48-24
Output Current:5A/2A
Power:120W/48W
Material: Aluminum material
Input Voltage:AC100-240V
Output: DC 24V
Size:
S-120-24:129 x 99 x 40mm / 5.1 x 3.9 x 1.6in
S-48-24:85 x 58 x 33mm / 3.3 x 2.3 x 1.3in
Protection: Overload/overvoltage/short circuit
Connection:
L, N: AC power input
GND: DC power output "-"
V: DC power output "+"
+ V / ADJ: Adjust output voltage
voltage accuracy:98%
Cooling method: passive cooling
Applicable To: Industrial automation, LED display, CCTV, computer engineering, LED light bar, 3D printer, etc.
Package List:
1 x Switch Power Supply Driver
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
