S.M.S.L AL200 Bluetooth Power Amplifier — Hi-Fi Stereo Digital Amplifier with MA5332MS Amp IC & CS43131 DAC, Headphone Amplifier, 2.0ch

Product Specifications:

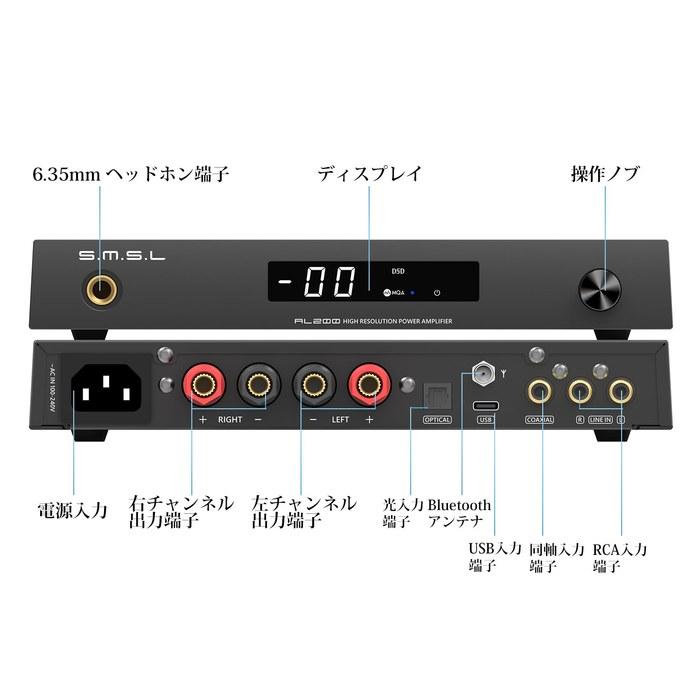

Output: 165W+165W (4Ω), 85W+85W (8Ω) THD+N: 0.003% S/N Ratio: 107dB Channel Separation: 98dB Input Sensitivity: 280mV Input Impedance: 22kΩ Digital Amplifier IC: MA5332MS Bluetooth ver: BT5.0 EQ Amount: 7 USB Transmission Method: Asynchronous Transmission Supported OS (USB Connection): Window 7/8/8.1/10/Mac OSX 10.6 or later/Linux/Android (otg)/ios (Apple Lightning-USB camera kit) MQA decoder: USB/Optical/Coaxial MQA-CD decoder: Optical/Coaxial Bits: USB: 16bit/24bit/32bit/1bit Optical/Coaxial: 16bit/24bit/1bit Sampling Rate: USB: PCM 44.1~768kHz DSD64, DSD128, DSD256 Optical/Coaxial: 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz/DSD64 (DoP) Input Terminals: USB, Optical, Coaxial, Bluetooth, Stereo RCA terminals (gold-plated) Output Terminals: 2ch stereo speaker output (banana plug compatible gold-plated terminals), 6.35mm headphone jack Power Consumption: >40W (at normal volume) Size: Height 41mm x Width 210.5mm x Depth 198mm

Accessories: 1x Simplified Instruction Manual (Chinese and English only. There may be typos in this product's manual. The correct manual can be downloaded from the S.M.S.L official HP. We apologize for the inconvenience.) 1x Remote Control 1x Bluetooth Antenna 1x Power Cable 1x USB A- USB C Cable

Caution: Official drivers can be downloaded from the S.M.S.L official HP. Please refer to this address for the file location: SUPPORT - Product-driver Download - AL200

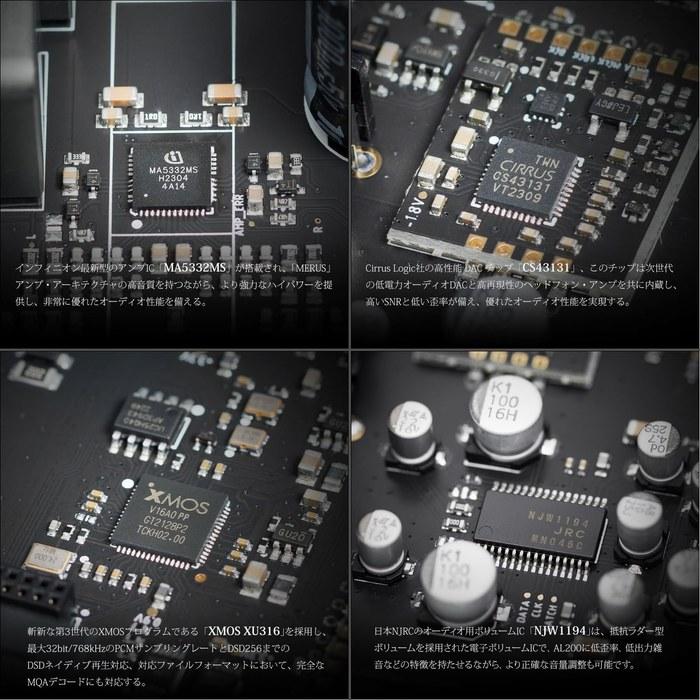

・[High-Power Audio Amplifier] Equipped with the new amplifier IC "MA5332MS" from Infineon! Providing a high output current of 165W per channel with the excellent energy efficiency of the "MERUS" amplifier series, delivering high-quality sound and outstanding audio performance. ・[High-Performance Audio DAC] Equipped with the high-performance DAC chip "CS43131" from Cirrus Logic and the latest 3rd generation XMOS program "XMOS XU316", the AL200 supports native DSD playback up to PCM 768kHz/32bit and DSD256, with full MQA decoding. Optical and coaxial inputs support MQA-CD. ・[With Headphone Amplifier] Equipped with a 6.35mm headphone output jack, and a high-performance headphone amplifier allows it to support a variety of headphones, letting you enjoy high-quality music even with headphones. ・[Bluetooth 5.0 Input Support] Allows wireless playback of music from various devices with Bluetooth output such as mobile phones, PCs, and laptops. With a maximum transmission distance of 15 meters, you can enjoy the best music wirelessly anywhere in the room. ・Various filter modes corresponding to digital signals, selectable output modes, SMSL patented SDB effect, EQ adjustment function, bass/treble correction function, screen brightness adjustment function, screen display off setting function, independent volume setting function, and remote control operation.

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device's requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
