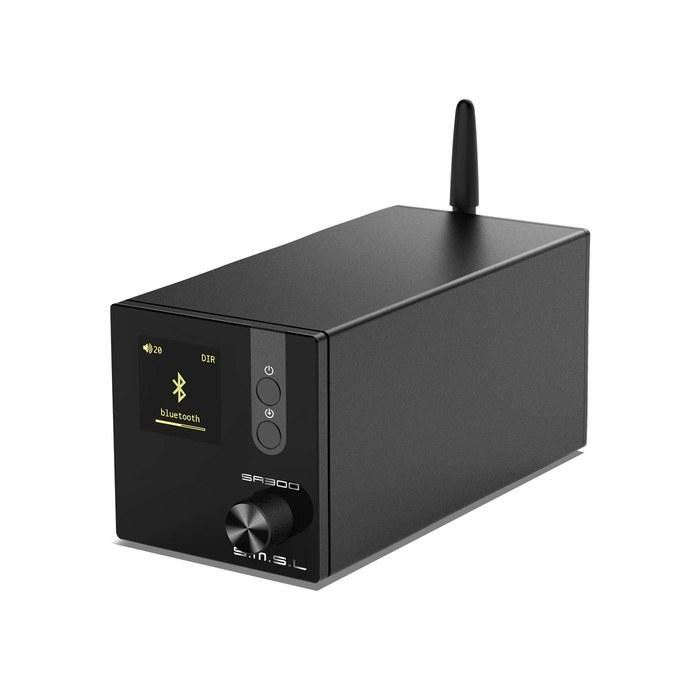

SMSL SA300 Bluetooth Amplifier - 80W X 2 - with Remote

【Product Specifications】

Output: 80W+80W (4Ω), 40W+40W (8Ω)

THD+N: 0.008%

S/N Ratio: 90dB

Channel Separation: 88dB

Digital Amplifier IC: MA12070

Maximum USB Sampling Rate: 32bit / 384kHz

apt-x Support: Supported

Bluetooth ver: BT5.0

EQ Levels: 8

Treble Adjustment Range: ±10dB

Bass Adjustment Range: ±10dB

Supported OS (USB Connection): Windows 10 / Mac OSX 10.6 or later / Linux / Android (OTG) / iOS (Apple Lightning-USB camera kit), etc.

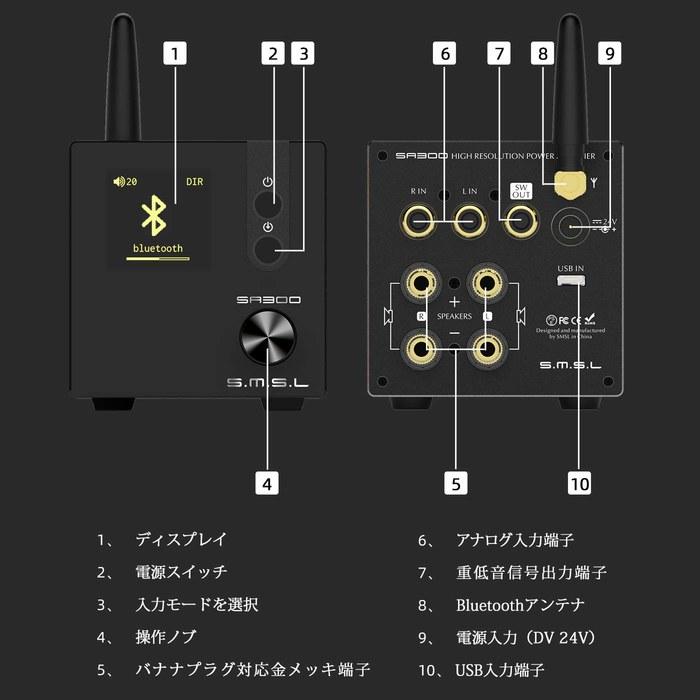

Input Terminals: Stereo RCA terminals (gold-plated), Micro USB terminal, Bluetooth

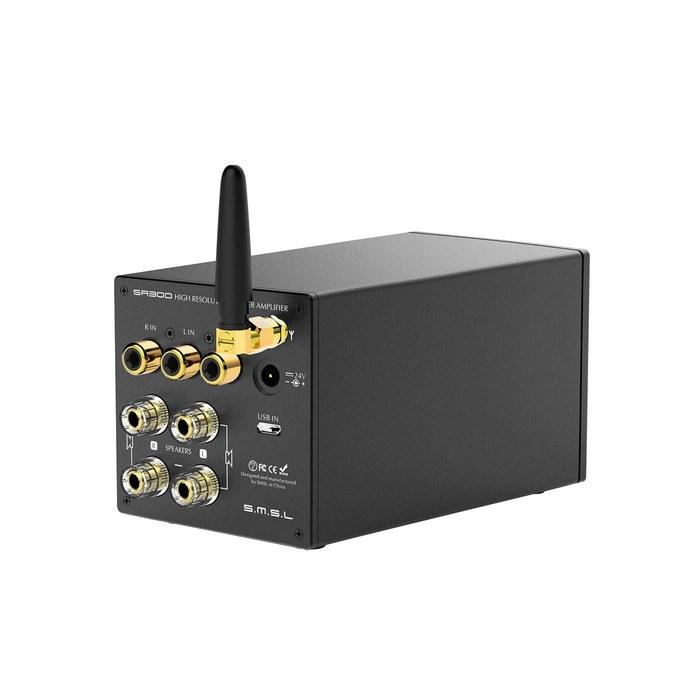

Output Terminals: 2ch stereo speaker output (banana plug compatible gold-plated terminals), Subwoofer signal output terminal

Power Consumption: 35W (at normal volume)

Standby Power: Size: Height 70mm x Width 70mm x Depth 188mm

Accessories:

1 x Simplified Instruction Manual (Chinese and English only)

1 x Remote Control

1 x Bluetooth Antenna

1 x USB-Micro USB Cable

1 x AC Adapter (DC 24V)

1 x Power Cable

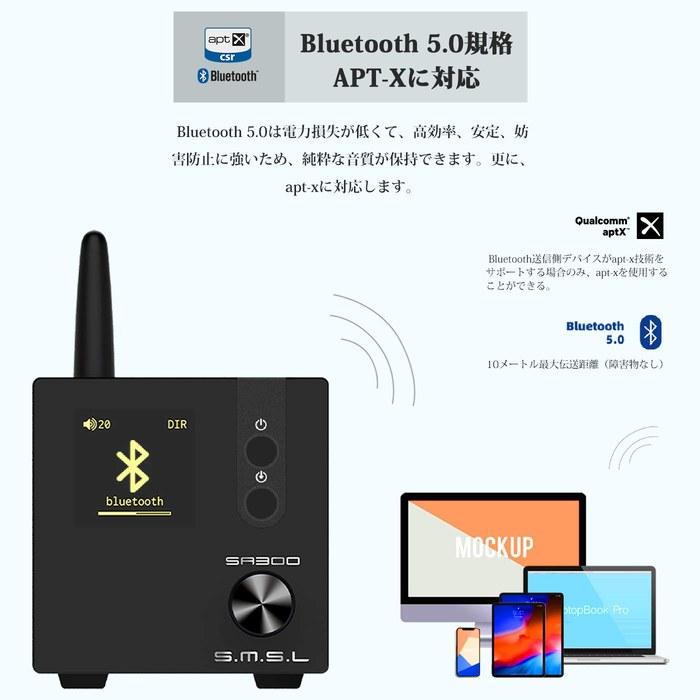

・Adopts Bluetooth 5.0 standard. Maximum transmission distance is approximately 10 meters (without obstacles). Bluetooth 5.0 has low power loss and maintains pure sound quality. It also supports apt-x, a system used to compress digital audio in the audio field. It can compress to 1/4 of the original size without sacrificing sound quality.

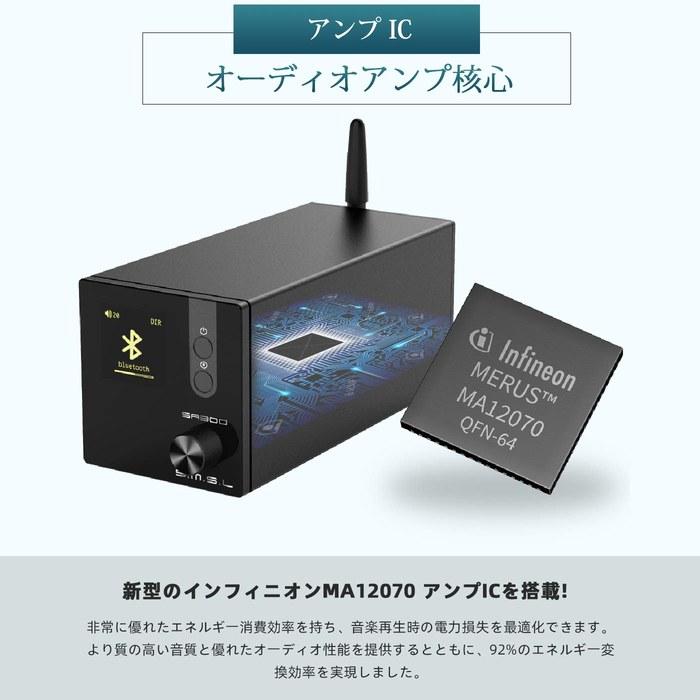

・Equipped with the new Infineon "MA12070" amplifier IC! It has excellent energy consumption efficiency and optimizes power loss during music playback. It provides higher quality sound and superior audio performance, achieving 92% energy conversion efficiency.

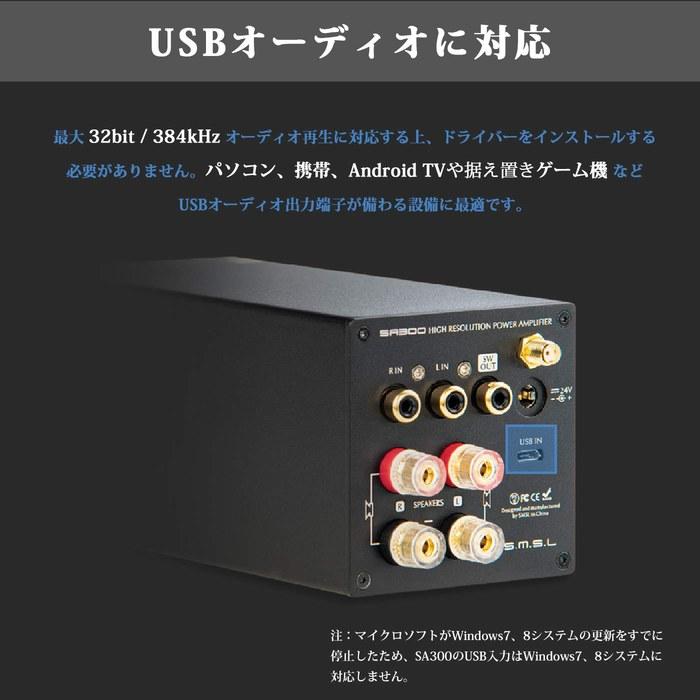

・Supports USB audio. Supports audio playback up to 32bit / 384kHz and does not require driver installation. Ideal for devices with USB audio output terminals such as PCs, mobile phones, Android TVs, and home game consoles. (Note: Not compatible with Windows 7 or 8.)

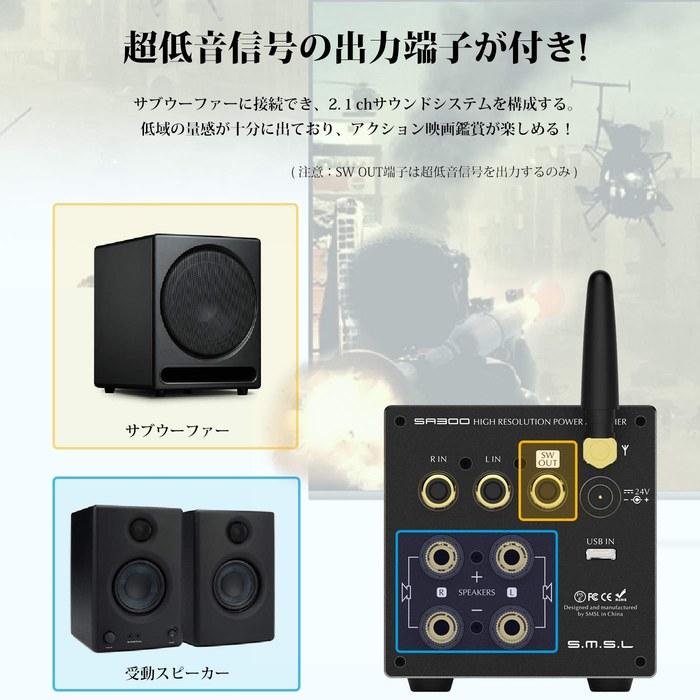

・Equipped with a subwoofer signal output terminal. Normally used with a pair of passive speakers to create a 2.0ch Hi-Fi sound system, but a subwoofer can also be connected when needed, creating a 2.1ch sound system with ample low-frequency response for an immersive movie-watching experience!

・EQ adjustment function, bass and treble correction, remote control operation, and various interesting features await you.

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device's requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
