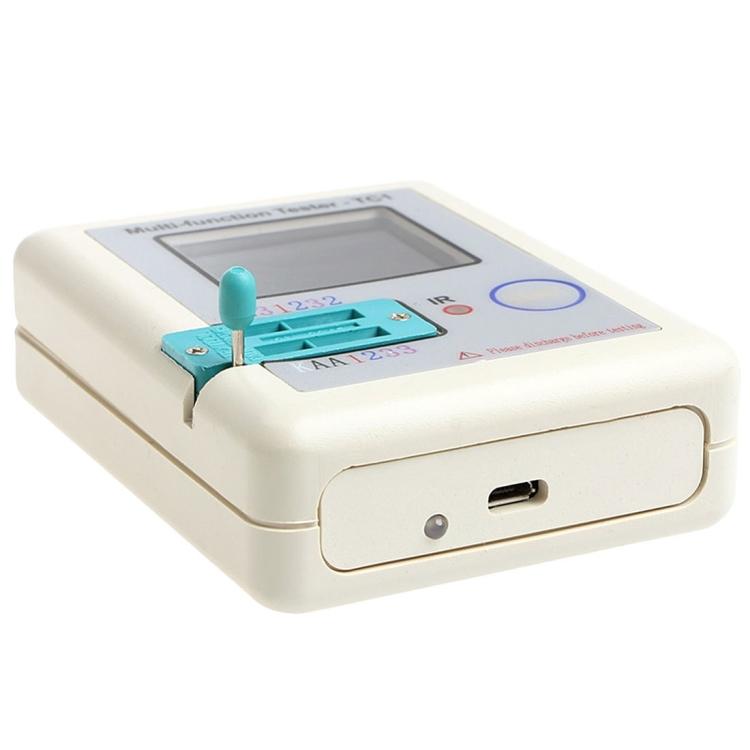

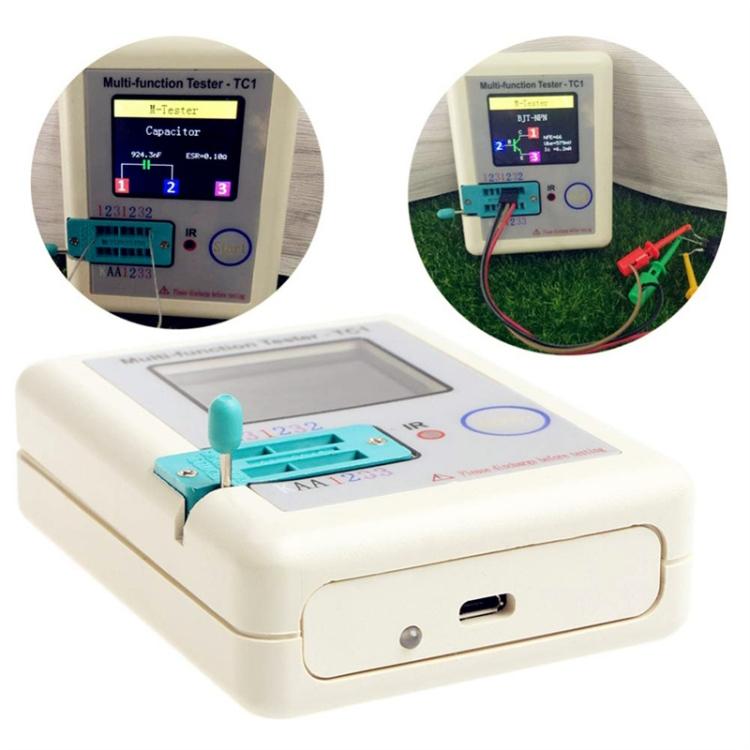

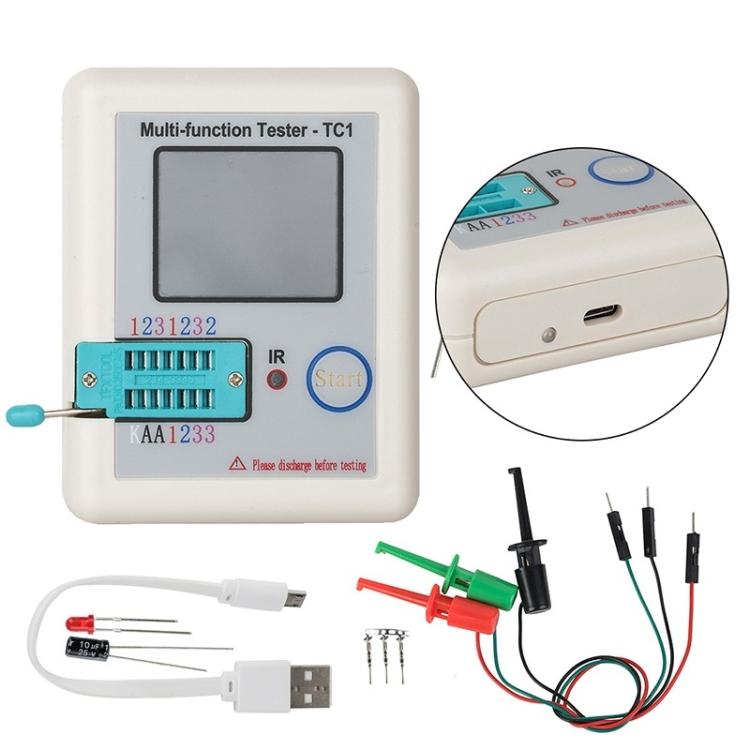

LCR-TC1 Full Colorful Screen Transistor Tester for Diode Triode Capacitor Resistor Test

LCR-TC1 Full Colorful Screen Transistor Tester for Diode Triode Capacitor Resistor Test

1. Full color screen graphics display 2. Infrared decoding, automatic calibration 3. Power mode: rechargeable lithium battery 4. One-key operation, automatic detection and shutdown, you can also press the multi-function key to turn off the detector 5. It can measure triode, diode, resistance, capacitance, inductance, thyristor, field effect tube, voltage regulator tube, double diode, light emitting diode, etc. 6. After the detection is completed, point the infrared remote control at the "IR" light and press the button on the remote control. If the detector decodes successfully, the data code and infrared waveform will be displayed 7. Place the pin of the component in the corresponding area, and then turn the small handle, the detector will automatically test, and the result will be clearly displayed on the backlit TFT screen 8. Display: 3.5 inch TFT screen 9. Battery: 0.1-4.5V 10. Resistance: 0.01-50Mohms 11. Capacitance: 25pF-100mF 12. Inductance: 0.01mH-20H 13. Diode range: Less than 4.5V 14. Triac range: IGT less than 6mA 15. Zener diode detection area: 0.01-30V 16. Size: 8.8 x 8 x 2.8cm 17. Weight: 111.5g
