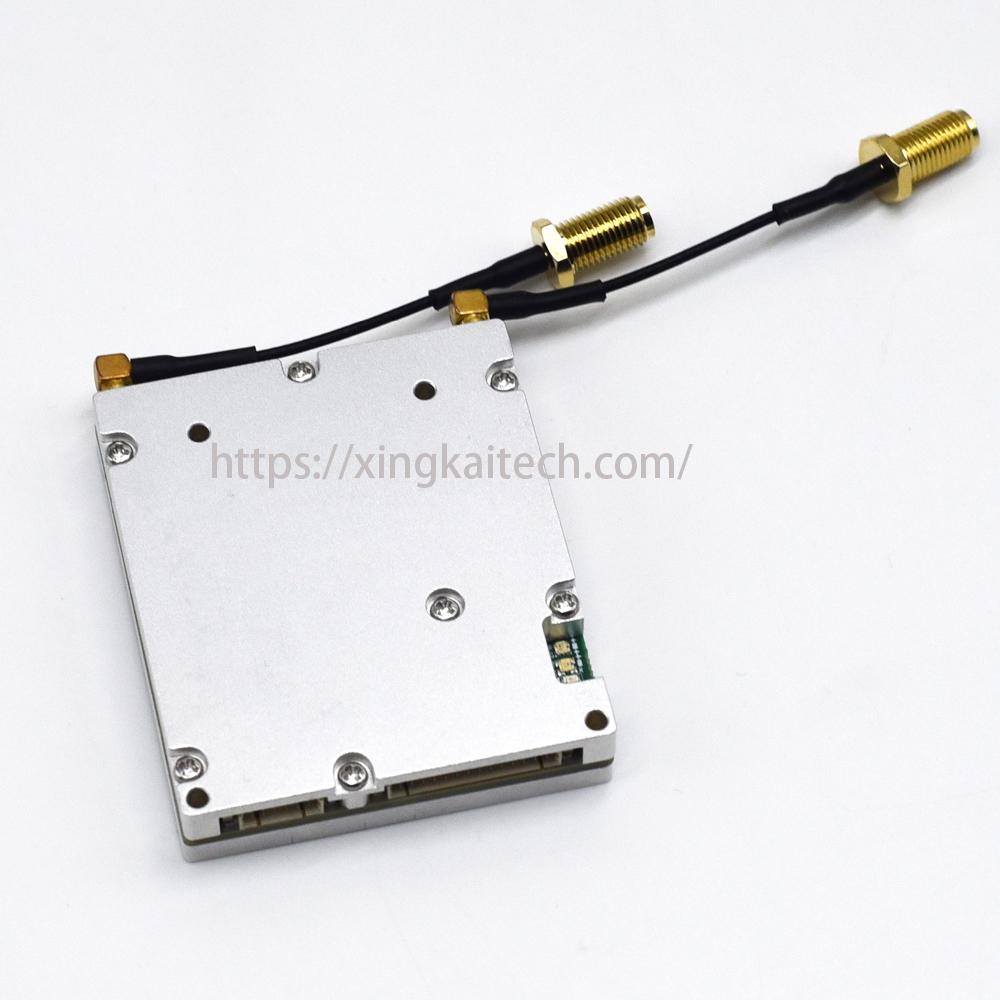

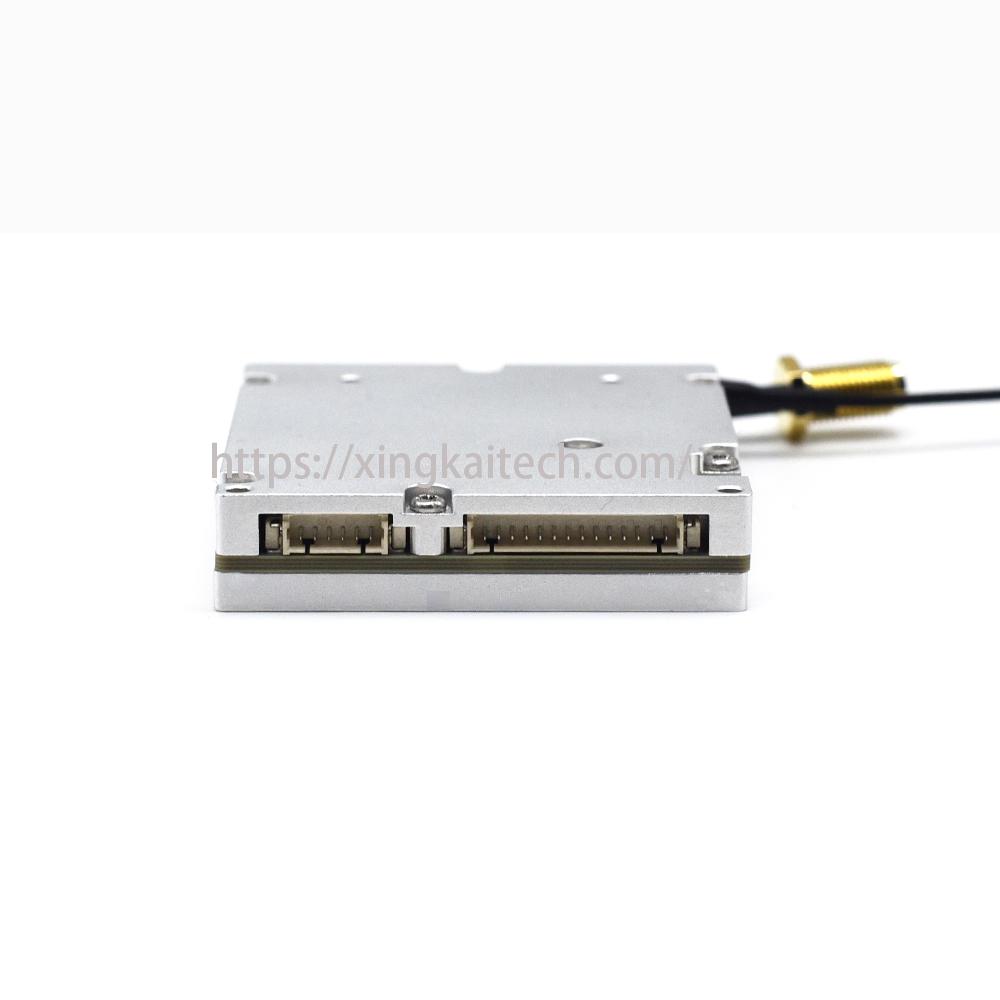

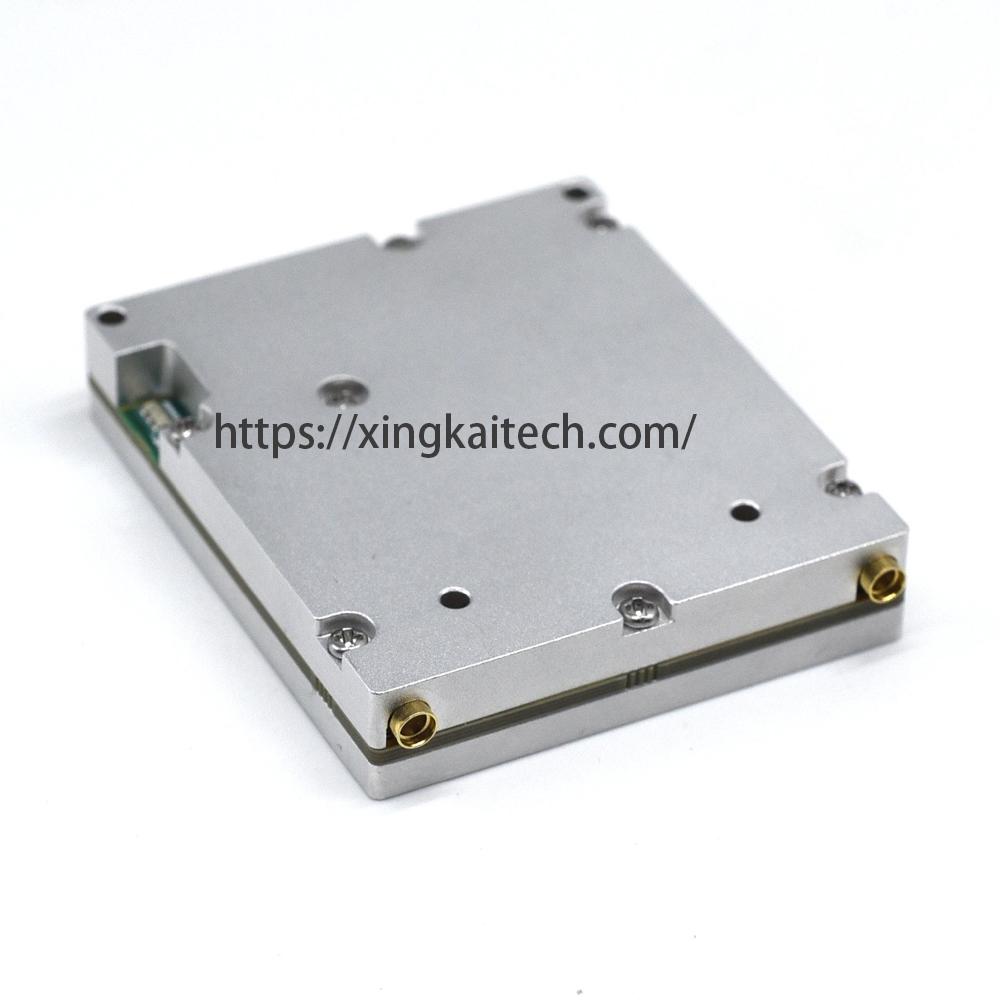

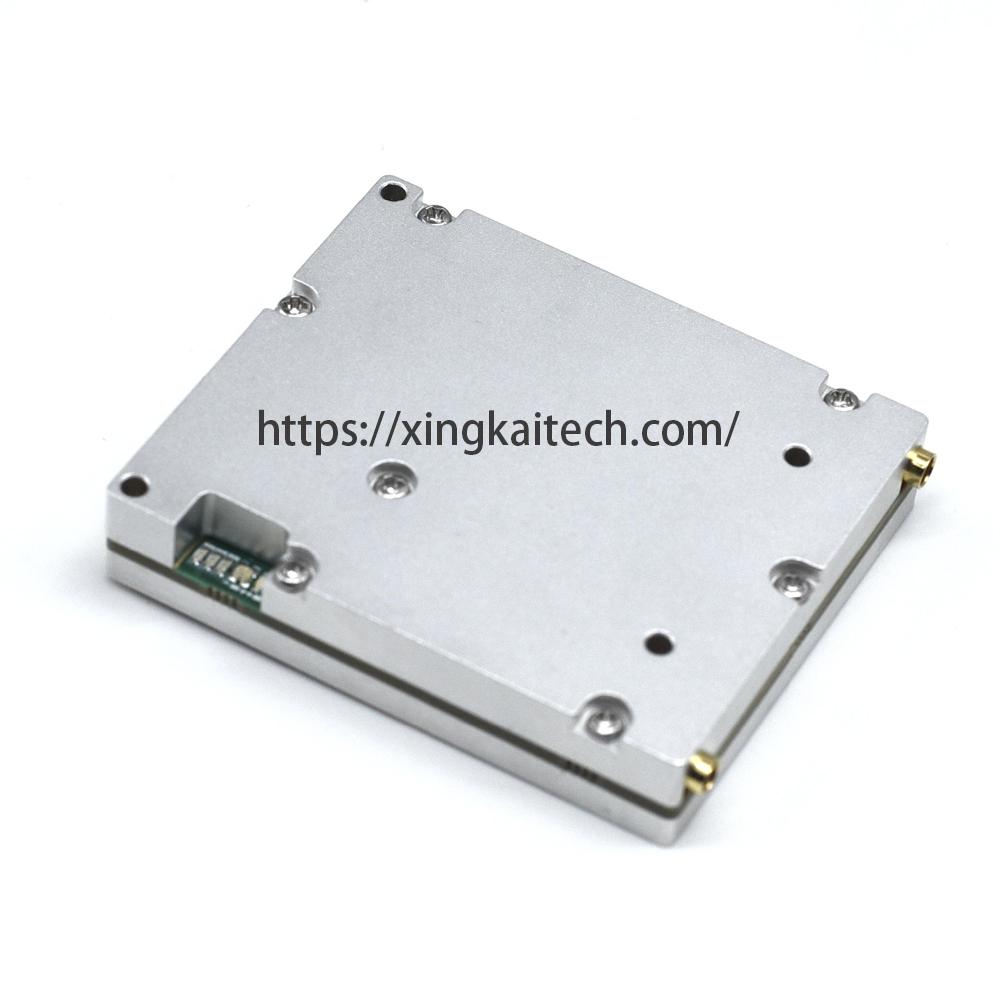

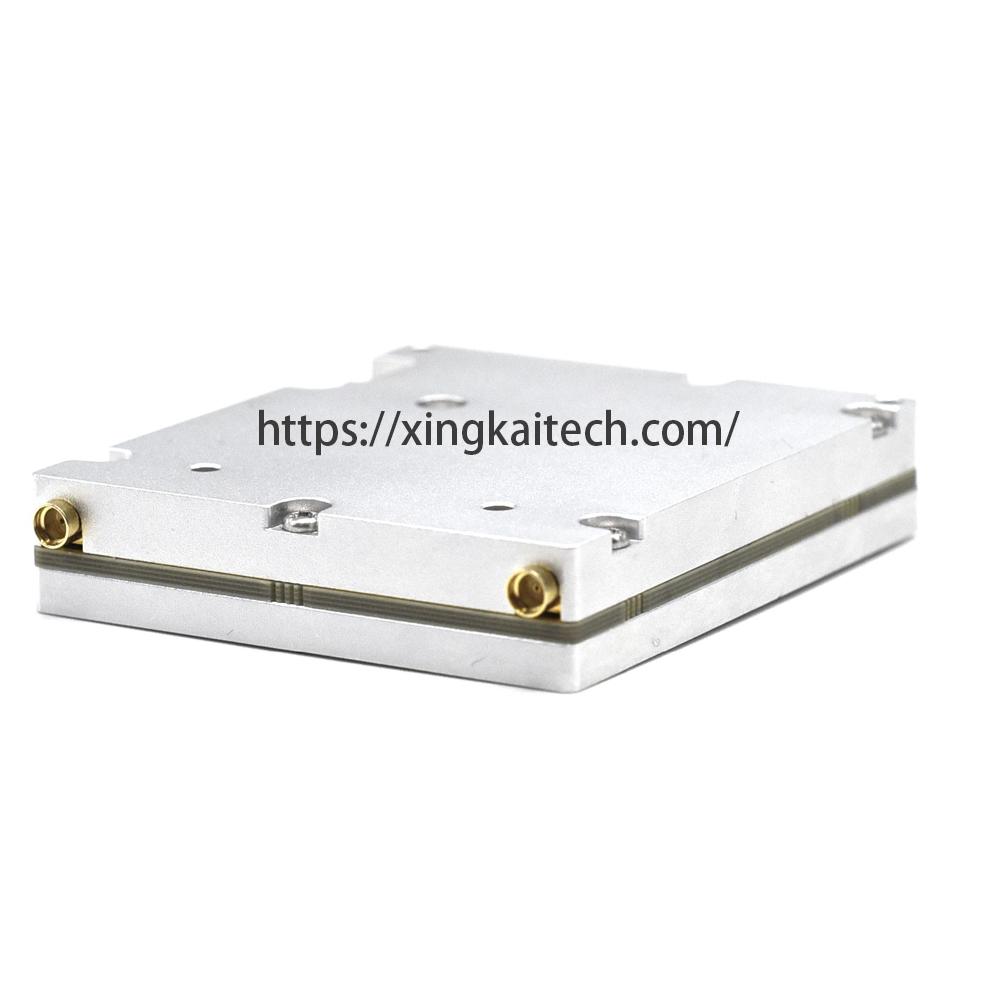

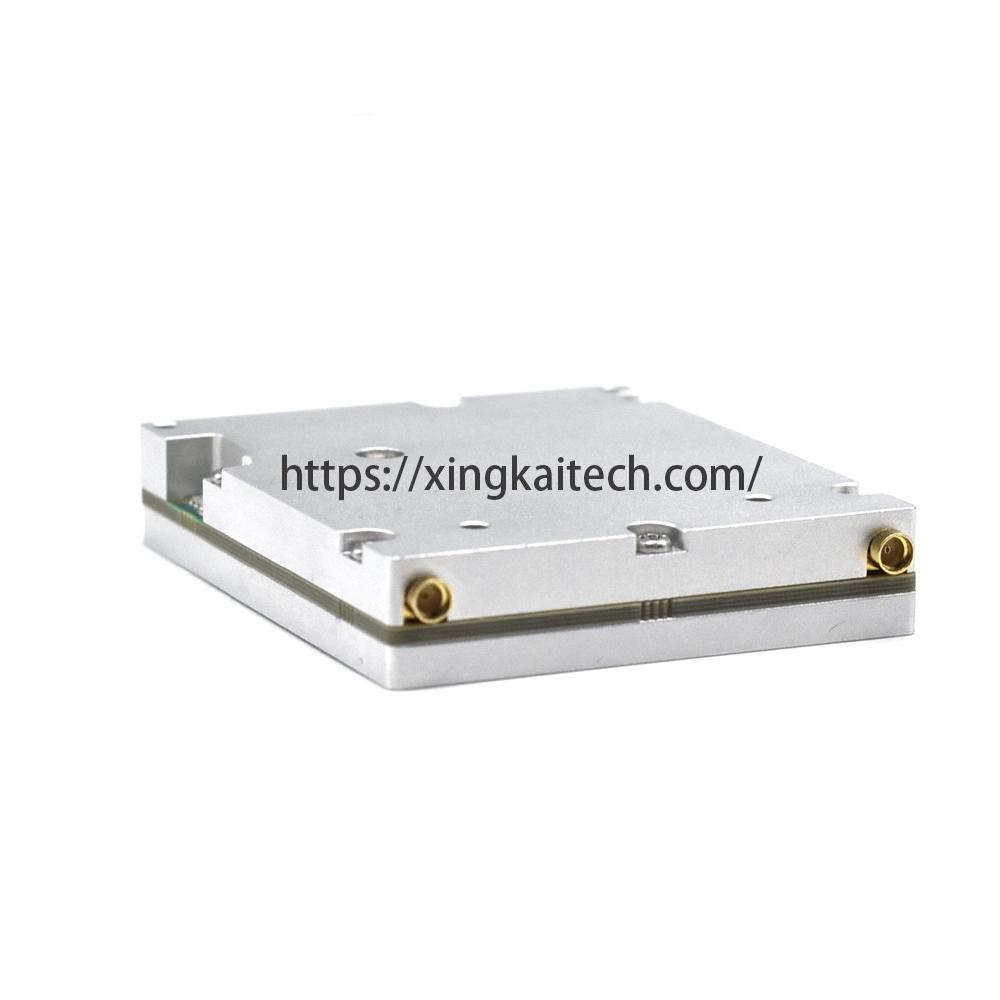

XK-M501E 0.5W*2 IP Mesh Radio MIMO Mesh Network Video Data Link Transmission Module Fhss Hopping Frequency

1. Product Introduction The XK-M501E is a compact wireless mesh module with integrated RF power amplifier, designed for UAV systems to support high-performance mesh networks without a central hub. It features multiple interface options (SBUS, RS232, TTL) and a user-friendly design. This versatile module can be mounted on various UAV models as an onboard station, used in light-load drones, or embedded in remote controllers and other programmable devices. 2. Product Features Flexible networking: Supports self-organizing networks without a central hub, with flexible carrier bandwidth allocation. It can build various network topologies such as point-to-multipoint, chain relay, mesh, and hybrid, to meet complex and changing communication requirements. Full IP interconnection: Featuring a fully IP-based architecture, it enables seamless data transmission across all protocols, facilitates interoperability with heterogeneous communication systems, and enhances multi-network service integration to achieve broader coverage. High reliability: The innovative integrated design of power amplifier and core board has excellent anti-vibration protection performance to ensure stable operation of the equipment in harsh environments. Custom development: Support customized development according to the customer's specific working frequency band to meet personalized needs. Efficient maintenance: Built-in dynamic routing mechanism with high efficiency, eliminating complex system configuration. The intuitive human-machine interface enables real-time monitoring and management, while supporting remote software upgrades, configurations, and hot restarts, significantly improving maintenance efficiency. 3. Use Cases Emergency Communications, Emergency Rescue Command, and MESH Self-organizing Network Optical-electronic smart city/outdoor power, surveying/airborne ship transmission City Patrol Network Construction / Emergency Communications Vehicle / UAV Video and Data Transmission
