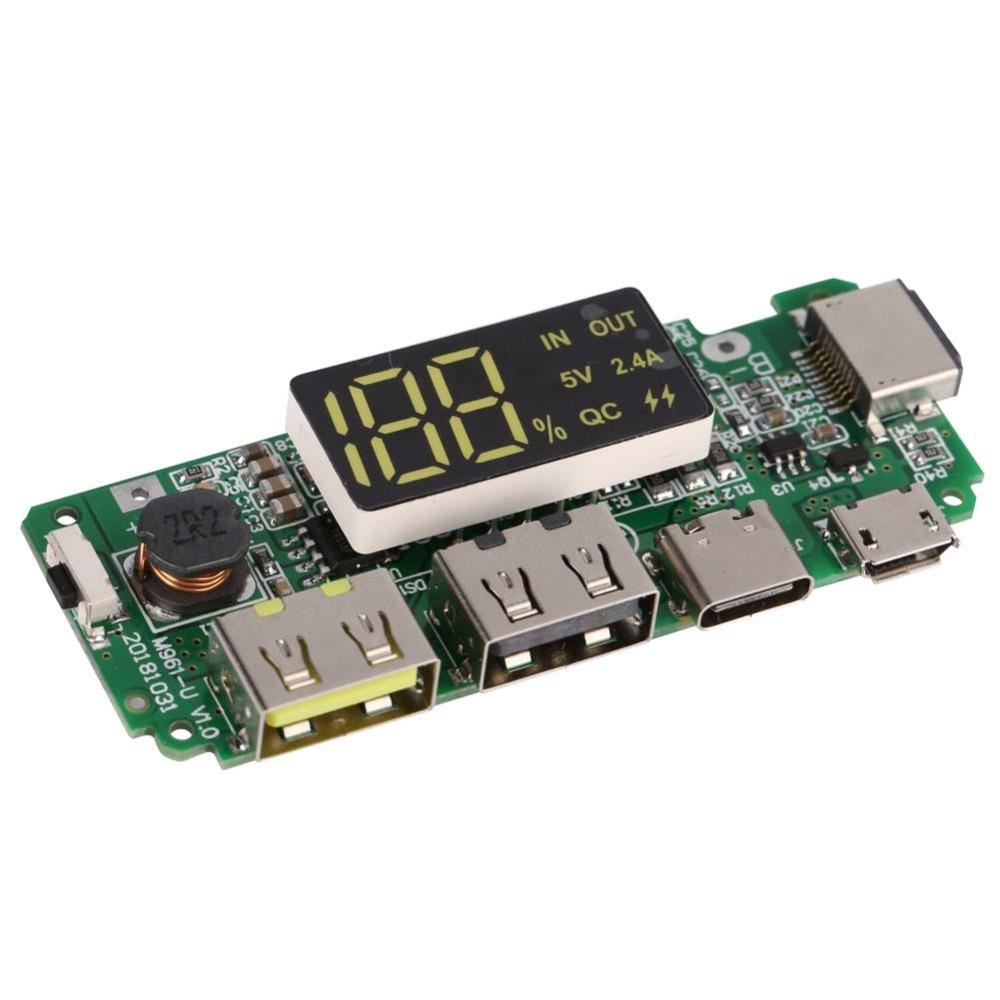

2Pcs H961-U Charging Board 5V 2.4A Mobile Power Bank Module Lithium Battery Charger

Label:Yes Crafted with premium material for reliable performance. Press and hold the button after standby, LED digital display shows the battery. Small body and stable performance. Portable backup power supply with an input matching 5.0V adapter to charge the internal battery. Widely used.

Specification: Model: H961-U Quick Charge Port: 5V 2.4A Color: As picture shown Board Size: 68*24mm(2.68*0.94in) Weight: Approx. 15g / 0.5oz

Input Voltage Input Voltage (B+ to B-): 3.0-4.2V

Overcharge Detection voltage: 4.20±0.05V Release voltage: 4.100±0.05V Detection delay time: <200 ms

Over discharge Detection voltage: 3.0±0.10V Release voltage: 3.10±0.10V Detection delay time: <100 ms

Output constant current constant current: 2A

Short Circuit Protection Short detection delay time: <50uS Release Conditions: Cut off load

Normal current consumption Normal current consumption of PCM: Maximum 60uA Standby current consumption: Maximum 50uA

0V charger allowed 0V change: Y

Suggest working conditions maximum continuous charge/discharge current: 1.5/2A suggest working temperature: -5-45℃

IR resistance IR of PCM: ≤65 m ohm

Package List: 2 * PCBA(Printed Circuit Board +Assembly)
