EU Voltage : Low voltage: Below 50Vac or 75Vdc
High-conrned chemical : None
Model Number : SMLIGHT SLZB-06/06M
: Mainland China
rtification : ,FCC,

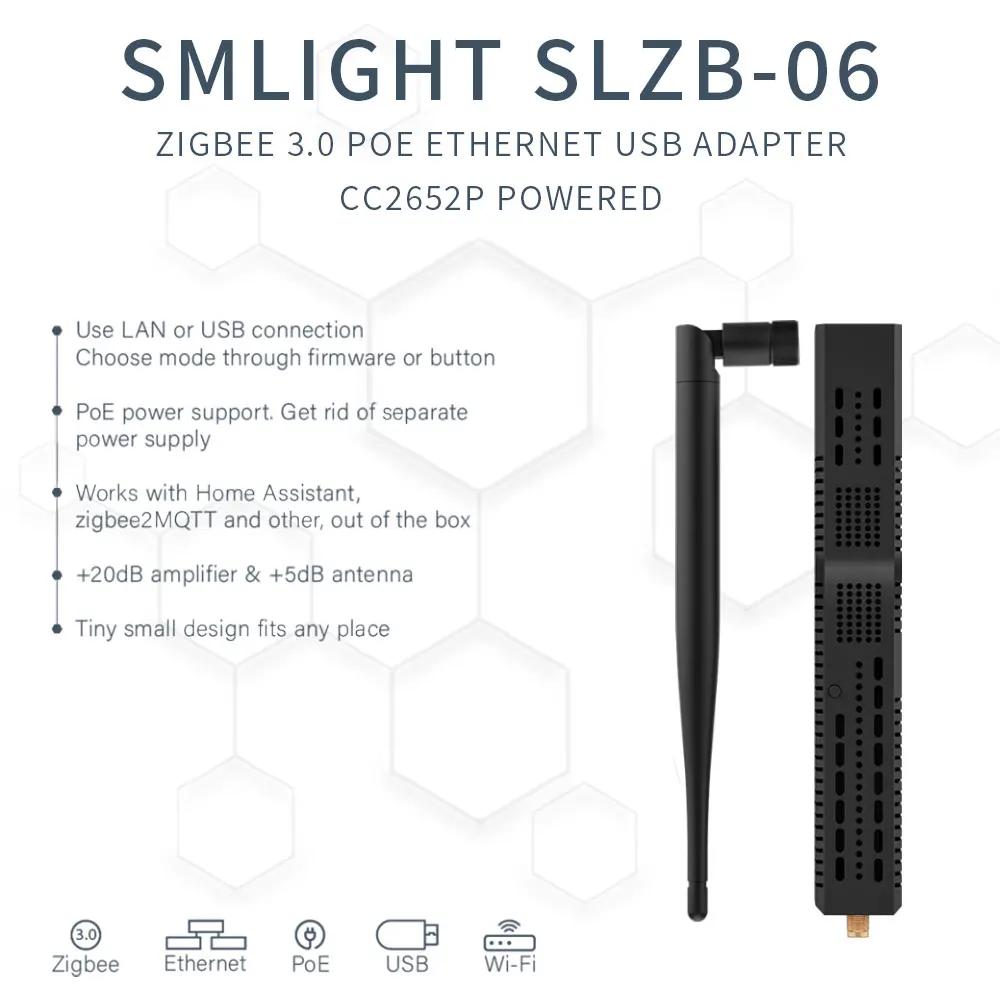

WELCOME TO THE WORLD OF SMLIGHT SLZB-06, SLZB-06M, SLZB-06P7 and SLZB-06-NO-POE - MOST ADVAND AND POWERFULL POE ETHERNET ZIGBEE AND MATTER-OVER-THREAD ADAPTERS! SLZB-06 got experimental Matter-over-Thread support as of April 2024!
Pay Attention:1. Before purchasing, please carefully read the functions of each product and choose the correct model. If you purchase the wrong product due to your own reasons after reiving it, we will not support return.
2. After reiving the goods, if you encounter any product problems, please submit your question to https://support.smlight.tech/supportnter/public/en/customer/create-ticket/
Our technical after-sales development engineer will reply to you as soon as possible and help you solve the problem. Please be patient and wait for a reply.
WHAT IS SMLIGHT SLZB-06, SLZB-06M and SLZB-06P7 ZIGBEE ADAPTER?
SMLIGHT SLZB-06/06M/06p7 are a network devi that serves as a ntral bridge for managing communication in a Zigbee network. SLZB-06 can also serve a Matter-over-Thread network. The devis are designed specifically for Zigbee2MQTT and ZHA Home Assistant ensuring smooth work out-of-the-box. These devis have the smallest size and reachest packing.
KEY SPECIFICATIONS FOR SLZB-06* SERIES ZIGBEE COORDINATORS: 3 modes: Zigbee-to-Ethernet, Zigbee-to-WiFi and Zigbee-to-USB.
Matter-over-Thread experimental: SLZB-06 has also experimental supports of Matter-over-Thread.
Options on different Zigbee SoCs: SLZB-06 on CC2652P, SLZB-06p7 on CC2652P7 and SLZB-06M on EFR32MG21.
Pre-flashed and ready to use with Zigbee2MQTT and ZHA (plug-and-play).
PoE and Type-C powering, PoE IEEE 802.3af standard support.
Zigbee and Core firmware OTA update over web-interfa (one-click update).
Most powerful version of ESP32 chip inside: 2 cores @ 240Mhz + 16Mb memory.
VPN tunneling with Home Assistant and security authorizations.
Securely protected login with password to web-interfa, internal whitelist firewall settings.

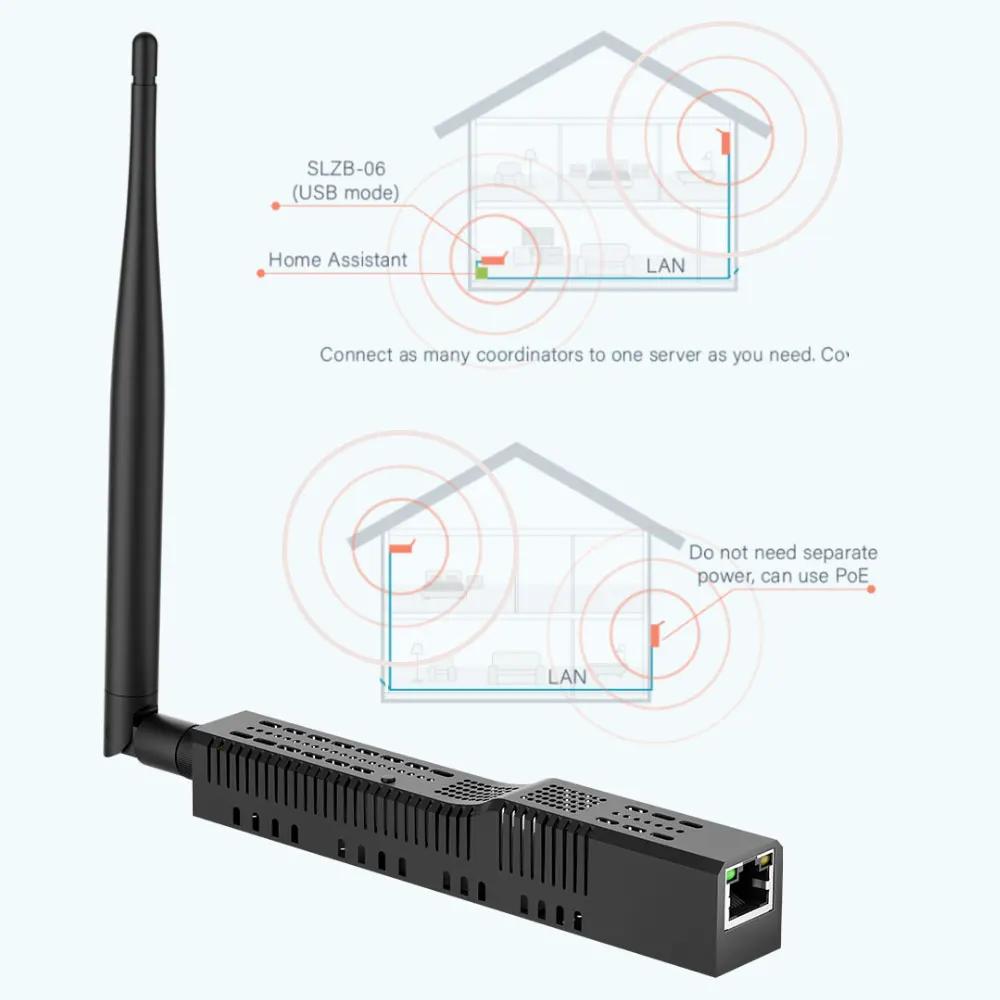

Can cover multiple buildings with 2 or more coordinators and Zigbee2MQTT. You can install as many coordinators to work with Zigbee2MQTT+Home Assistant as you want.
15 language localization interfas.
LED control and night mode.
Small and tiny design, just 22x24mm.

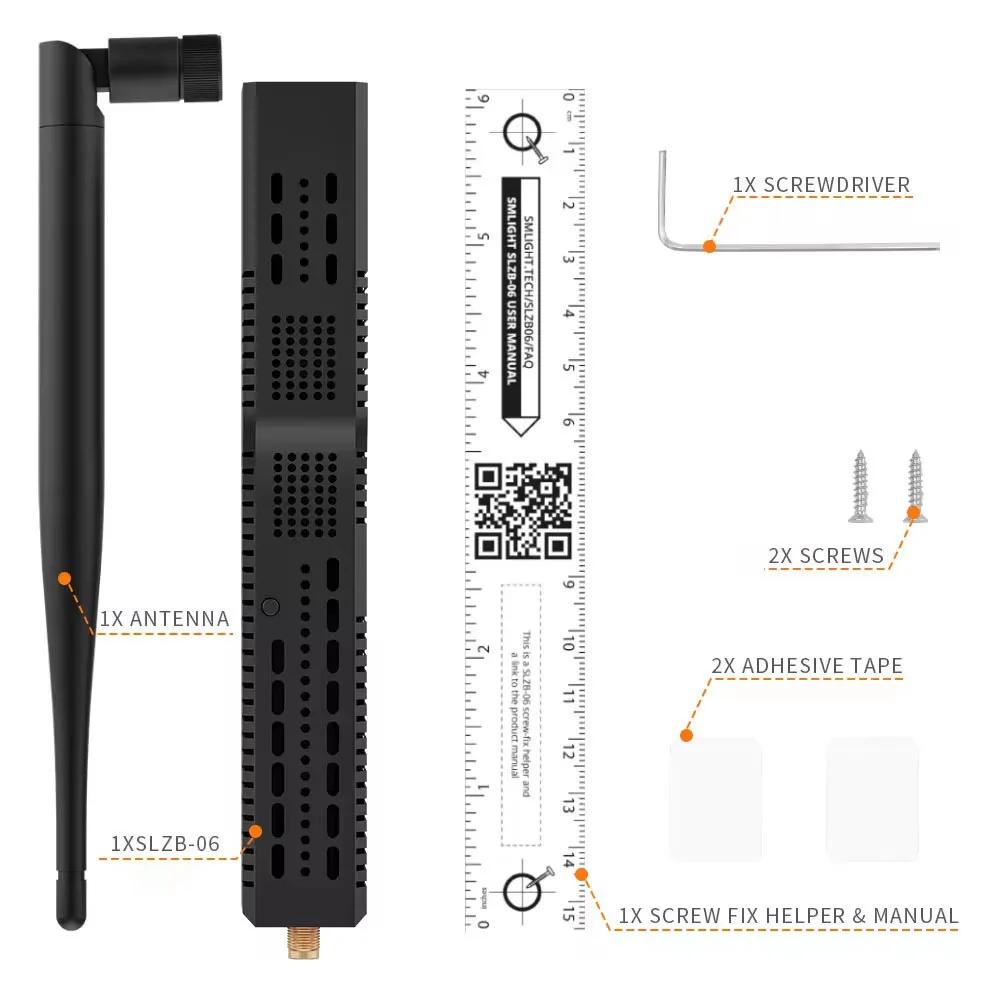

Rich packing: Zigbee Coordinator, +5dB antenna, screws and screwdriver, adhesive tape, Type-C adapter, manual.
Coordinator or Router Zigbee firmware.
Standard or Opensour Core firmware.
ZIGBEE SOC SPECIFICATIONS:⭐ SLZB-06, (! Experimental Matter-over-Thread support! sin Apr'24) based on CC2652P Zigbee chip with Cortex M4F 48Mhz, 88kB RAM; recommended by Zigbee2MQTT; completely good for ZHA;
⭐ SLZB-06M, based on EFR32 Zigbee chip with Cortex-M33 80Mhz, 96kB RAM – native for ZHA Home Assistant and works well with Zigbee2MQTT;

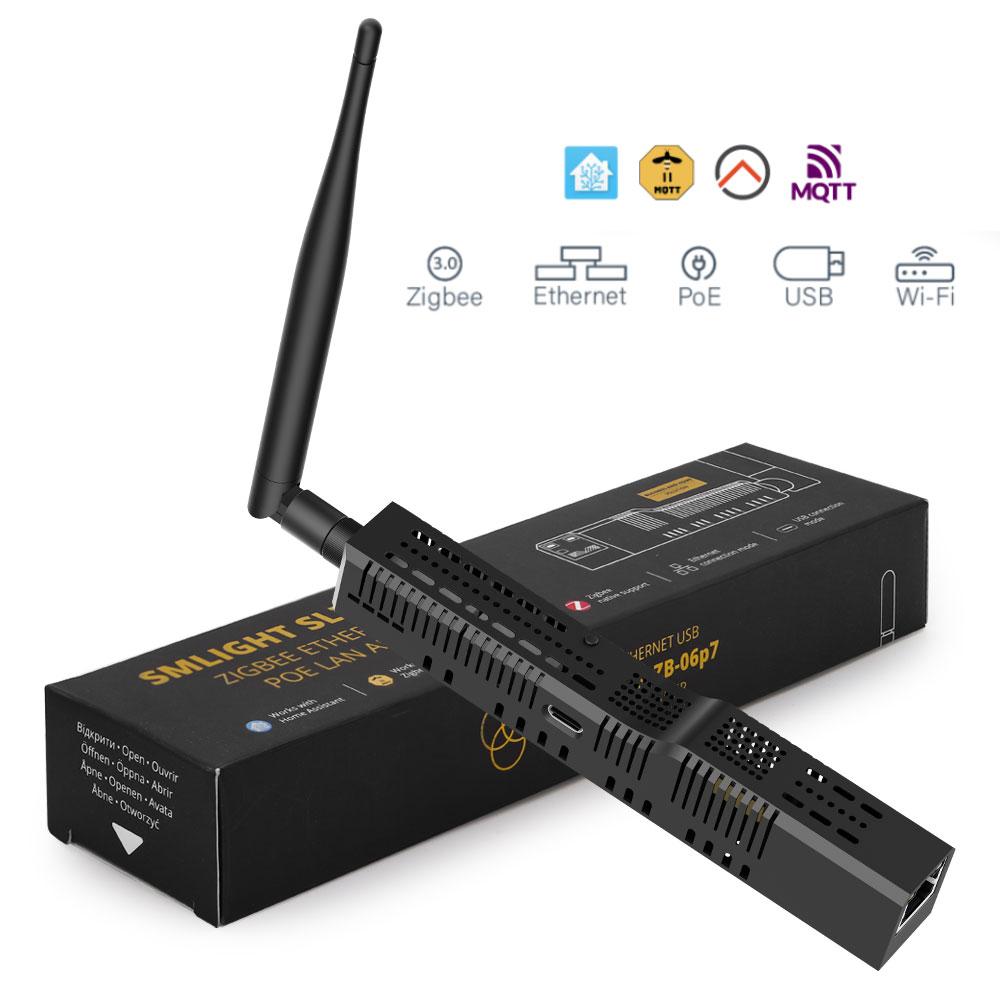

⭐ SLZB-06p7, based on CC2652P7 Zigbee chip with Cortex-M4F 48Mhz, 153kB RAM, for Zigbee2MQTT and for ZHA;

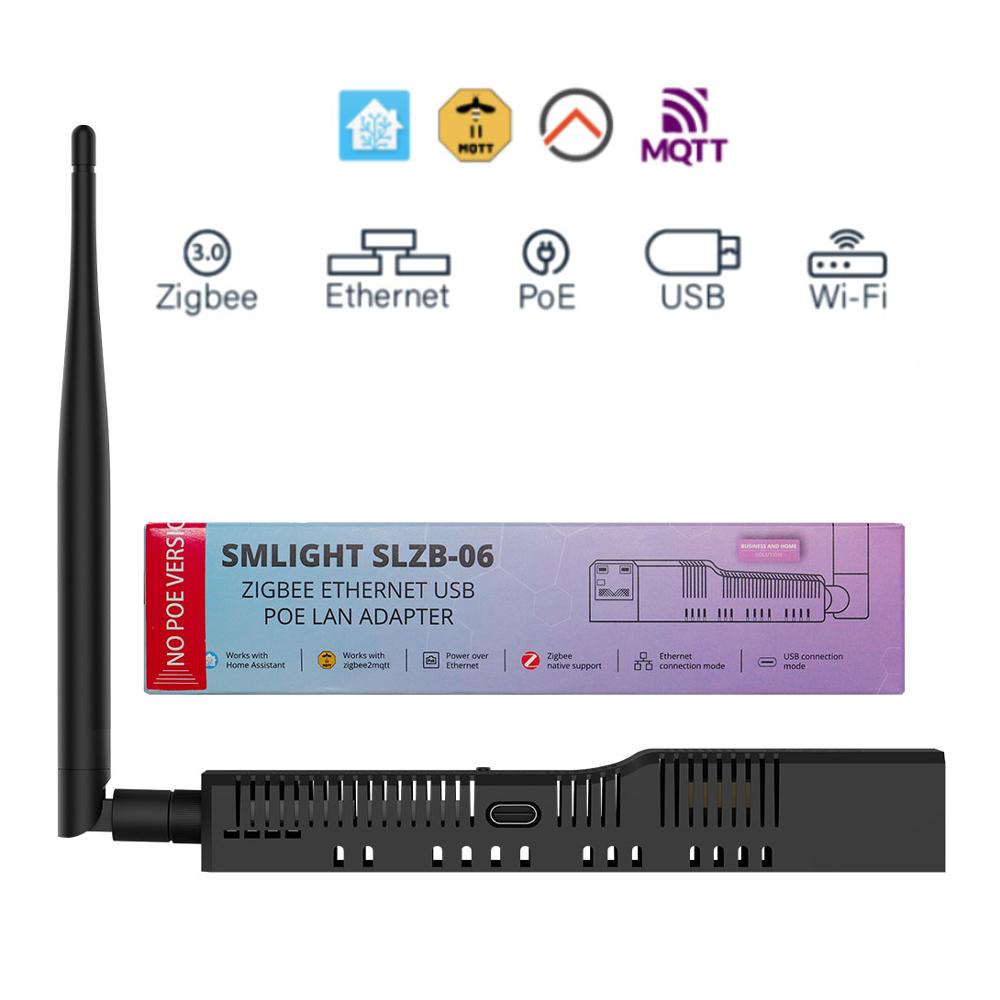

⭐ SLZB-06-NO-POE is the same as SLZB-06 on CC2652P, but without PoE support.
As of April 2024, SLZB-06 has experimental Matter-over-Thread support.
COMPARE DIFFERENT MODELS:
CORE FIRMWARE VIDEO REVIEW:Have a look at Youtube's 10 min SLZB-06 firmware video review. Click to open on Youtube.
QUESTIONS AND ANSWERS:Q1: Do these coordinators work with Zigbee2MQTT and ZHA?
A1: Yes, all models work with both Zigbee2MQTT and ZHA.
Q2: Do I benefit from using SLZB-06p7 based on er SoC C2652P7?
A2: If you do not plan to have more than 200 end Zigbee devis, you do not need pay more for CC2652P7 chip. Moreover, CC2652P and CC2652P7 are based on the same prossor Cortex M4F 48Mhz, the only differen is RAM.
Q3: Can I connect multiple adapters to the same instan of Home Assistant?
A3: Yes, you can. You will need to run two or more instans of Zigbee2MQTT. Please check out the product manual with an explanation.
Q4: Can I use “passive” 24V PoE?
A4: Adapter supports active PoE standard IEEE 802.3af. So Only PoE routers and injectors with this standard will work.
Q5: Is it possible to use devi in Wi-Fi mode?
A5: Yes, it is. What you need is just choose mode to Zigbee-to-Wi-Fi and connect to your Wi-Fi network.
Q6: Are there any delays in Zigbee while using via Ethernet?
A6: No, actually Ethernet 100Mb is much faster rather than the baud rate used for USB serial connection 115k.
Q7: My Home Assistant server is located in the basement. Can I put SLZB-06 in my leaving room and connect to it via Ethernet?
A7: Yes, basically that is the point for SLZB-06: you can locate your Zigbee Adapter wherever you want and do not stick to the server. Even remote connection remote buildings works.
PHOTOGALLERY:

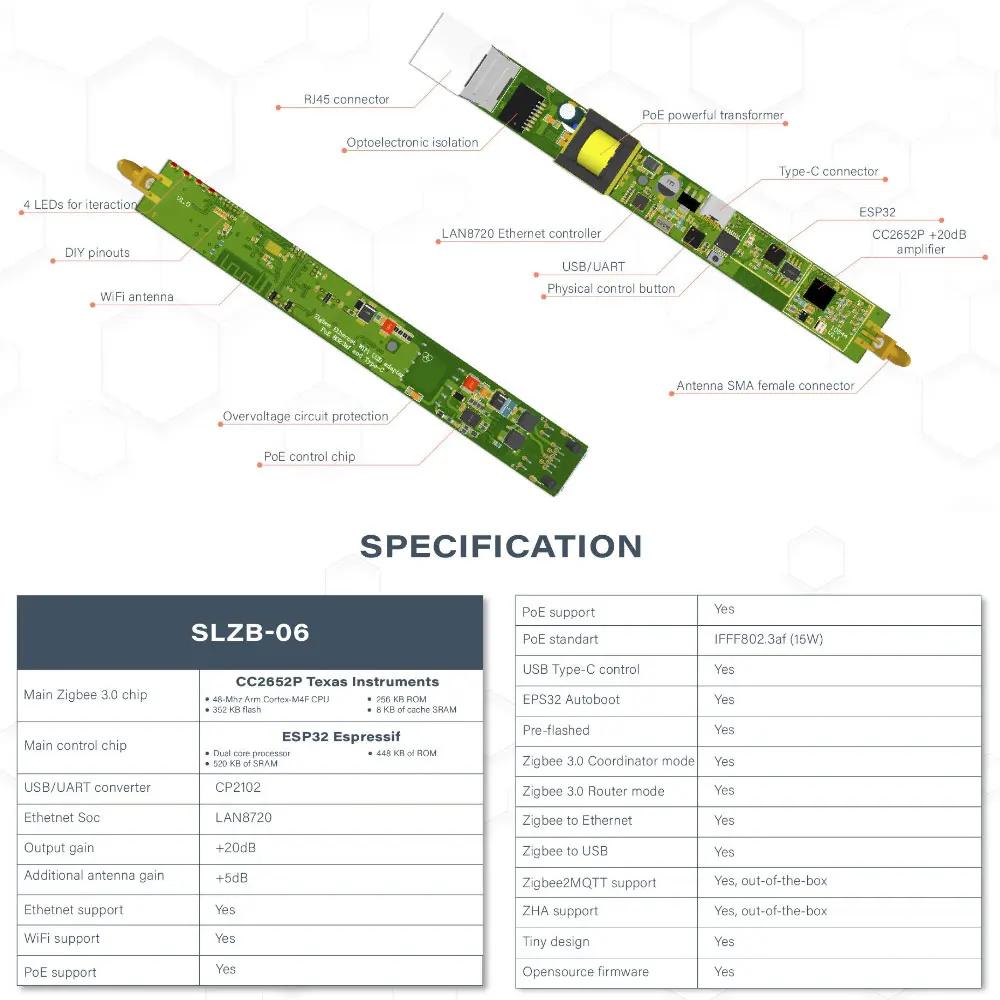

OTHER DATA:· Wireless SoCs: Zigbee Texas Instruments CC2652P1FRGZR, Arm Cortex-M4F microcontroller @ 48 MHz with 352KB flash, 256KB ROM for protocols, and library functions,80+8KB SRAM, integrated power amplifier, Bluetooth 5.2 Low Energy and 802.15.4 radios
· Wireless SoCs: Core Espressif Systems , ESP32-DOWDQ5-V3 dual-core prossor @ 240MHz with 448 KB ROM, 520 KB SRAM, 16 KB SRAM in RTC, WiFi and BLE connectivity
·Connectivity
Ethernet RJ45 port with PoE support (IEEE 802.3af) implemented through Microchip LAN8720 10/100M Ethernet
controller
2.4 GHz WiFi up to 100 Mbps
Zigbee 3.0 support
+5dB SMA antenna included
· USB – USB Type-C port for data and power
· Misc – 4x user LEDs, 1x button
· Power Supply – 5V/200mA via USB or PoE
· Dimensions – 160 x 24 x 22mm
· Operating temperature: +5◦C - +35◦C
Note:
· SLZB-06 designed to work with Zigbee2MQTT or ZHA integration for Home Assistant.
