Label:Yes
Maximum operating current: 65mA
Package Contents:1pc ARC Audio Adapte,1pc USB Cable,1pc Users Manual
Storage temperature: -20~+60℃
Color: Black
Working environment temperature: -10~+55℃
Power Adapter Specification: AC 100V-240V 50/60HZ, DC 5V/1A
Power Supply Interface: Micro USB
Material: Aluminum Zinc Zinc Zinc Zinc Alloy
Main Feature:
1. ARC Audio Extractor --- This Audio Extractor with Input and Coaxial, SPDIF L/R RCA 3.5mm(0.14in) Output, It is Suitable for TV. (NOTE: Only TV Sets with The ARC Function Can Be Supported.)
2. DAC CONVERTER --- This Converter Can Be Used to Convert PCM/ LPCM 2.0CH Digital Audio to L/R RCA and 3.5mm(0.14in) Analog Stereo Audio.
3. 4 INTERFACE Audio Separation --- Coaxial / SPDIF Interface Supports 5.1CH Audio Output, RCA and 3.5mm(0.14in) Interface Supports 2.0CH Audio Output, 4 interface synchronization output.
4. 192kHz 24bit --- Supports Sampling Rate at 32KHz,44.1KHz,48KHz,96KHz and Even 192Khz 24bit, Proving High Quality Audio Transmission.
5. CONVENIENT DESIGN --- Aluminum Zinc Zinc Zinc Zinc Alloy Case with Gold Plated Interface Provide Good Anti-Interference. Let the Sound Quality Nondestructive Switching.
Support SPDIF output
Support Coaxail output
Support RCA Stereo output
Support 3.5mm(0.14in) stereo headphone output
3.5mm(0.14in) stereo headphone port equipped with high-performance audio.amplifier
Support switch noise reduction
Support automatic signal mute function
Support transmission of 192KHz audio sampling rate
Optical fiber coaxial interface supports 5.1 channel transmission

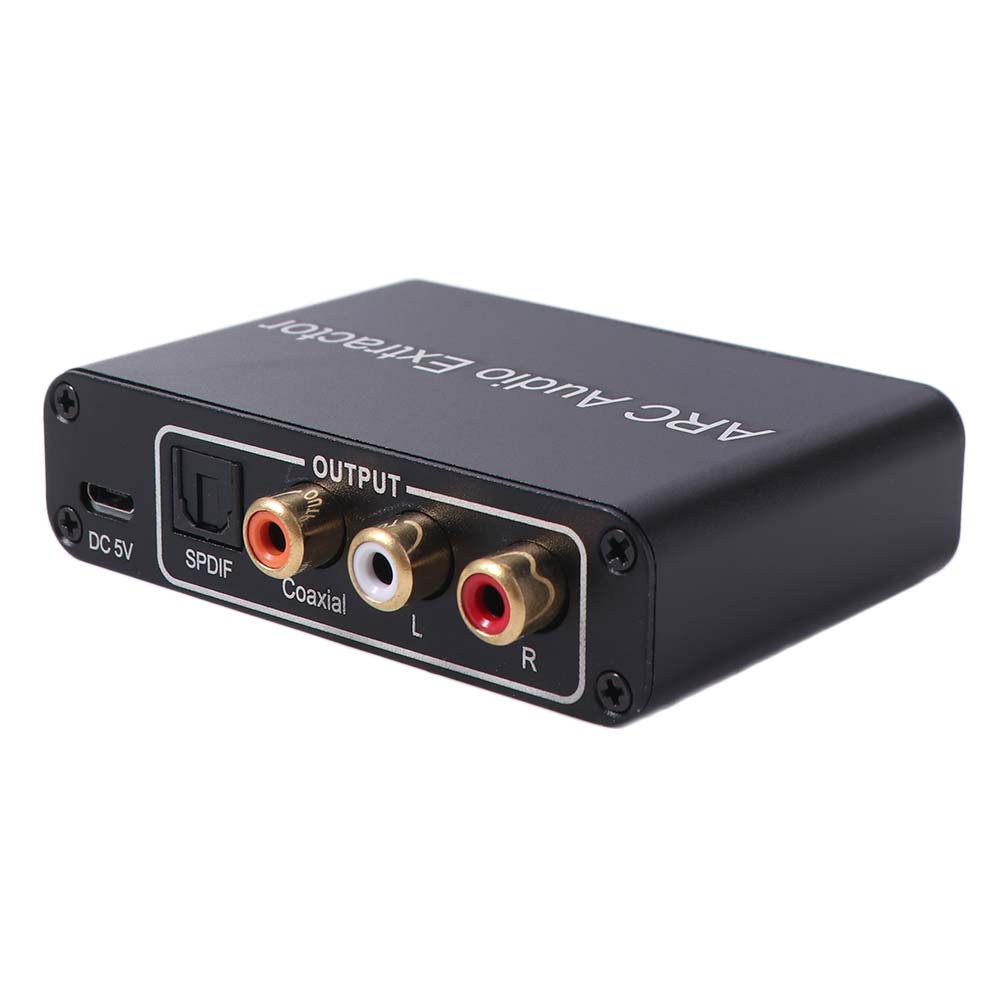

Diagram of Interfaces:
1.R:Right channel output
2.L:Left channel output
3.Coaxial:Coaxial digital audio output interface,connected audio amplification equipment
4.SPDIF:Optical digital audio output interface, connected audio amplification equipment
5.DC 5V:5V Power Interface
6.3.5mm(0.14in) stereo output
7.Power:Power indicator,light up
8.ON/OFF:ARC function switch(not power switch)
9.ARC IN:ARC input port , connected to the ARC interface of the TV
