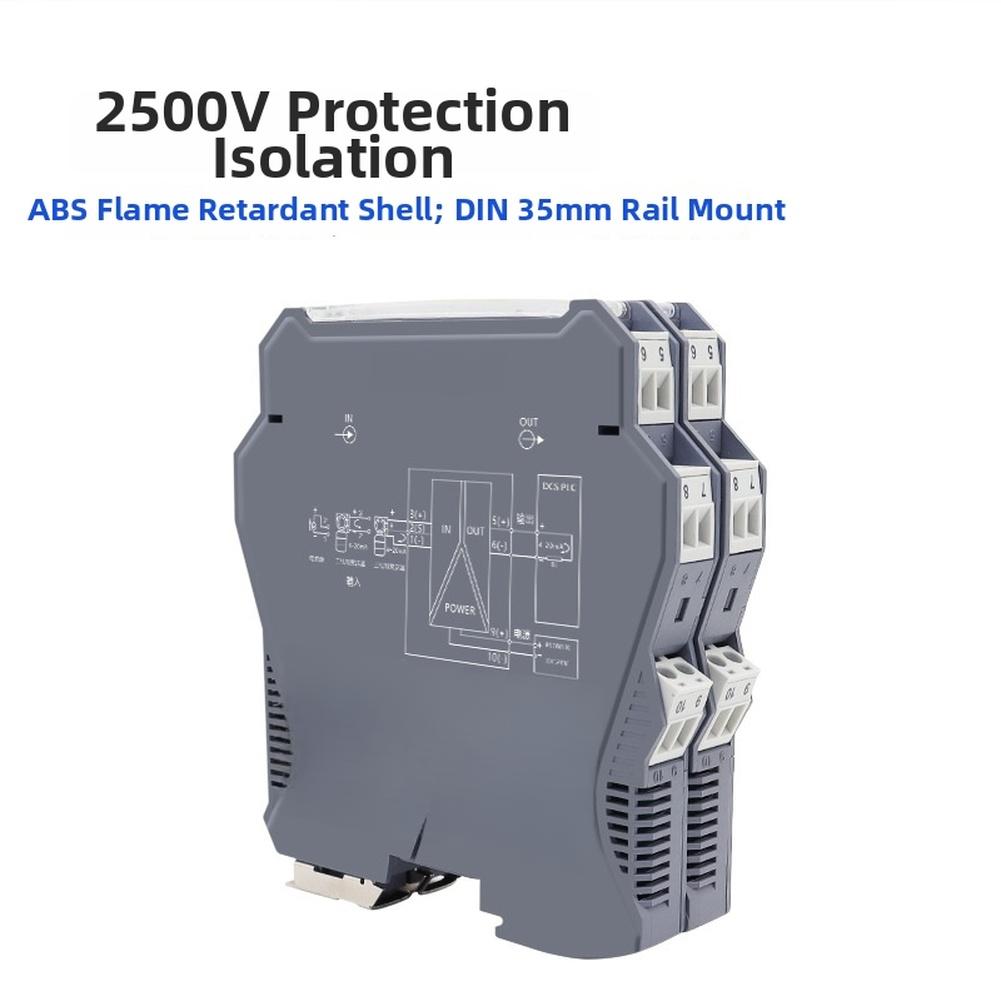

Features:
*Signal Isolation: Provides reliable isolation for 4-20mA and 0-10V signals to prevent interference and FOR ENSURE accurate transmission.
*High Accuracy Conversion: Offers 0.1% F.S. accuracy for precise current and voltage signal conversion in industrial applications.
*Wide Voltage Range: Supports DC24V power supply with a range of DC9-32V for flexible installation in various environments.
*DIN Rail Mounting: Features 35mm DIN rail installation for easy and space-saving integration into control cabinets.
*Robust Protection: Includes 2500V withstand voltage and over-range alarm for enhanced safety in harsh industrial conditions.
Specifications:

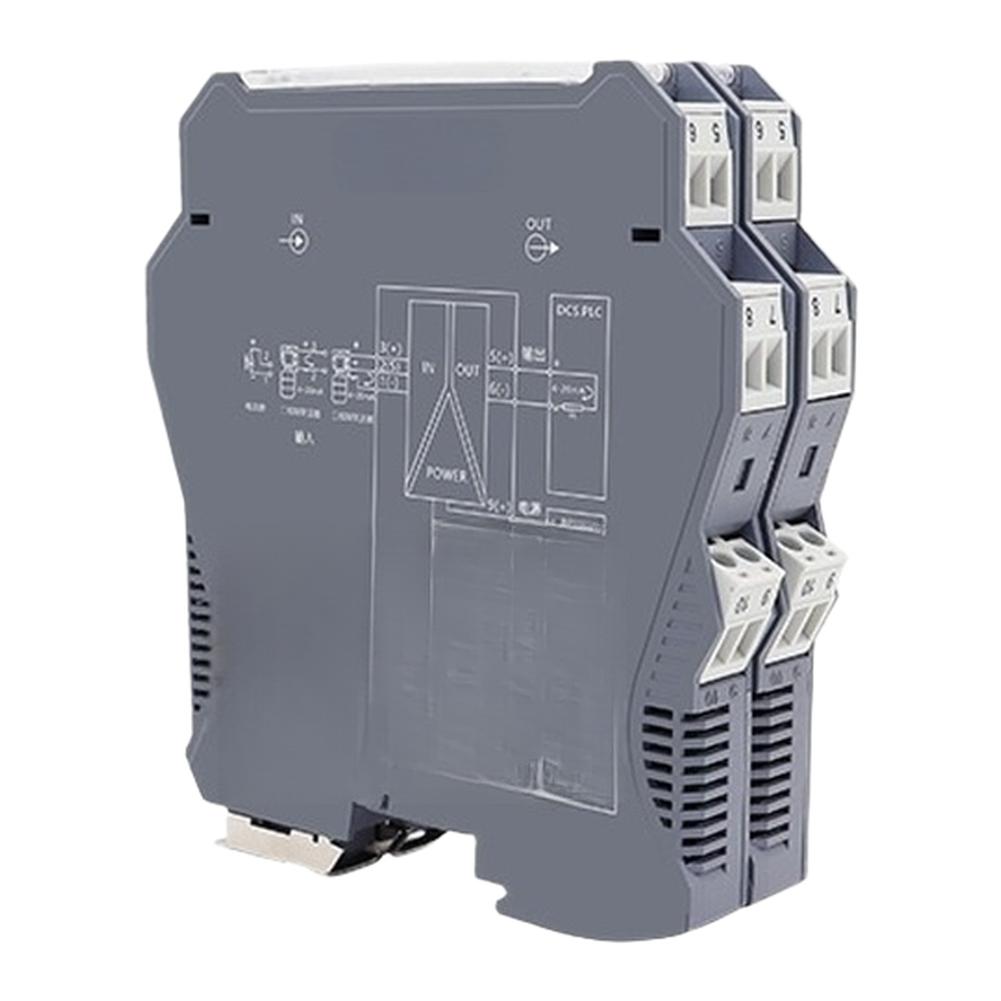

*Product Name:Signal isolator
*Material:ABS flame retardant
*Color:grey
*Size:11*11.9*1.3cm
input signal range: Current signal: 0mA~20mA
Voltage signal: -10V~+10V
Distribution voltage:>21VDC (maximum driving current 30mA)
Input impedance: Current input<50 Ω
Voltage input>300KQ
output end
Output signal range: Current signal: 0mA~20mA
Voltage signal: -10V~+10V
Output load resistance: RL<500 Ω (output as current signal, 20mA)
RL>10K Ω (output as voltage signal, at 10V)
Basic Parameters
Number of channels:1
in1
out,1
in two out
Power supply: DC24V, voltage range: DC15-36V
Current consumption:<60mA (1
in1
out, 24V power supply, distribution input, 20mA output)
<70mA (1
in two out, 24V power supply, distribution input, 20mA output)
Basic accuracy: ± 0.1% F.S (20 ° C)
Temperature drift: ± 0.01% F.S/C (-20 ° C~+60 ° C)
Response time:<30mS (0-90%) (TYP)
Insulation strength: 2500VAC/1min (between input and output)
Insulation resistance:>100M Ω, 500VDC (between power supply, input, output and casing)
Working temperature range: -20~+60 ° C (no condensation, no icing)
Package Content:
1* Signal Isolation Transmitter（1 in 1 out, 1 in 2 out optional）
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
